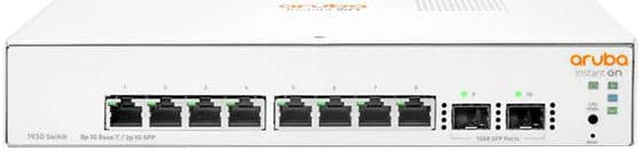

Aruba Instant On 1930 8 Port 2SFP Gigabit Switch - JL680A
- Model
- JL680A
- I/O ports and slots
- 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T);
- Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP 1GbE ports
- Dimension
- 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)
- Processor and memory
- ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Model
JL680A
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3 u Type 100BASETX, IEEE 802.3 ab Type 1000BASE-T);
Duplex:
10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
Dimension
10 (w) x 6.28 (d) x 1.73 (h) in ( 25.4 x 15.95 x 4.39 cm) (1U height)
Processor and memory
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256
MB flash; packet buffer: 1.5 MB
Throughput (Mpps)
14.88 Mpps
Switching capacity
20 Gbps
JL680A
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3 u Type 100BASETX, IEEE 802.3 ab Type 1000BASE-T);
Duplex:
10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
Dimension
10 (w) x 6.28 (d) x 1.73 (h) in ( 25.4 x 15.95 x 4.39 cm) (1U height)
Processor and memory
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256
MB flash; packet buffer: 1.5 MB
Throughput (Mpps)
14.88 Mpps
Switching capacity
20 Gbps
