4 Port Outdoor Gigabit POE Switch,Indoor/Outdoor Waterproof,IEEE802.3af/at/bt Compliant,BT & DC Input,60W,PoE++ BT Port 25W,AI Watchdog,Plug and Play

6
Ports: Including 4 * 10/100/1000Mbps network port (standard 48V POE output power supply), 1 * 10/100/1000Mbps upper network interface (BT 48-56V POE input), 1 * 10/10/1000Mbps SFP upper optical interface.
High POE Power: Comply with IEEE 802.3 af/at/bt standard (only port PoE in supports IEEE 802.3 af/at/bt), and the maximum output power of a single port is 25W; It is used for POE surveillance camera, wireless bridge, wireless AP and other high-power devices.
IP55 Waterproof: Professional outdoor shell design, ABS polymer material, extraordinary toughness, waterproof, anti-skid, high temperature resistance, can withstand a wide range of working temperature (- 35 ° C~65 ° C) and working humidity (10%~90%, non condensing).

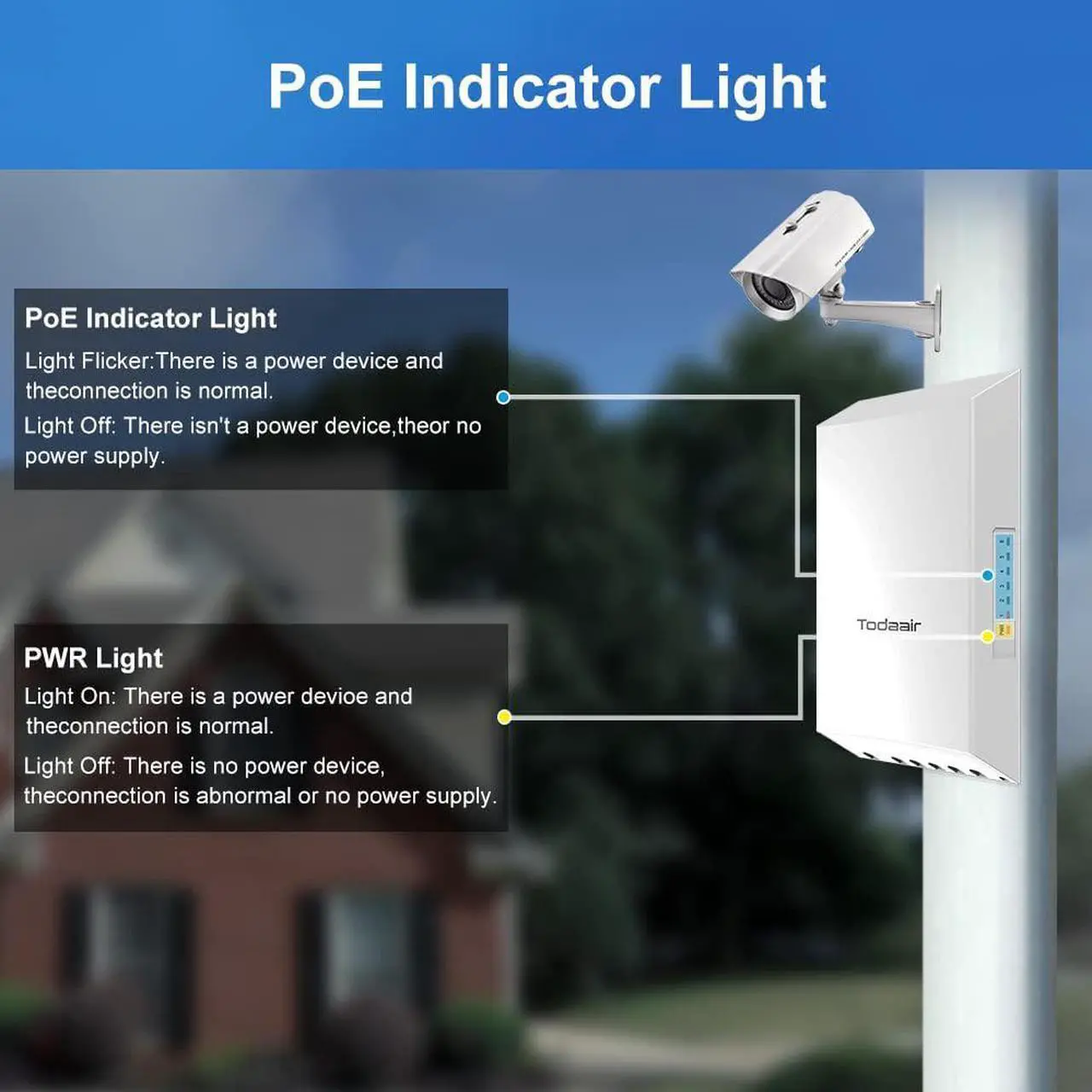

Flexible Deployment & External Indicator Light: Plug and play, no software or configuration is required, and it is specially designed for wall mounted or derrick mounted flexible deployment. You can directly see the connection status of each port through the signal light, and monitor the power supply and transmission of each power supply PoE device at any time.

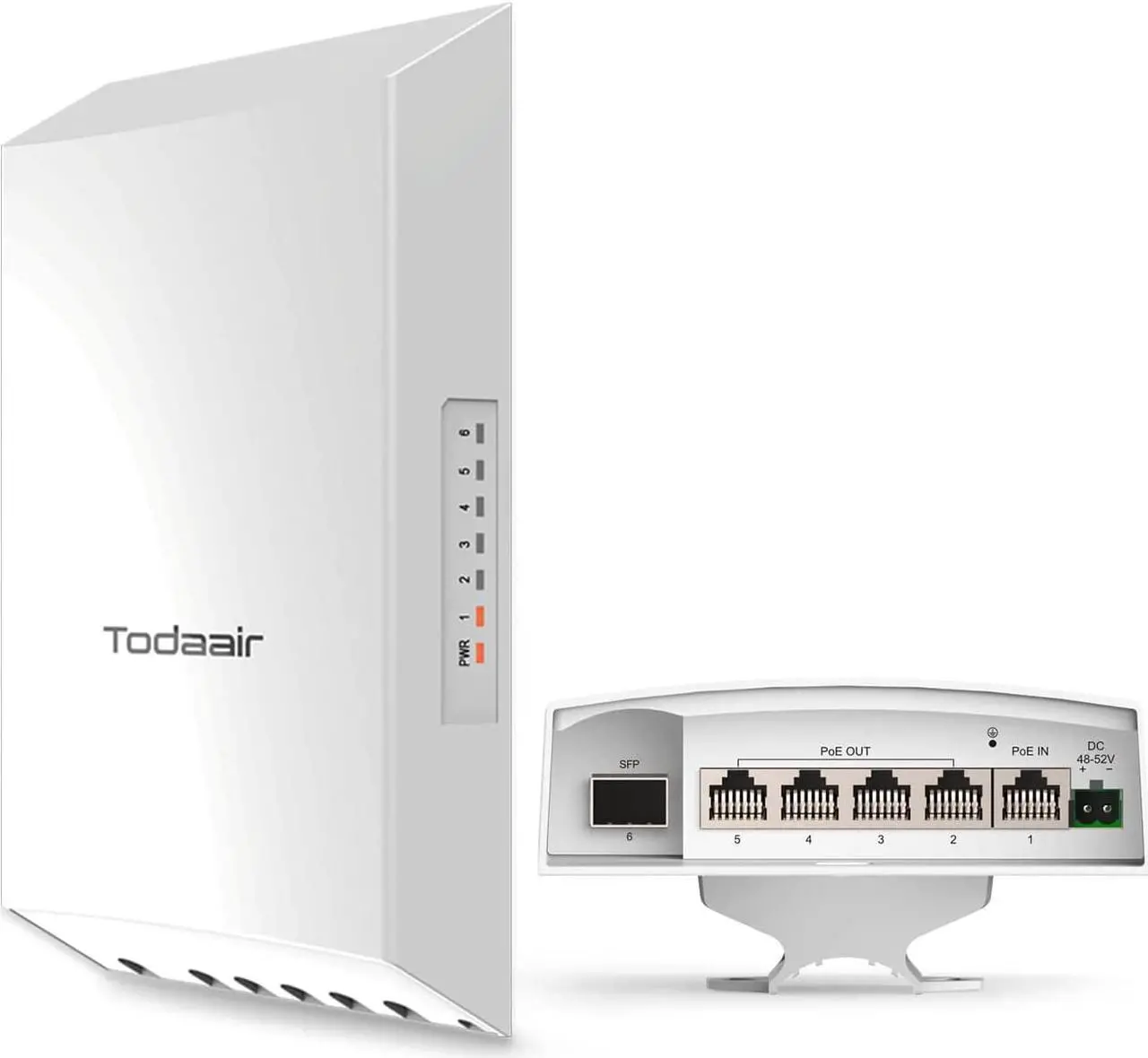

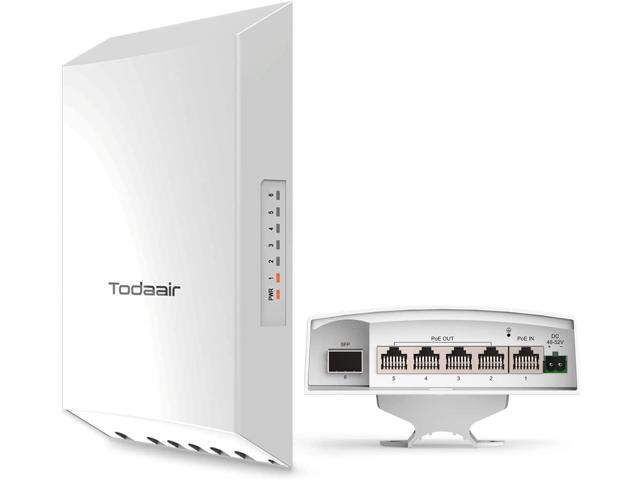

4 Port Outdoor Gigabit PoE++ Switch
Product Parameters:
4*10/100/1000Mbps Network Ports (Standard 48V PoE Power Supply)
1*10/100/1000Mbps Uplink Port(BT 48-56V POE input)
1*1000Mbps SFP Port
Comply with IEEE 802.3 af/at/bt Standard(Only Port Put in Supports IEEE 802.3 bt)
Single Port Maximum Power: PoE 48V 25W
The Maximum Power of the Whole Machine: BT input is 60W, DC input is 87W
Operating Temperature: -35 ~ 65 Operating Humidity: 10 ~ 90%

What's in the box?
4 Port Outdoor Gigabit PoE++ BT Switch *1
Stainless Steel Ring *1
Quick Installation Guide *1
Plastic Expansion Pipe *1

High Power Single Port 25W Output
The port power can reach 25W, supporting the connection to the high -power PoE camera, router and other devices.

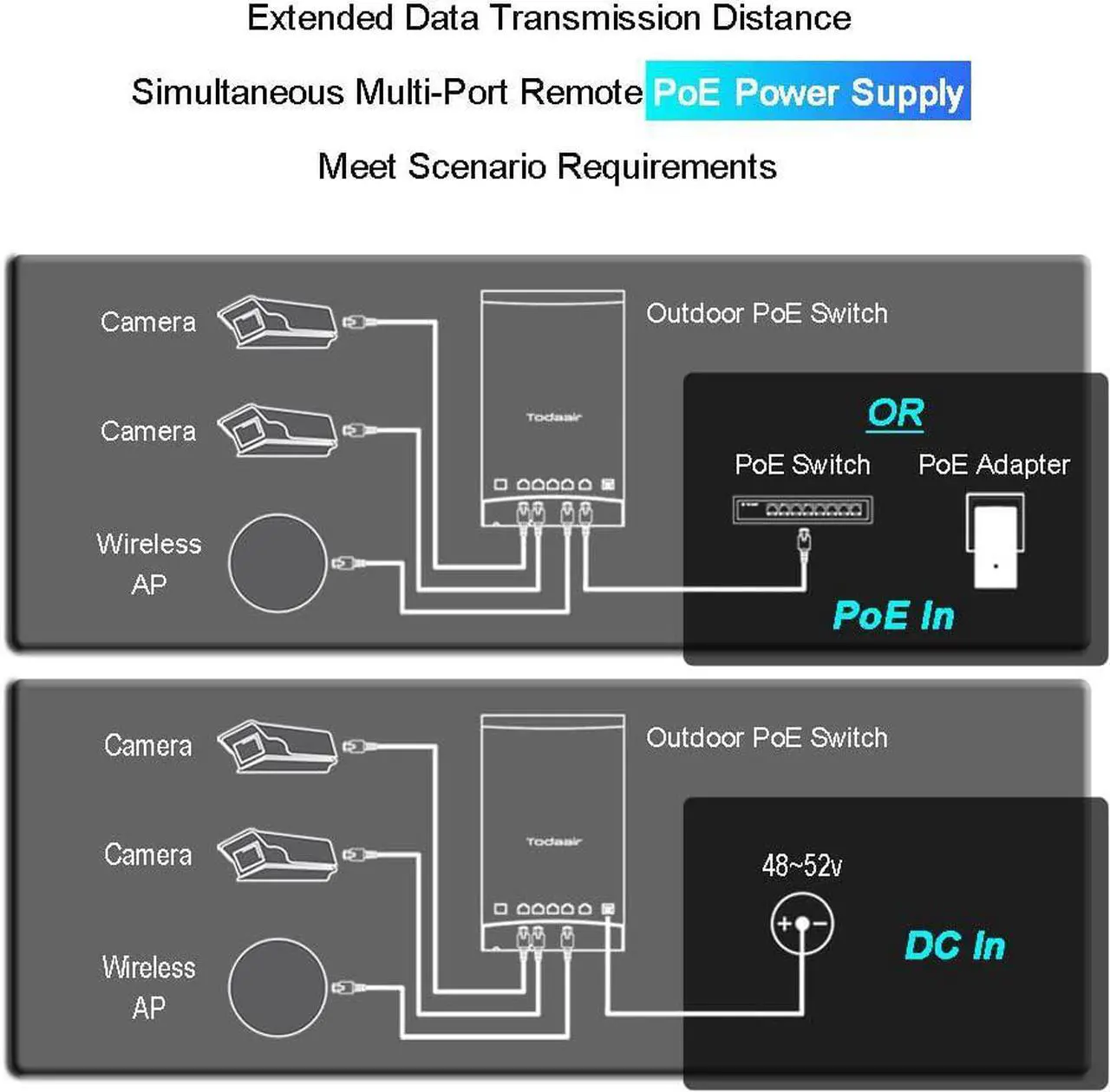

PoE In & PoE Out
PoE in supports IEEE 802.3 BT standard PoE power up networking interface, and PoE out support IEEE 802.3 af/at. It is used for PoE surveillance camera, wireless bridge, wireless AP and other high-power devices.

Multiple Installation Methods
Small size and light weight, wall munt or installed on the pillar. Meet all your installation needs.
