LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W PoE Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor

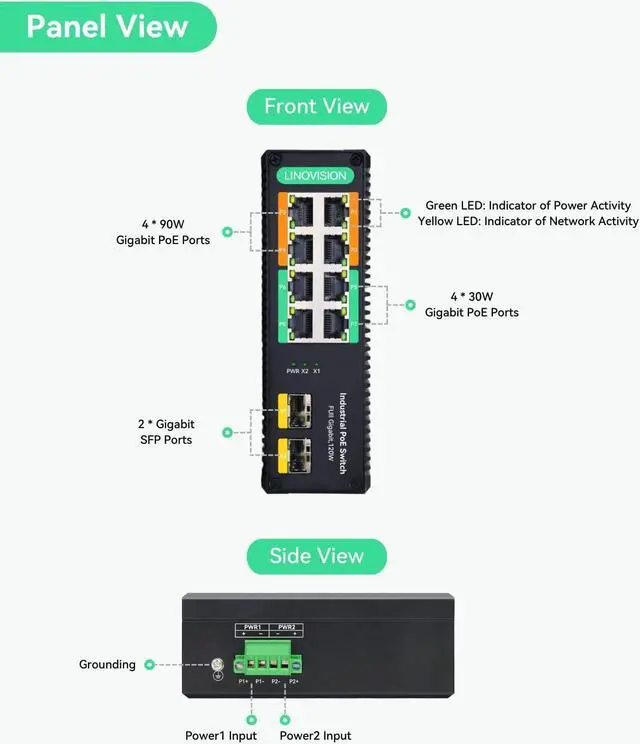

- 8 PORT FULL GIGABIT POE SWITCH - Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.
- 4 BT90W PORTS - The 1~4 ports complying with IEEE802.3af/at/bt POE++ standards, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The 5~8 ports support the IEEE802.3af/at POE+ standards, deliver up to 30W (PoE+) power per port. The total POE budget is 120W.
- POE WATCHDOG - Realtime monitoring POE load device's status and will automatically reboot POE port when the connected device is not active.

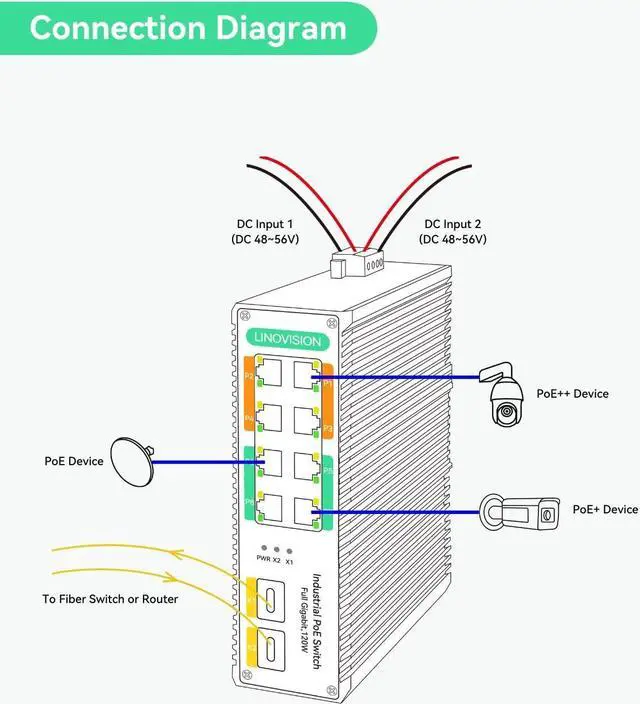

- REDUNDANT POWER SUPPLY - Support 2 channel DC48-56V redundant power inputs. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative) and POE Mode A/B output.
- UL LISTED POWER ADAPTER - Default UL-certified 120W power adapter, optional Mean Well 240W Din rail Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.
- INDUSTRIAL DESIGN - PoE S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
8 PORT FULL GIGABIT POE SWITCH - Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.
4 BT90W PORTS - The 1~4 ports complying with IEEE 802.3 af/at/bt POE++ standards, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The 5~8 ports support the IEEE 802.3 af/at POE+ standards, deliver up to 30W (PoE+) power per port. The total POE budget is 120W.
POE WATCHDOG - Realtime monitoring POE load device' s status and will automatically reboot POE port when the connected device is not active.

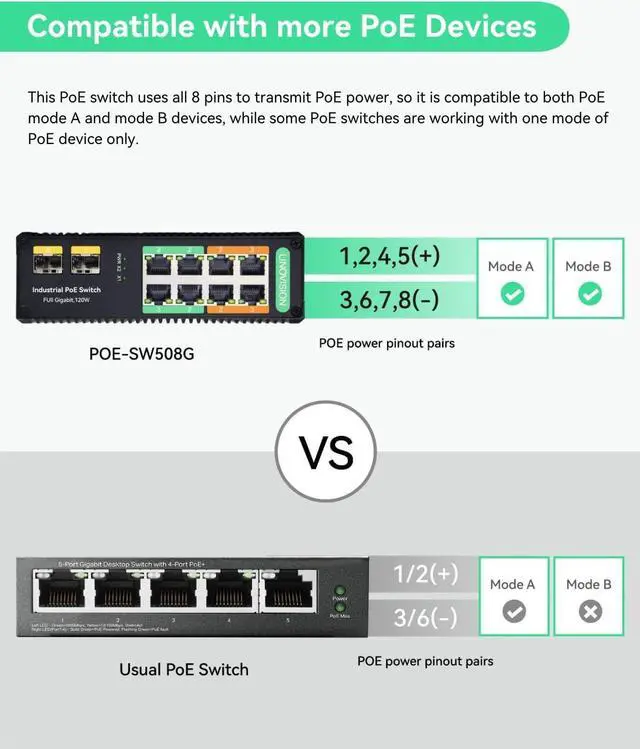

REDUNDANT POWER SUPPLY - Support 2 channel DC48-56V redundant power inputs. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative) and POE Mode A/B output.
UL LISTED POWER ADAPTER - Default UL-certified 120W power adapter, optional Mean Well 240W Din rail
Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.

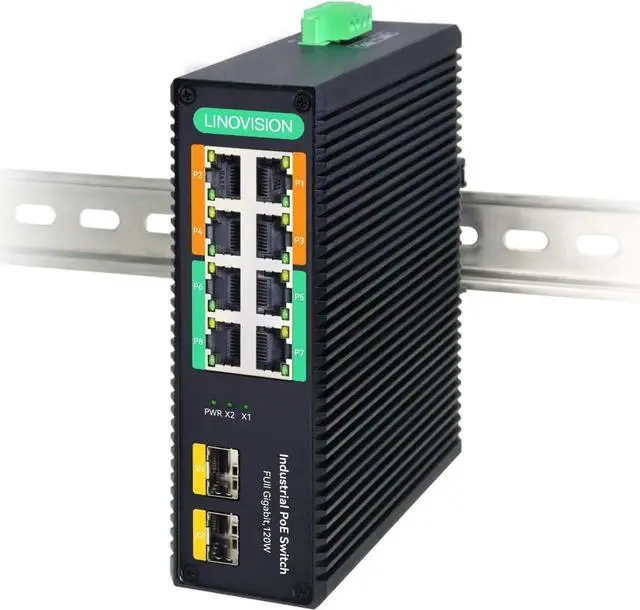

INDUSTRIAL DESIGN - PoE Switch designed with the IP40 metal industrial case, supports Wide working temperature -40 °F to +167 °F (40 °C to +75 °C ); DIN Rail mounting; 6KV surge protection; Suitable for harsh environments such as factory, refinery and traffic light control box.
WORRY FREE SERVICE - Worry free purchasing with 2-year warranty and US Local Tech Support.
4 BT90W PORTS - The 1~4 ports complying with IEEE 802.3 af/at/bt POE++ standards, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The 5~8 ports support the IEEE 802.3 af/at POE+ standards, deliver up to 30W (PoE+) power per port. The total POE budget is 120W.
POE WATCHDOG - Realtime monitoring POE load device' s status and will automatically reboot POE port when the connected device is not active.
REDUNDANT POWER SUPPLY - Support 2 channel DC48-56V redundant power inputs. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative) and POE Mode A/B output.
UL LISTED POWER ADAPTER - Default UL-certified 120W power adapter, optional Mean Well 240W Din rail
Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.
INDUSTRIAL DESIGN - PoE Switch designed with the IP40 metal industrial case, supports Wide working temperature -40 °F to +167 °F (40 °C to +75 °C ); DIN Rail mounting; 6KV surge protection; Suitable for harsh environments such as factory, refinery and traffic light control box.
WORRY FREE SERVICE - Worry free purchasing with 2-year warranty and US Local Tech Support.
