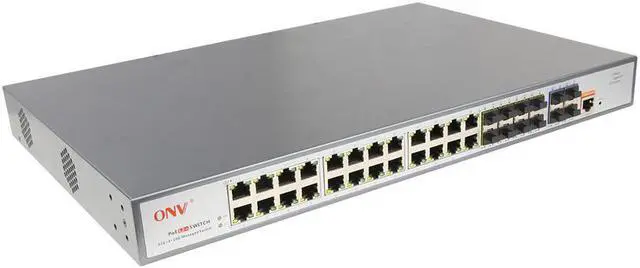

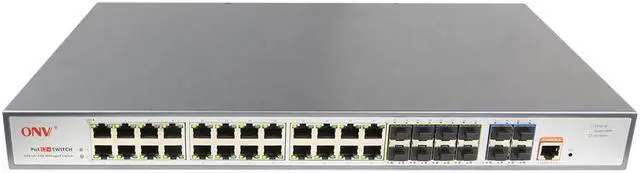

36 port 10G Managed L2+ Core PoE Switch 10/100/1000M PoE RJ45/Gigabit SFP ports ONV-POE36036PFM

36-port 10G L2+ Managed Core PoE Switch, 24*10/100/1000M PoE RJ45 ports + 8*Gigabit SFP ports + 4*10G SFP+ ports, compatible with both IEEE 802.3af/at standard. Max PoE port power: 30W, can be set by management system.

Technical parameter list
Product Name 36-port 10G Managed L2+ Core PoE Switch
Model ONV-POE36036PFM
Connector Type 24*10/100/1000M PoE RJ45 ports + 8*Gigabit SFP ports + 4*10G SFP+ ports
Network Media 10BASE-T: UTP Cat 3, 4, 5 (=100 Meters) 100BASE-TX: UTP Cat 5 or more (=100 Meters) 1000BASE-T: UTP Cat 5 or more (=100 Meters)
Bandwidth 598G
Address Database Size 32K
MTBF 100,000 hours
Forwarding Mode Store and Forward
Buffer Memory 32M
Network Protocols IEEE 802.3,10BASE-T Ethernet; IEEE 802.3u, fast Ethernet Standard; IEEE 802.3ab, gigabit Ethernet Standard; IEEE 802.3z, gigabit Ethernet Fiber Standard;(AOC fiber cable) IEEE 802.3ae,10G Ethernet Standard; IEEE 802.3x, full-duplex Ethernet data link layer flow control;
PoE Ports 24*PoE Ports
PoE Port Power Max 30W
PoE Standard IEEE802.3af/at
Working Environment -40~+80°C
Certification CE, FCC, RoHS
Transmission Distance 100 meters for RJ45 port
Power Supply Type end-span(1/2+, 3/6-)
QoS Yes
VLAN Yes
Product Size 440*290*44.5mm
Warranty 1 year


High-performance of both hardware and software
This 10G L2+ Core PoE Switch uses top-rated 10G network switching chip, multiple layers PCB design, as well as self-developed switch software system. With combination of hardware and software, it improves product quality from forwarding stability, packet processing speed, and other work capability.
Support the fast ring network protocol, free configuration
The switch supports stable and reliable fast Ring Protection Protocol(RSTP). It Achieved real ring loop redundancy protection. Besides, there is no need to configure 10G port when users using this switch, to reduce probability of network failure.
Strong network security
Support dynamic or static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc. Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain , for reducing network risk; Supports perfect storm control function which can suppress broadcast, multi-cast, and uni-cast storm; Support specific ARP inspection which can effectively prevent ‘‘ARP spoofing attack’’ created by hackers or attackers via ARP packets.
Convenient management and maintenance
By easy WEB interface(http and https protocol supported), you can conveniently operate and configure all kinds of function in this switch. Support management by CLI, Telnet, Console port.

Feature
?24*10/100/1000M PoE RJ45 ports + 8*Gigabit SFP ports + 4*10G SFP+ ports
?Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.
?Support spanning tree STP, RSTP.
?Jumbo frames support up to 9.6K kilobytes
?Support enhanced management through WEB, CLI, TELNET, SNMP
?Support cable diagnosis
?24 ports support PoE. Compatible with both IEEE 802.3af/at. Allow PoE configuration for each PoE port


Target Industries
?HD monitor transmission and power supply
?Wireless AP layout transmission and power supply
?Network telephone transmission , intelligent house and home system
?Intelligent transportation supervisory system(ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects


Ordering Information
Product Model: ONV-POE36036PFM
Product Description: 36-port 10G L2+ Managed Core PoE Switch, 24*10/100/1000M PoE RJ45 ports + 8*Gigabit SFP ports + 4*10G SFP+ ports, compatible with both IEEE 802.3af/at standard. Max PoE port power: 30W, can be set by management system. Total input power is 400W.
Note: Default power supply pin type is end-span(1/2+, 3/6-)
