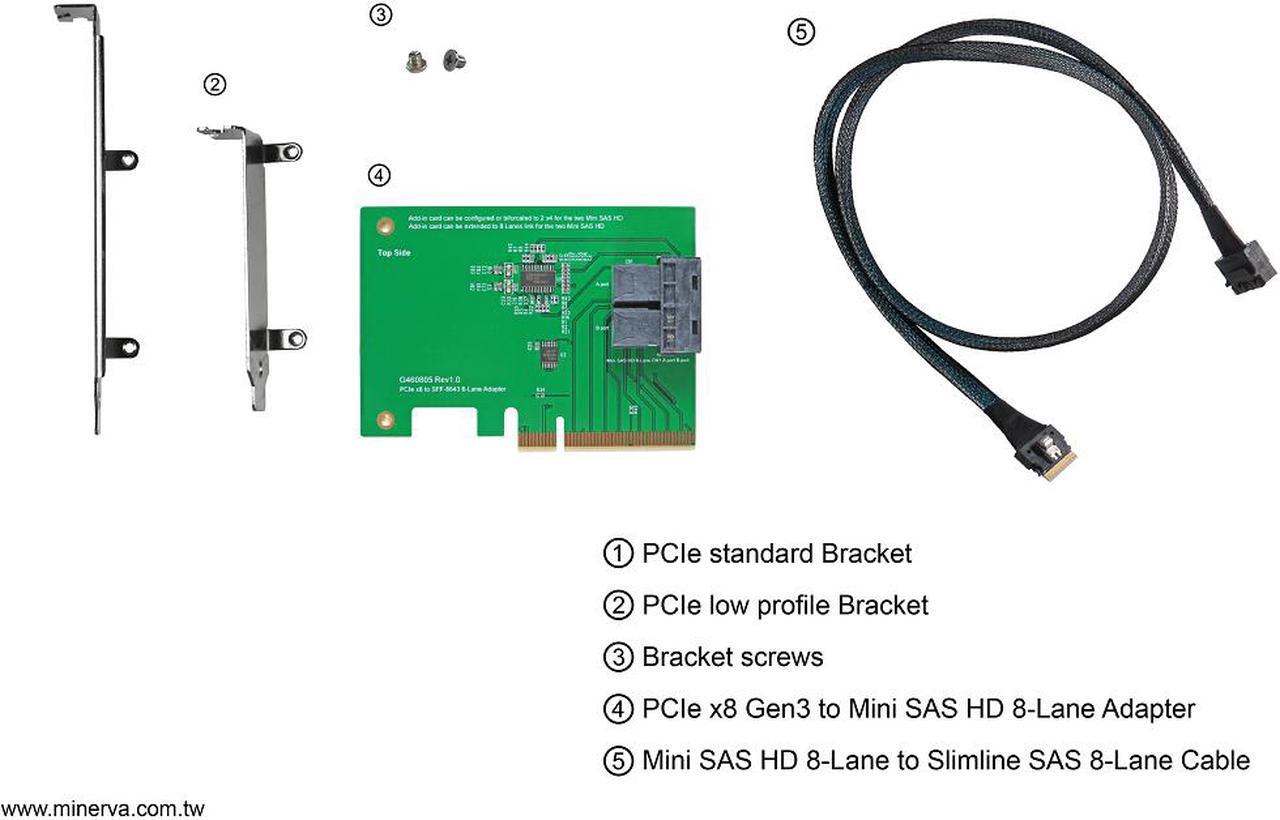

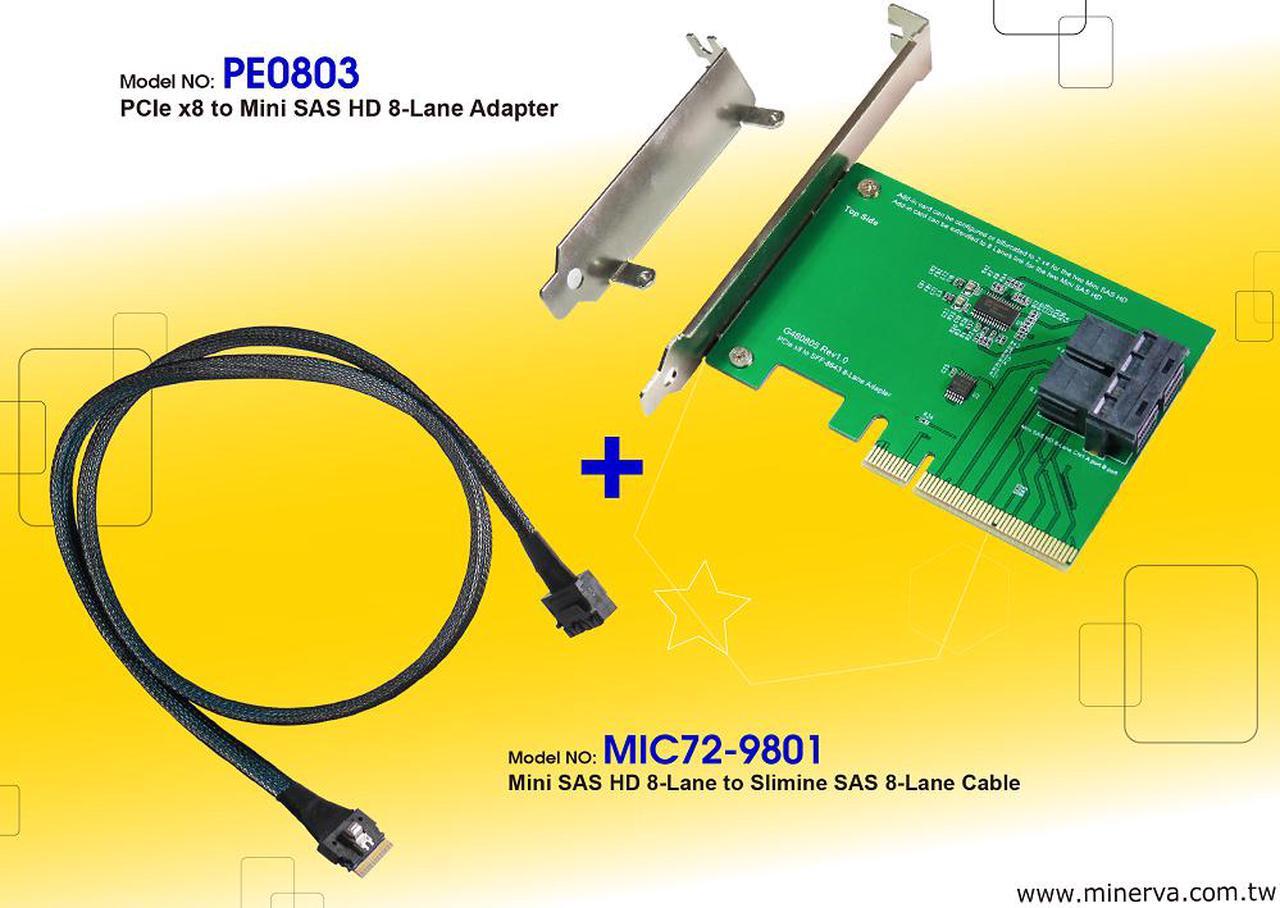

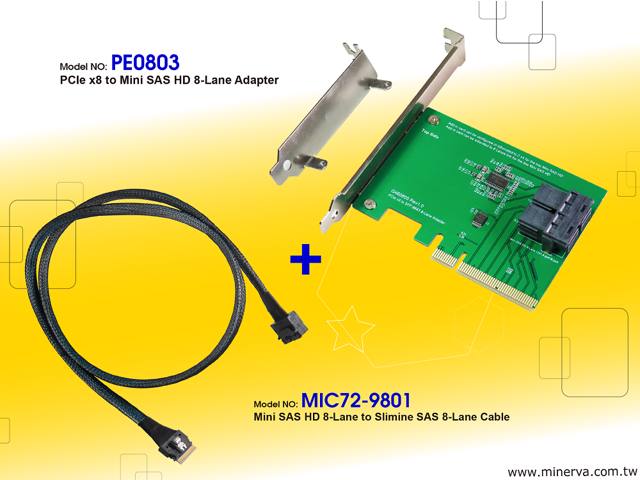

PCIe x8 Gen3 to Mini SAS HD (SFF-8643) 8-Lane Adapter with Mini SAS HD 8-Lane to Slimline SAS 8-Lane Cable KIT
- Notice:
- The Mainboard with CPU and BIOS needs to support bifurcation to eusure PCIe x8 link width to bifurcate two x4 link width for NVMe SSD.
- If not, PE0803 Riser Card only supports PCIe x4 link width
- * www.minerva.com.tw
- * Designed / Made in Taiwan
+
+
Overview
Specs
Reviews
Features: * PE0803 can be offered in two x4 (need CPU and BIOS both support) and x8 configurations * PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity. * Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe * Dual-port PCIe Gen 3 NVMe controller * Four internal lanes per Mini SAS HD port, 3.2B /s per port * Supports two physical NVMEe devices * Supports SFF-9402 clock pin out * Support Intel Define Mini SAS HD SFF-8643 clock pin out * Supports SFF-9402 perst# pin out * Supports Intel Define Mini SAS HD SFF-8643 perst# pin out
Specifications: * Compliant with NVM Express 1.2 a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5
Part Number: MIC72-9701

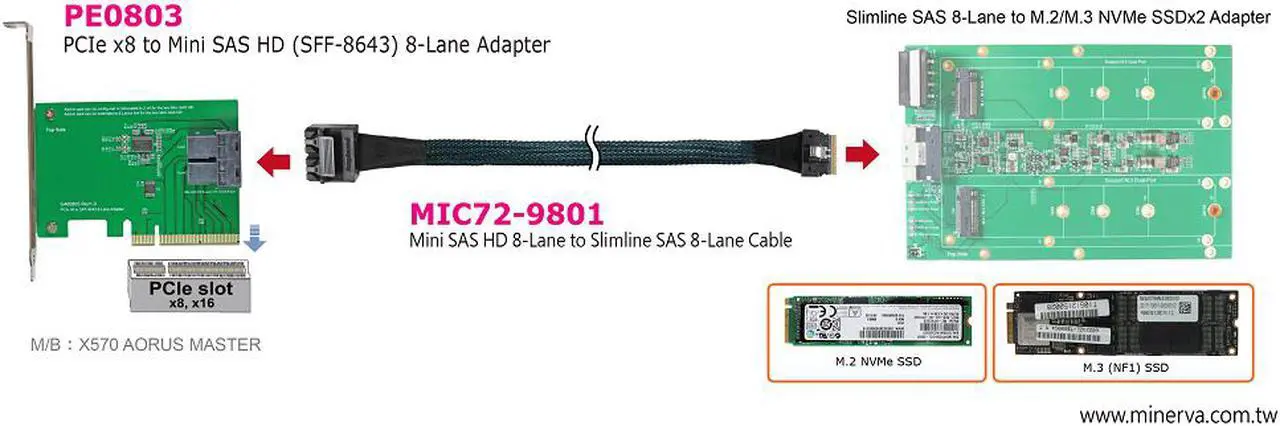

Product Description: Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane
Cable Cable Length: 100CM
Specifications: * Compliant with NVM Express 1.2 a * Support PCI Express Base Specification Rev 3.0 * Support SSD_Form_Factor_Version1_a * Compliant with SFF-8643 Specification Version 3.5
Part Number: MIC72-9701
Product Description: Mini SAS HD (SFF-8643) 8-Lane to Slimline SAS (SFF-8654) 8-Lane
Cable Cable Length: 100CM
