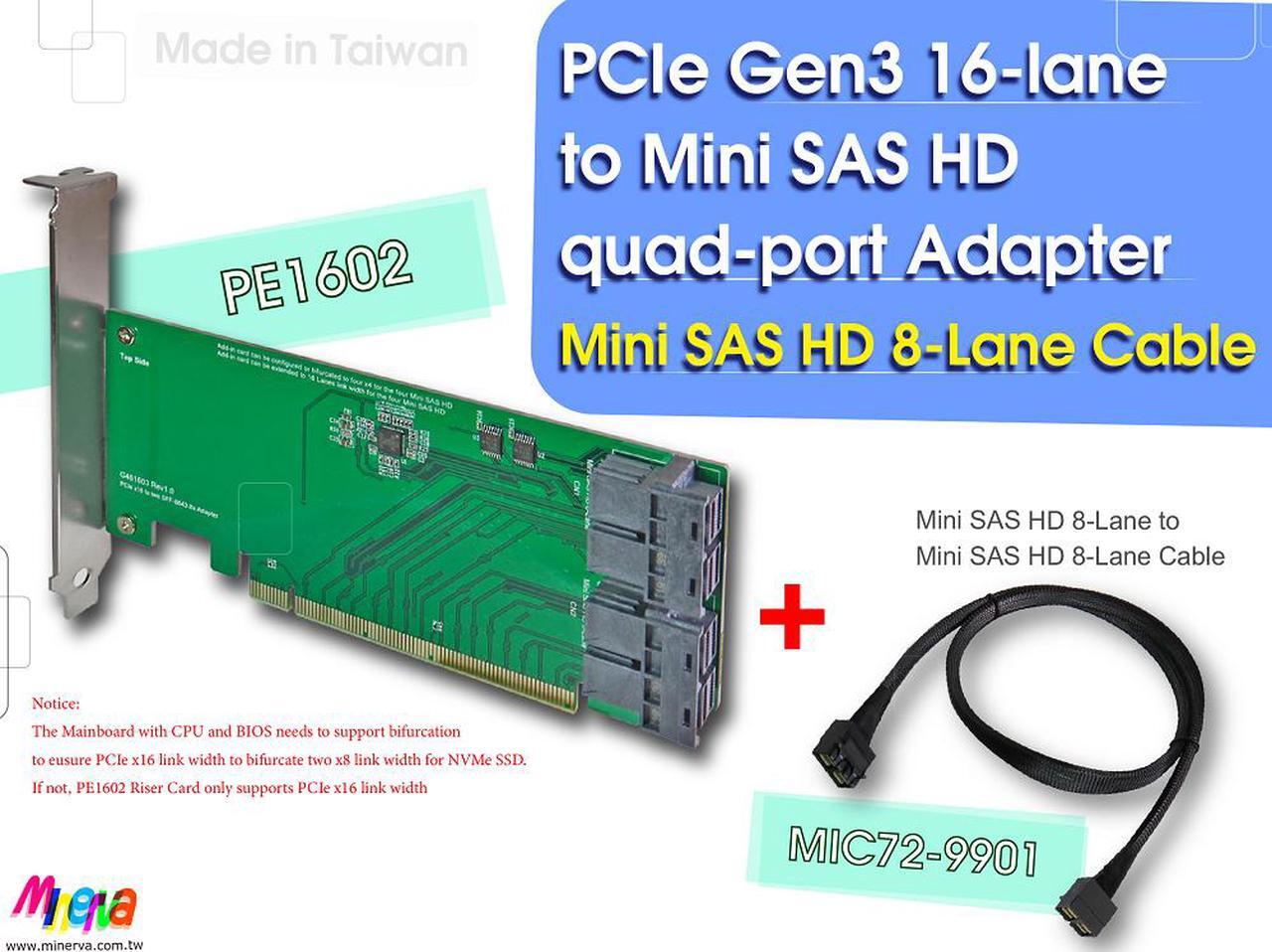

PCIe x16 Gen3 to Mini SAS HD (SFF-8643) quad-port Adapter with Mini SAS HD 8-Lane to Mini SAS HD 8-Lane Cable KIT

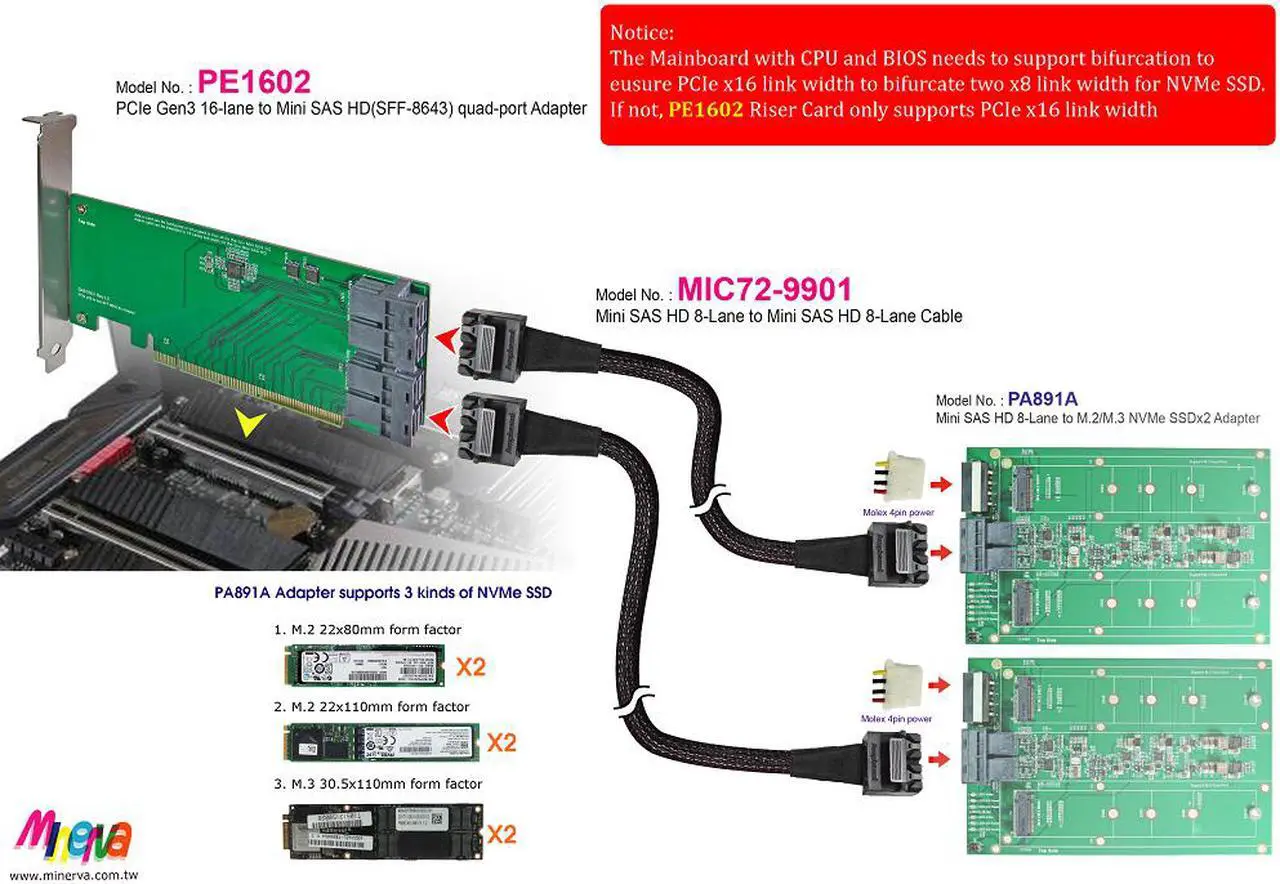

- Notice: The Mainboard with CPU and BIOS needs to support bifurcation to eusure PCIe x16 link width to bifurcate two x8 link width for NVMe SSD.
- If not, PE1602 Riser Card only supports PCIe x16 link width
- Support Mini SAS HD 8-Lane to Mini SAS HD 8-Lane Cable
- www.minerva.com.tw
- Designed / Made in Taiwan
+
+
Overview
Specs
Reviews
Features:

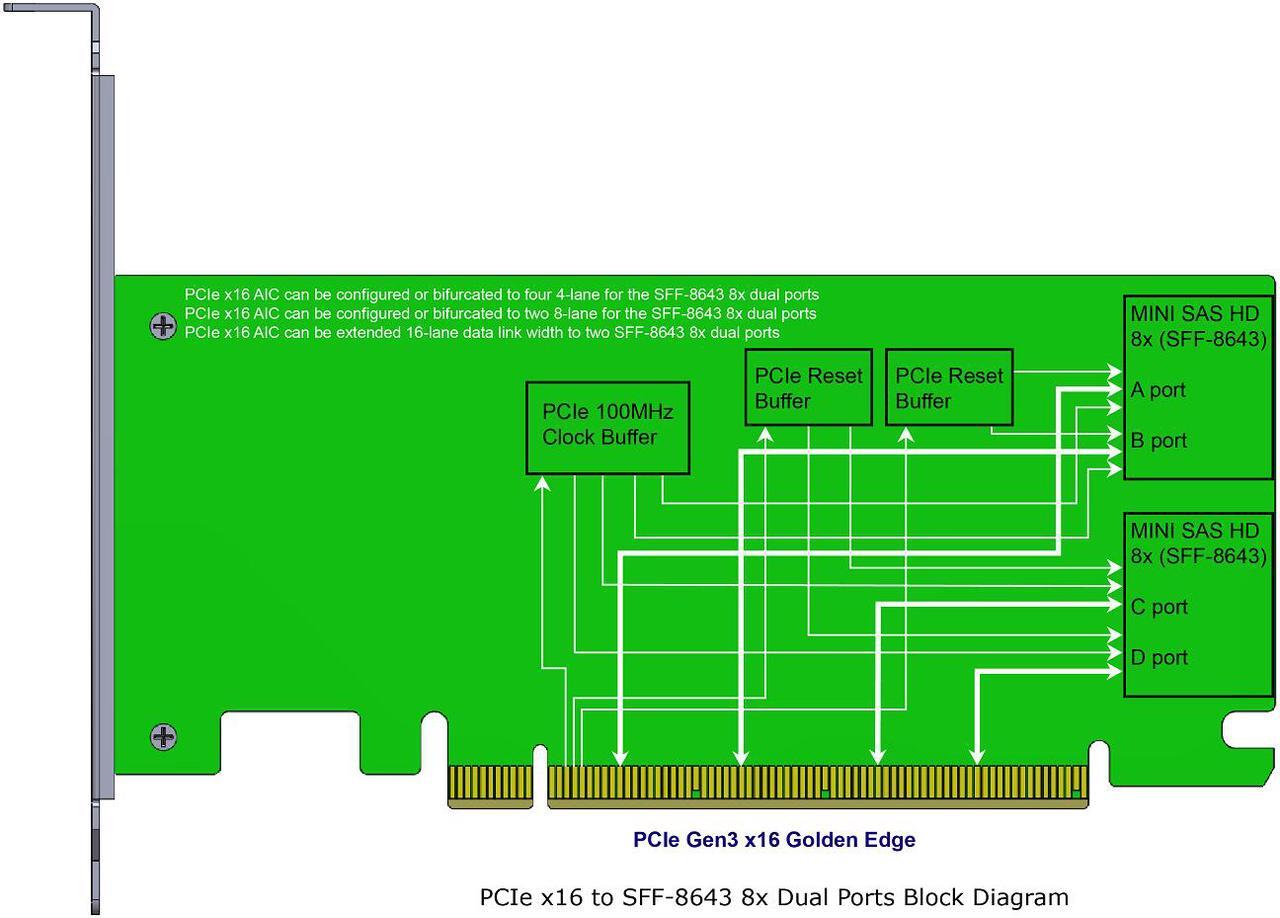

* PE1602 can be bifurcated in quad x4 (need CPU and BIOS both support) and x4 data link width configurations
* PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity.
* Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402
* Four internal lanes per Mini SAS HD port, 3.2G b/s per port
* Supports four physical NVMe devices
* Supports SFF-9402 clock pin out
* Supports Intel define Mini SAS HD(SFF-8643) clock pin out
* Supports SFF-9402 perst# pin out
* Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
* Enables the system clock signal to be used over longer trace lengths and over a cable
* Enables the system perst# signal to be used over longer trace lengths and over a cable
#MIC72-9901 Cable: Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable / 100CM
* PE1602 can be bifurcated in quad x4 (need CPU and BIOS both support) and x4 data link width configurations
* PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity.
* Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402
* Four internal lanes per Mini SAS HD port, 3.2G b/s per port
* Supports four physical NVMe devices
* Supports SFF-9402 clock pin out
* Supports Intel define Mini SAS HD(SFF-8643) clock pin out
* Supports SFF-9402 perst# pin out
* Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
* Enables the system clock signal to be used over longer trace lengths and over a cable
* Enables the system perst# signal to be used over longer trace lengths and over a cable
#MIC72-9901 Cable: Mini SAS HD (SFF-8643) 8-Lane to Mini SAS HD 8-Lane Cable / 100CM
