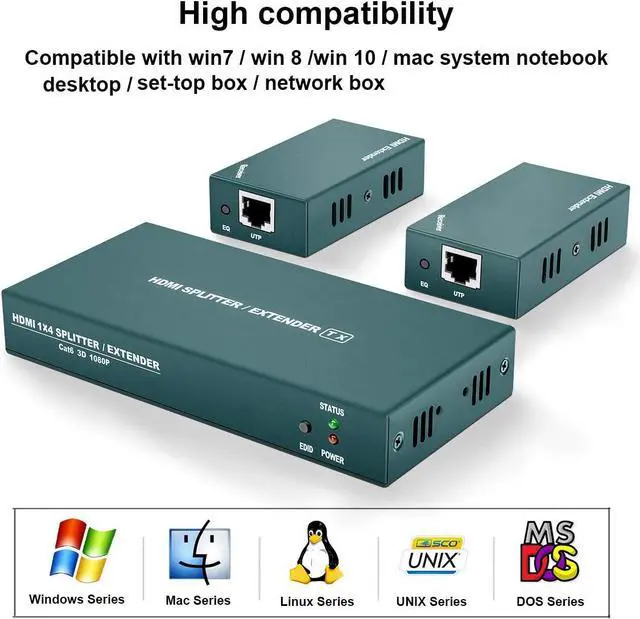

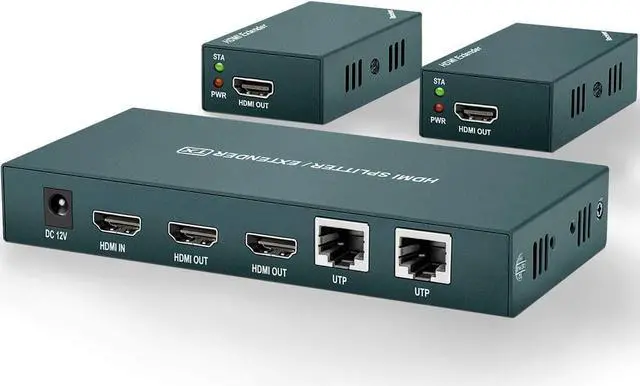

HDMI Extender Splitter 1x2, HD1080P@60Hz & 3D Visual, Extending 165ft (50m) Length Transmission Over CAT5e/CAT6/CAT7 Cable, 2 Channel Transmission with 2 HDMI Loop Out
- HDMI Extender over Cat6/ Cat7 CableIncludes 1 transmitter and 2 receivers. This kit help you extend and distribute 1 HD signal source to 4 HD signal sources over CAT5e/ CAT6/ CAT7, max distance up to 165ft (50m), with 2 local output. To ensure the quality of transmission, we highly recommend use high quality cat cables.

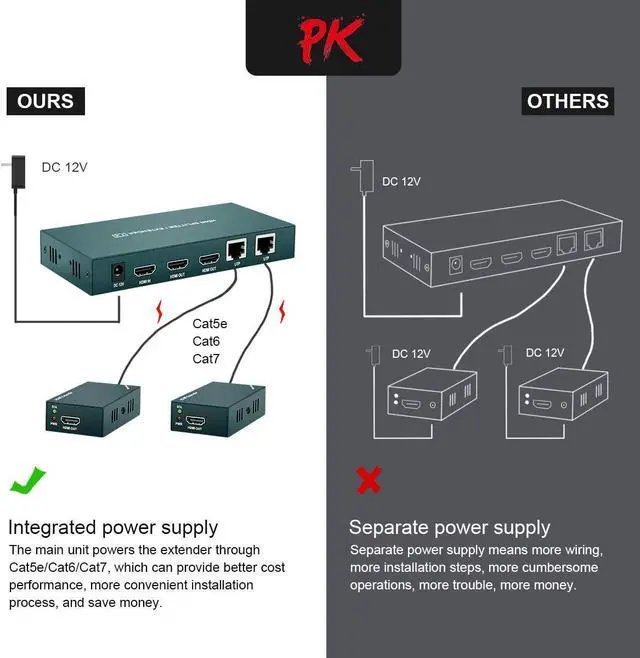

- POC FunctionSupport POC function, means power over cables, only one power adapter be used can support the whole kit operation, reducing mass complicated operations, more simple and convenient.
- LOSSLESS TRANSMISSION Supports video resolution up to 1080P@60Hz and supports 3D visual enjoyment. High quality audio and video synchronous transmission, stable, clear and smooth. Give a feast to your eyes.
- EDID COPY FUNCTION This product has a very powerful EDID copy function, which makes it be able to identify the display device parameters and match it, enhance compatibility with the device, and adapt to various complex application environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Introduction

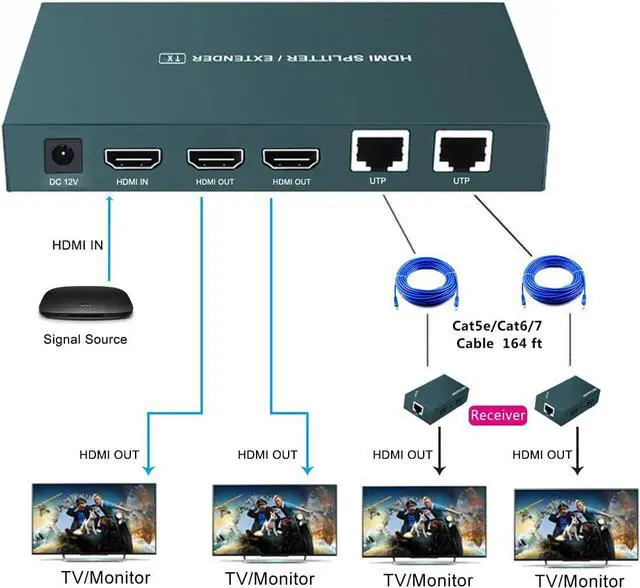

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, transform one channel input to 4 channel output, it supports high resolution up to 1080p. It can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

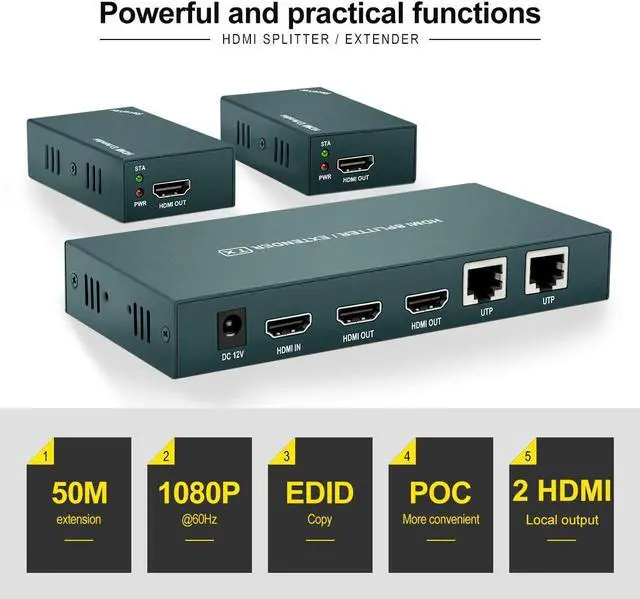

2. Features
(1) Transform one channel HDMI input to 2 channel Cat5e/Cat6/Cat7 signal output, and with 2 HDMI loop output;
(2) Support video resolution up to 1920*1080@60Hz, 3D signal;
(3) Transmits 2 HDMI video and audio signals up to 50M over a single Cat6 cable; (Cat5e---45m);
(4) Support EDID copy function;
(5) Support POC function, only one power adapter be used can support the whole kit operation;
(6) Compliance with HDMI 1.3 standard;
(7) Built-in automatic adjustment system, make the image smooth, clear and stable;
(8) Built-in ESD protection system;
(9) Simple to install, plug and play;
3.
(1) Maximum pixel clock: 165MHz.
(2) Maximum data rate: 6.75G bps.
(3) Interface: RJ45.
(4) Resolution: Max 1920X1080@60Hz
(5) Connector: HDMI-A.
(6) Impedance: 100.
(7) Transmission distance: CAT6---50M
4. Other
(1) Power supply: DC 12V
(2) Power dissipation: MAX 6W
(3) Temperature Operating: -5 ~ +70
(4) Humidity Operating: 5% ~ 90%
(5) Dimension TX: 150*71*23mm/RX: 81*45*23
(6) The warranty: 1 year free warranty

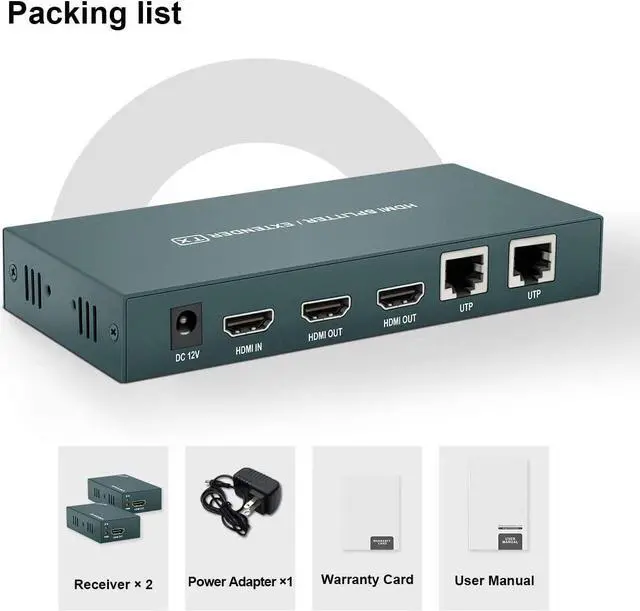

5. Packing List
(1) 1x Transmitter
(2) 2x Receivers
(3) 1x Power Supply
(4) 1x User Manual&nb
The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, transform one channel input to 4 channel output, it supports high resolution up to 1080p. It can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2. Features
(1) Transform one channel HDMI input to 2 channel Cat5e/Cat6/Cat7 signal output, and with 2 HDMI loop output;
(2) Support video resolution up to 1920*1080@60Hz, 3D signal;
(3) Transmits 2 HDMI video and audio signals up to 50M over a single Cat6 cable; (Cat5e---45m);
(4) Support EDID copy function;
(5) Support POC function, only one power adapter be used can support the whole kit operation;
(6) Compliance with HDMI 1.3 standard;
(7) Built-in automatic adjustment system, make the image smooth, clear and stable;
(8) Built-in ESD protection system;
(9) Simple to install, plug and play;
3.
Specifications
(1) Maximum pixel clock: 165MHz.
(2) Maximum data rate: 6.75G bps.
(3) Interface: RJ45.
(4) Resolution: Max 1920X1080@60Hz
(5) Connector: HDMI-A.
(6) Impedance: 100.
(7) Transmission distance: CAT6---50M
4. Other
(1) Power supply: DC 12V
(2) Power dissipation: MAX 6W
(3) Temperature Operating: -5 ~ +70
(4) Humidity Operating: 5% ~ 90%
(5) Dimension TX: 150*71*23mm/RX: 81*45*23
(6) The warranty: 1 year free warranty
5. Packing List
(1) 1x Transmitter
(2) 2x Receivers
(3) 1x Power Supply
(4) 1x User Manual&nb
