Optical SPDIF/Coaxial AC3 DTS DTCL to 5.1 Channel Analog Audio Converter Decoder

Digital Audio Decoder: Used 24-bit audio DSP, 96 KHz digital receivers, and 192 KHz/24bit ADC and DAC. Support Dolby Digital AC-3 Dolby Pro Logic. DTS, PCM and other digital audio format source decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output, will auto work with different amplifier and speakers to get different sound effects. Easy to connect many entertainment devices which with optical and coaxial digital signal and analog output signals(such as: set-top boxes, HD players, Blu-ray DVD, PS2, PS3, XBOX360)

Feature
Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio outputThe analog stereo(L/R)signals after digital processing chip handle convert it to analog 5.1 channel output
Multi-channel audio input(SPIDF, Coaxial, Stereo) 2XSPDIF Input. 1XCoaxial Input. 1XStereo
Analog 5.1 channel or Stereo output
RCA output port can connect with amplifier conveniently
Dimension: 107*88*25mm
Signal to Noise: 120db
Degree of Separation: 85db
Frequency Response: (20HZ~20KHz)+/-0.5db
Max Output Volt: 2.2V
Power Supply DC/5V 1A, (outlay 110V-240V broadband convert DC5V Power)

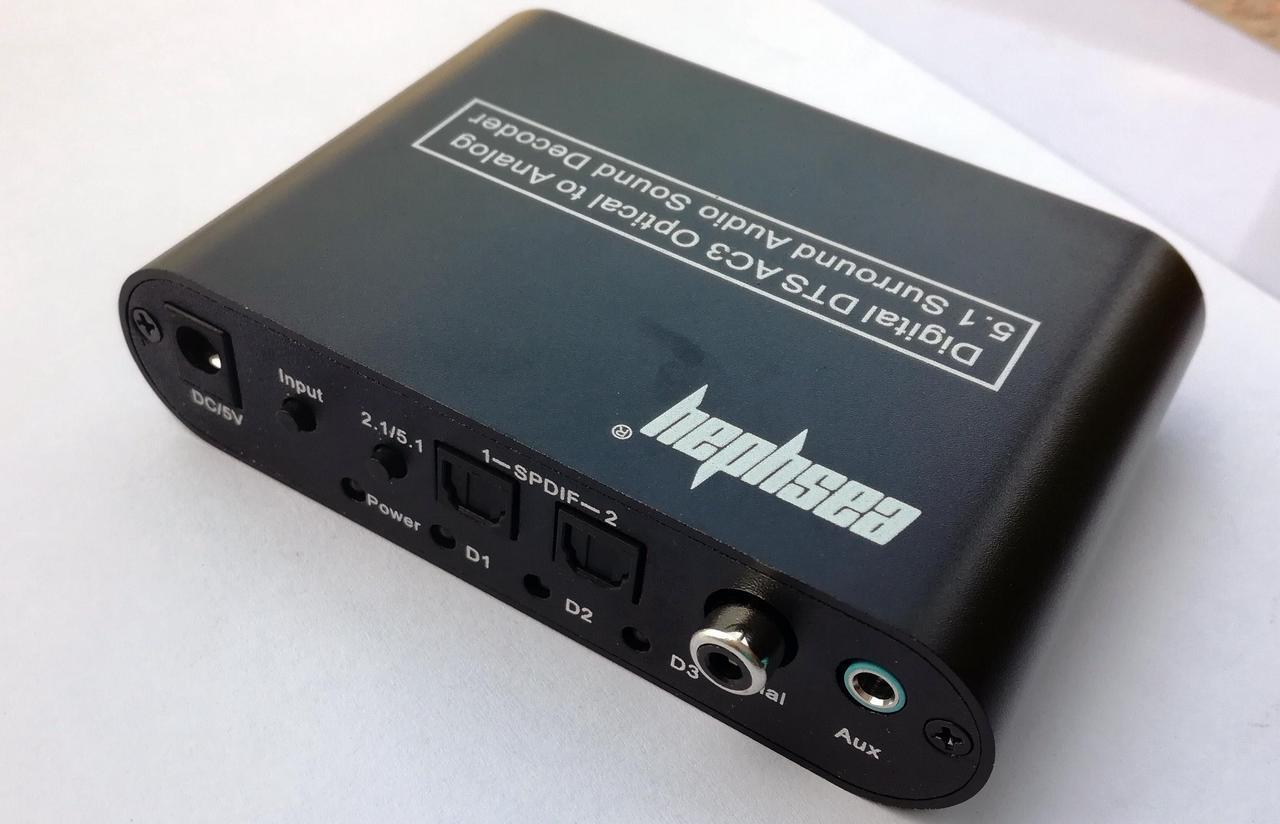

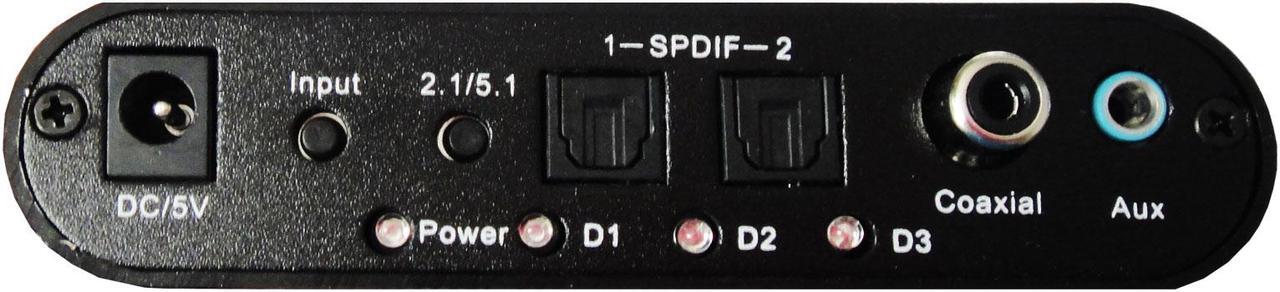

Product Interface Schemati
DC/5V????????Power input
Input????????Input channels(SPDIF,COX,AUX,WHILE D1/D2/D3 correspondingLED lights)
2.1/5.1 t????????Input channels(2.1,5/1)
1????????SPDIF 1 input interface
2????????SPDIF 2 input interface
Coaxial????????Coaxial input
AUX????????Analog stereo input ptical fiber cable or coaxial connection PS3/XBOX360/HD players
Power????????Power indicator, power post-Always
D1????????When you press the input key, switch to the 1.D1 lights
D2????????When you press the input key, switch to the 2.D2 lights
D3????????When you press the input key, switch to the Coaxial,D3 lights(When switch to only POWER light is on, the input is the AUX(stereo)channel)

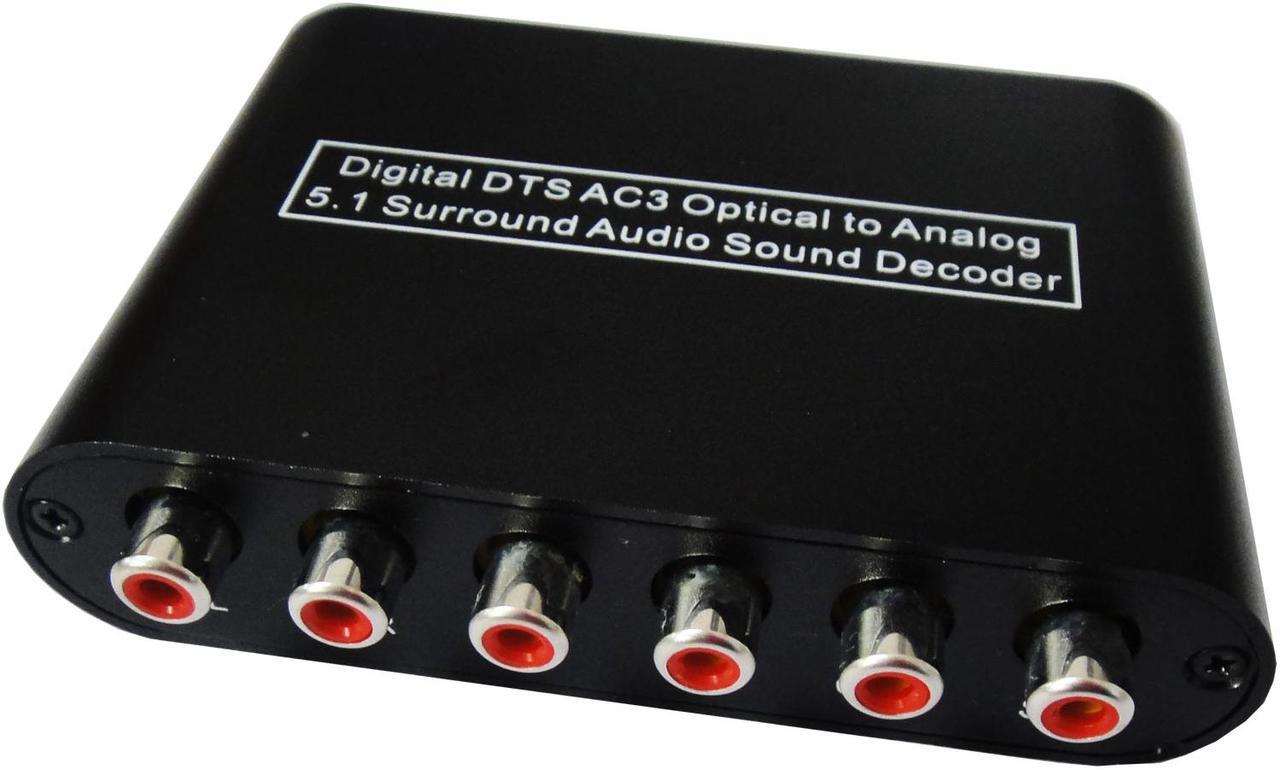

FL????????Connect Amplifier FL interface
FR????????Connect Amplifier FR interface
SL????????Connect Amplifier SL interface
SR????????Connect Amplifier SR interface
CEN????????Connect Amplifier CEN interface
SW????????Connect Amplifier SW interface

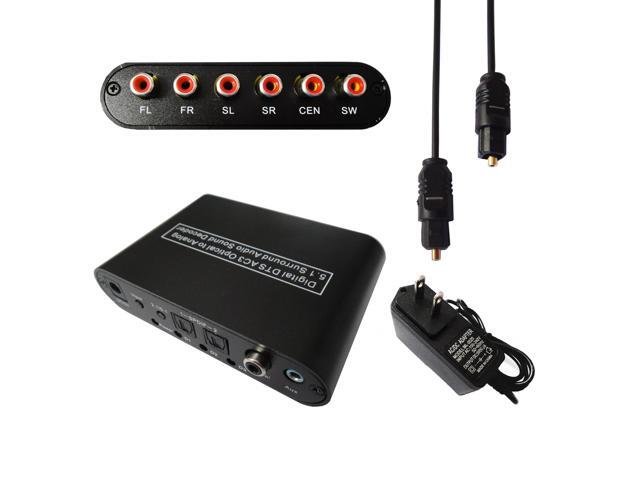

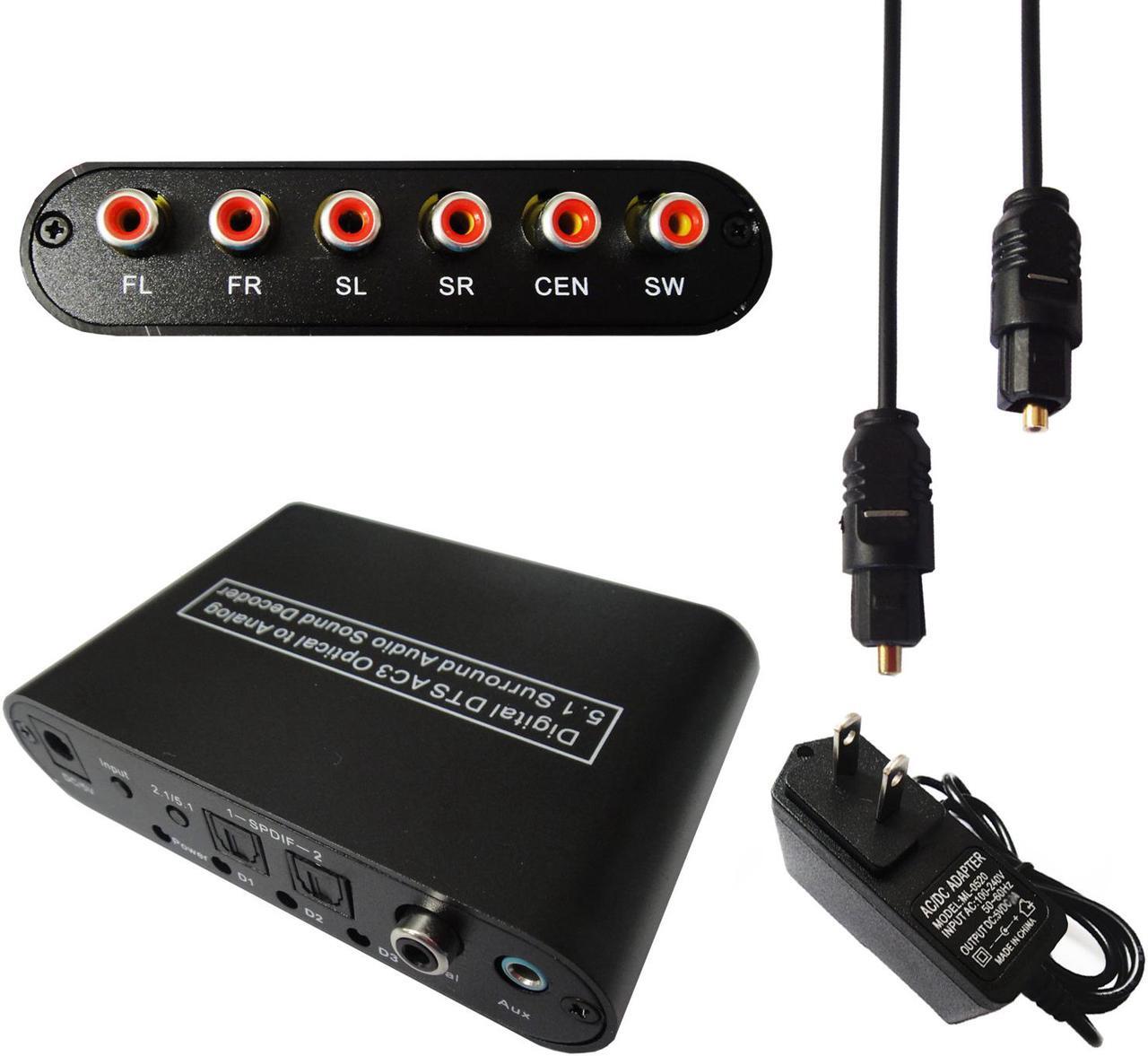

Package
1 x Digital DTS AC3 Optical to Analog 5.1 Surround Audio Sound Decoder

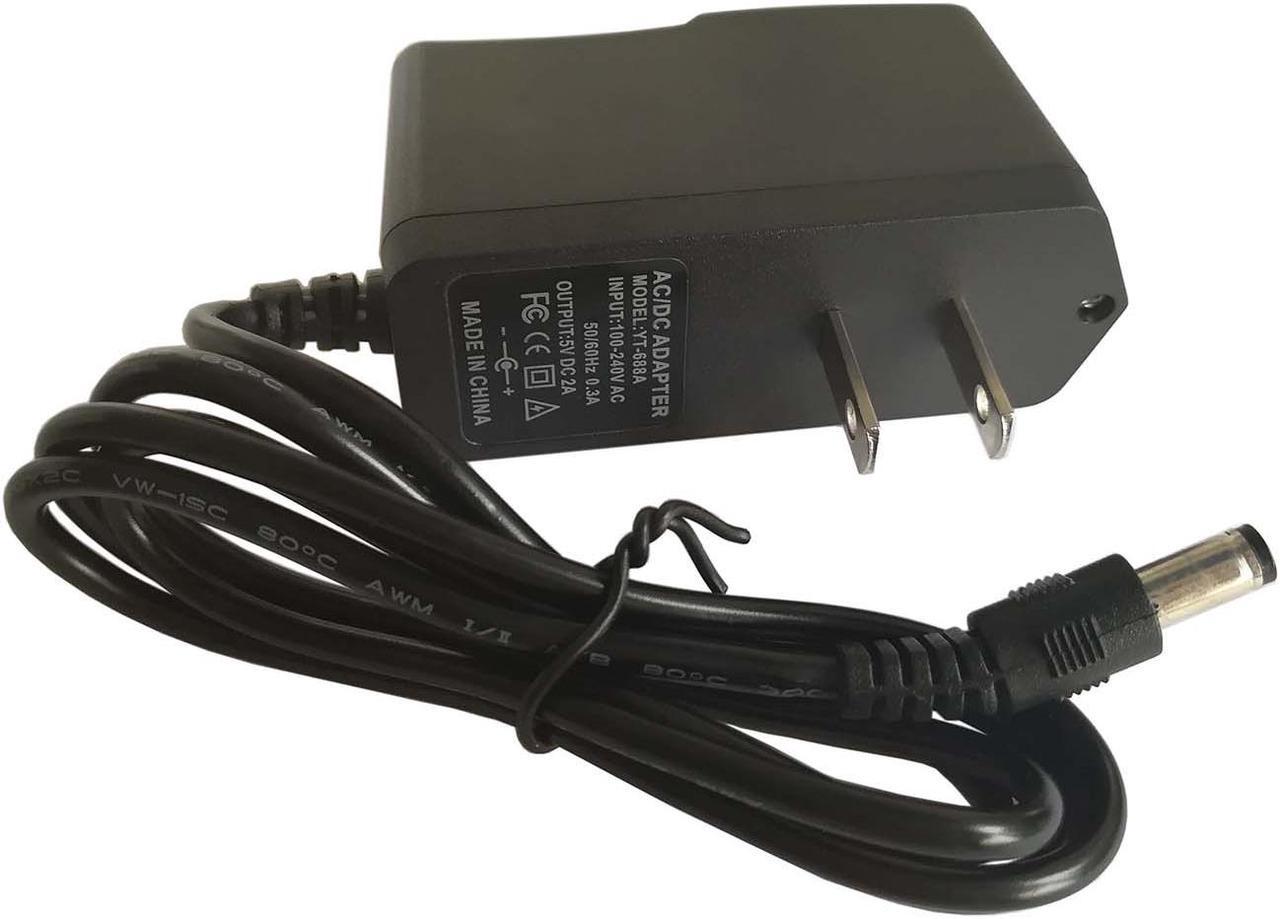

1 x US Power Adapter

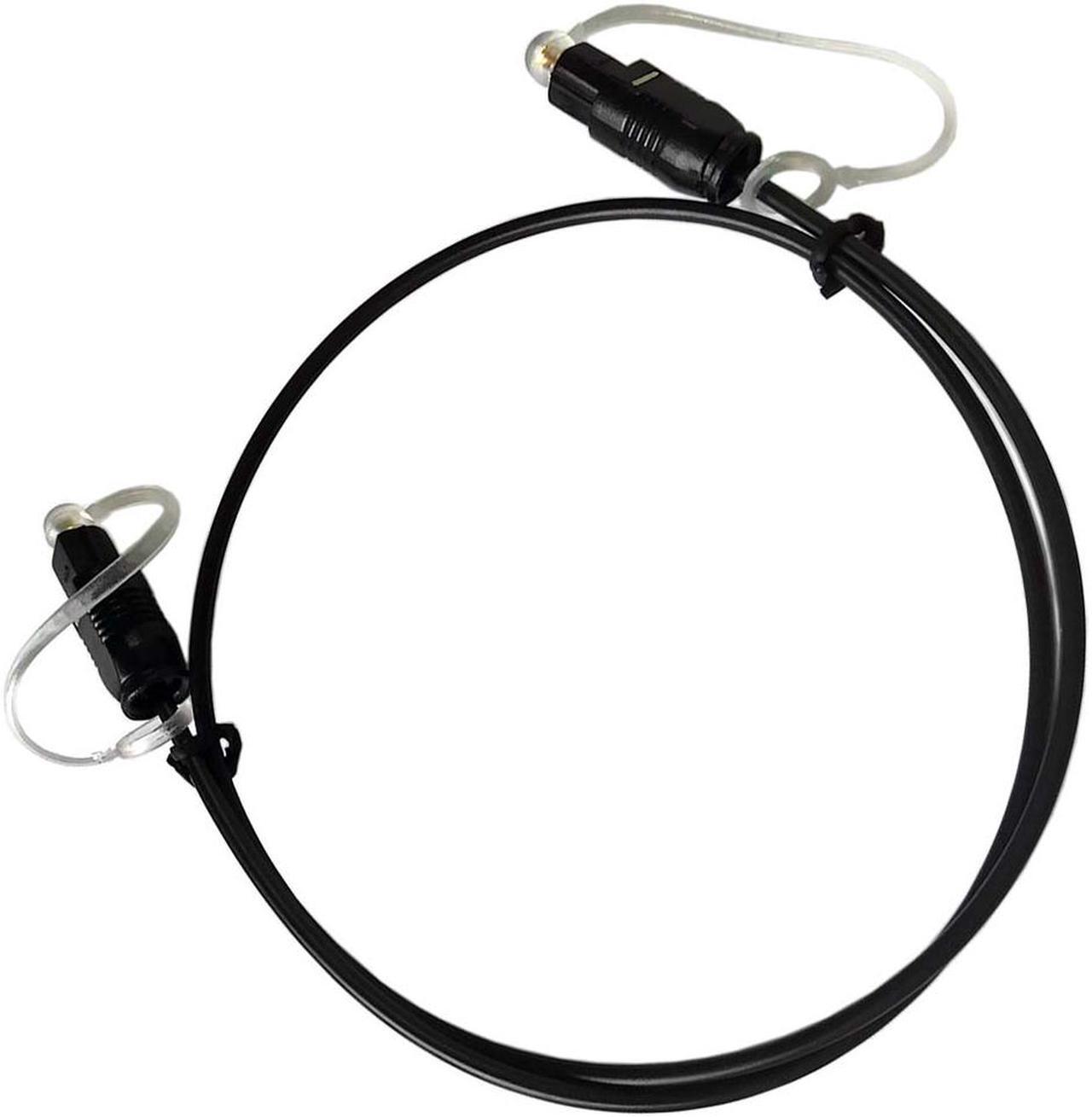

1 x 0.5m Optical Fiber Cable
1 x English User Manual
