Scythe Mugen 5 Rev. C CPU Air Cooler, 120mm Single Tower, Intel LGA1700, LGA1151, AMD AM5/AM4/Ryzen

In stock.
Ships from United States.
  • Tower design with copper base, 6 heat pipes, and a smooth copper base ensures superior performance.
  • Quiet 120mm Kaze Flex II fan (Fluid Dynamic Bearing) for high airflow and static pressure with silent operation(PWM, 300-1500RPM). Addition fan clip for adding 2nd fan(optional) as push-pull configuration for maximal performance.
  • The asymmetrical heat sink layout provides full access to the front RAM slots. Cut-out fins on the back allow a clearance of 55mm for the rear RAM slots. (LGA2011 / LGA 2066). Standing only 154.5mm tall, the cooler perfectly fits into the most popular tower cases on the market.
  • HPMS IV(Hyper Precision Mounting System 4th Gen) is a secure and easy-to-install spring loaded mounting system compatible with socket INTEL LGA 1700 / 1200 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(V3) Square ILM / 2066 Square ILM & AMD AM4 / AM3(+) / AM2(+) / FM2(+) / FM1
  • Product Dimension: (W)136.0 x (D)109.5 x (H)154.5 mm Weight: 900 g / 31.7 oz
Overview
Specs
Reviews
air core qualtiy silent wide ram nh premium 1200 fin mode
Mugen 5 Rev.C (SCMG-5200)

The Mugen 5 has become a default choice for many PC DIY builders. On the basis of classic Mugen 5 Rev.B heatsink design with its iconic top cover metal caps, the Mugen 5 Rev.C is now upgraded with an new Kaze Flex II 120mm PWM fan speeding up to 1500RPM in maximum. 6 sintered heatpipes and copper base provide top-tier performance for high TDP CPUs, and equipped with quiet Kaze Flex II 120mm fan(Sealed Precision FDB) for quiet operation and long lifespan of 120,000 hrs. Offset and cut-fin design ensure excellent access to memory even with tall heat spreader.

ram m2 z690 ddr4 wonder chassis pc bench tower single
Excellent Space Management

Standing only 154.5mm tall, the cooler perfectly fits into the most popular tower cases on the market and keep your computer chassis spacious.

asymmetric space clearance single copper clip
Asymmetrical Design

The asymmetrical design provides excellent access to memory slots (front bank) and would not overhang the RAM even with tall heat spreader, the cut-out fin(55mm) in the rear allows full compatibility on LGA2011(V3)/ LGA 2066 motherboards and platforms.

air static pressure blad japan rubber

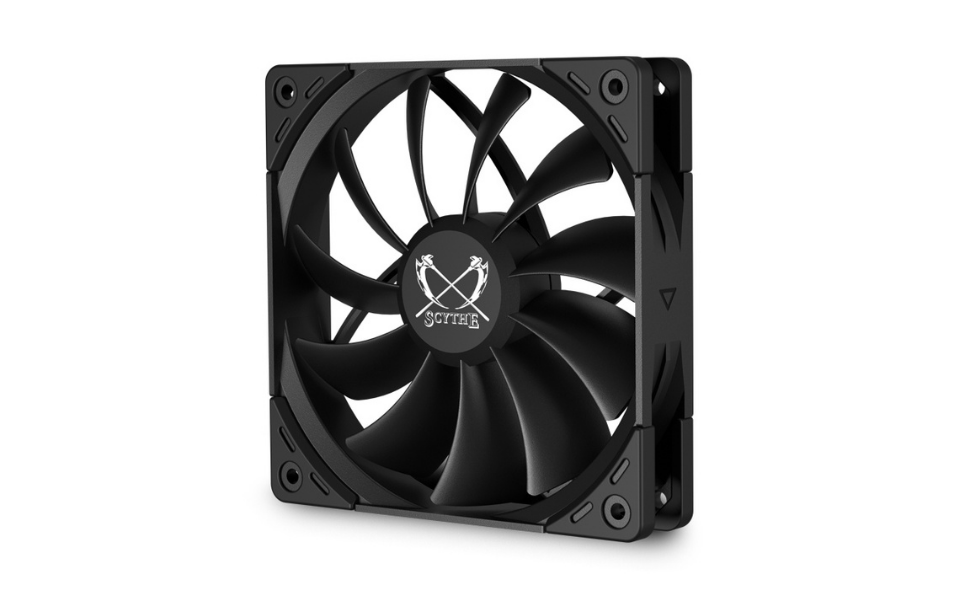

New Kaze Flex II PWM Quiet fan

With a new Kaze Flex II PWM 300-1500 RPM fan, the Mugen 5 Rev. C offers improved performance. Thanks to a new fan frame with Anti-Shocking rubber pads, the Mugen 5 Rev.C works silently to reduce the noise operation.

lga easy screw bracket am4 intel spacer mount

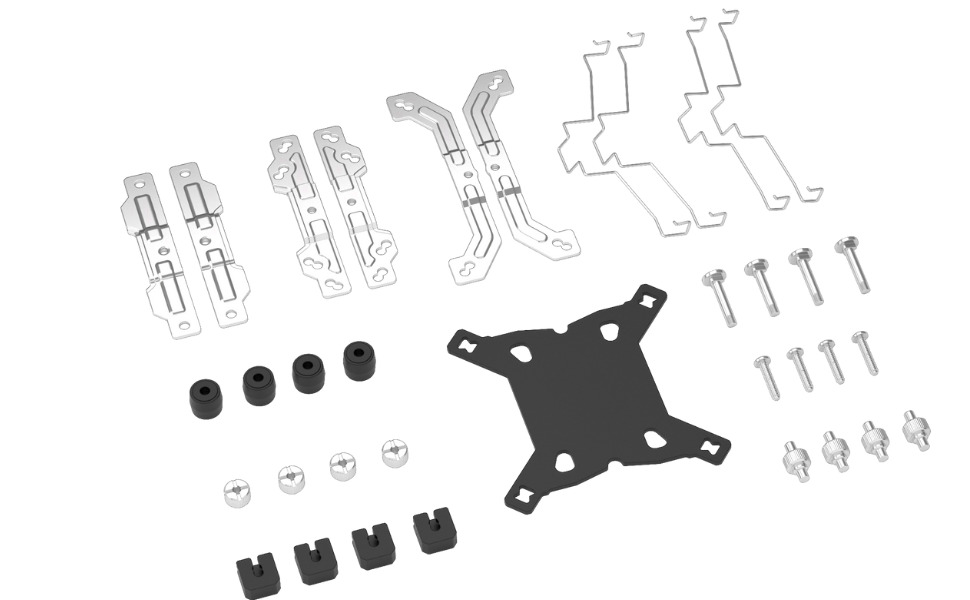

Hyper Precision Mounting System IV (HPMS IV)

Scythe reliable HPMS IV mounting system is a secure easy-to-install spring loaded mounting system, now ready for INTEL LGA 1700 support and provides optimal contact pressure to the motherboard.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Scythe Inc Return Policy
