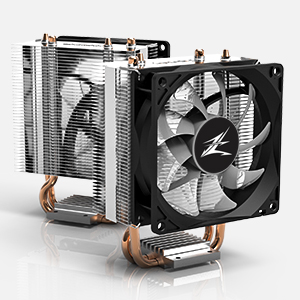

Optimized for Powerful Cooling Performance
Two high-performance heatpipes featuring ZALMAN's unique technology transfer the heat quickly from the CPU to the heat sink and a 92mm fan with up to 2,000 RPM and PWM function that automatically detects changes in processor temperature provides a quieter environment than any other product.

Aluminum Heat Sink Designed for Precise and Efficient Airflow
CNPS4X RGB comes with a high quality aluminum heat sink is designed to precisely maximize the airflow and to transfer heat quickly with it's optimally organized space.

Maximizing Heat Transfer Through DTH Technology
Two precisely crafted copper heatpipes firmly contact the CPU are absorbing heat evenly and dissipating quickly.

92mm High-Performance Fan
- Size: 92 x 92 x 25(H)mm
- Bearing Type: EBR Bearing
- Fan Speed: 1,000 ~ 2,000 RPM ±10%
- Max. Noise Level: 28.0 dB(A) ±10%
- Max. Air Flow: 44 CFM
- Max. Air Pressure: 1.71mmH2O
- Life Span: 50,000 hours
- Power Consumption: 3.6W
- Rated Voltage: 12V
- Rated Current: 0.3A
- Fan Connector Type: 4-Pin PWM
Specifications
Model | CNPS4X RGB |
---|---|
Dimensions | 95(L) x 65(W) x 132(H)mm |
Materials | Pure Copper, Pure Aluminum |
Weight | 360g |
Heat Dissipation Area | 3,282cm2 |
Heat Pipe | 2 |
TDP | 95W |
Thermal Grease | Volume / Net Weight: 1.5g (ZM-STG2M) |
Sockets | Intel: LGA775/115X/1200 CPUs, AMD: AM4/AM3+/AM3/FM2+/FM2 CPUs |
