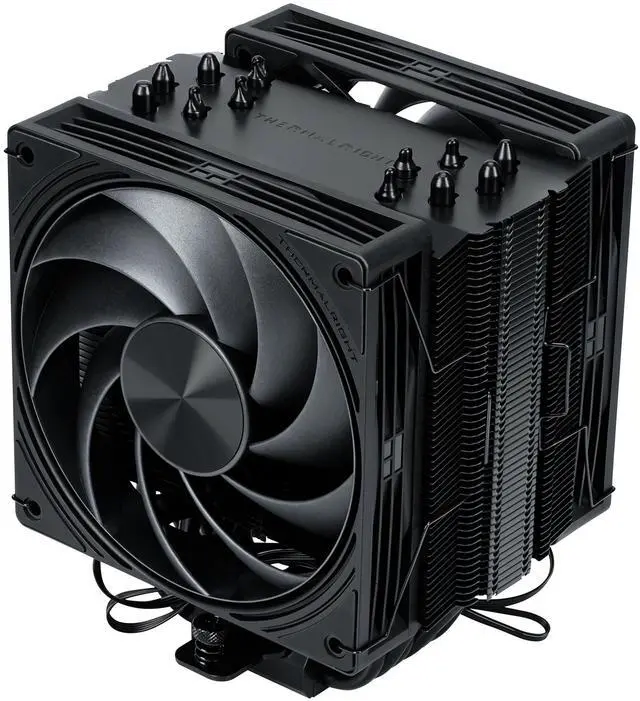

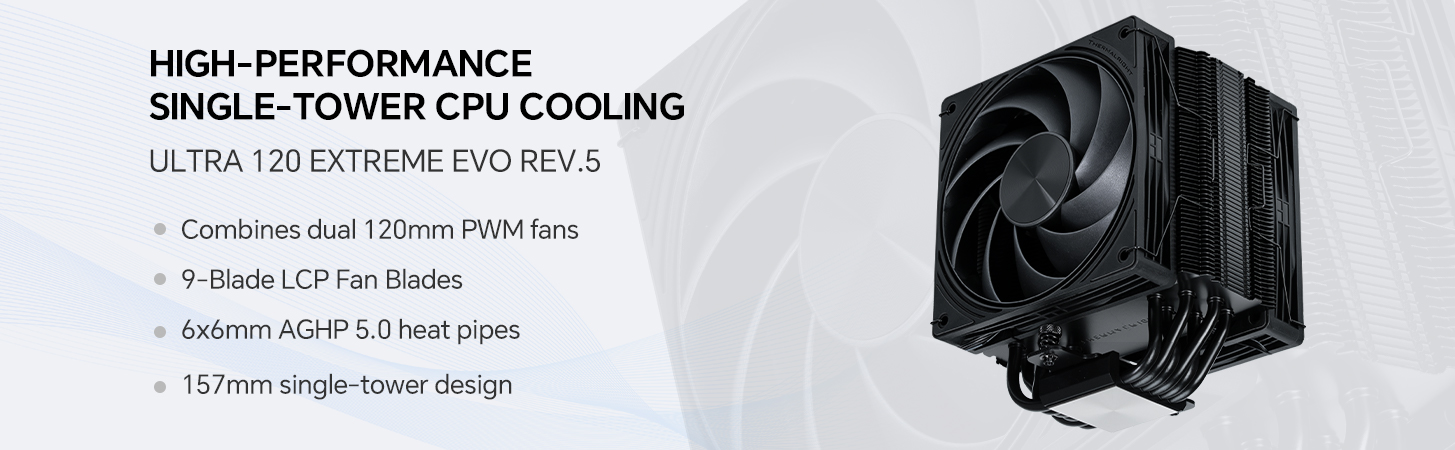

Thermalright Ultra 120 Extreme EVO REV.5 CPU Cooler, Dual 120mm PWM Fans, LCP Blades, 2400RPM, 6 Heat Pipes, 157mm Single Tower, for Intel LGA1700 and AMD AM5/AM4

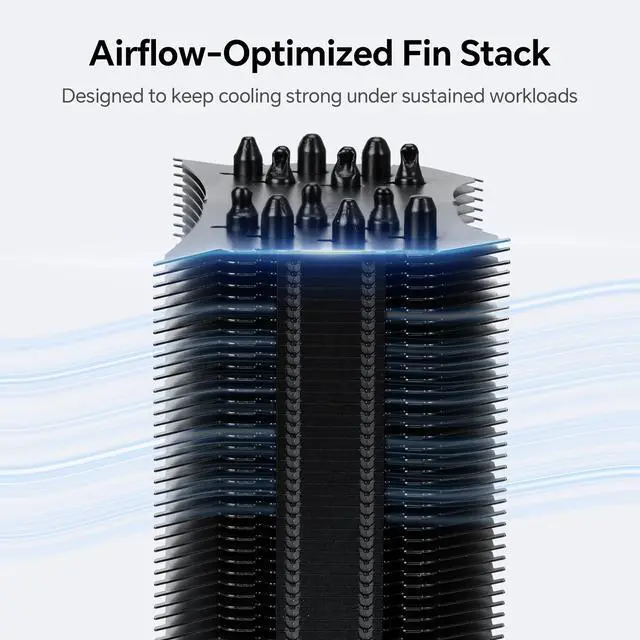

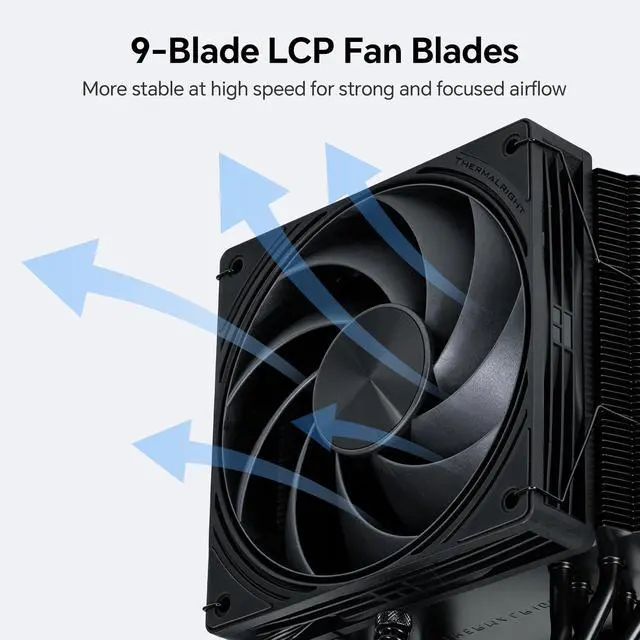

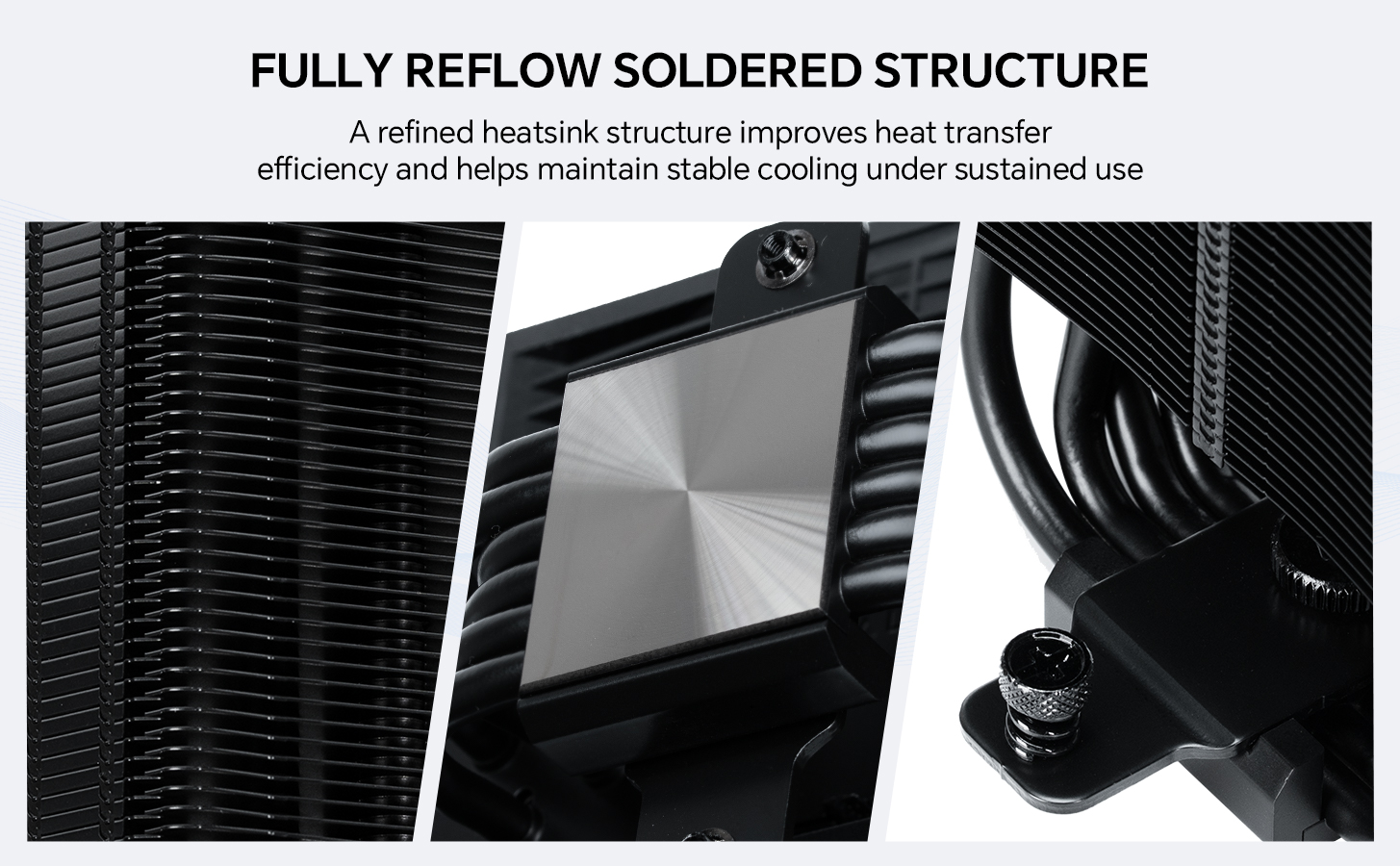

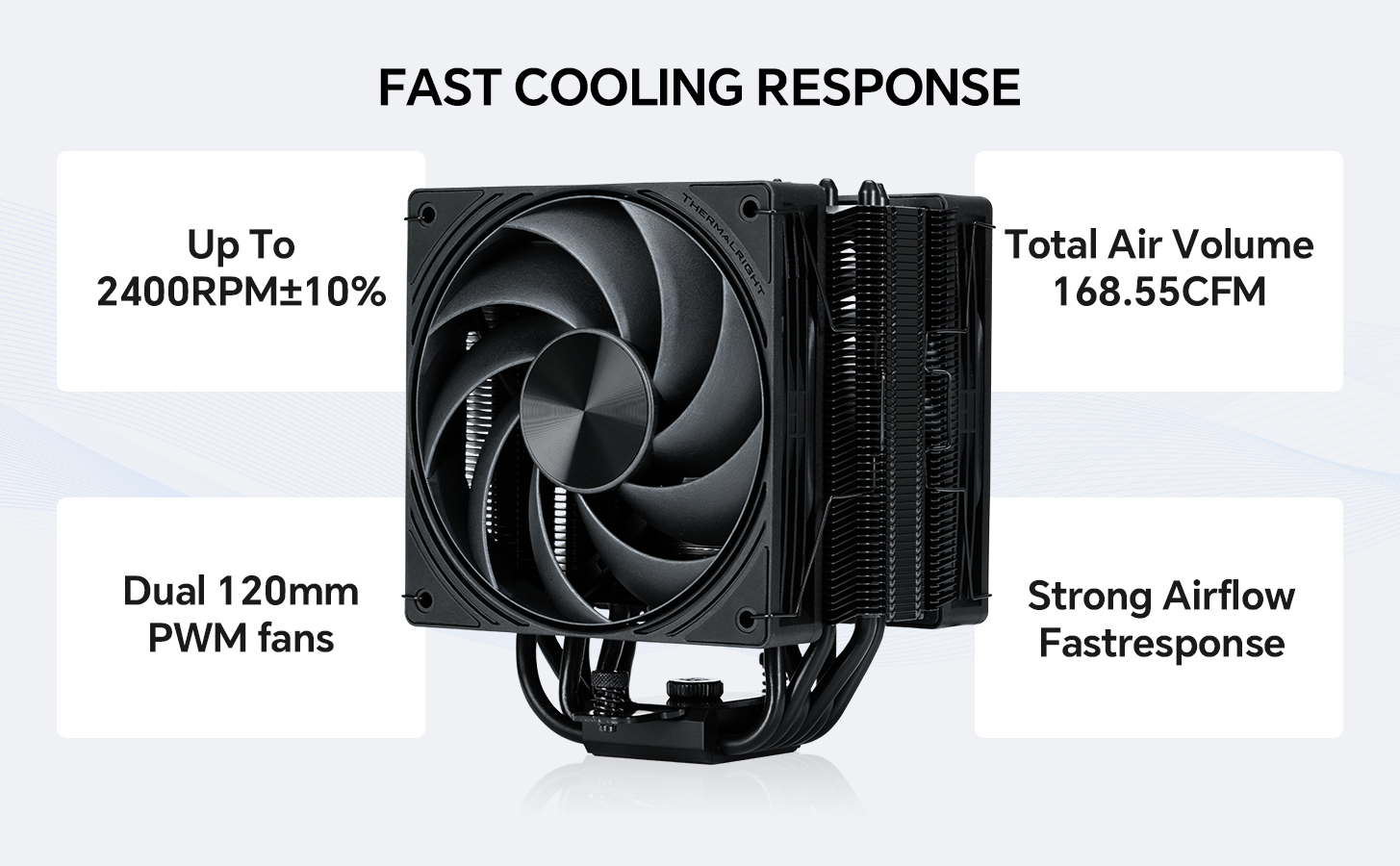

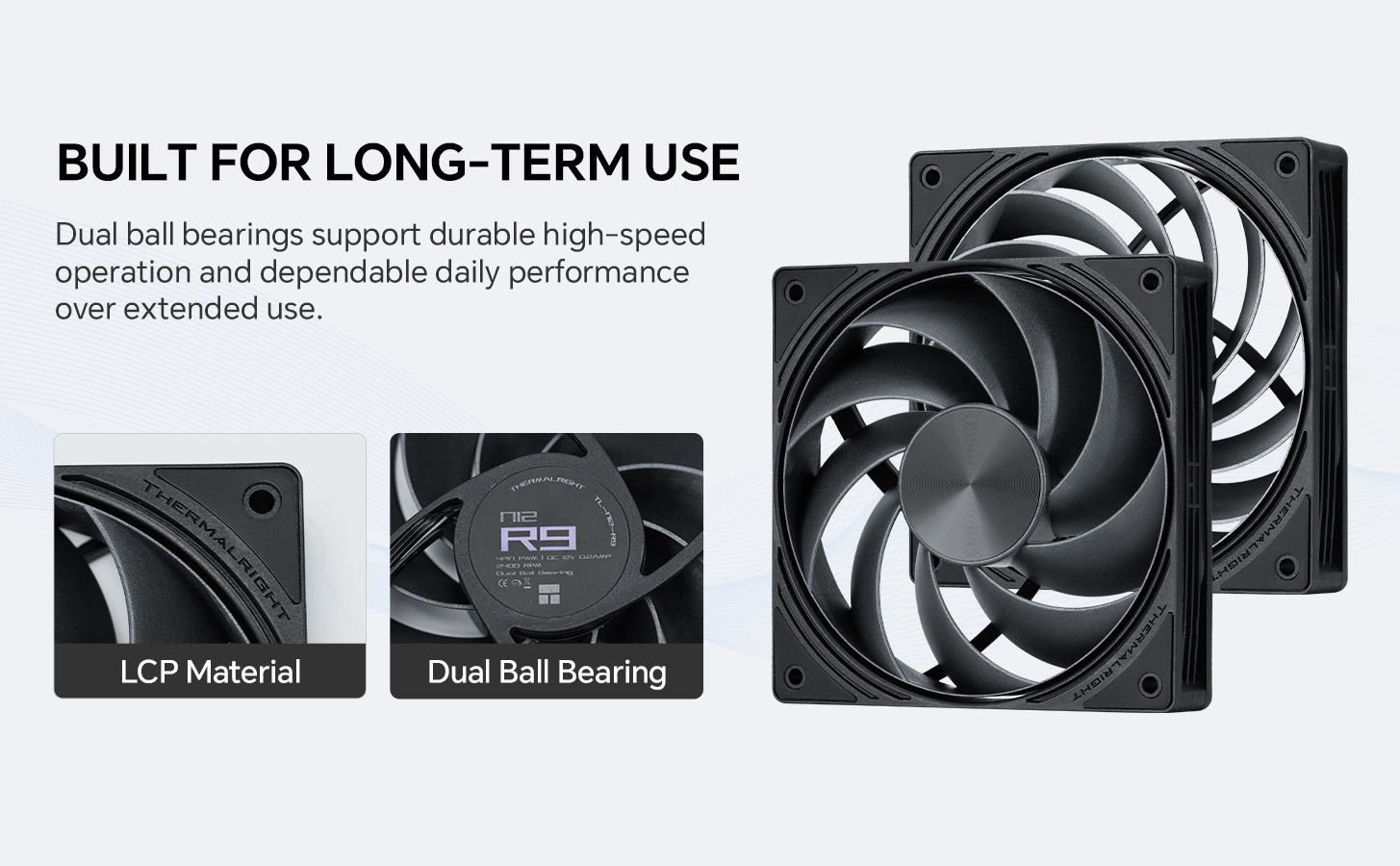

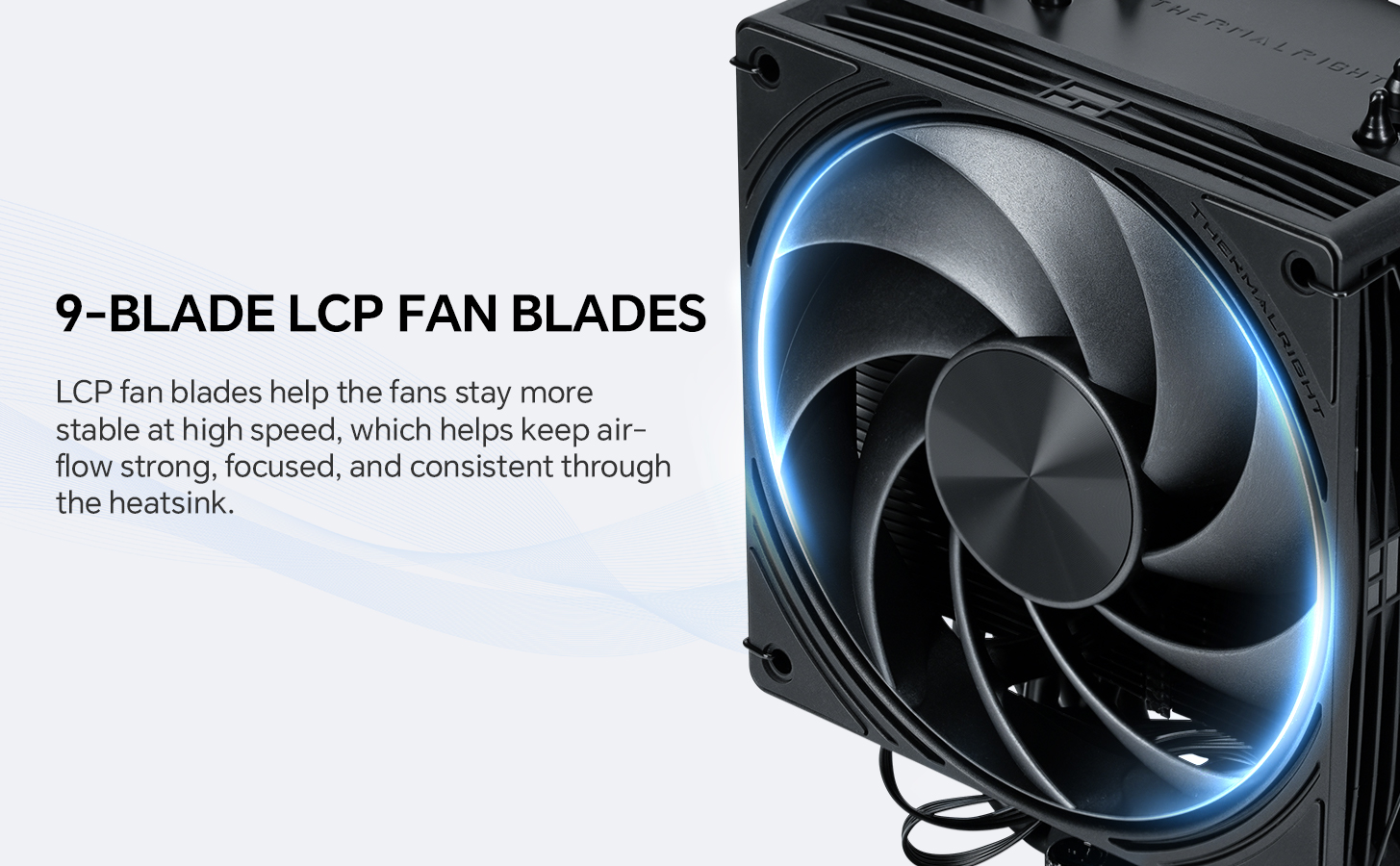

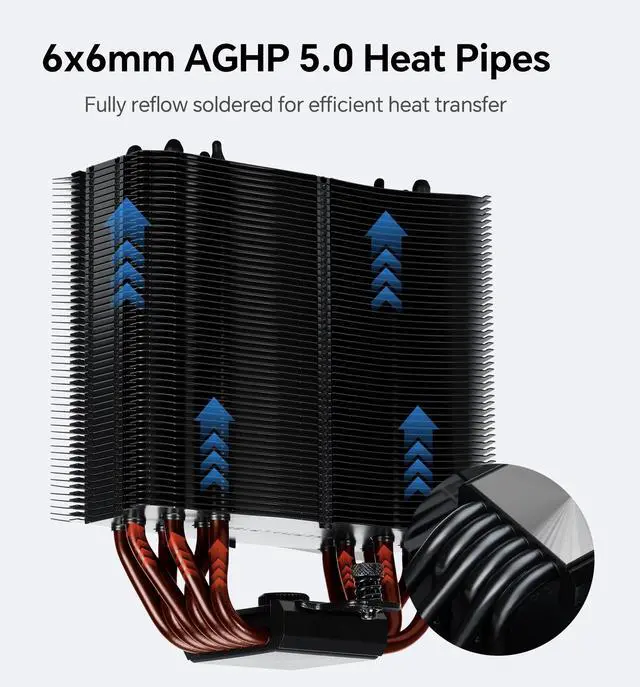

Thermalright ULTRA 120 EXTREME EVO REV.5 is a high-performance single-tower CPU cooler built for users who want strong air cooling, clean aesthetics, and dependable long-term use. The dual LCP 120mm PWM fan system combines the TL-N12-R9 with the reverse blade TL-N12R-R13 for stable airflow, stronger fin penetration, and fast response when CPU load increases. Built with 6x6mm AGHP 5.0 heat pipes, a fully reflow soldered structure, and an airflow-optimized fin stack heatsink, it moves heat efficiently from the CPU into the tower for sustained gaming, creator, and everyday performance workloads. The 157mm single tower design balances strong cooling capability with broad case compatibility, while dual ball bearings support durable high-speed operation over extended daily use. Backed by a 6-year manufacturer warranty, ULTRA 120 EXTREME EVO REV.5 is a reliable long-term cooling upgrade for current Intel and AMD desktop platforms.

Heatsink Specifications:
Technical Spec :
Heatsink Specifications:

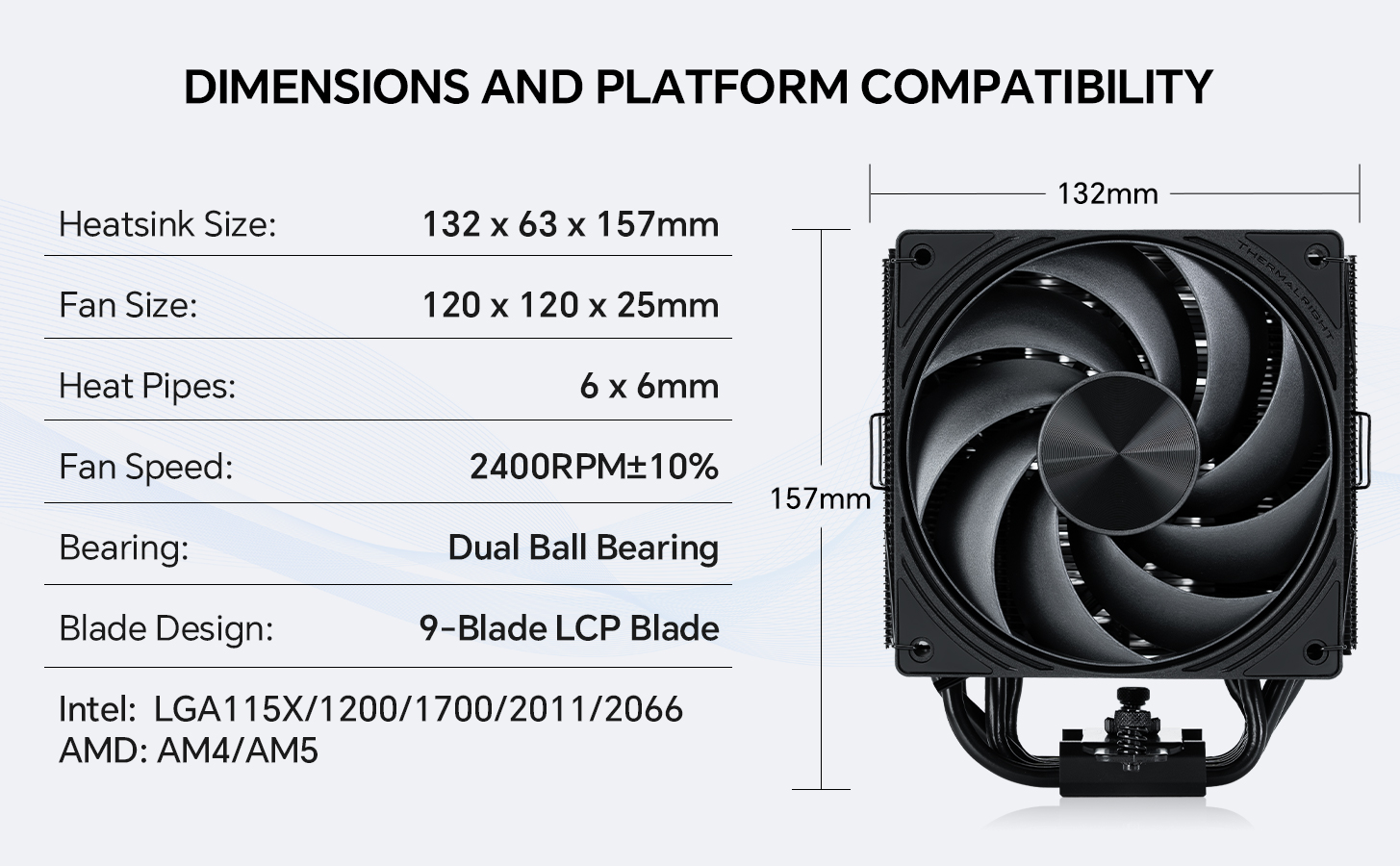

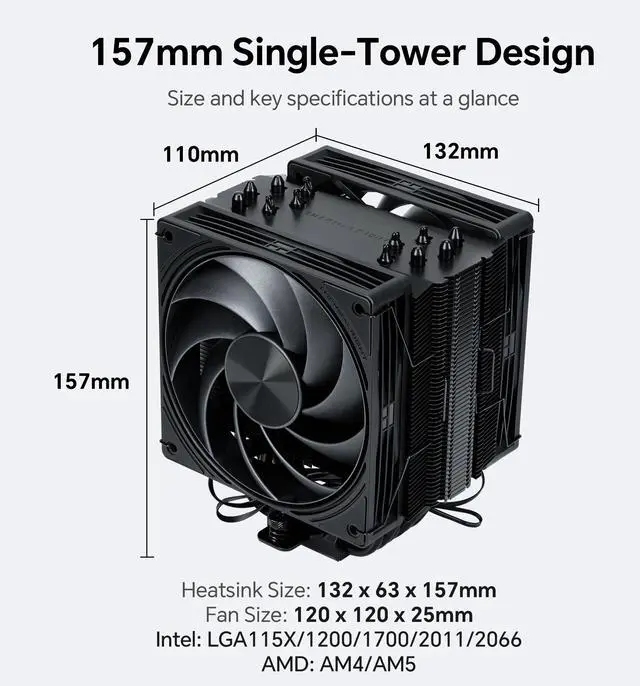

Dimension:L132 mm x W63 mm x H157 mm

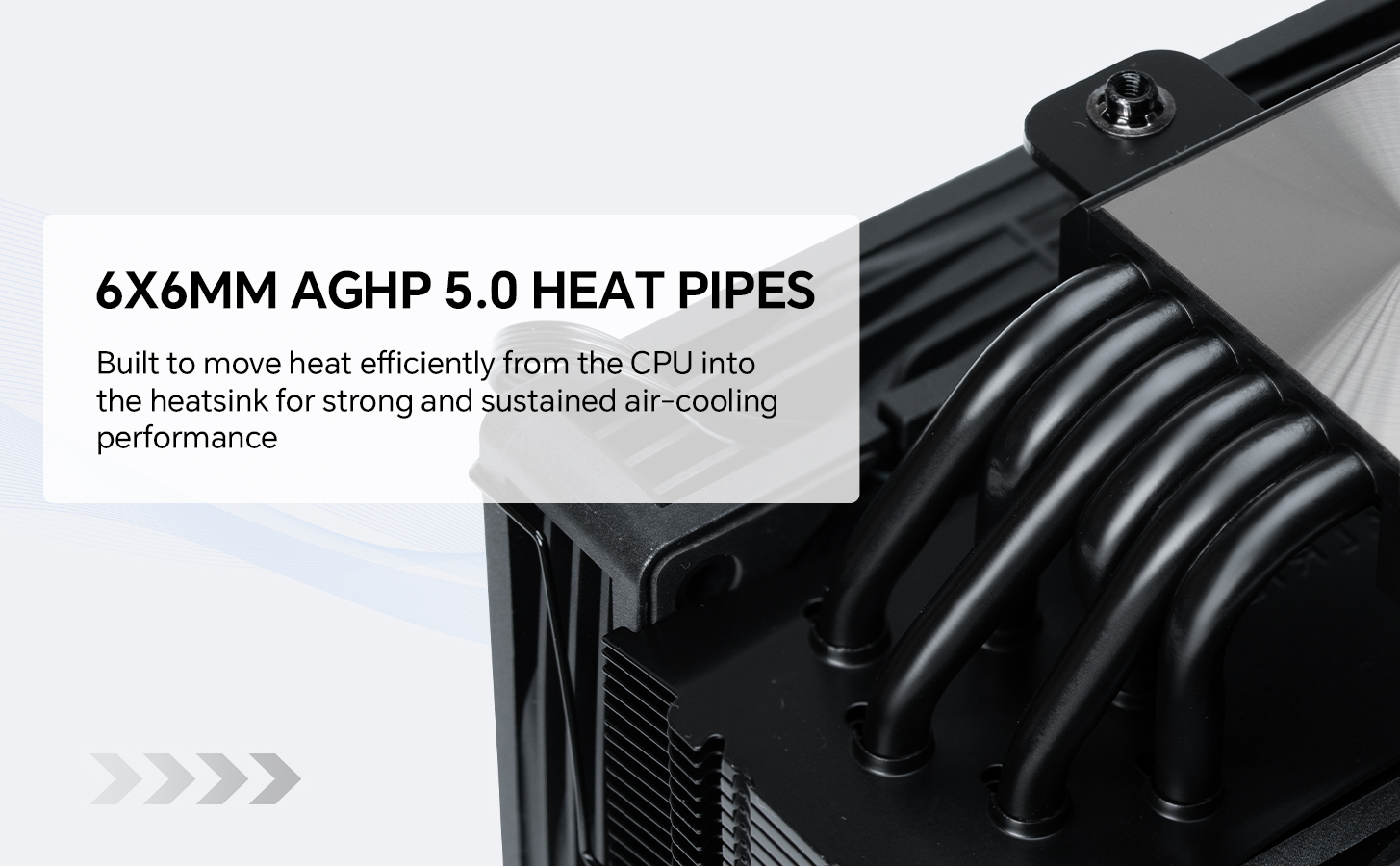

Heat pipes:6 mm heatpipe x 6 units
Copper Base:C1100 Pure copper nickel plated
Warranty:6years

TL-N12-R9 FAN Spec:
Dimension:L120 mm x W120 mm x H25 mm

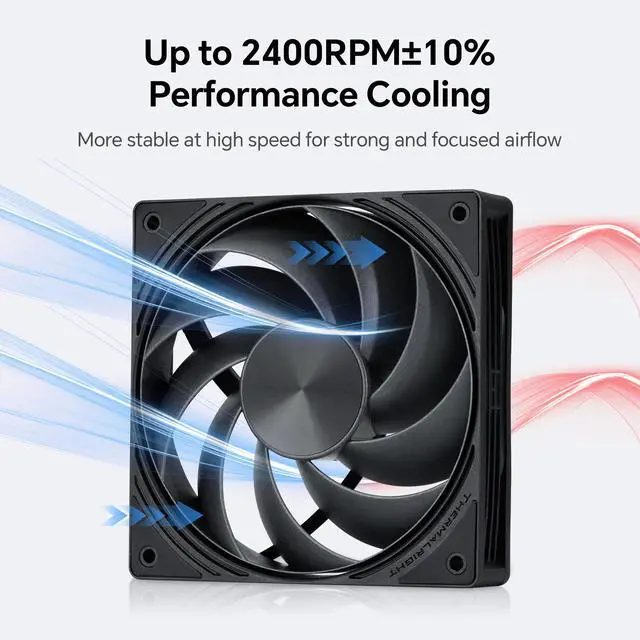

Rated Speed:2400 RPM±10% (MAX)
Noise Level:33.3 dBA
Air Flow:85.35 CFM (MAX)
Air Pressure:2.95 mm H2O (MAX)
Connector:4 Pin (PWM Fan connector)
Bearing Type : Dual Ball Bearing

TL-N12R-R13 FAN Spec:
Dimension:L120 mm x W120 mm x H25 mm
Rated Speed:2400 RPM±10% (MAX)
Noise Level:31.5 dBA
Air Flow:83.2 CFM (MAX)
Air Pressure:1.87 mm H2O (MAX)
Connector:4 Pin (PWM Fan connector)
Bearing Type : Dual Ball Bearing
