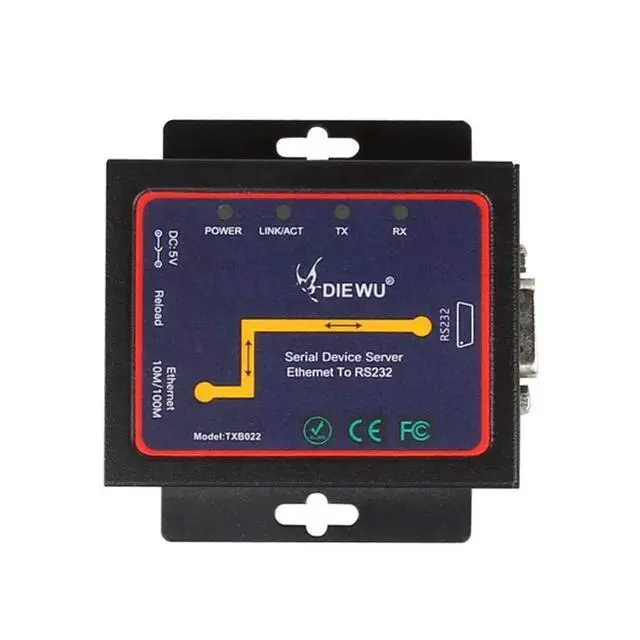

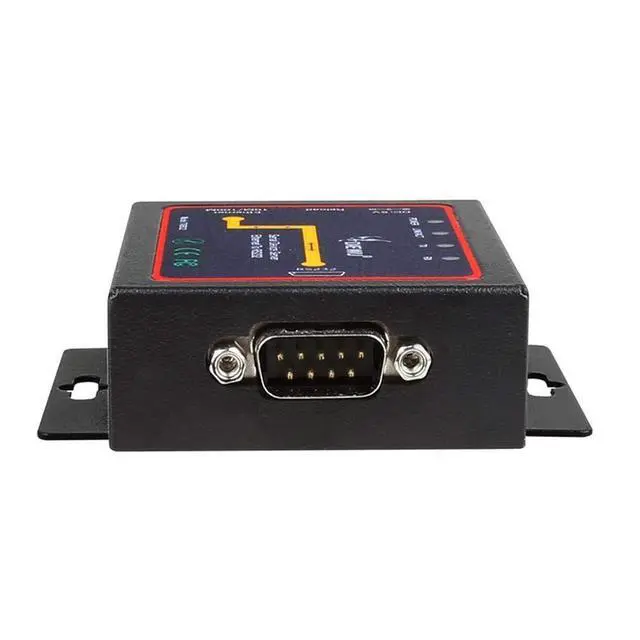

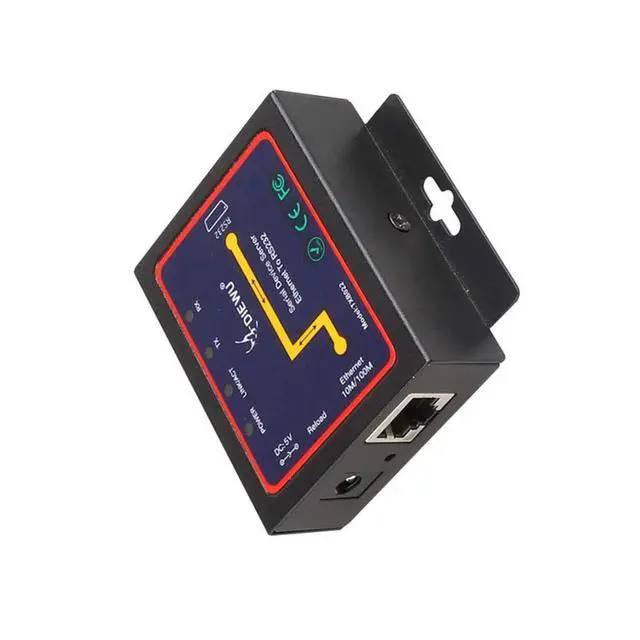

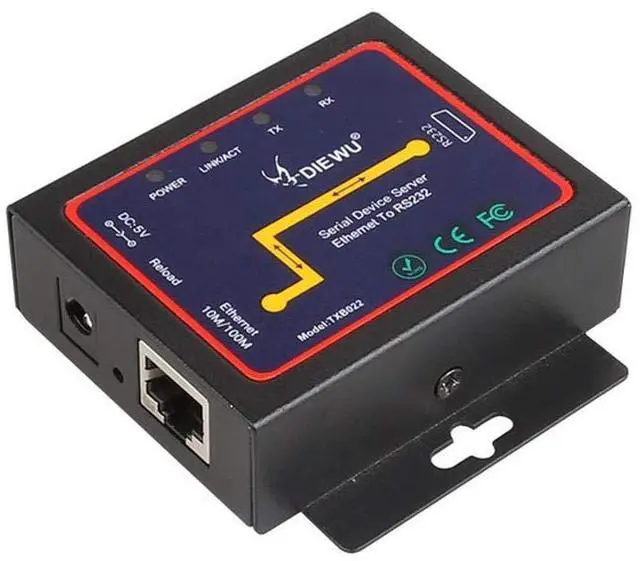

Serial Device Server DB9 RJ45 to RS232 Ethernet to RS232 TCP/IP Server Module Communication Converter
Limited time offer, ends 07/19 By EmpressTech
- - Port number: 1 port 10/100M Auto MDI-MDIX RJ45,1*Com port; - Operation modes: TCP Server, TCP Client, UDP; - Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az; - Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps; - Chipset: IP210
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product specification: -
Model number: TXB022 -
Chipset: IP210 -
Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1*Com port -
Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az -
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP -
Data rate: 10/100M -
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps -
LED Indicator: Link/Act, Power, TX/RX -

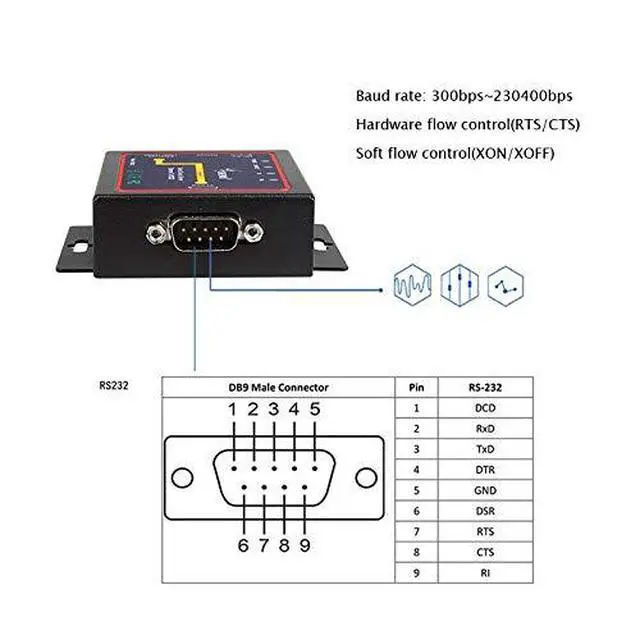

Baud rate: 300bps~230400bps -

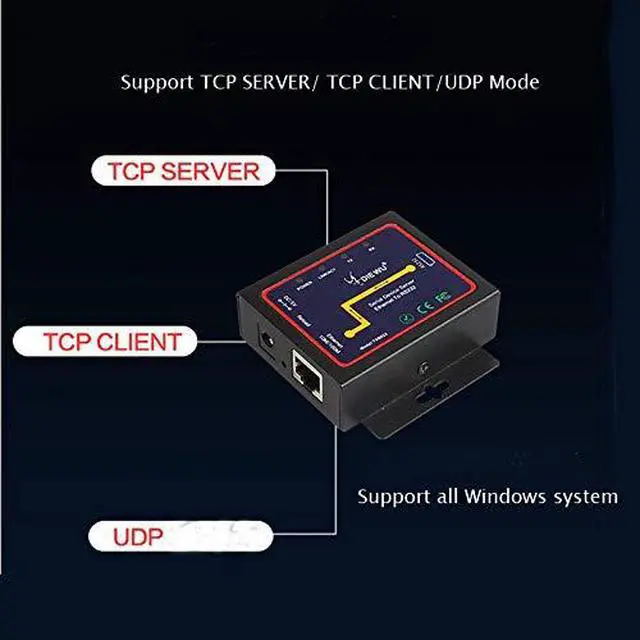

Operation modes: TCP Server, TCP Client, UDP -
Dimension: 78*72*23mm -
Power Input: DC5V -
Power Consumption: Max 1.5W -
Environment Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing) -
Other function: Build load default key
Model number: TXB022 -
Chipset: IP210 -
Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1*Com port -
Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az -
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP -
Data rate: 10/100M -
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps -
LED Indicator: Link/Act, Power, TX/RX -
Baud rate: 300bps~230400bps -
Operation modes: TCP Server, TCP Client, UDP -
Dimension: 78*72*23mm -
Power Input: DC5V -
Power Consumption: Max 1.5W -
Environment Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing) -
Other function: Build load default key
