Questions & Answers: For Raspberry Pi 4 Model B, Raspberry Pi 4 Screen, 3.5 inch Touch Screen with ABS Case Kit, Max 50FPS 480x320 Pixel Monitor TFT Touch LCD (Support Raspbian, Ubuntu, Kali, Retropie System )

double click image to zoom in

Visit Geekworm Workshop Store

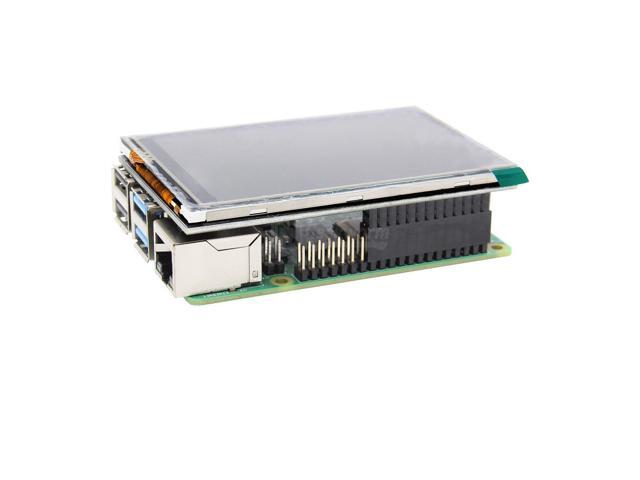

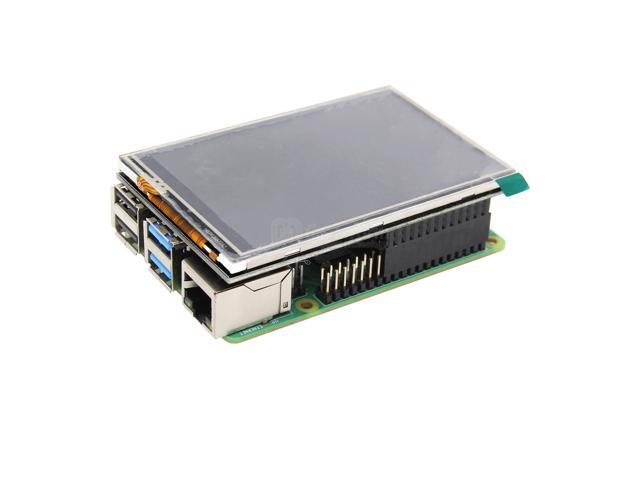

For Raspberry Pi 4 Model B, Raspberry Pi 4 Screen, 3.5 inch Touch Screen with ABS Case Kit, Max 50FPS 480x320 Pixel Monitor TFT Touch LCD (Support Raspbian, Ubuntu, Kali, Retropie System )

For the document and download information,please refer to: raspberrypiwiki.com/index.php/3.5_inch_LCD_B

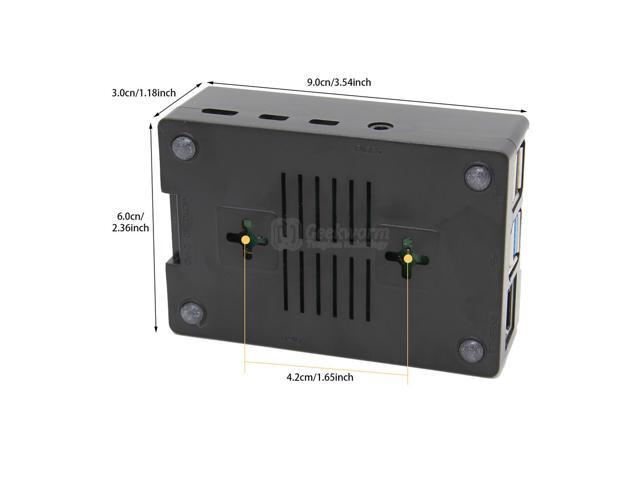

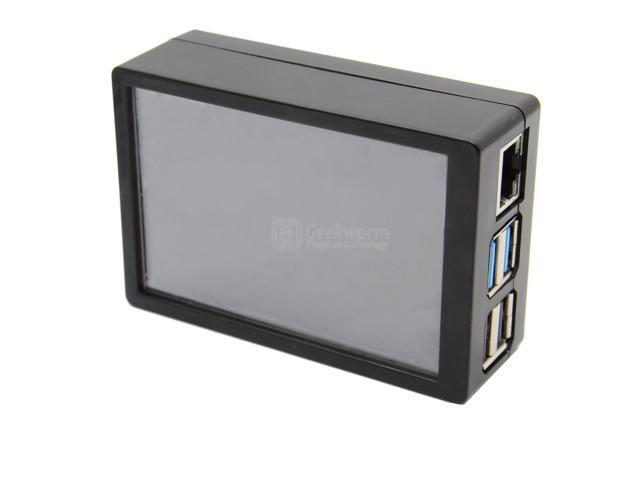

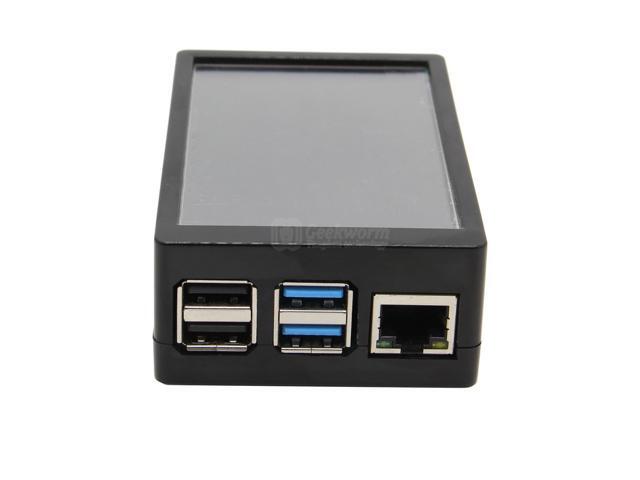

Note: 1. The Raspberry Pi 4B mother board is not included in all the packing list. 2. The black ABS case only suitable for this 3.5 inch screen with Raspberry Pi 4 Model B, do not support other Raspberry Pi versions.
Physical resolution 320 x 480, with resistive touch control; it supports up to 125MHz SPI signal input, showing stable and no flicker
Support Raspbian/Ubuntu/Kali/Retropie system, provide driver and image, please refer to: raspberrypiwiki.com/index.php/3.5_inch_LCD_B#Driver_Installation

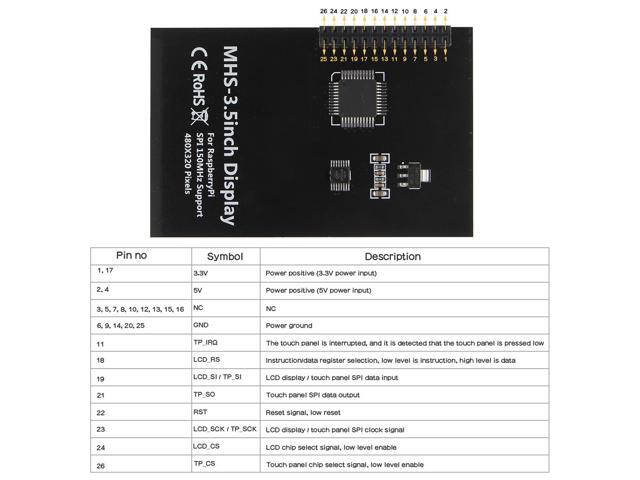

LCD Type: TFT; LCD driver IC: ILI9486L; LCD Interface: SPI (up to 125MHz SPI input, Max FPS: 50Mhz); Touch Screen Type: Resistive; Touch Screen Controller: XPT2046; Colors: 65536; Backlight: LED; Resolution: 320*480 (Pixel); Backlight Current: 120ma; Power: 0.16A x 5V; Operating Temp. (?): -20~70

Out of Stock
