18 Output 29 Amp 12V DC CCTV Distributed Power Supply Box for Security Camera
- *****
- **********Best Quality Guranteed.*****12V DC, 18 ports regulated power supply*****Maxium Output 29 Amp*****Individual Fuse Output Protection, each channel 2 Amp*****Individual LED power Indication*****Dimension: 10(W) x8.5(L) x3.7(H)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

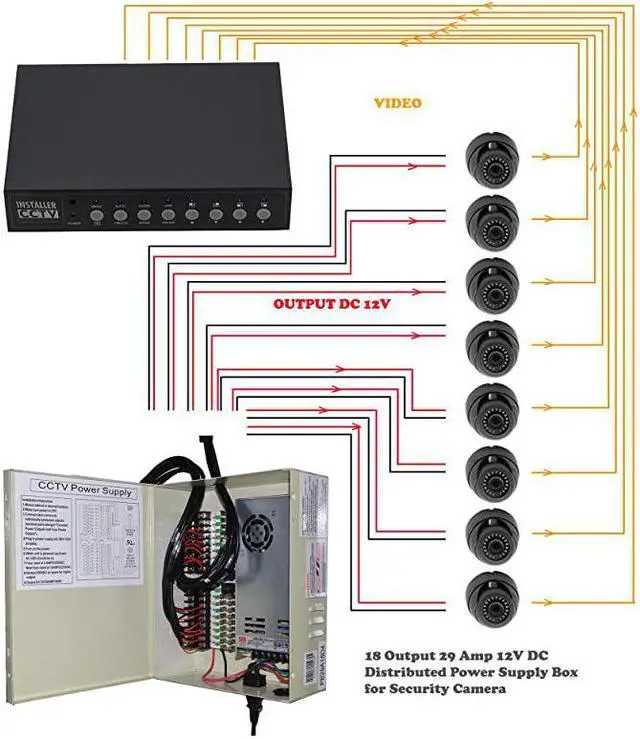

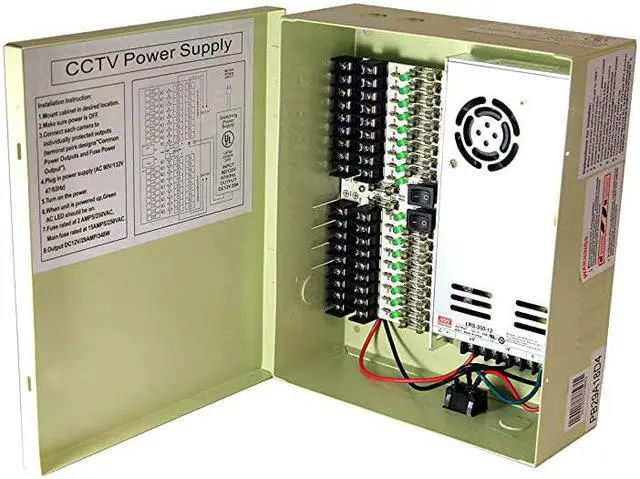

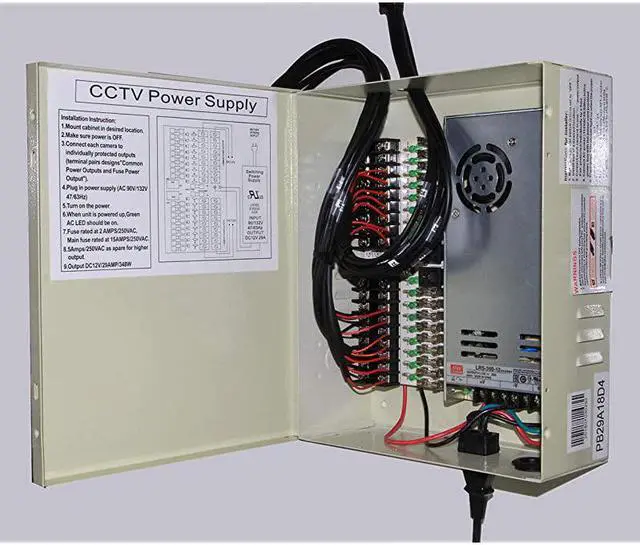

18 Channels Output 29 Amp 12V DC Power Box Our 18 channels power box is perfect for professional installers. It can support up to 18 cameras, offering a professional alternative to individual power adapters. In addition, our powerbox offers individual Fuse Output Protection.
NOTE: The fuse for each channel is 2 Amp and total power consumption cannot exceed 29 Amp This box can be mounted to any surface plugged into an AC outlet and up in seconds! 1

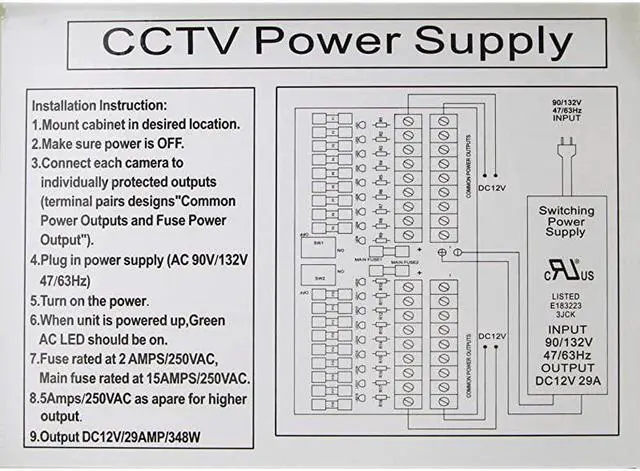

Year Warranty Instructions for installer: Make sure power switch(I/O) is set to OFF. Install box at a desired location. Connect each camera to one+/_ power output Pair, protected individually by a fuse. Connect AC power(115VAC50/60Hz) to the power box with the power cord provided. The green LEDs should light up when the power switch (I/O0 is set to ON 6. The fuse is rated at 250VAC/2A To reduce risk of fire, use only type SPT-2 cord or heavier duty cord, No. 18AWG copper at the minimum. Use wires suitable for at least 90 degrees.
Package Includes: 1x Power Box 1x 3 Prong Power Cord 1x User Manual 5x Spare Fuses 4
Mount Screws Package Includes: 1x Power Box 1x Power Cord 1x User Manual Spare Fuses 4 Mount Screws
NOTE: The fuse for each channel is 2 Amp and total power consumption cannot exceed 29 Amp This box can be mounted to any surface plugged into an AC outlet and up in seconds! 1
Year Warranty Instructions for installer: Make sure power switch(I/O) is set to OFF. Install box at a desired location. Connect each camera to one+/_ power output Pair, protected individually by a fuse. Connect AC power(115VAC50/60Hz) to the power box with the power cord provided. The green LEDs should light up when the power switch (I/O0 is set to ON 6. The fuse is rated at 250VAC/2A To reduce risk of fire, use only type SPT-2 cord or heavier duty cord, No. 18AWG copper at the minimum. Use wires suitable for at least 90 degrees.
Package Includes: 1x Power Box 1x 3 Prong Power Cord 1x User Manual 5x Spare Fuses 4
Mount Screws Package Includes: 1x Power Box 1x Power Cord 1x User Manual Spare Fuses 4 Mount Screws
