Top Rated SellerTop Rated Visit GLOTRENDS Store
GLOTRENDS SA3034A 4 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Support OS Booting, Compatible with Windows,Linux,Mac OS,NAS

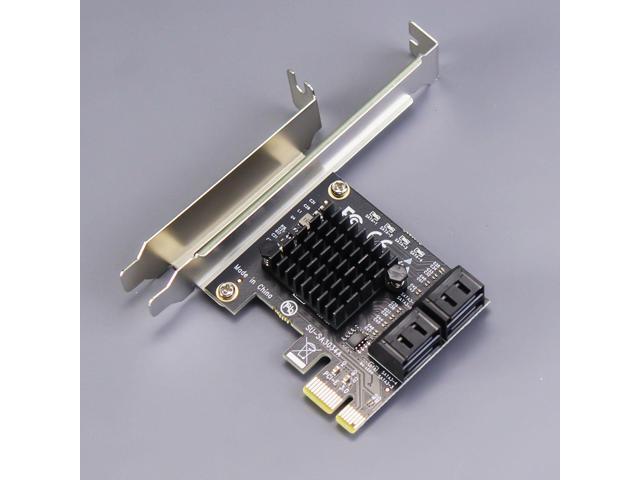

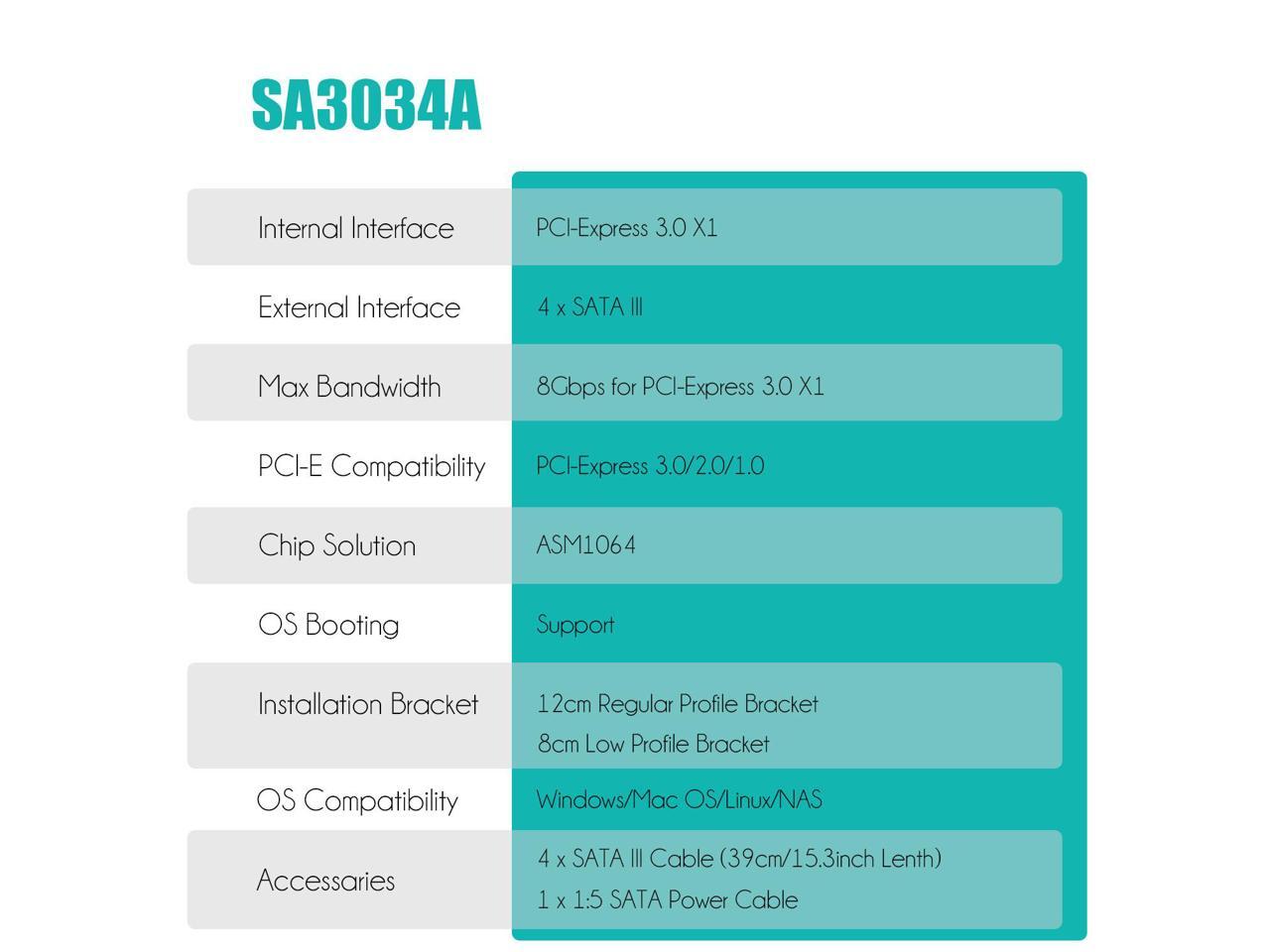

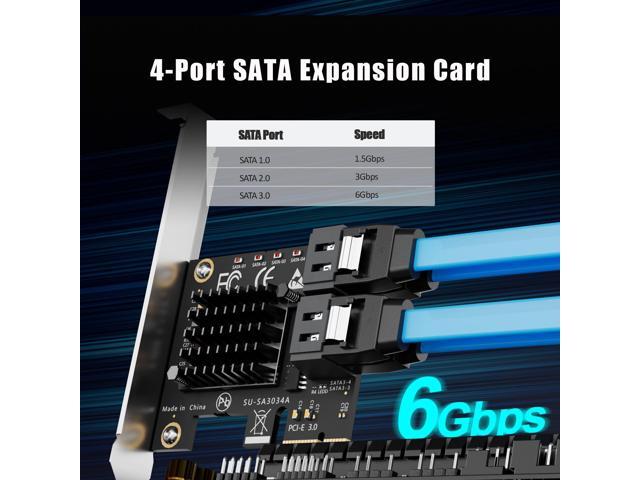

  • 4-Port PCIe X1 SATA Card: PCI-Express X1 extends 4 x SATA III 6Gbps ports, then PC can access 4 x SATA drivers simultaniously. You can set up a storage pool, or configure Software RAID in Windows/Mac OS/Linux. (Noted: Can not support Hardware RAID)

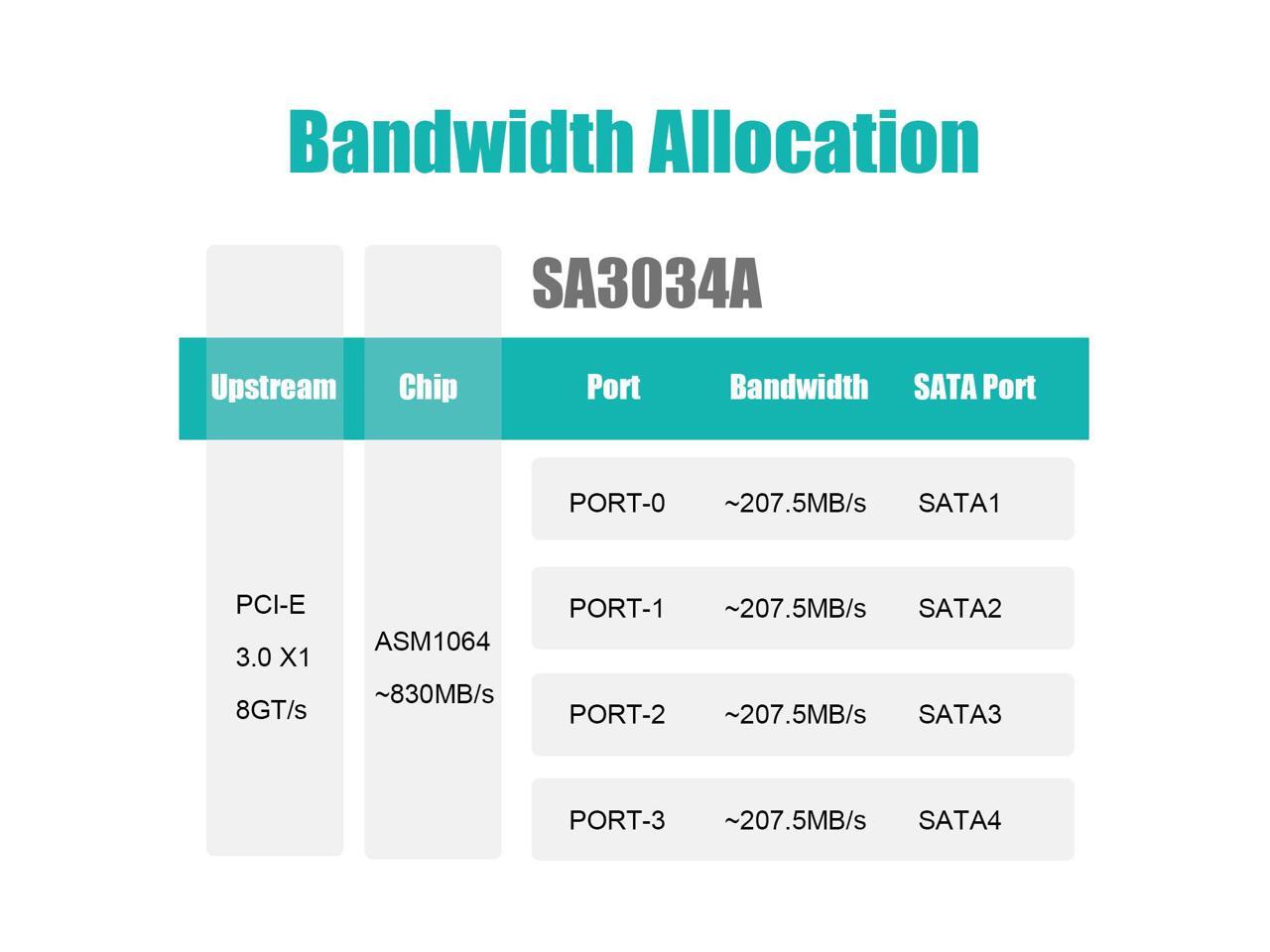

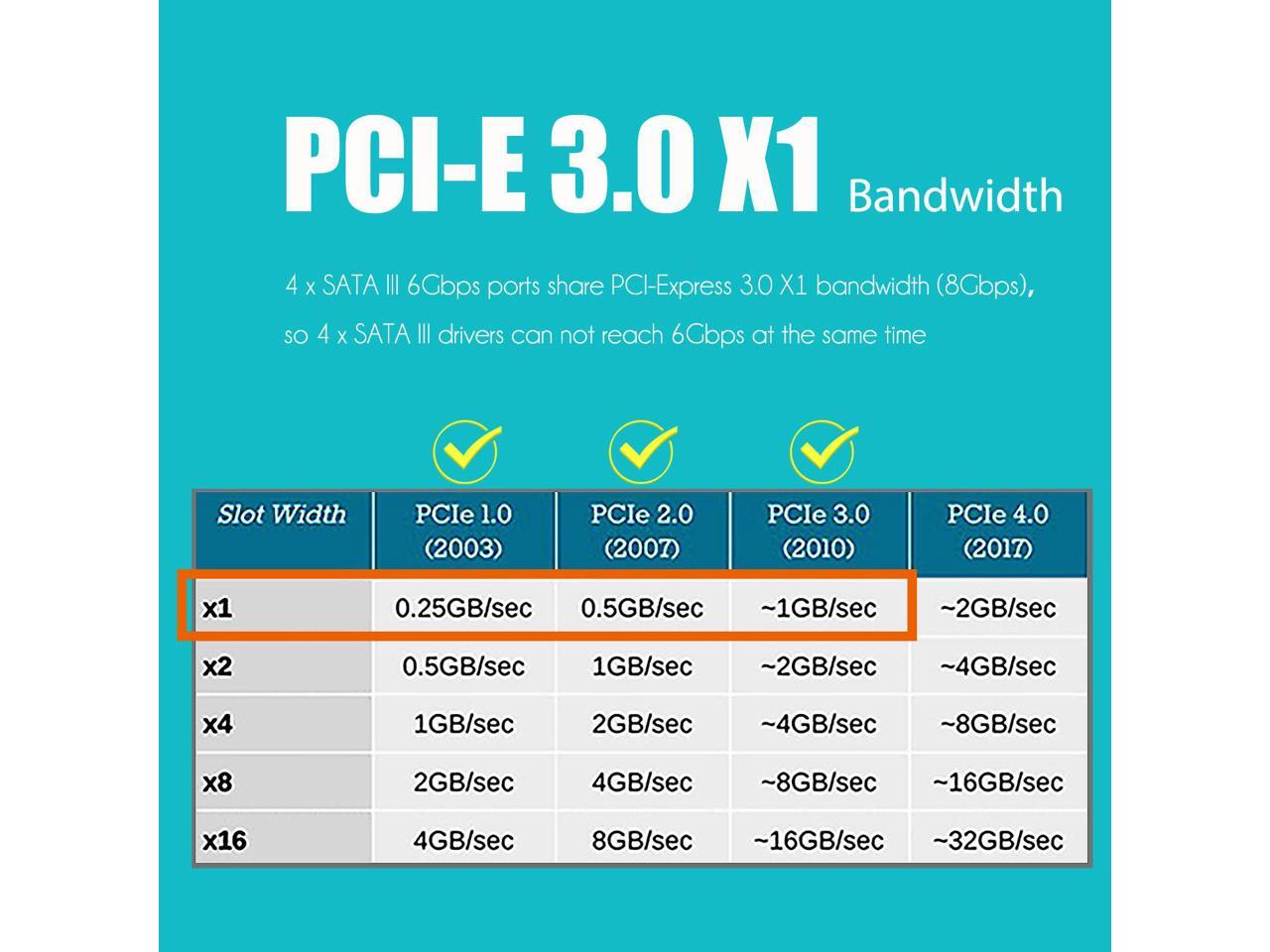

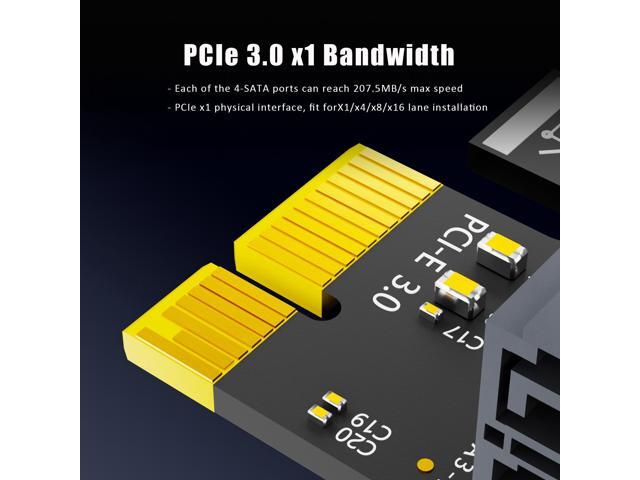

  • Based on the ASM1064 chip, Upstream is PCI-Express 3.0 X1 Speed: 4 x SATA III 6Gbps ports share PCI-Express 3.0 X1 bandwidth (8Gbps), so 4 x SATA III drivers can not reach 6Gbps at the same time.

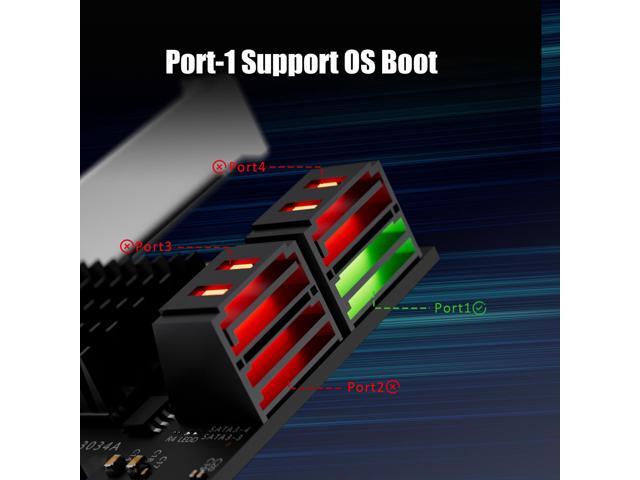

  • Only Port 1 Supprt OS Boot, and the other 3 ports can not support OS Boot

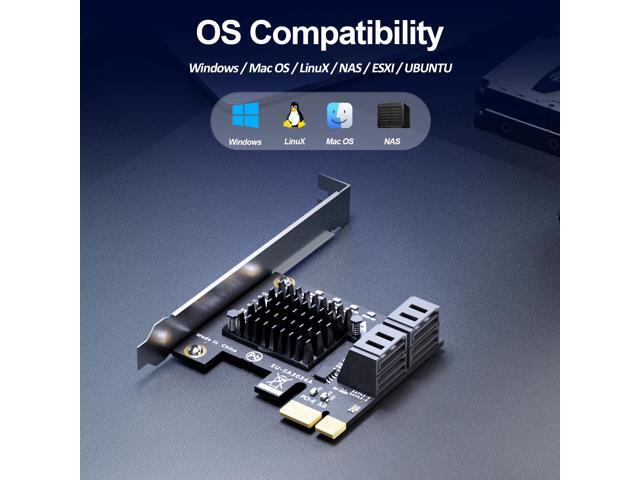

  • OS Compatibility: Plug-and-play in Windows/Mac OS/Linux/NAS. (Note: can not support Windows XP)
  • For Windows 7, please reinstall the driver according to the manual, download link: https://drive.google.com/drive/folders/16G_sGjexuniyPuJmluL2YRWH-z-NZOli?usp=sharing

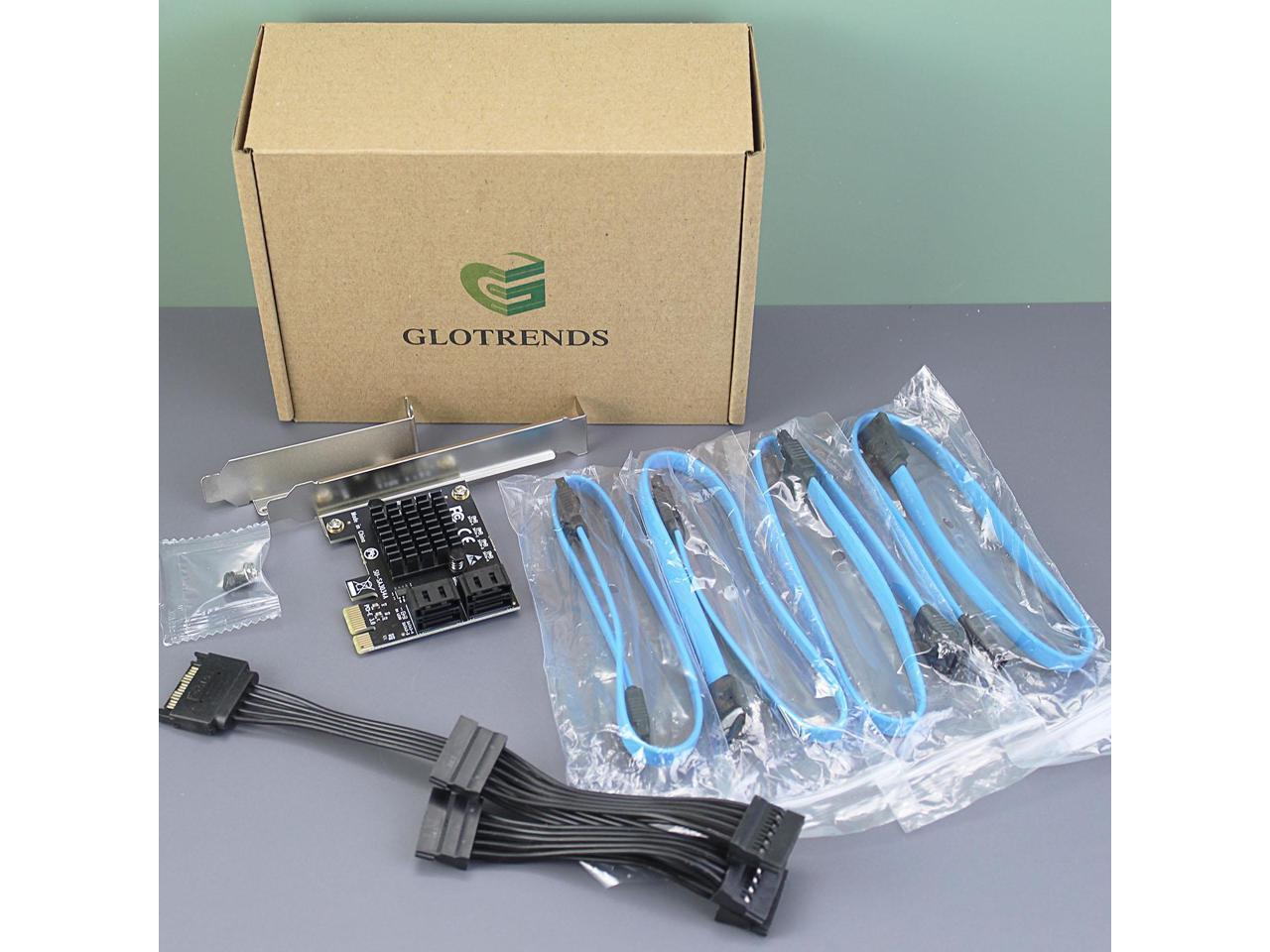

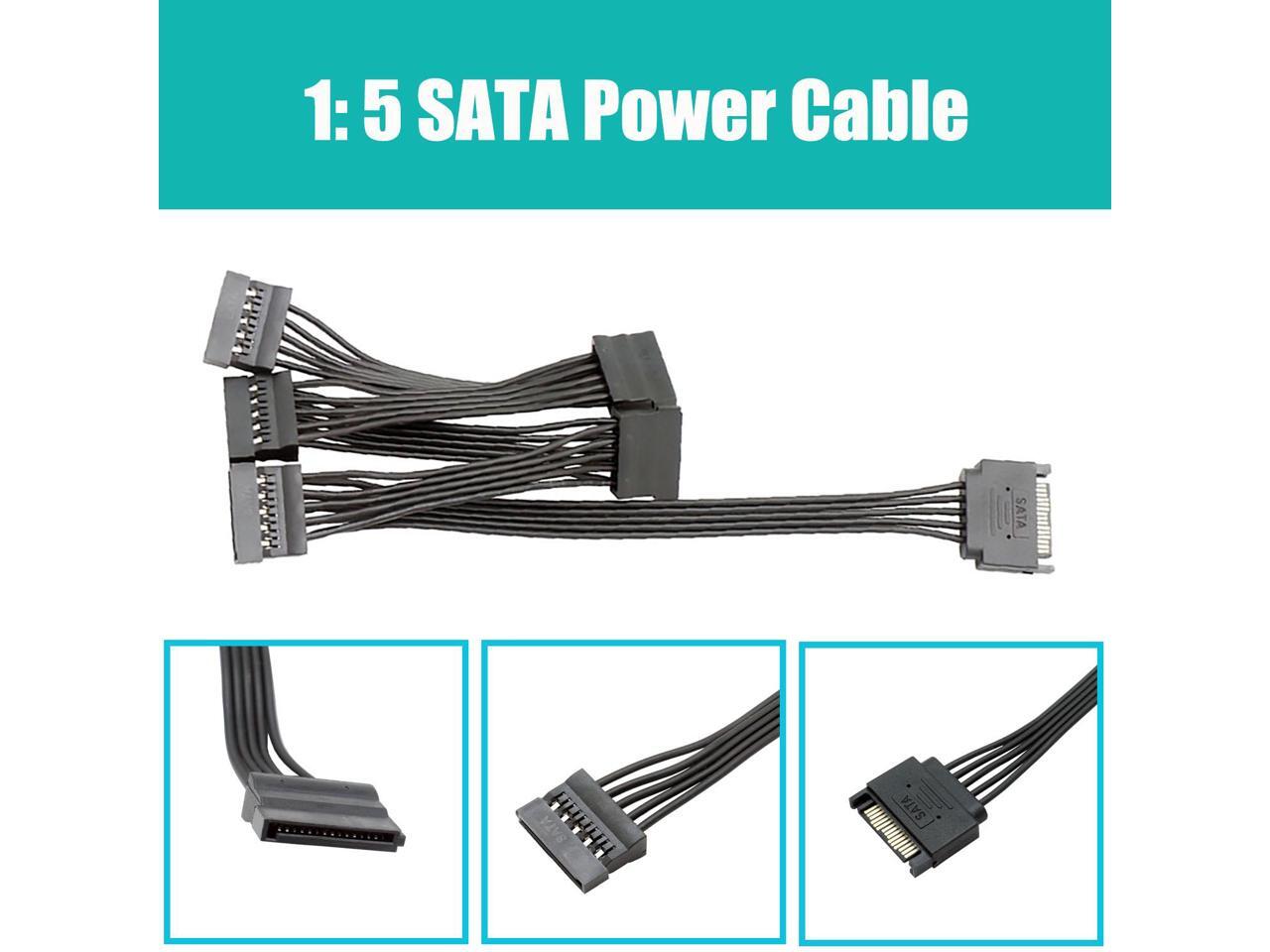

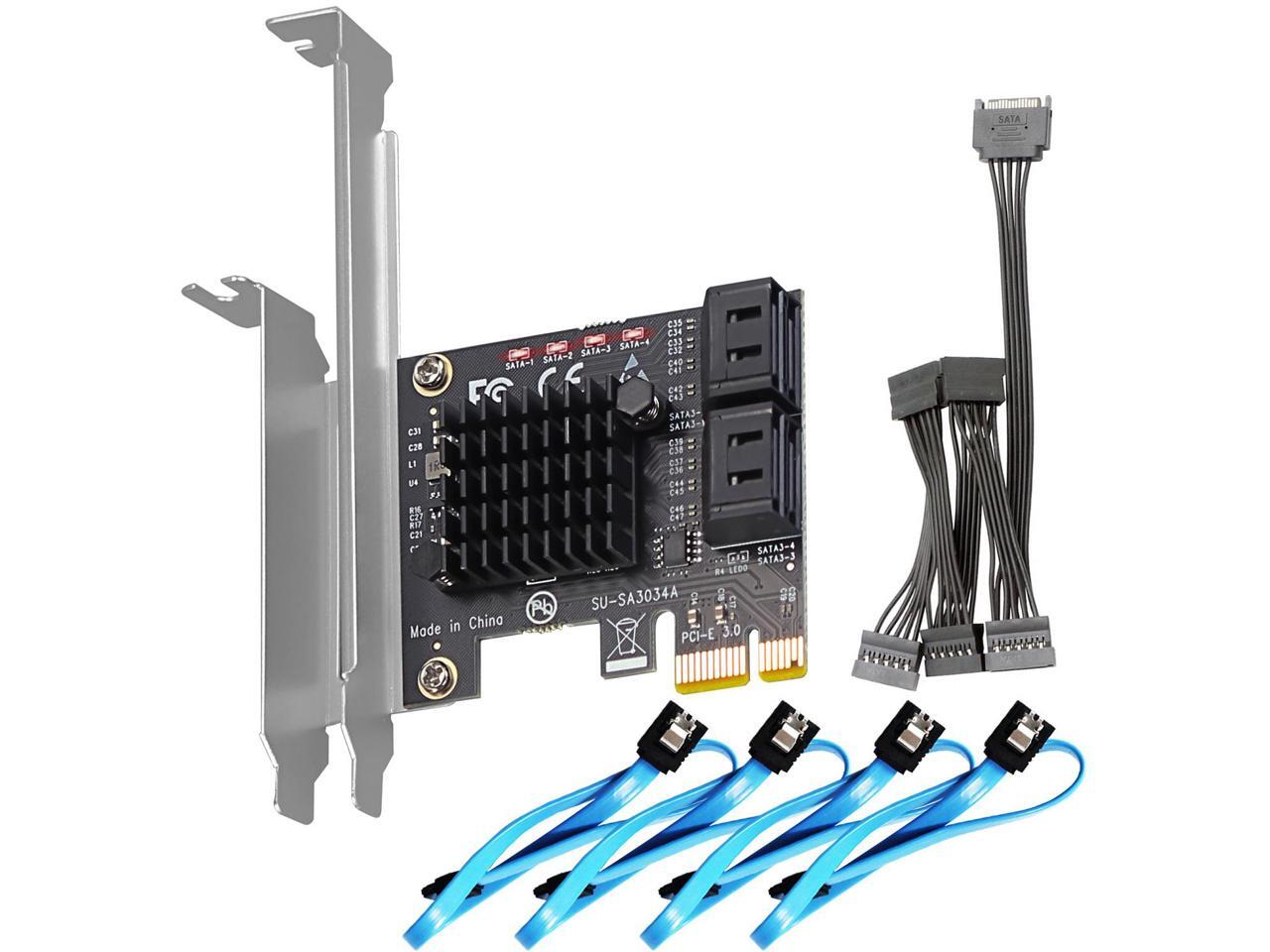

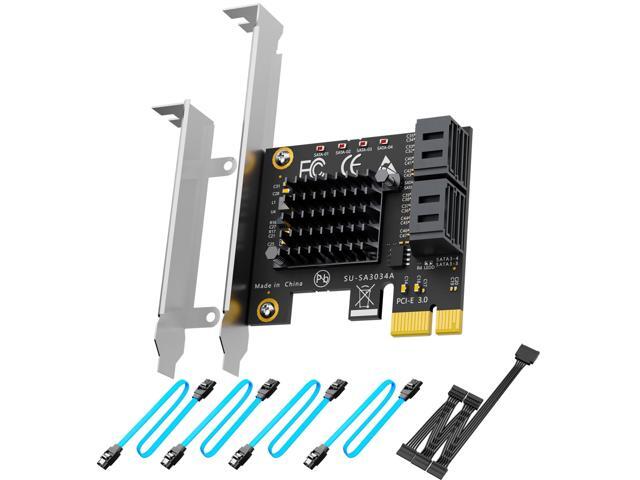

  • Accessories: 4 x SATA III cable; 1 x 1:5 SATA Splitter Power Cable; 12cm Regular Profile Bracket and 8cm Low Profile Bracket
  • $21.99 –
