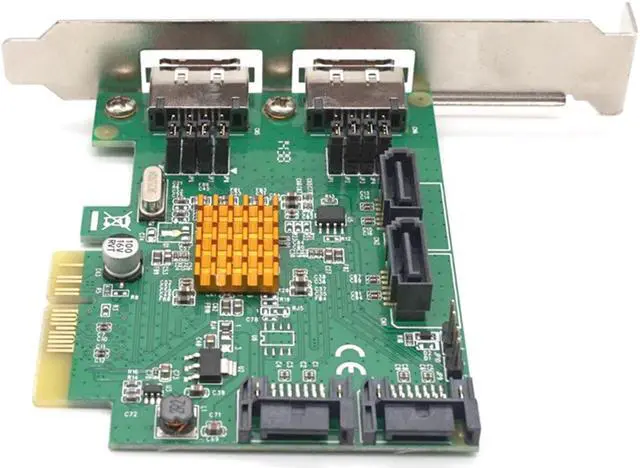

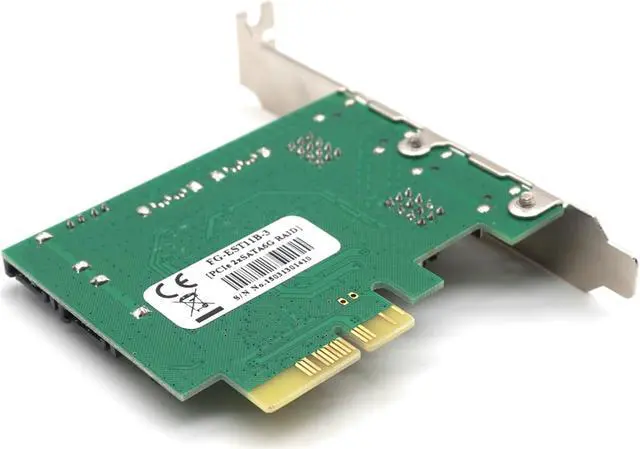

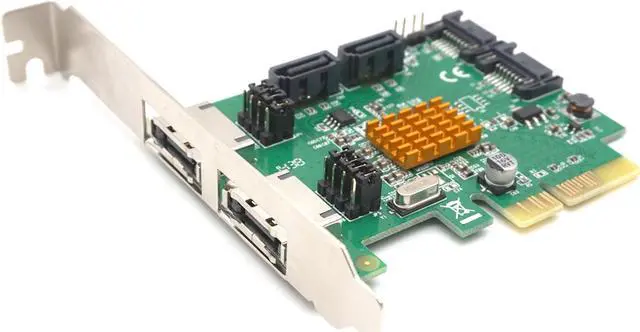

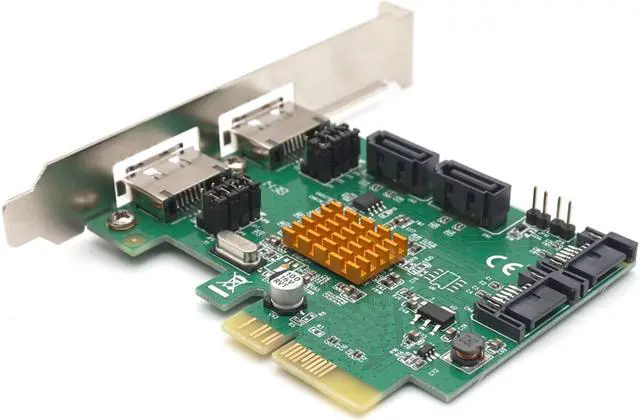

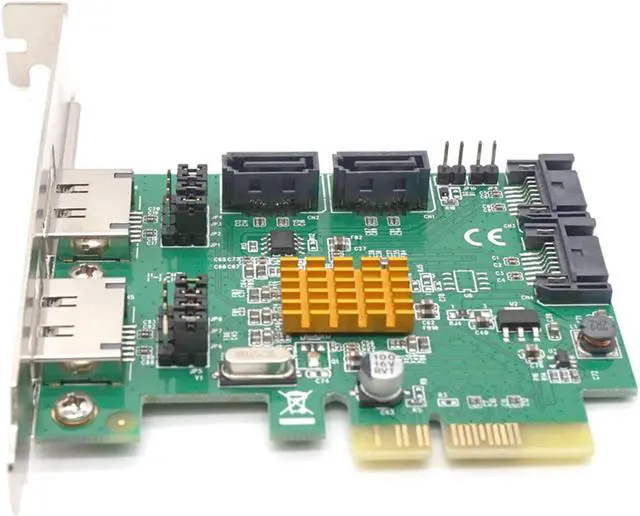

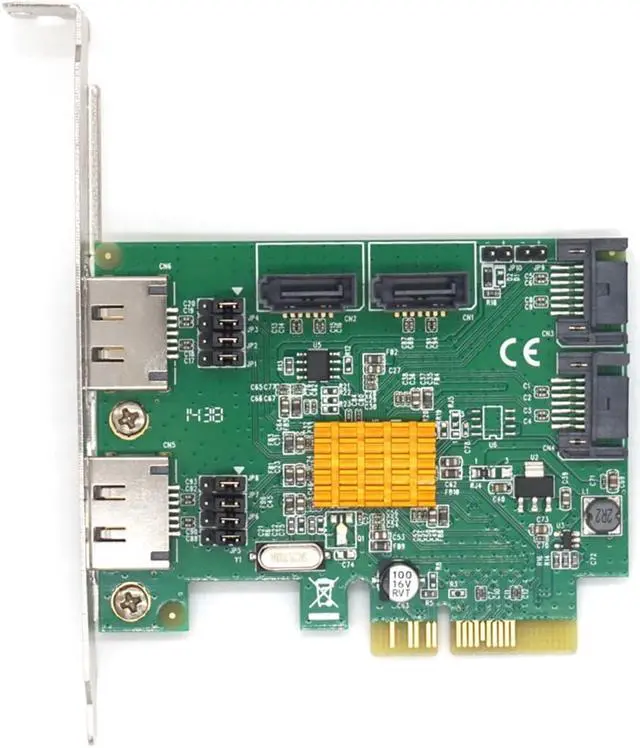

Weastlinks PCI-E to 4 Port Internal SATA 3.0 Raid Controller Card with 2 Port External eSATA EST11B
- The PCI Express card expands your PC by four SATA ports. Two of those ports can be configured for either internal or external use. You can connect devices like e.g. hard drives, DVD-drives etc. to the card.
- Supports 2 internal SATA 6G ports and 2 external or internal SATA 6G ports set manually by users.
- Supports SATA port Hot-Plug.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
100% Brand New And High quality.
Chipset for Marvell 88SE9230 (FG-EST11B)
Specifications: 4-Ports SATA 6G PCIe Card
Introduction
The PCI Express card expands your PC by four SATA ports. Two of those ports can be configured for either internal or external use. You can connect devices like e. g. hard drives, DVD-drives etc. to the card.
4-lane PCI-Express form factor.
2-Lane PCI-Express 2.0 interface supports communication bandwidth up to 10.0G bps.
Supports PCI-Express data transfer rate up to 5.0 / 2.5G bps.
Fully Plug and Play compliant.
Supports both Standard and Low profile.
Available in gift box packaging.
Dimension: 120.0 mm (H) x 88.0 mm (L) x 20.6 mm (T) (approx. ).
Supports Windows 10 / 8. x / 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux.
Serial ATA (SATA) interface
Supports 2 internal SATA 6G ports and 2 external or internal SATA 6G ports set manually by users.
Supports Hardware RAID 0, 1, 10 and JBOD.
Supports HyperDuo mode, Safe mode (Mirrored Protection) and Capacity mode(Cost-Optimized).
Up to 4 SATA devices with point-to-point connectivity.
Compliant with Serial ATA Specification 3.0 with communication speed of 6.0G bps.
Backwards compatible with SATA II( 3.0G bps) and SATA I( 1.5G bps).
Bootable from attached HDD.
Supports Native Command Queuing (NCQ).
FIS based Port Multiplier support up to 20 Drives.
Supports SATA port Hot-Plug.
Package Includes:
1 x PCI-Express SATA 6G Raid Card
100% Brand New And High quality.
Chipset for Marvell 88SE9230 (FG-EST11B)
Specifications: 4-Ports SATA 6G PCIe Card
Introduction
The PCI Express card expands your PC by four SATA ports. Two of those ports can be configured for either internal or external use. You can connect devices like e. g. hard drives, DVD-drives etc. to the card.
4-lane PCI-Express form factor.
2-Lane PCI-Express 2.0 interface supports communication bandwidth up to 10.0G bps.
Supports PCI-Express data transfer rate up to 5.0 / 2.5G bps.
Fully Plug and Play compliant.
Supports both Standard and Low profile.
Available in gift box packaging.
Dimension: 120.0 mm (H) x 88.0 mm (L) x 20.6 mm (T) (approx. ).
Supports Windows 10 / 8. x / 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux.
Serial ATA (SATA) interface
Supports 2 internal SATA 6G ports and 2 external or internal SATA 6G ports set manually by users.
Supports Hardware RAID 0, 1, 10 and JBOD.
Supports HyperDuo mode, Safe mode (Mirrored Protection) and Capacity mode(Cost-Optimized).
Up to 4 SATA devices with point-to-point connectivity.
Compliant with Serial ATA Specification 3.0 with communication speed of 6.0G bps.
Backwards compatible with SATA II( 3.0G bps) and SATA I( 1.5G bps).
Bootable from attached HDD.
Supports Native Command Queuing (NCQ).
FIS based Port Multiplier support up to 20 Drives.
Supports SATA port Hot-Plug.
Package Includes:
1 x PCI-Express SATA 6G Raid Card
