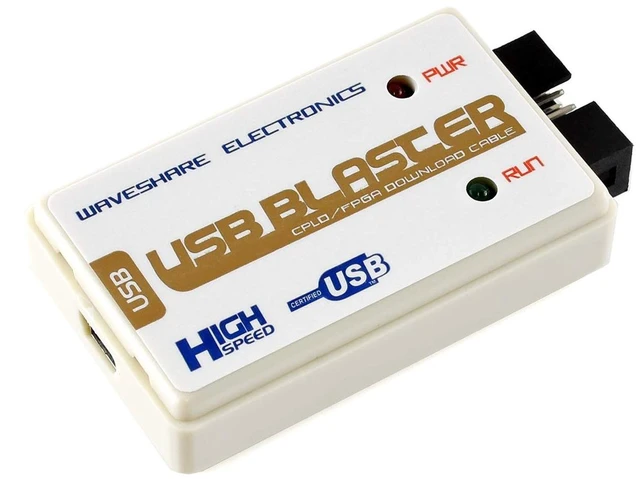

waveshare USB Blaster V2 Download Cable Programmers Debuggers | Support ALTERA FPGA, CPLD,USB 2.0 to PC,JTAG, AS, PS to The Target Device
- USB to FPGA Interface: The USB Blaster Download Cable interfaces a USB port on a host computer to an Altera FPGA mounted on a printed circuit board
- Configuration Data Transfer: The cable sends configuration data from the PC to a standard 10-pin header connected to the FPGA
- Versatile Programming Applications: You can use the USB Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production
- Comprehensive Device Support: Supports most of the ALTERA FPGA/CPLD devices, Active Serial Configuration devices, Enhanced Configuration devices, and supports AS, PS, JTAG three download modes
- High-Speed Design Architecture: Features high-speed, stable performance with internal FT245R+CPLD design for efficient programming and debugging operations
- Wide Voltage Range Compatibility: Supports 1.2-5V programming voltage range to accommodate various FPGA and CPLD device requirements
- Advanced Development Tools: Compatible with SignalTap II embedded logic analyzer, Nios II embedded processor communication and debugging, and Quartus II integrated development environment
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Key Features
Performance
Supports most of the ALTERA FPGA/CPLD devices, Active Serial Configuration devices, and Enhanced Configuration Devices.
Supports AS, PS, JTAG three download modes.
High-speed, stable, and internal FT245R+CPLD designed.
Supports 1.2-5V programming voltage.
Supports SignalTap II embedded logic analyzer.
Supports Nios II of embedded processor communication and debugging.
Quartus II integrated development environment.
NIOS II IDE integrated development environment.
NIOS II EDS integrated development environment.
Supported Devices
CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc.
FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc.
Active Serial Configuration Devices including: EPCS1, EPCS4, EPCS16 etc.
Enhanced Configuration Devices including: EPC1, EPC4 etc.
Other Features
High download speed: FT245+CPLD+244, close to the original ALTERA USB Blaster.
Download speed 1-3 times faster than other schemes, such as 68013 or C8051F.

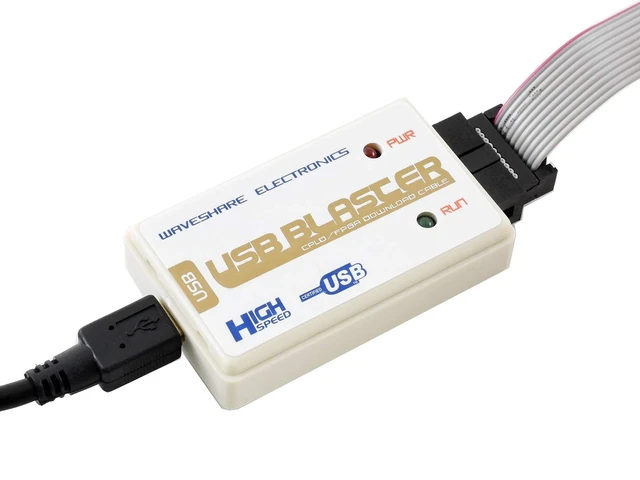

Connects to PC
Computer connection via USB 2.0 interface.
Connects to target board
Target board connection via JTAG, AS, PS interfaces. The figure 1, 2,and 3 below shows the header pinouts of different interfaces.LED Status

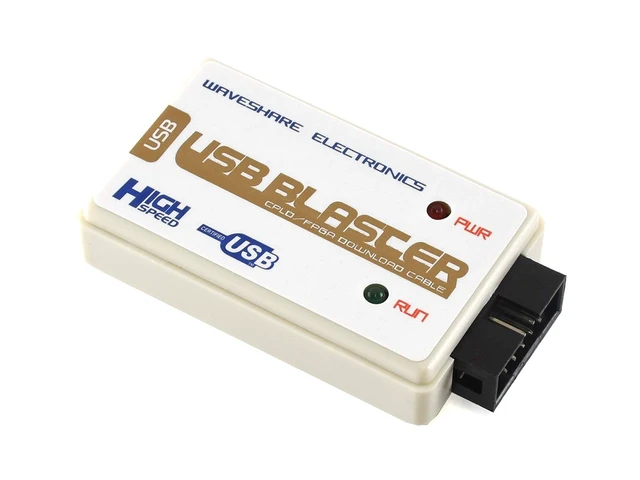

Red LED: Power indicator
Green LED: Signal indicator, the LED is on while downloading/programming
Package Content

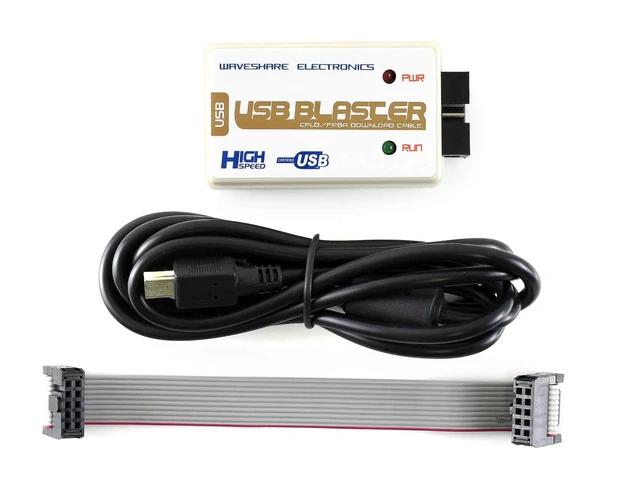

USB Blaster V2 × 1
USB Cable × 1
Note Technical Support is provided ,please contact with us if you have any problem.
