HK-LD2410D-B 24G Human Presence Detection Module Perception Switch Smart Sensor 6M Motion Sensing with TTL Serial Communication Compatible with Bluetooth (Test Kit C)

JMT HK-LD2410D-B 24G Human Presence Detection Module Perception Switch Smart Sensor 6M Motion Sensing with TTL Serial
Communication Kit detail: LD2410D-B

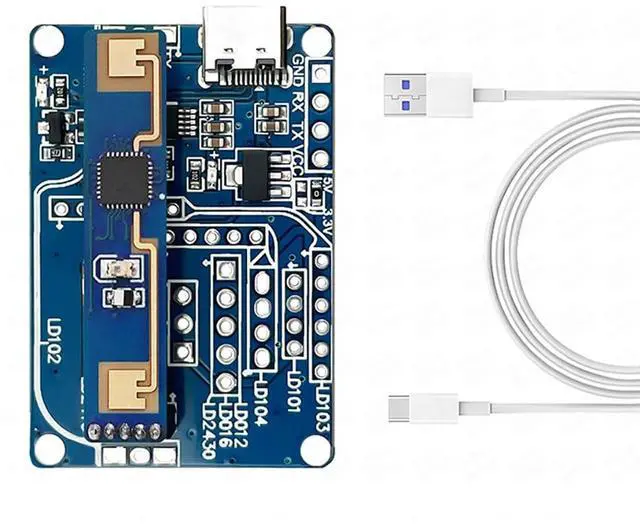

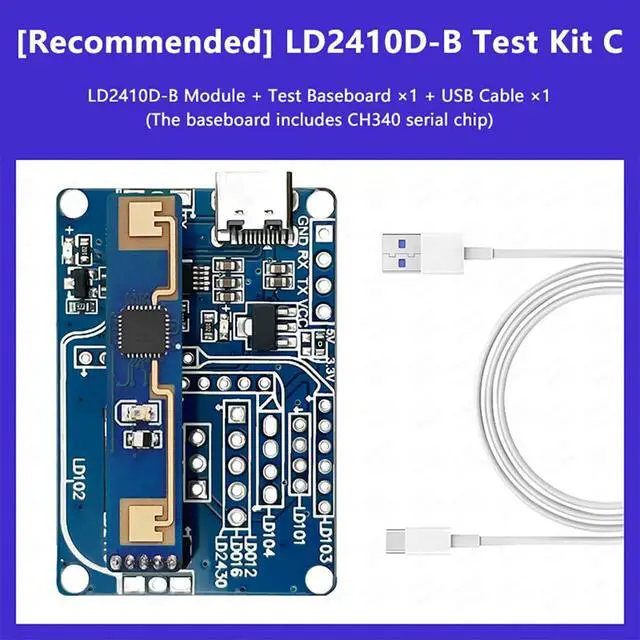

Test Kit C: LD2410D-B Module + Test Baseboard x1 + USB Cable x1 (The baseboard includes CH340 serial chip)
LD2410D-B Test Kit B: LD2410D-B Module + SH 1.27 mm 5P to Dupont 5-Pin Cable 20CM x1 + CH340 Serial Adapter Board x1
LD2410D-B Test Kit A: LD2410D-B Module + SH 1.27 mm 5P to Dupont 5-Pin Cable 20CM x1
Product feaures: LD2410D-B Single Module 24G Human Presence Detection / TTL Serial Communication & High/Low Level
Output / Power Supply: ~100mA @ 5V 24GHz ISM Band / Serial & IO Level
Output Accurately Detects: Motion / Micro-Motion /
Seated Still States Presence Detection: within4m Radius/Motion Sensingwithin 6m Supports High-Precision Parameter Configuration per Detection Zone Visual PC Software/ TTL Serial Commands for Parameter Adjustment Product Diagram Detects Human Presence/Movement Serial & IO High-Level
Output Interface Type: 1.27 mm x 5PIN
Pin Header 1: Vin,
Power Input 2: GND,
Power Ground 3: RX, Serial
Rx Pin 4: TX, Serial
Tx Pin 5:
OUT: Target Status Output
