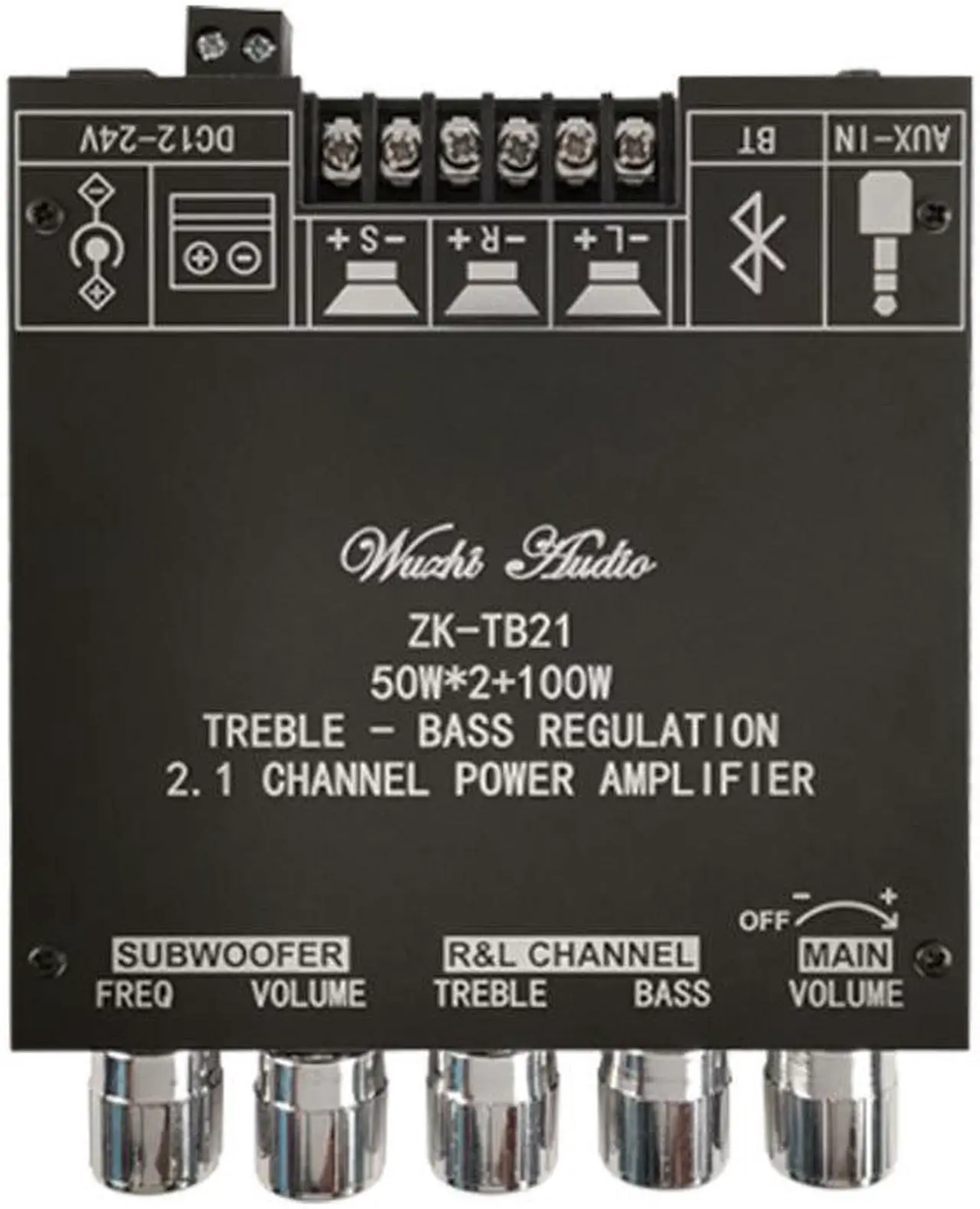

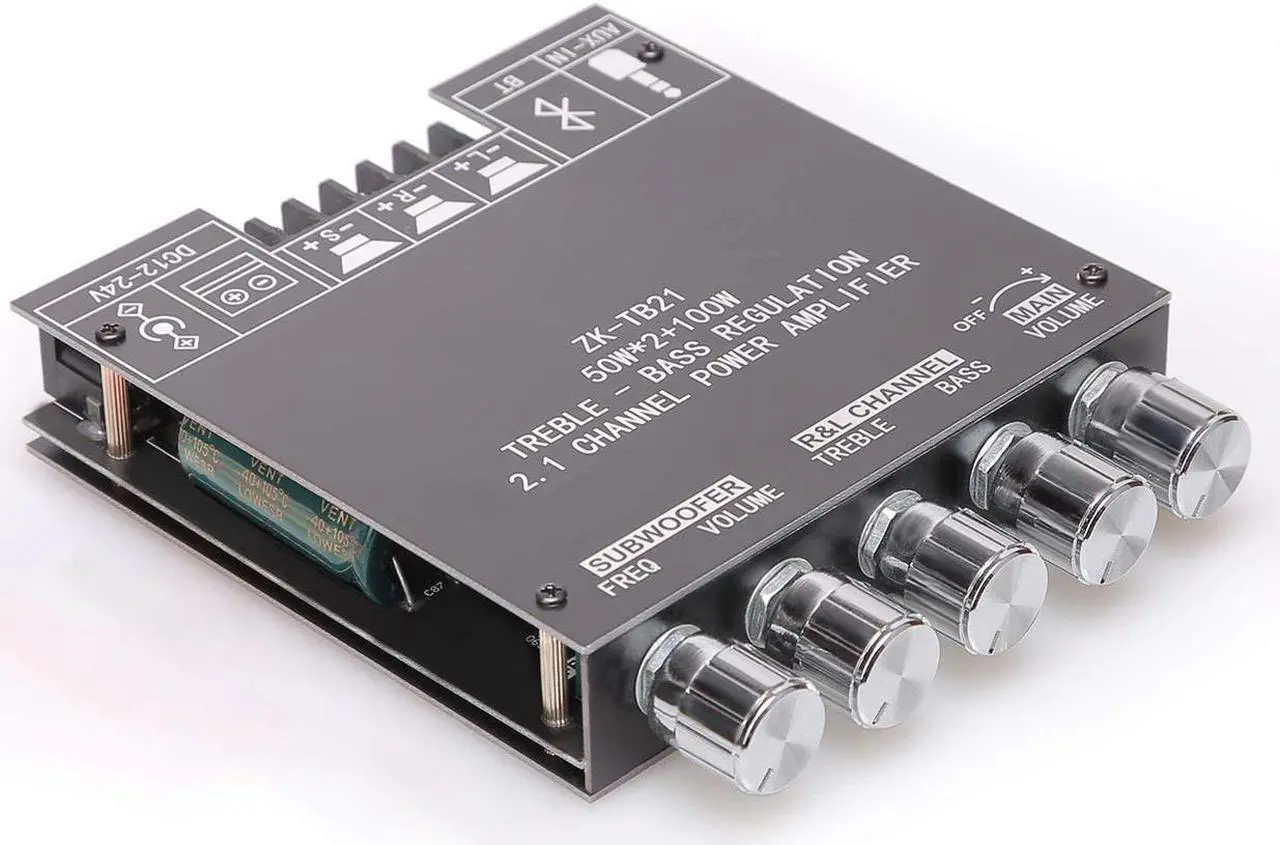

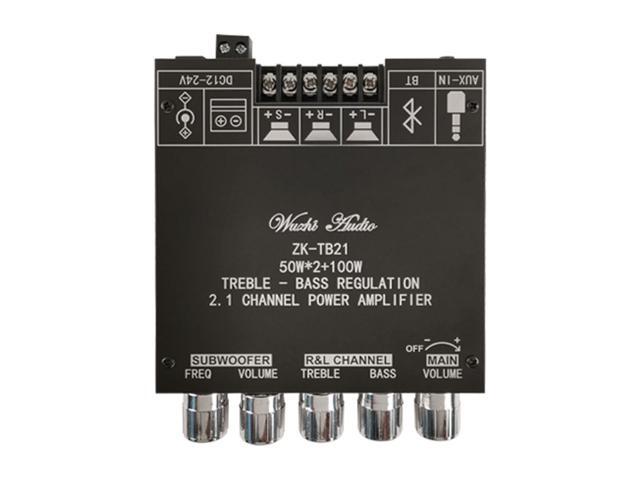

50W+50W+100W 2.1 Channel Subwoofer Amplifier Board with Treble and Bass Control, Dual TPA3116 Chip, DC 12-24V, Bluetooth and AUX Inputs, DIY Wireless Speakers AMP Board, Password Free

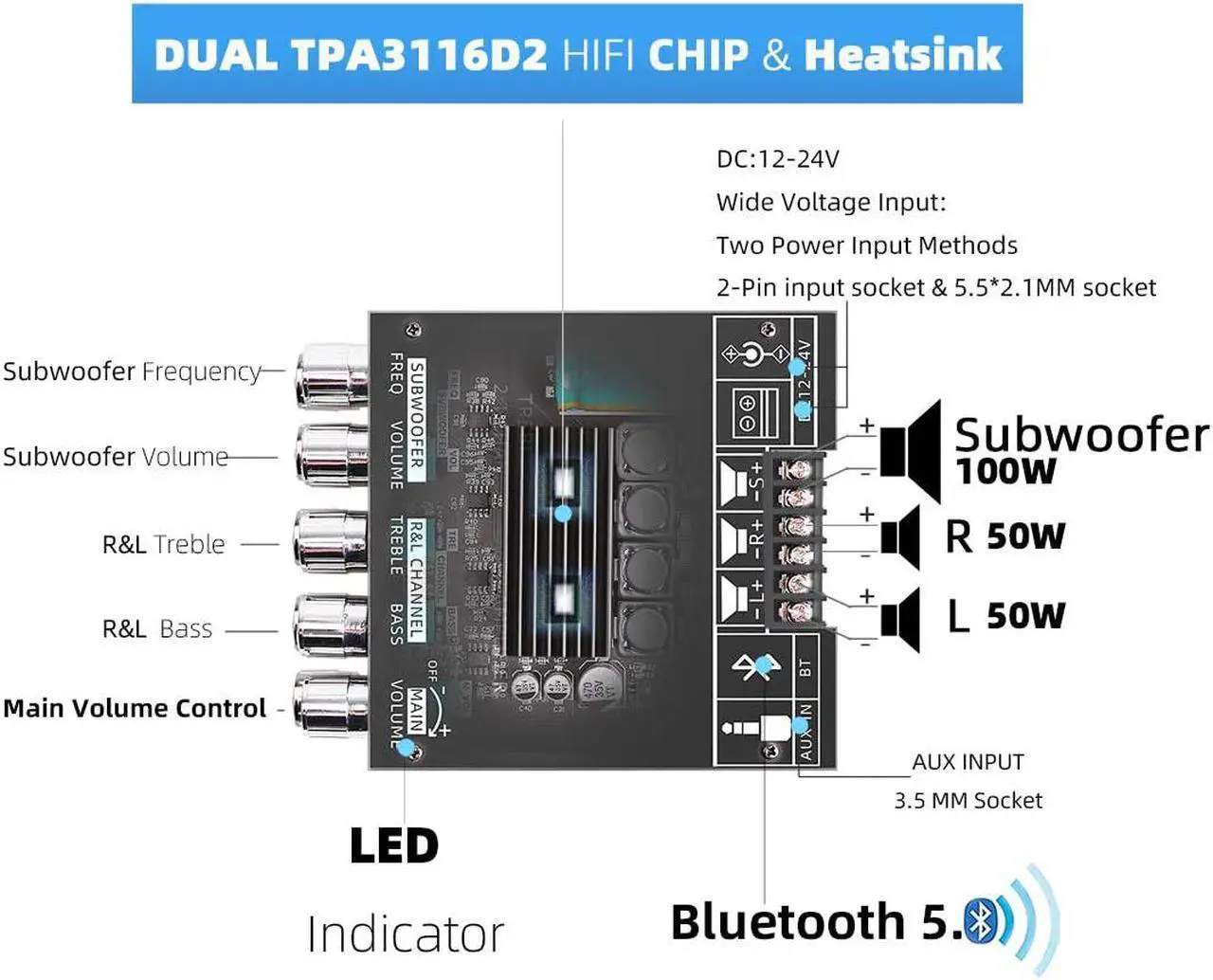

- TPA3116D2 HIFI Chip Solution: Stereo Dual-channel Output to Ensure Continuous Serial High-power Operation, THD =0.1%. Wide Voltage Input DC: 12-24V;
- Treble & Bass Control: If You Are Tired of The Inherent High& Low Bass, Why Not Try The High & Low Control Knob! This Will Make You Feel Like Being In A Movie Theater.;

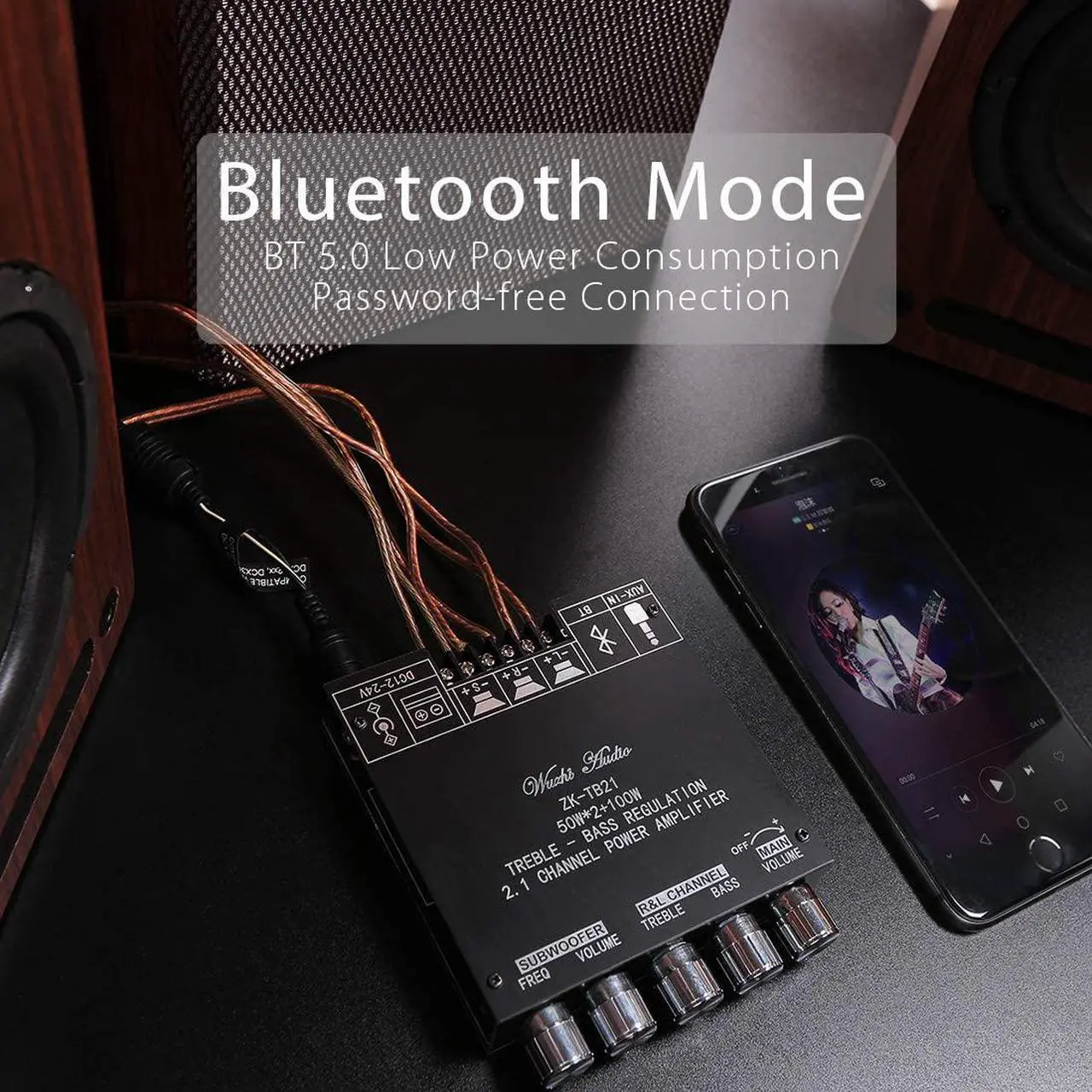

- Bluetooth and AUX Function: Bluetooth 5.0 version, Transmission Distance Is Farther. The Transmission Distance Can Reach 49 Feet In An Open Environment. If your Play Device Does Not Have Bluetooth, You Can Also Input Audio Signals Through The 3.5MM Headphone Plug.;
- Safety Protection: This Amp Board Has Overheat Protection, Reverse protection, Circuit Protection, Over-voltage and Under-voltage Protection;
+
+
Overview
Specs
Reviews
Input Voltage: DC 12V-24V
Max Power Output: 50W*2(R&L)+100W(Subwoofer)

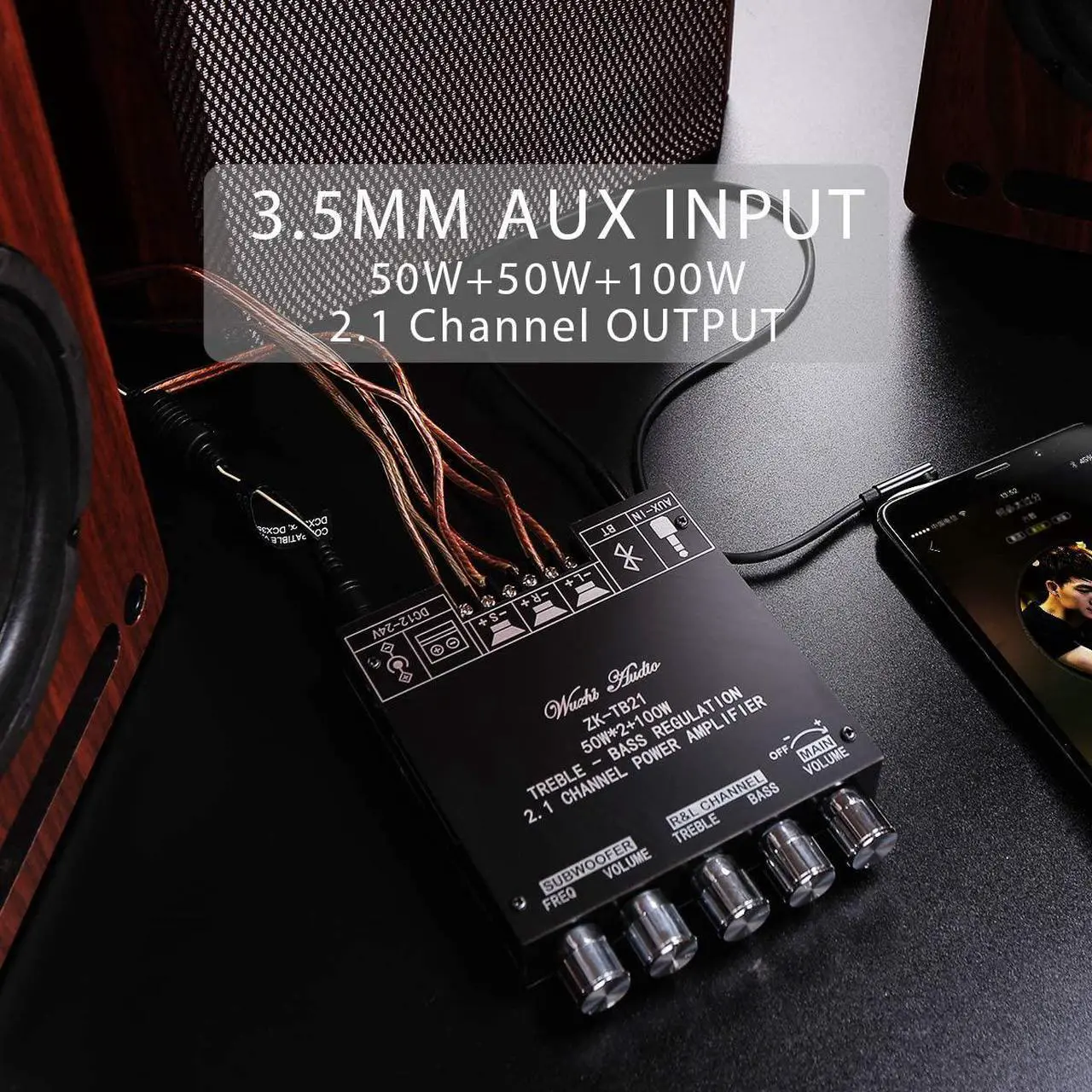

Input Method: Bluetooth & AUX
Channel: 2.1 CH Stereo Output
Output Impedance:4-8O
Bluetooth Version:BT 5.0
Protection Functions: Reverse Connection Protection Short Circuit Protection Self-recovery Overheat Protection

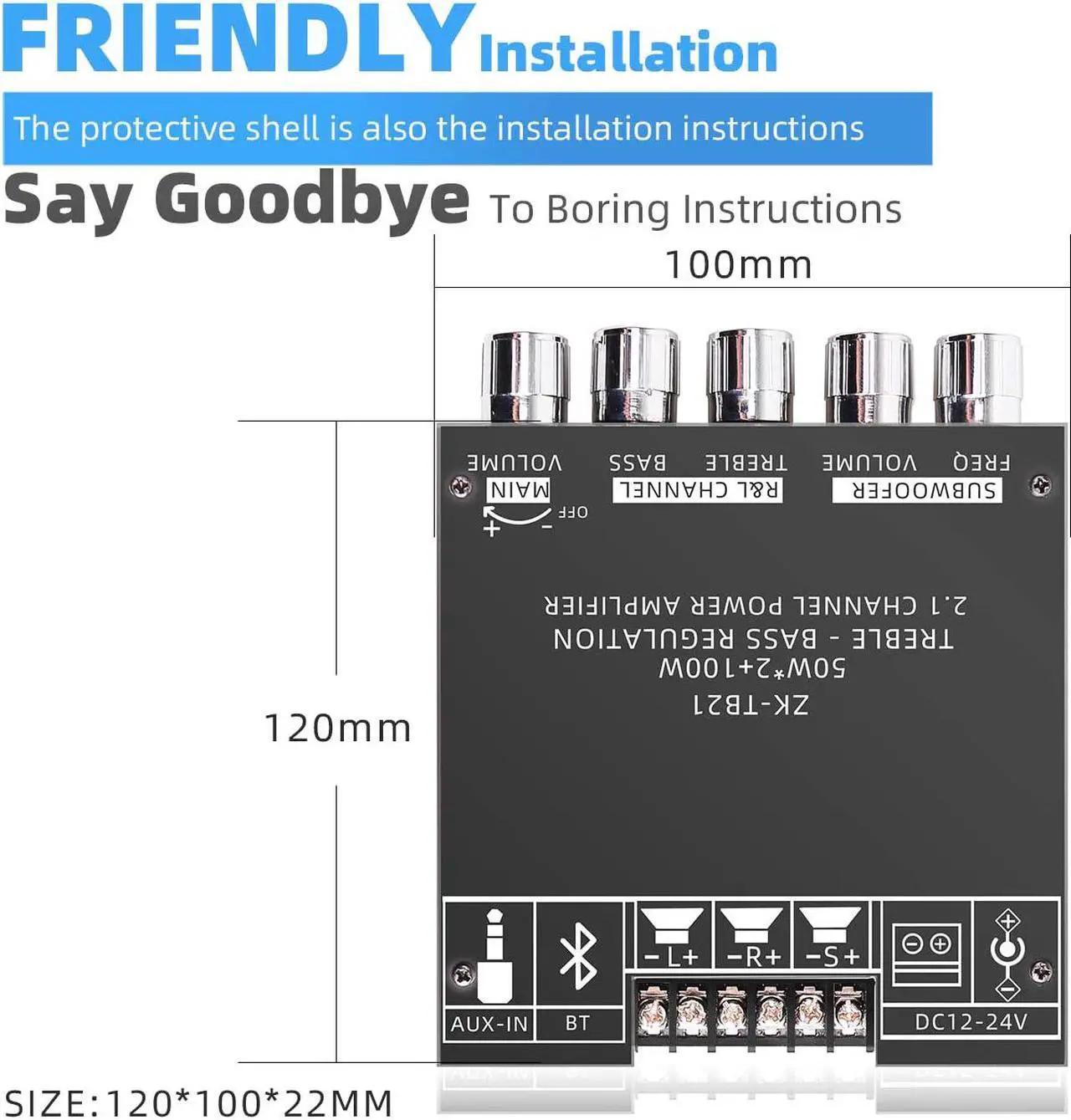

Size: 120*100*22mm
Weight: 195g
Max Power Output: 50W*2(R&L)+100W(Subwoofer)
Input Method: Bluetooth & AUX
Channel: 2.1 CH Stereo Output
Output Impedance:4-8O
Bluetooth Version:BT 5.0
Protection Functions: Reverse Connection Protection Short Circuit Protection Self-recovery Overheat Protection
Size: 120*100*22mm
Weight: 195g
