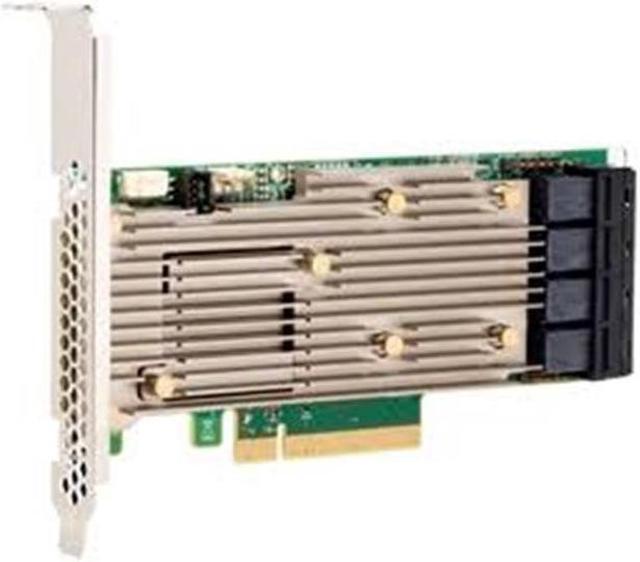

LSI Logic Controller Card 05-50008-02 MegaRAID 9440-8i 8Port 12Gbs SAS/SATA/PCI Express3.1

Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9440-8i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of non-business crticial applications. Broadcom’s Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility. • Connect up to 63 SAS/SATA devices or 24* NVMe devices per controller • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors • Support critical, high-bandwidth applications with PCIe 3.1 connectivity • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60 Detail Specifications Lifecycle Active Distrib.

Inventory No RAID Management Software LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) Physical Dimension s Low profile 6.127 x 2.712 Host Bus Type x8 lane PCI Express 3.1 Internal Ports 8 Data Transfer Rates 12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe)
Compliant Devices Supported SAS/SATA: 63, NVMe: 4 x4, up to 24 x2 or x4 Internal Connectors 2 Mini-SAS HD x4 SFF-8643 Operating Temperature 10 o to 55 o C Operating Voltage (V) +12V +/-8%, 3.3V +/-9% OS Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See /support/down-load-serach for details on versions. Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE I/O Processor / SAS Controller SAS3408 I/O controller (IOC) Item Dimension (L inchxW inchxH inch) 11 x 7 x 2 Weight 1.00 lb Warranty Information 3 Years
