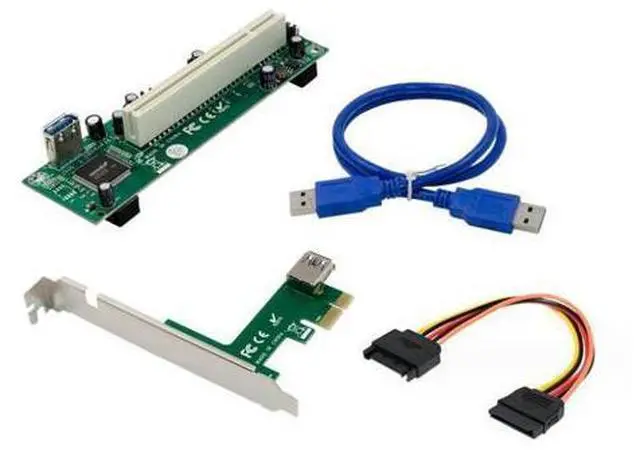

PCI-E x1 to 2 x PCI Slot Expansion Card, PCI Slot Adapter Converter, Detachable Design, Plug & Play No Driver Required

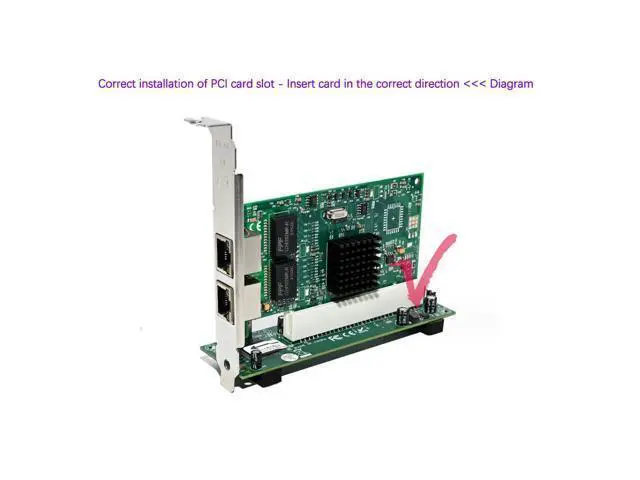

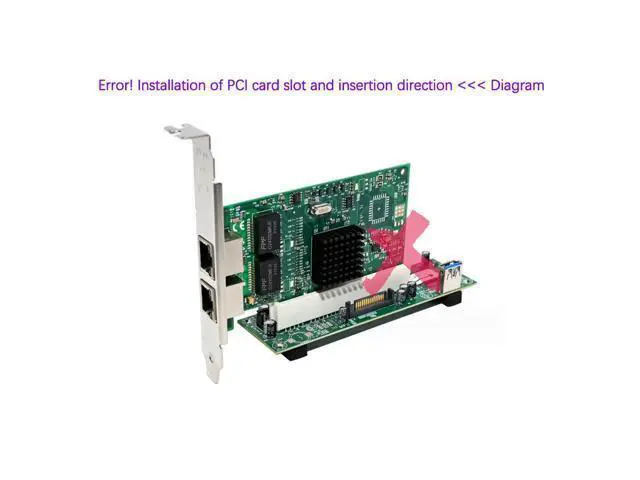

- Wide range of applications; Universal for network cards, sound cards, serial/parallel port cards, video capture cards, array cards, tax control cards, industrial board cards, etc. PCI device cards.; Cautionary Notice:; The adapter card is tested before shipment. Remember not to hot-plug it while it is powered on! Before operating, please turn off the power first, first, first!; When using the adapter card, the computer must be in a powered-off state for hot plugging to be possible.; 2. When installing a PCI device card, pay attention to the insertion direction (the board has an arrow indicating the direction). Do not insert it in the reverse direction!!! Inserting it in the wrong direction may cause the chip to be burned and damaged.; 3. Correct installation method: Shut down the computer main unit. Follow the arrow indications on the board card, and insert the PCI device card into the PCI card slot adapter.; Operating System; Windows OS, Linux (driver-free, plug-and-play, no additional power supply required).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

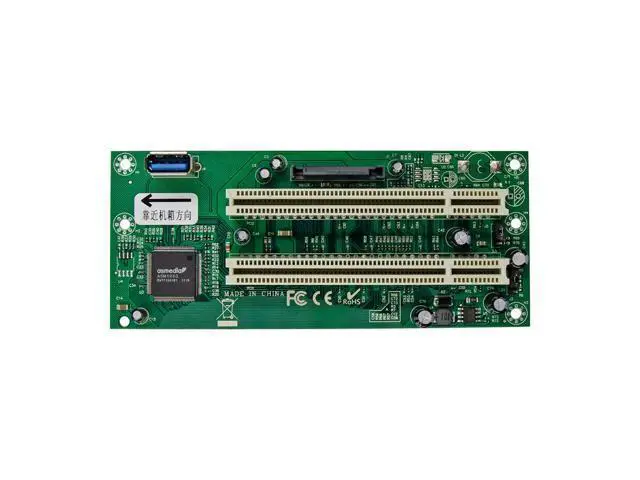

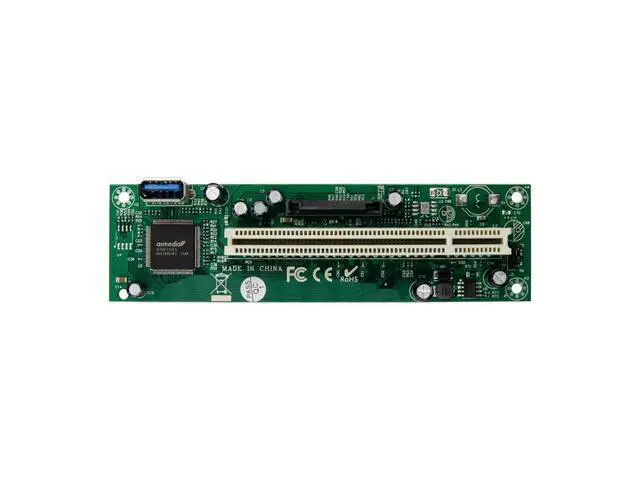

SB-EP1083A-2P PCI Express-to-PCI Splitter Bridge Conversion Card, enabling the connection of the PCI bus with high-performance PCI Express The network is used together. SB-EP1083A-2P, a PCI Express x1 to 32-bit PCI bridge, enables users to connect old parallel bus devices Connected to the advanced serial PCI Express interface. ASM1083 is a PCI Express-to-PCI forward bridge, fully compliant with the PCI-SIG PCI Express-to-PCI Bridge Specification 1.0.
Product Type: PCIe to PCI Conversion Card (Split
Type) Main chipset: ASM1083
Bus type: PCI Express x1 (1xLane virtual channel)
Slot interface: 2 x PCI 32-bit 33/66 MHz (dual-chip type) 1 x USB 3.0 port 1 x 15-pin SATA interface
PCI slot: 3.3V /1A, 3.3V /100mA 5V/5A and 12V/500mA (adjustable)
Functional Feature: No additional power connection is required (in special cases, there is a built-in SATA power interface available on the board) Driver-free, plug-and-play
Product Type: PCIe to PCI Conversion Card (Split
Type) Main chipset: ASM1083
Bus type: PCI Express x1 (1xLane virtual channel)
Slot interface: 2 x PCI 32-bit 33/66 MHz (dual-chip type) 1 x USB 3.0 port 1 x 15-pin SATA interface
PCI slot: 3.3V /1A, 3.3V /100mA 5V/5A and 12V/500mA (adjustable)
Functional Feature: No additional power connection is required (in special cases, there is a built-in SATA power interface available on the board) Driver-free, plug-and-play
