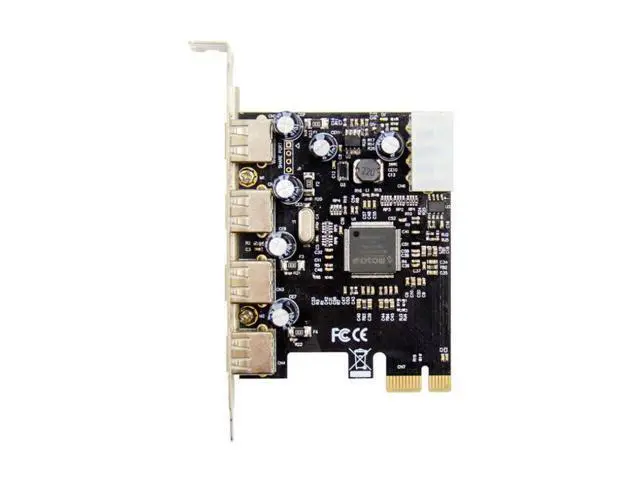

Main image of PCIe to 4-Port USB 3.0 Expansion Card Internal Adapter for Desktop PC, 4-Pin Power, MSC9990 Chipset

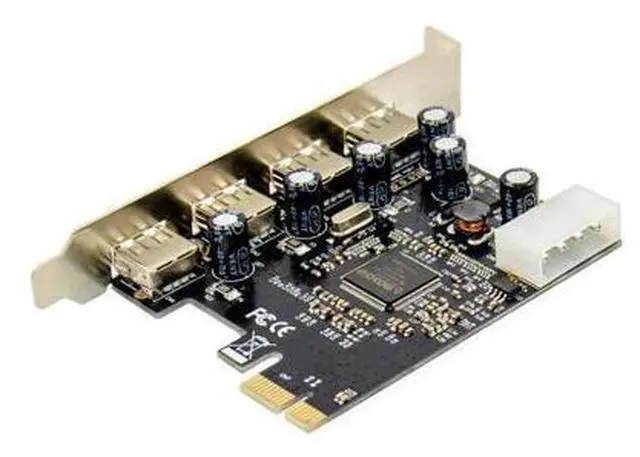

Alt view image 2 of 4 - PCIe to 4-Port USB 3.0 Expansion Card Internal Adapter for Desktop PC, 4-Pin Power, MSC9990 Chipset

Alt view image 3 of 4 - PCIe to 4-Port USB 3.0 Expansion Card Internal Adapter for Desktop PC, 4-Pin Power, MSC9990 Chipset

Alt view image 4 of 4 - PCIe to 4-Port USB 3.0 Expansion Card Internal Adapter for Desktop PC, 4-Pin Power, MSC9990 Chipset

Shop All Fervit Products | Visit ProGear Haven Store

PCIe to 4-Port USB 3.0 Expansion Card Internal Adapter for Desktop PC, 4-Pin Power, MSC9990 Chipset

Be the first to review this product...

MCS9990 is a single-channel multi-function PCI Express card, capable of connecting 4 USB 2.0 host controllers. Each port has a bandwidth.; This enables four USB 2.0 host controllers to share the 2.5 Gbps wide PCI Express bus bandwidth.; It supports two operation modes:; The USB host mode and OTG mode can be selected by choosing the pins through the device mode.; The USB host mode supports four USB 2.0 host ports and four USB host controllers.; The OTG mode supports two USB 2.0 host ports, one USB OTG port, and provides the option to choose between GPIO or ISA interfaces.; Four USB 2.0 host ports are integrated with the on-chip transceiver and support four enhanced Host Controller Interface (EHCI) functions.; And four open host controller interfaces (OHCI).; The USB OTG port is integrated with the OTG PHY and supports both host and device operations.; The temporary ISA interface typically supports four serial ports and/or two parallel ports.; The 24 temporary GPIO pins can be programmed as either input or output.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PCI Express Single-channel (x1) PCI Express endpoint controller with integrated PHY Compliant with the revised version 1.1 of the PCI Express basic specification - Compliant with PCI Express card specifications - Supports multiple DMA transactions - Supports eight PCI Express functions - Supports message TLP (error) generation - Supports legacy and MSI interrupt mechanisms - Supports PCIe power management through ASPM support USB Function - Four USB 2.0 host ports with on-chip transceivers, It can handle high-speed (480Mbps), full-speed (12Mbps) and low-speed ( 1.5M bps) rates. - The USB 2.0 host port can support OTG function.

- Four enhanced host controller interface (EHCI) controllers - Four companion open host controller interface (OHCI) controllers - Compatible with batch, interrupt and synchronous USB devices. Multiple high-performance USB devices can run simultaneously, and supports USB power management. - As an external device, OTG supports high-speed (HS) / full-speed (FS) operations. - As an external device, OTG
supports the following endpoints: 1 control endpoint 1 interrupt IN endpoint 2 Bulk IN endpoints 2 Bulk OUT endpoints The support for hot-swapping feature enables you to connect/disconnect devices without having to shut down the system first. System Requirements Windows® 2000, XP / 2003 / Vista / Win 10, Win 7 32-bit / 64-bit Systems that support PCI Express, with available PCI Express slots It can be used in conjunction with various types of USB devices, in...
