$84.71
Ships from China.
Meet Your Seller
196ft/60m HDMI Extender, avedio links HDMI Extender Over Cat 5e/6/7, Digital HDMI Ethernet Extender Adapter Support Full HD 1080P 3D, EDID Copy, Deep Color, Compatible with Fire Stick, Roku, Blue-ray
- ?? 196ft HDMI Extender: avedio links hdmi to ethernet extender allows you connect HDMI source device (PC, Blu-ray player, firestick etc) to the Transmitter, run a CAT5e/6/7 cable(up to 60m) from the Transmitter to Receiver, then connect your HDTV to the Receiver with an HDMI cable. Note: cat-5e ethernet cable can only up to 165ft(50meters).
- ?? 1080p HDMI Extender Support deep color up to 36 bits; Support lossless compressed digital audio, HDMI 1.4a, HDCP1.4. Data transfer speed 6.75Gbps. NOTE: We recommend using direct HDMI to HDMI connections, avoid using signal converters/adapters at all costs. CAT 5 cable is NOT recommended!
- ?? Vibrant Video & Authentic Audio- avedio links HDMI extender over Cat5e/6/7 supports video resolutions of 3D/1080p/1080i/720p/576p/576i/480p/480i; The HDMI Cat6 extender also supports HDMI High Definition audio for a full range of audio types, including Dobly TrueHD, DTS-HD Master Audio, and LPCM7.1/DTS/Dobly-AC3/DSD
- ?? Support EDID handling abilitie
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SPECIFICATION - HDMI Extender over cat5e/6/7Length of Cat5e cable between Rx and
TX: 165ft (50m)
Length of Cat6/Cat7 cable between RX and TX: 196ft (60m)
HDMI Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format: DTS - HD/Dobly-true HD/DTS/Dobly-AC3/DSD
Max transmission bandwidth: 1.65G bps
Input/Output HDMI cable distance: 49ft (15m) AWG26 HDMI standard cable
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V

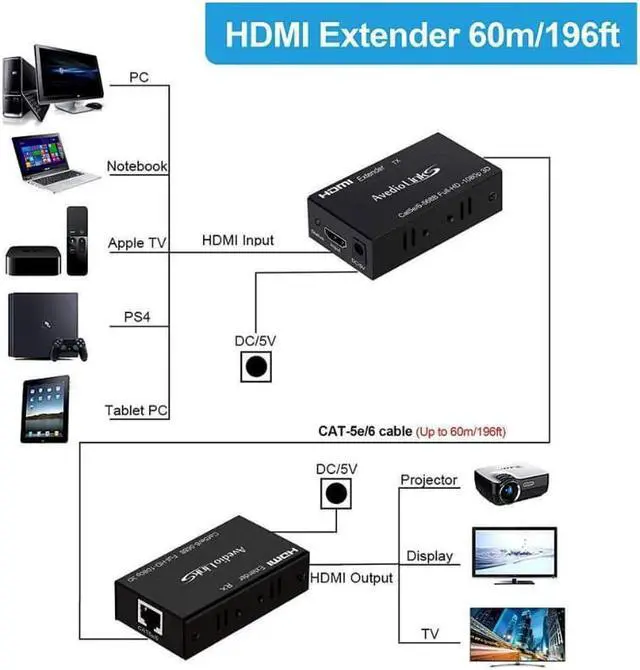

CONNECTING AND OPERATING1. Connect one HDMI cable (AWG 26) up to 15 meters betweenHDMI source device and TX Extender
2. Connect one HDMI cable (AWG 26) up to 20 meters between sink device and RX Extender
3. Connect single cat-6/7 (recommended) cables up to 60 metres instead of HDMI cable between TX and RX Extender
4. Connect 5V power supply
FULL HD 1080P, 3DHDMI Extender Adapter over cat5e/6/7 Support up to 1080p, 3D resolution, Support deep color up to 36 bits; Support lossless compressed digital audio.
Easy setupNo driver required; Uses one piece of CAT5/6/7 cable to extend the HDMI signal up to 196ft (60M). More flexibility and convenience for installation.

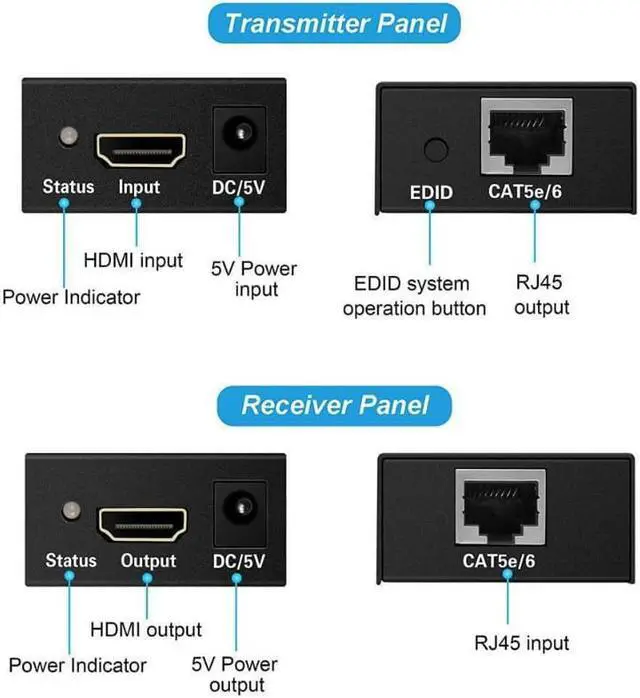

EDID copy functionCopy mode: connect the display to the HDMI input port, then press the button, itll copy the EDID to the extender;
Reset EDID: press the button for 3 seconds, itll reset the EDID to 1080p 3D stereo.

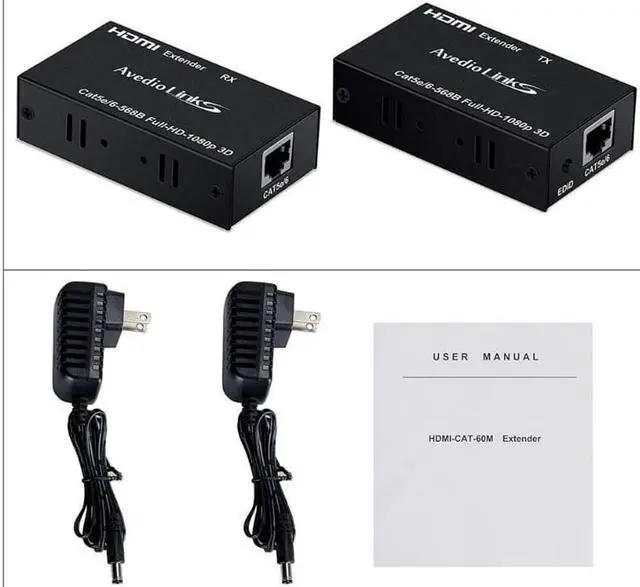

PACKAGE CONTENTS1 * Main unit NO. 1. HDMI Sender
2 * Main unit NO. 2. HDMI Receiver
3 * 2x 5V DC power supply
4 * User's Manual
TX: 165ft (50m)
Length of Cat6/Cat7 cable between RX and TX: 196ft (60m)
HDMI Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format: DTS - HD/Dobly-true HD/DTS/Dobly-AC3/DSD
Max transmission bandwidth: 1.65G bps
Input/Output HDMI cable distance: 49ft (15m) AWG26 HDMI standard cable
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V
CONNECTING AND OPERATING1. Connect one HDMI cable (AWG 26) up to 15 meters betweenHDMI source device and TX Extender
2. Connect one HDMI cable (AWG 26) up to 20 meters between sink device and RX Extender
3. Connect single cat-6/7 (recommended) cables up to 60 metres instead of HDMI cable between TX and RX Extender
4. Connect 5V power supply
FULL HD 1080P, 3DHDMI Extender Adapter over cat5e/6/7 Support up to 1080p, 3D resolution, Support deep color up to 36 bits; Support lossless compressed digital audio.
Easy setupNo driver required; Uses one piece of CAT5/6/7 cable to extend the HDMI signal up to 196ft (60M). More flexibility and convenience for installation.
EDID copy functionCopy mode: connect the display to the HDMI input port, then press the button, itll copy the EDID to the extender;
Reset EDID: press the button for 3 seconds, itll reset the EDID to 1080p 3D stereo.
PACKAGE CONTENTS1 * Main unit NO. 1. HDMI Sender
2 * Main unit NO. 2. HDMI Receiver
3 * 2x 5V DC power supply
4 * User's Manual
