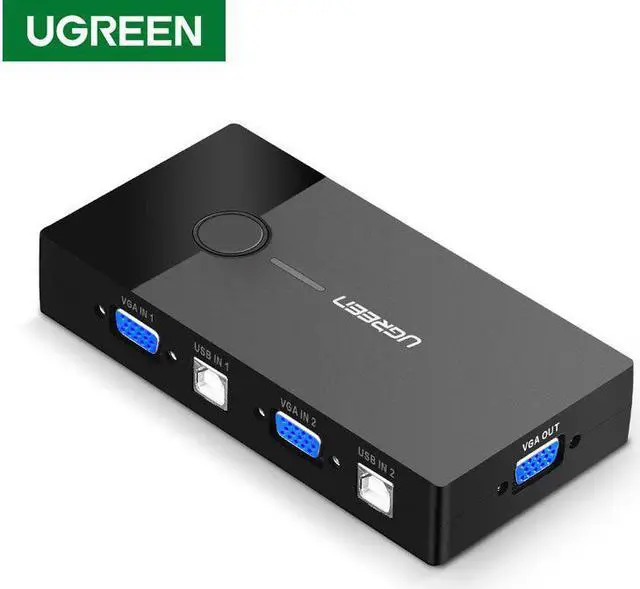

VGA KVM Switch Box 2 Port VGA Video Sharing Adapter 2 in 1 Out Manual Switcher with USB Cables for Computer PC Laptop VGA

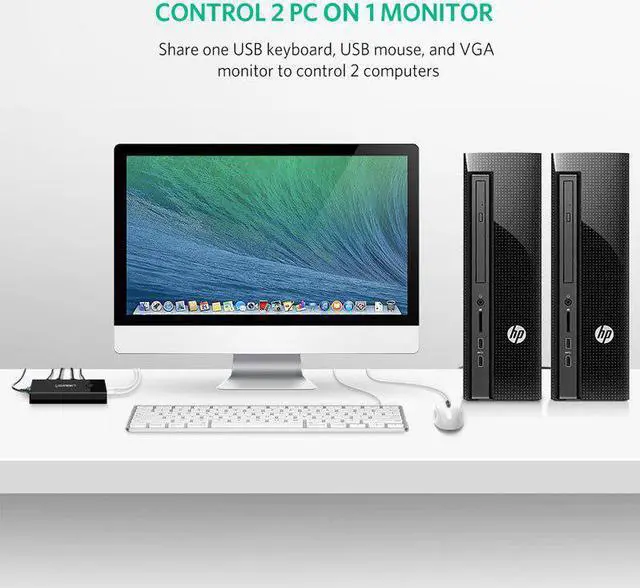

USB VGA KVM Switch allows you to share one USB keyboard, USB mouse, and VGA monitor to control 2 computers.

It is designed for multitasking with two computers at your convenience, increasing productivity in the office or at home

You can switch between 2 computers using a manual switch located on the top of the KVM .

Specification

1. One USB keyboard, USB mouse, and VGA monitor control two computers

2. Max resolution: 1920 x 1440

3. No software drivers required

4. No power adapter required

How It Works

1. Connect the USB devices to the USB A female connectors on the switch

2. Connect a VGA cable to the VGA OUT interface and the display device

3. Connect VGA IN1 and USB IN1 to PC1 at the same time

4. Connect VGA IN2 and USB IN2 to PC2 at the same time

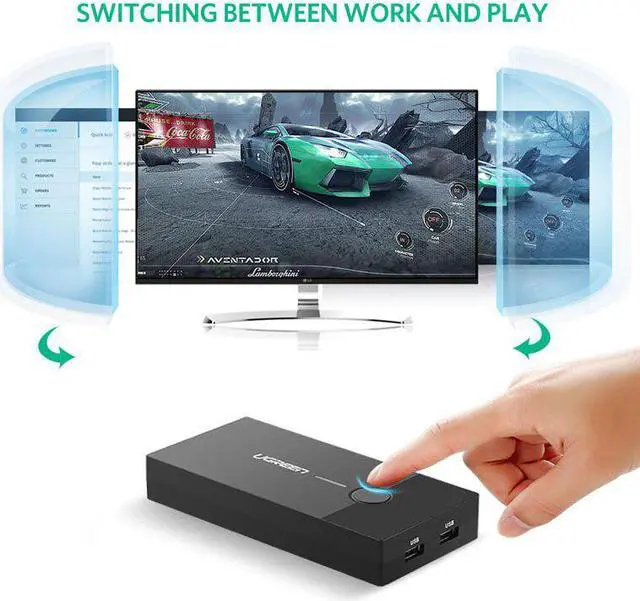

5. Press the manual switch button to switch between the two computers

Important Note

Please make sure the VGA Input Connector 1 and USB B Connector 1 was plugged in the same Host. VGA IN1 and USB IN1 are corresponding. Do NOT support VGA IN1 and USB IN2 mixed insertion.
