Overview
Synvisus 2 port HDMI KVM Switch has a compact and elegant design for easy operation. It enables effortless control over 2 devices with HDMI video connections or computers using a single keyboard, mouse, and monitor, saving space on your desk and reducing equipment clutter.
This advanced KVM is HDCP 2.2 compliant and supports up to 4K@60Hz resolution. It can read and remember the monitor's parameters, decreasing delays or changes in video resolution when switching between computers.
Features an extra USB 2.0 port, it is perfect for connecting USB 2.0 peripherals such as an MP3 player, printer, scanner, or any of your USB devices to the KVM Switch.
Features
- HDMI Resolution: up to 3840x2160@60Hz (Backward Compatible)
- Video Color Format: 24 bit/deep color 30 bit, 36 bit
- Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1/Dolby-AC3/DSD HD(HBR)
- Compliant with HDMI 2.0, HDCP 2.2
- Maximum Band Width: 600MHz
- Maximum Band Rate: 18.0 GBPS
- Output Power: DC 5V/1A

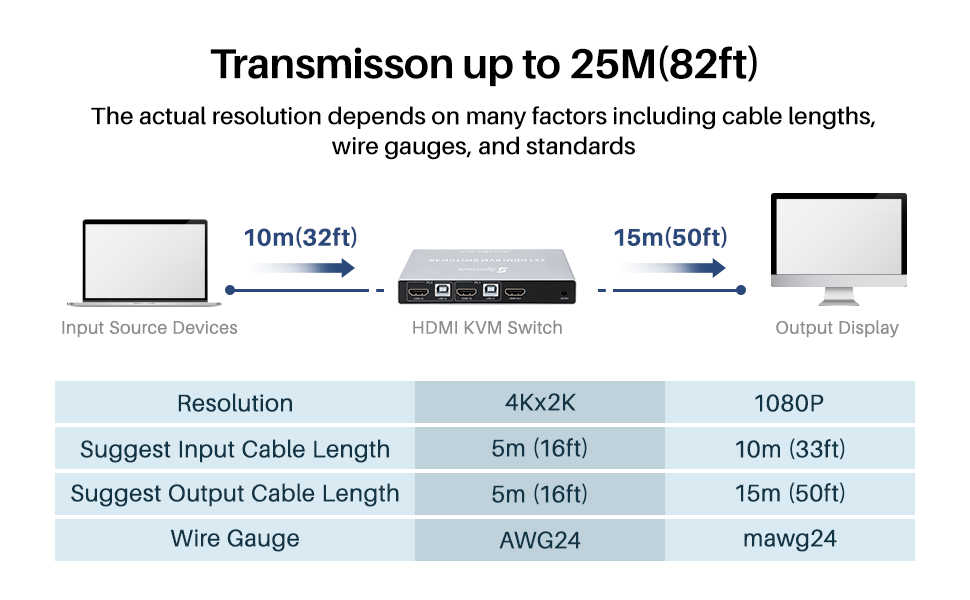

Suggest Cable Length
- 1080P Input Cable less than 10m AWG24 HDMI Standard Cable
- 1080P Output Cable less than 10m AWG24 HDMI Standard Cable
- 4Kx2K Input Cable less than 5m AWG24 HDMI Standard Cable
- 4Kx2K Output Cable less than 5m AWG24 HDMI Standard Cable
Hotkey Instructions
*Note:for more hotkey commands, please refer to the user manual.
Hotkey Switch Mode:
1. [Scroll] + [Scroll] + 1 or 2
2. [Ctrl] + [Ctrl]
Hot Key Sequence
Default Hot Key Sequence: [Scroll Lock] [Scroll Lock]
Alternate Hot Key Sequence:
1. [Ctrl] [Ctrl]
(Click [Scroll] + [Scroll] + [Ctrl] to change, and click [Scroll] + [Scroll] + [ESC] to back to default hotkey sequence)
2. [Num Lock] [Num Lock] or [Caps Lock] [Caps Lock]
(Click [Scroll] + [Scroll] + [Num Lock] or [Caps Lock] to change, and click [Num Lock] + [Num Lock] + [Scroll] or [Caps Lock] + [Caps Lock] + [Scroll] to get back to the default hotkey sequence)
Package Contents
1 x HDMl KVM Switcher
1 x DC 5V Power Cable(1.2m/3.9ft)
1 x User Manual
2 x HDMI+USB KVM Cables(1.5m/5ft)

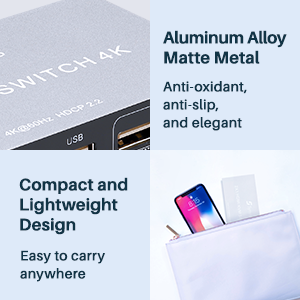

- The aluminum alloy housing can offer good heat dissipation.
- Features anti-slip matte design, it gives you the elegant look.

- The gold-plated HDMI interfaces are durable and anti-oxidant.

- Wired Remote Port Selector
- Hotkey Switch
- Front Panel Push Button
- Mouse Gesture Fast Switch: you can switch inputs when you hit the left or right side of the screen with your mouse once.
Note*: Click [Scroll Lock] + [Scroll Lock] + [F12] to enable/disable the "mouse gesture" switch option.
