60M HDMI KVM Extender Over Single Cat5E/6 Ethernet Cable HDMI USB KVM Extender Transmitter Receiver Extension for Keyboard Mouse(EU Plug) (Mode-A)

INTRODUCTION:
The Extender over CAT-5E/6 uses one piece of CAT-5e/6 cable to extend the HDTV display up to 60 meters for 1080p, It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.
It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI adapter, providing greater flexibility and options when integrating several home theater components.
It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and projector factories, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES:
This Extender has many features that enable it to perform in superior manner, among those features and you will find:
1*One pair as a full functional module, no need of setting.
2*CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.

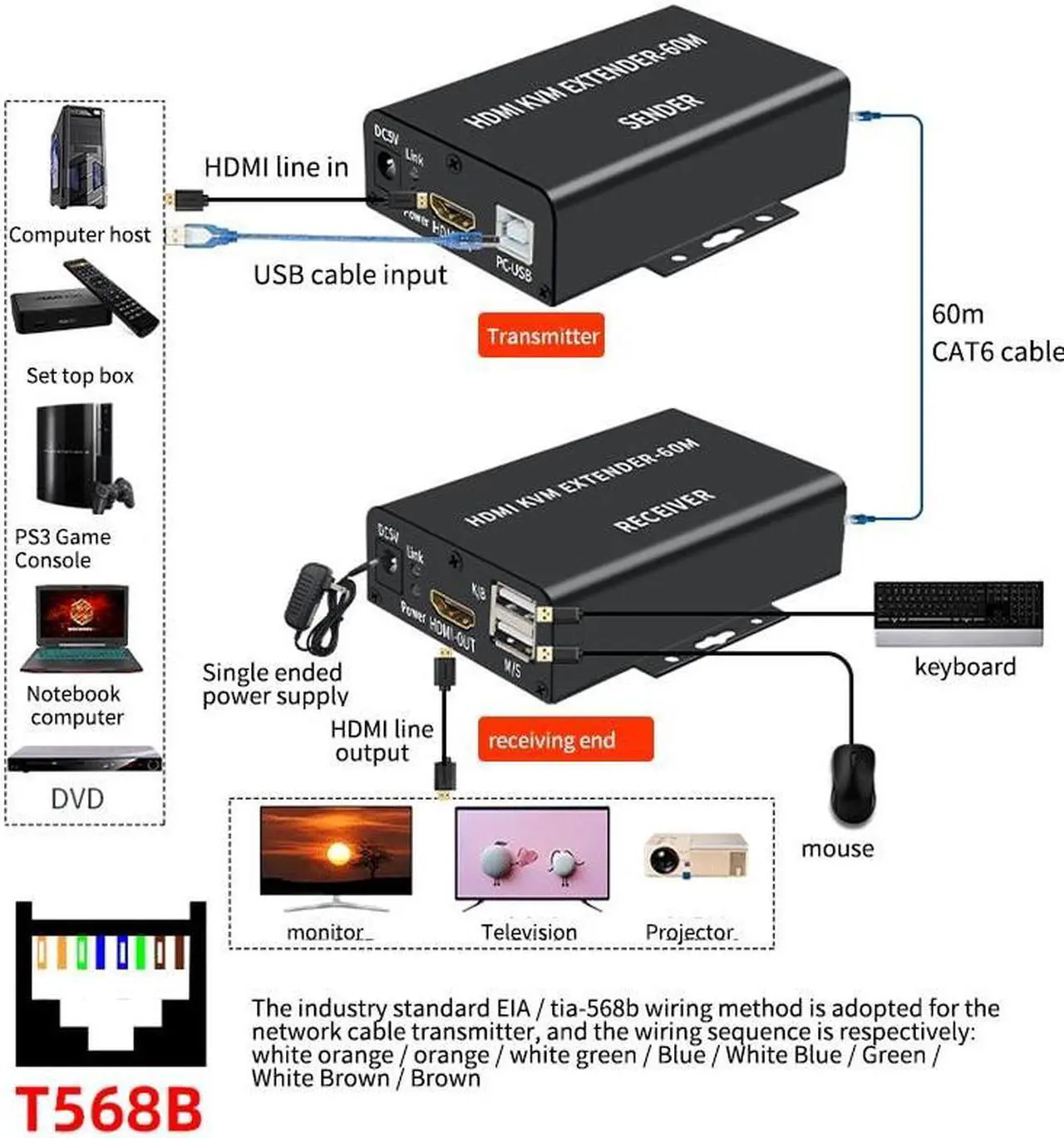

3*CAT-5e/6 follow the standard of IEEE-568B
4*Transmission distance can be up to 60 meters for 1080p while using CAT-5e/6 cable.
PARAMETERS LIST:
Input DDC signal: 5volts p-p (ttl)
Maximum single link range: 1920*1080, 1080p
Output video: HDMI
Mouse/Keyboard Interface: USB
DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
HKE60: 60meters
Interlaced(50&60hz): 480i 576i 1080i
Progressive(50&60hz): 480p 576p 720p 1080p
Power consumption: 5wattd (max)
Operating temperature: 0 to+70
Operating humidity: 10%to85%RH (no condensation)
Storage temperature: -10to+80
Storage humidity: 5%to95%RH (no condensation)
External power supply: DC5V @1A
Package:
1* Transmitter
1* Receiver
1*DC5V power Plug
1* One USB A-B cable
Warm Tips:
There are 2 options. "Mode-A"and "Mode-B" There is a slight difference between the 2 products.

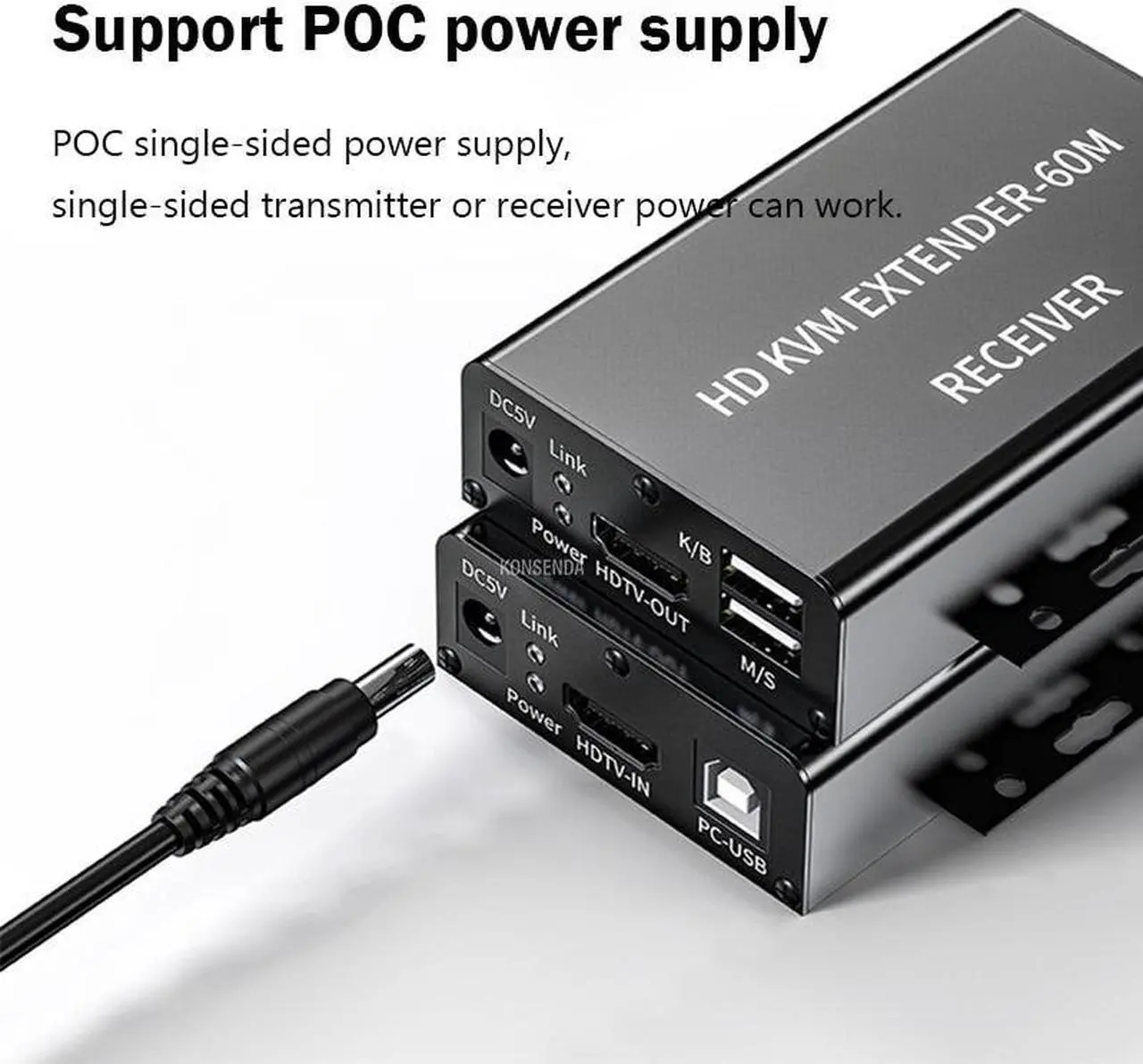

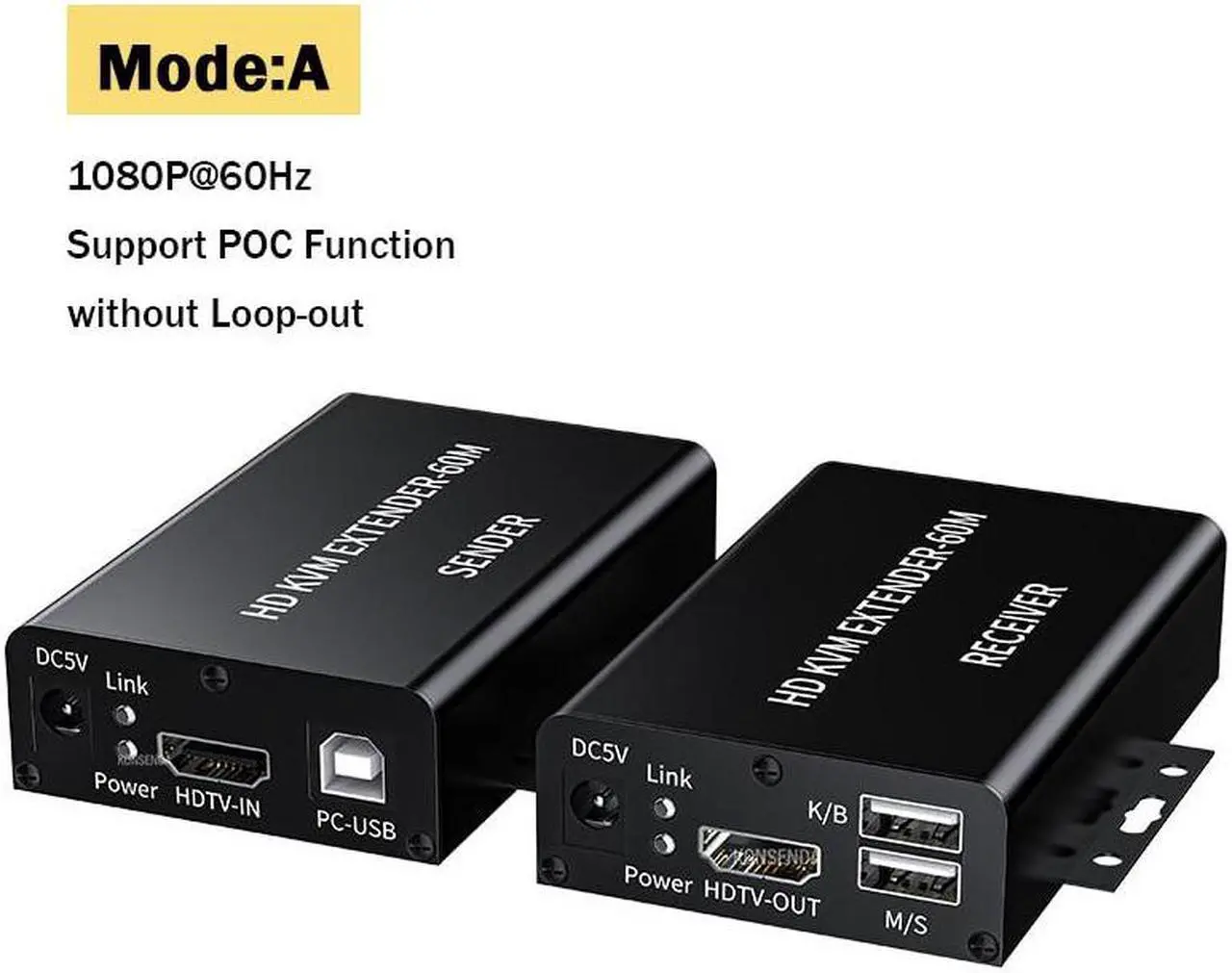

"Mode-A" has the POC Power Supply Function and Not support local Loop-out;
"Mode-B" has Local loopout, and Not Support POC Power Supply Function.
Please purchase according to your needs, and we will send your purchase options.
