Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This ensures the required cooling and minimises the noise level.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Two Way Installation
Blow warm air out of the case, draw cool air into your case.
General data
Performance
Fan Speed: 230–1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Promise: 6 years
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.12 A | 12 V
Cable Length: 400 mm

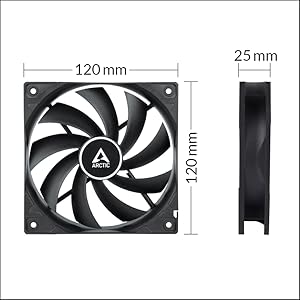

Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 109 g
 F12 PWM PST |  BioniX P120 A-RGB |  P12 Slim PWM PST |  P12 |  P12 PWM PST A-RGB |  P12 Max | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — no data |
| Size | 120?x?120?x?25 mm | 120?x?120?x?30 mm | 120?x?120?x?15 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm |
| Fan Speed | 230–1350 rpm | 400–2300 rpm | 300–2100 rpm | 1800 rpm | 200–2000 rpm | 200–3300 rpm |
| Airflow | 53 cfm | 90.1 m³/h | 48 cfm | 81.55 m³/h | 42.1 cfm | 71.53 m³/h | 56.3 cfm | 95.65 m³/h | 48.8 cfm | 82.91 m³/h | 81.04 cfm | 137.69 m³/h |
| Noise Level | 0.3 Sone | 0.45 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.6 Sone |
| Control Type | PWM PST | PWM PST | PWM PST | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 109 g | 209 g | 85 g | 139 g | 159 g | 184 g |
| Static Pressure | 1.0 mmH2O | 2.1 mmH2O | 1.45 mmH2O | 2.2 mmH2O | 1.85 mmH2O | 4.35 mmH2O |
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This ensures the required cooling and minimises the noise level.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Two Way Installation
Blow warm air out of the case, draw cool air into your case.
General data
Performance
Fan Speed: 230–1350 rpm
Airflow: 53 cfm | 90.1 m³/h
Static Pressure: 1.00 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0–40 °C
Promise: 6 years
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current | Voltage: 0.12 A | 12 V
Cable Length: 400 mm
Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 109 g
F12 PWM PST |  BioniX P120 A-RGB | P12 Slim PWM PST | P12 | P12 PWM PST A-RGB | P12 Max | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — no data |
| Size | 120?x?120?x?25 mm | 120?x?120?x?30 mm | 120?x?120?x?15 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm |
| Fan Speed | 230–1350 rpm | 400–2300 rpm | 300–2100 rpm | 1800 rpm | 200–2000 rpm | 200–3300 rpm |
| Airflow | 53 cfm | 90.1 m³/h | 48 cfm | 81.55 m³/h | 42.1 cfm | 71.53 m³/h | 56.3 cfm | 95.65 m³/h | 48.8 cfm | 82.91 m³/h | 81.04 cfm | 137.69 m³/h |
| Noise Level | 0.3 Sone | 0.45 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.6 Sone |
| Control Type | PWM PST | PWM PST | PWM PST | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 109 g | 209 g | 85 g | 139 g | 159 g | 184 g |
| Static Pressure | 1.0 mmH2O | 2.1 mmH2O | 1.45 mmH2O | 2.2 mmH2O | 1.85 mmH2O | 4.35 mmH2O |
