Home Audio Power Amplifier System 2X40W Mini Dual Channel Mixer Sound Stereo Receiver Box w AUX Mic Input For Amplified Speakers PA CD Player Theater via RCA Studio Use PTA2

Style: PTA2 Mini
Amp Home Model: PTA2Compact Home Audio Stereo Power Amplifier, 2 x 40 WattMini Desktop Audio Amplifier with AUX, CD & Mic Inputs RCA REC Output Balance Control 1/4" Mic Input Jack Power On LED Indicator Headphone Output Jack 110/220 Voltage Selector2 X 40 Watt Max At 4-Ohm Four Push Type Speaker L/R Terminals Switchable Mic Pager And Mixing Modes Switchable RCA Inputs: AUX1, AUX2 & CD Bass, Treble, Master Volume &

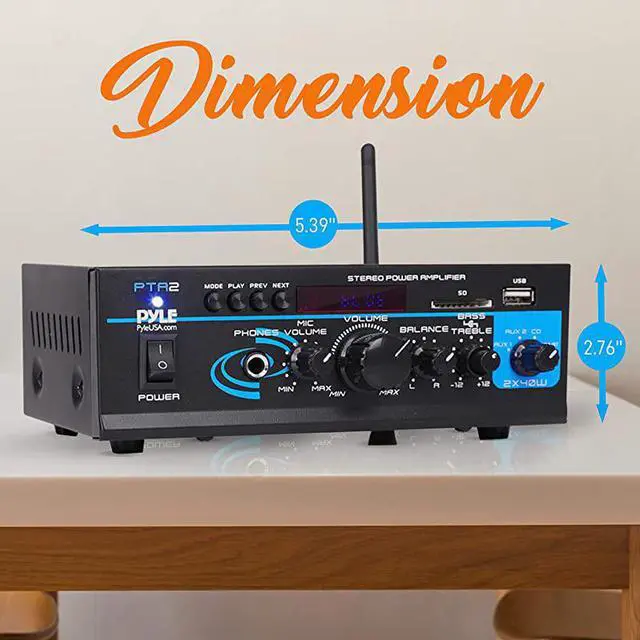

Mic ControlsDimensions: 7.48 ''W x 2.76 ''H x 5.39 ''D Pro's PTA2 combines the usefulness of a small, take-anywhere amplifier with a full featured mixer. Three stereo line-level inputs and a 1/4" microphone input are provided for source connection and mixing. A pager switch provides source attenuation for microphone priority. Stereo recording is made possible by the built-in line-level outputs. Balance, tone, speaker volume, microphone volume, power, and source selection controls are front-mounted for quick adjustmentFrom the Manufacturer Front View Click here for a larger image Connection Diagram Click here for a larger image Stereo Power Amplifier Click here for a larger image Back View Click here for a larger image The Ultimate Stereo Power Amplifier This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores, and at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 40 Watt to handle all your audio needs.

Switchable Mixing (Karaoke) Mode When set to 'mixing' the signals from AUX1, AUX2, CD, & MIC will exist at the same time and works great for creating a karaoke event. Your music will play from your selected audio source and you will be able to sing through a connected microphone. (Microphone not included) Switchable MIC Pager Mode When set to 'pager' the signal from AUX1, AUX2, & CD will be attenuated by -10dB and the signal from MIC will override to page (Auto Talkover) and makes for an exceptional paging system. L/R Speaker Terminals Lets you easily connect speaker wires directly to the amplifier. The speaker impedance can be ranged from four to eight Ohms for the general stereo output. The total speaker impedance must be at least four Ohm per channel at stereo mode. 110/220 Voltage Selector This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating. 1/4-Inch Phone Jack Accepts headphones with 1/4-inch plugs. 1/4-Inch Microphone Input Jack Accepts microphones with 1/4-inch plugs. REC RCA Output Lets you connect the amplifier to a tape deck for recording.

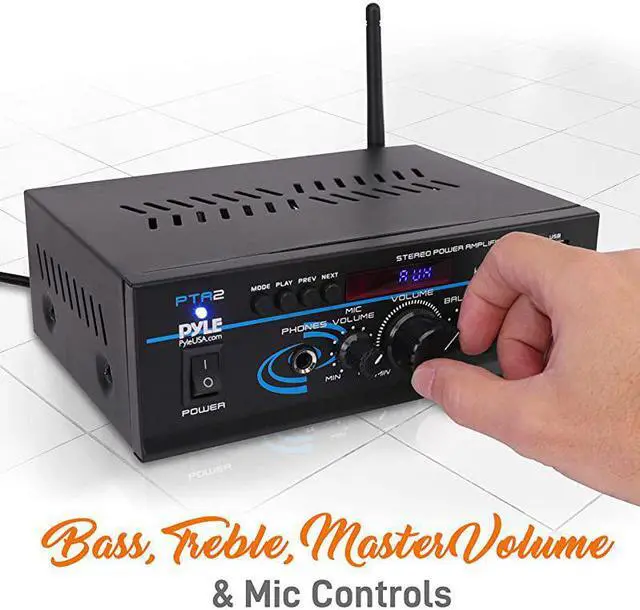

Take Control Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble Replaceable Power Fuse The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse, and replace it if necessary.
(Replacement fuse to use: 1.5 -amp, 250-volt, fast-acting. 2 x. 8 inches fuse -not included)

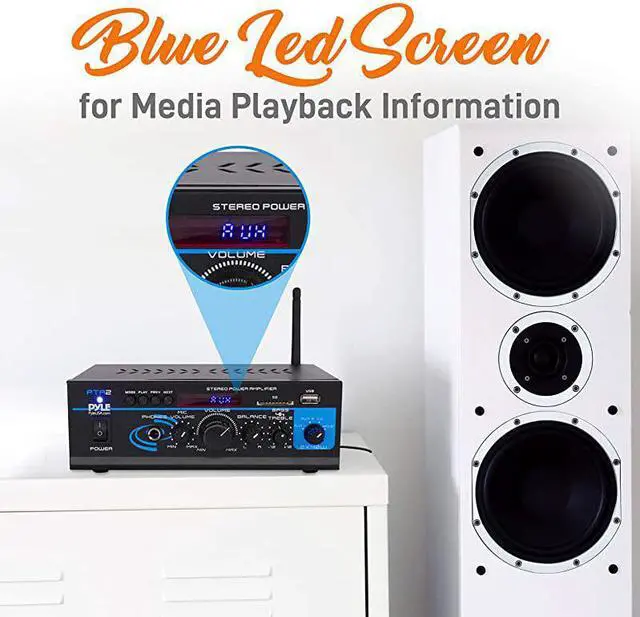

Additional Features Harmonic Distortion: 0.3 % 2 x 40 Watt RMS at four Ohm Blue LED Output Level
Display Frequency Response: 20 Hz-20 kHz
Power Fuse: 1.5 A, 250 V Fast-Acting (. 2 x.
8 inches) Power Requirement: 120 V AC 60 Hz/230 V AC 50
Hz Tone Controls: Bass
& Treble: +/-10 dB (100 Hz/10 kHz)
Dimensions: 7.48 x 2.75 x 5.39 inches
