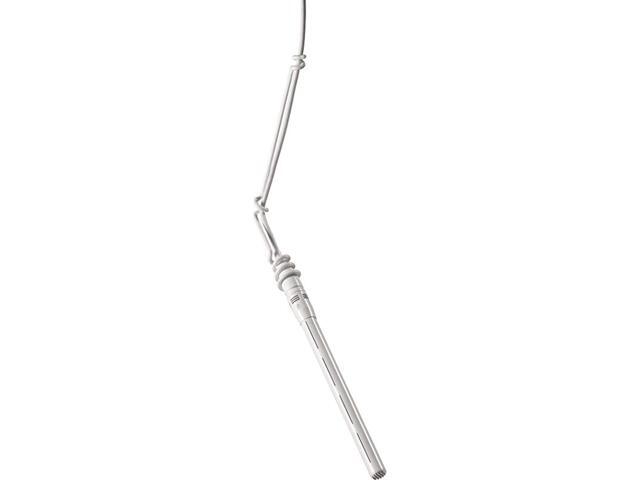

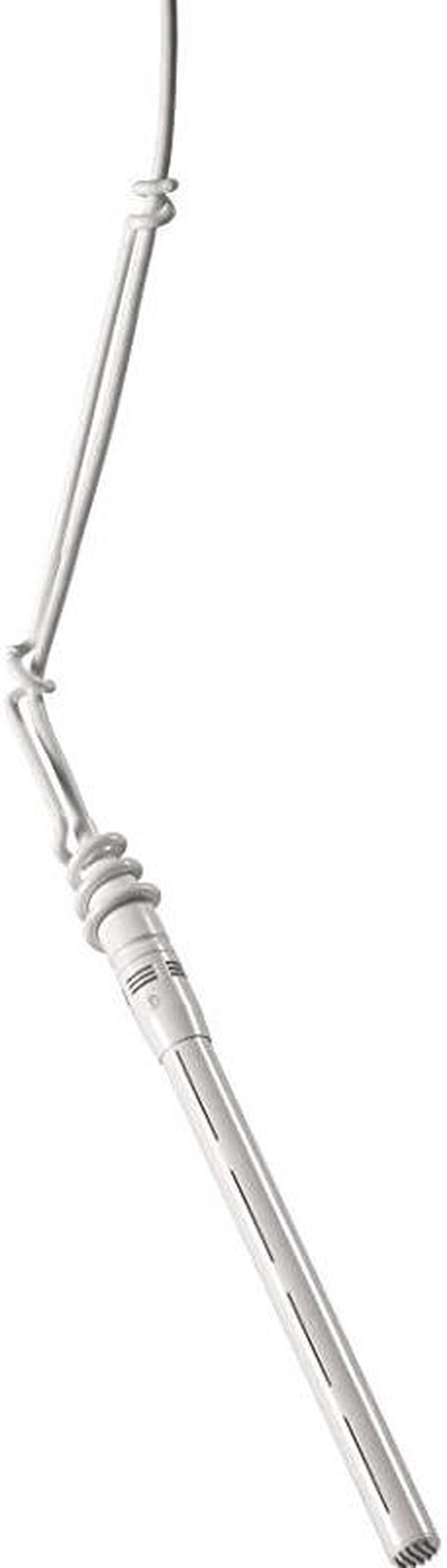

Condenser Microphone (U853RWU)

The white version of U853RU, the U853RWU Aniline condenser hanging microphone features Audio-Technician's Aniline line-cardioid element and is equipped with Unfigured innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hyper cardioid, omnidirectional and Aniline line cardioid polar patterns. Its 80 Hz low-cut Unsteer filter reduces pickup of low-frequency ambient noise.
Features: Designed for suspension over choirs, instrumental groups and theater stages Aniline polar pattern provides narrow 90 acceptance angle Superior off-axis rejection for maximum gain before feedback Unfigured RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Unsteer filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality Accepts interchangeable elements to permit angle of acceptance from 90 to 360 Low-profile design with low-reflectance finish for minimum visibility
Specifications:
Element: Fixed-charge back plate, permanently polarized condenser

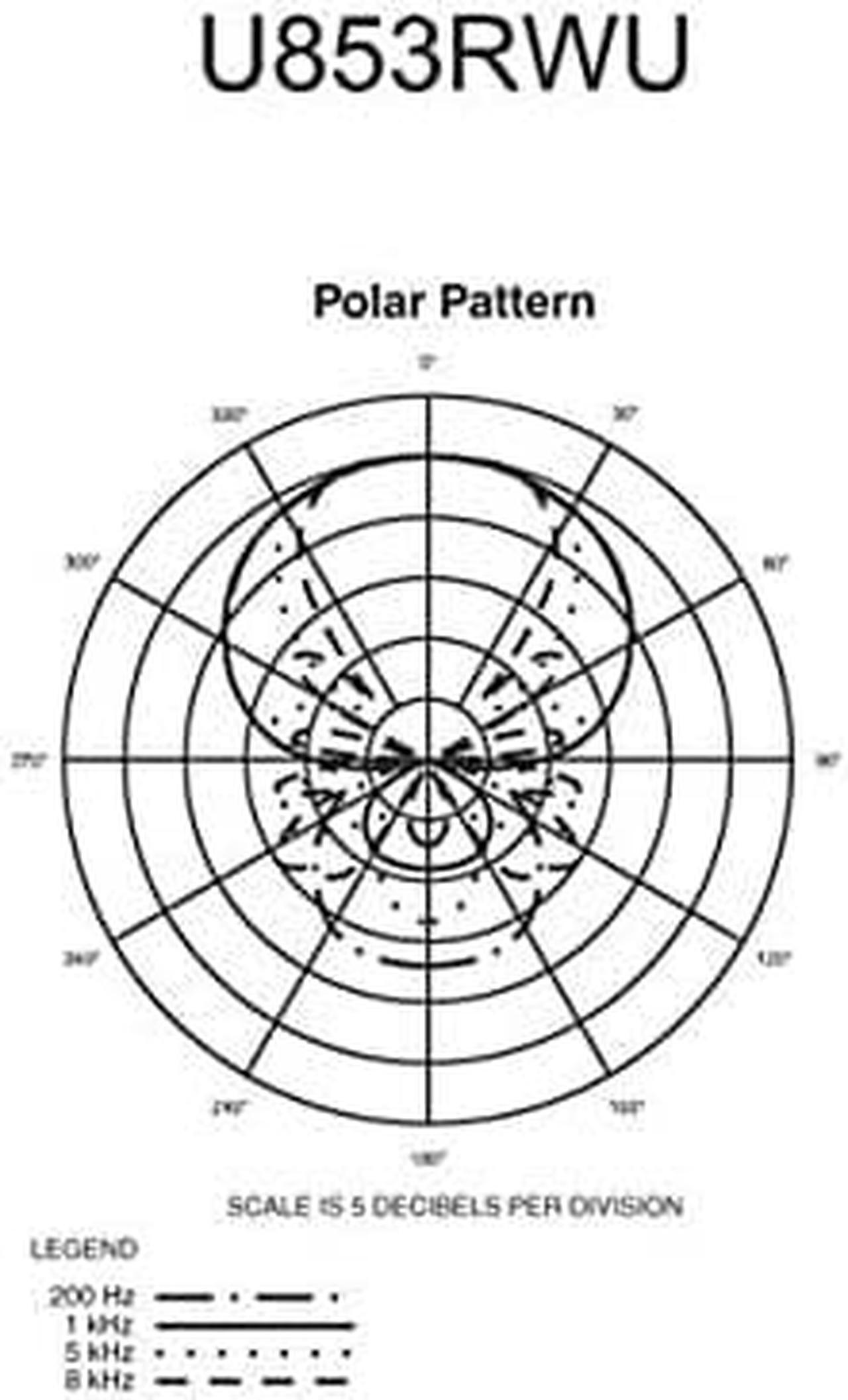

Polar Pattern: Line Cardioid

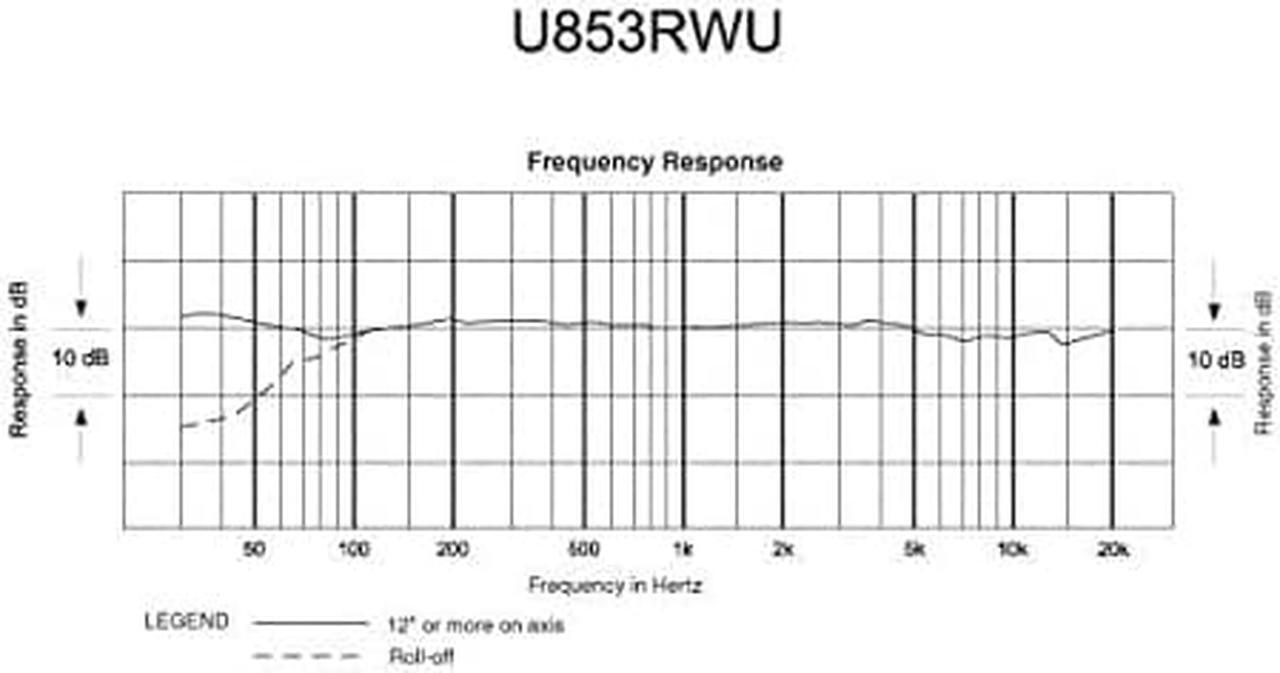

Frequency Response: 30-20, 000 Hz Low
Frequency Roll-Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: -35 dB ( 17.7 mV) re 1V at 1
Pa Impedance: 250 ohms Maximum
Input Sound Level: 135 dB SPL, 1 kHz at 1% T. H. D.
Dynamic Range (typical): 115 dB, 1 kHz at
Max SPL Signal-to-Noise Ratio: 74 dB, 1 kHz at 1 Pa Phantom
Power Requirements: 11-52V DC, 2 mA typical
Switch: Flat, roll-off
Output Connector (Power Module): Integral 3-pin XLRM-type
Cable Length: 25.0 ' ( 7.6 m) long (permanently attached to microphone), 0.13" ( 3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
Dimensions:
Module: 3.66 x 0.74" / 9.29 x 1.87 cm, Microphone: 6.14 x 0.48" / 15.59 x 1.21 cm
Weight: Power
Module: 2.9 oz. / 82.21 g, Microphone: 1.1 oz. / 31.18 g
