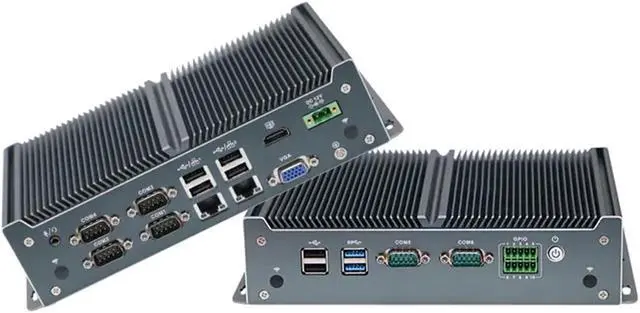

Main image of Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Alt view image 2 of 6 - Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Alt view image 3 of 6 - Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Alt view image 4 of 6 - Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Alt view image 5 of 6 - Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Alt view image 6 of 6 - Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Visit Partaker Mini PC‘s Marketplace Store

Fanless Industrial PC, Mini Computer, Intel Celeron J1900, Windows 10 or Linux Ubuntu, VGA, HDMI, 2 x LAN, 6 x COM RS232, 1 x GPIO, 6 x USB2.0, 2 x USB3.0, 8G RAM, 128G SSD 1TB HDD

Mini PC with Intel Celeron J1900 Processor 2M Cache, 2.00 GHz up to 2.42GHz, Windows 10 Pro as default system, if need other system, you can leave us message after order palced or re-install the system by yourself.
Rich Interface with 2*USB2.0, 2*USB3.0, 2*COMs, 1*GPIO(4*Input 4*Output),1*Switch bottom, 4xCOMs(COM1,2 RS232/485 Optional), 4xUSB2.0, 2xLAN, 1xHD.1xVGA,1x2PINS phoenix power connector,1xaudio
This mini industrial computer adopts fanless and pure aluminum design. Metal case helps computer to dissipate heat efficiently. The fanless design come trues the electricity bills saving and zero noise.
Integrated port can be used for Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields
All packages usually will be shipped by express delivery arrived in about one week. Please contact us if you have any questions, thank you so much!

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model Number: Partaker PA-1126

Color: Titanium gray(Any color can be)

Material: Pure Aluminum

Type: IPC type with mounting ears

CPU: Intel Celeron J1900(Quad core,1.99Ghz)

BIOS: AMI EFI BIOS

Memory: Support 1*DDR3 1333/1600MHz SODIMM ram slot, support max 8G

Storage: Support 1*MSATA, 1*2.5'' SSD/HDD

Network Card: 2xIntel i211-AT 10/100/1000M lan

Graphics: Intel HD Graphics

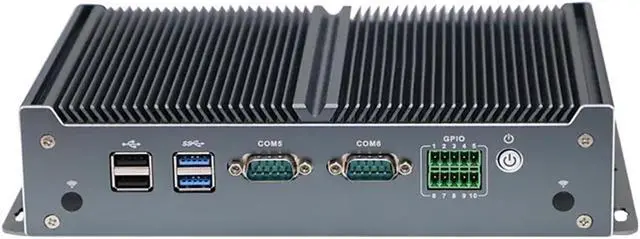

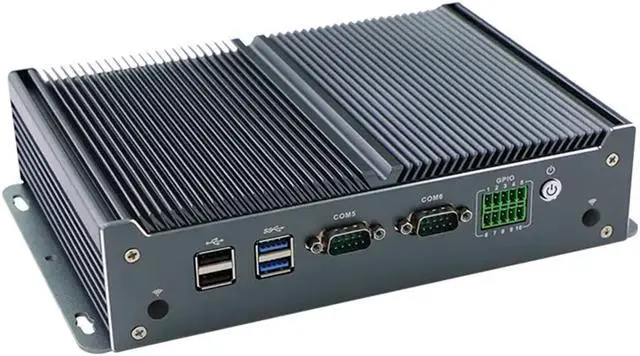

Front I/O: 3xUSB2.0,1xUSB3.0,2xCOMs,1xGPIO(4*Input 4*Output),1xSwitch bottom

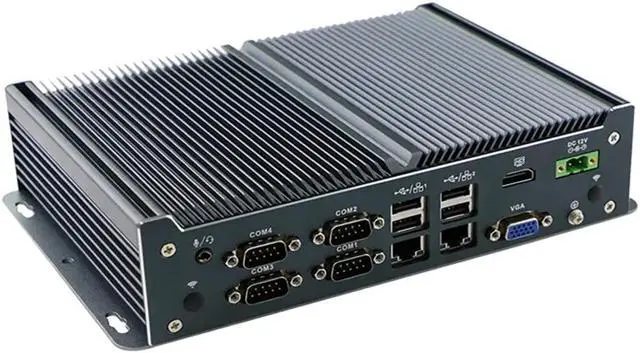

Rear I/O: 4xCOMs(COM1,2 RS232/485 Optional), 4xUSB2.0, 2xLAN, 1xHD.1xVGA,1x2PINS phoenix power connector,1xaudio

Power: Support DC 12v Input

Working Temperature: 0~+50 ( HDD),-20~ +60 ( SSD),Surface air flow

Relative Humidity: 5%~95% (non-condensing)

Size: 234 x 155 x 53.5mm

Weight: 1.8kgs(not include wall bracket)

Expansion: 1xMINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot

Other Function: Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog0255 level

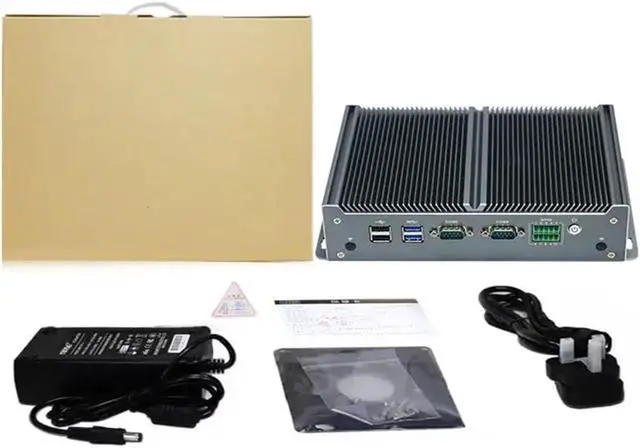

Packing List: Industrial pc, power supply, power cord, Wi-Fi antennas, warranty card

Application: Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields

System Support: Windows 10, Linux Ubuntu etc

System Default Option: Windows 10 pro in English

ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you

Model	PA-1126
Color	Titanium gray (Any color is optional)
Material	High-quality all aluminum,surface hard anodized
Processor	Intel Celeron J1900 (Quad core,2.00Ghz, Up to 2.42GHz)
Memory	1xDDR3L 1333/1600 SODIMM RAM,Max 8 GB
BIOS	AMI UEFI BIOS
Display Port	1VGA,1HD (Support synchronous and asynchronous dual display)
Front I/O	3xUSB2.0,1xUSB3.0,2xCOMs,1xGPIO(4xInput 4xOutput),1xSwitch bottom
Rear I/O	4xCOMs(COM1,2 RS232/485 Optional),4xUSB2.0,2xLAN ,1xHD.1xVGA,1x2PINS phoenix power connector,1xAudio
Expansion Slot	1xMINI PCIE slot (WIFI/3G/4G,choose one of them),SIM card slot
Network	2xIntel i211-AT 10/100/1000M Ethernet LAN
Storage	1xMSATA,1x2.5inches HDD/SSD
Function	Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Dimension	234 * 155 * 53.5mm
Power Supply	DC 12V
Application	Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.
