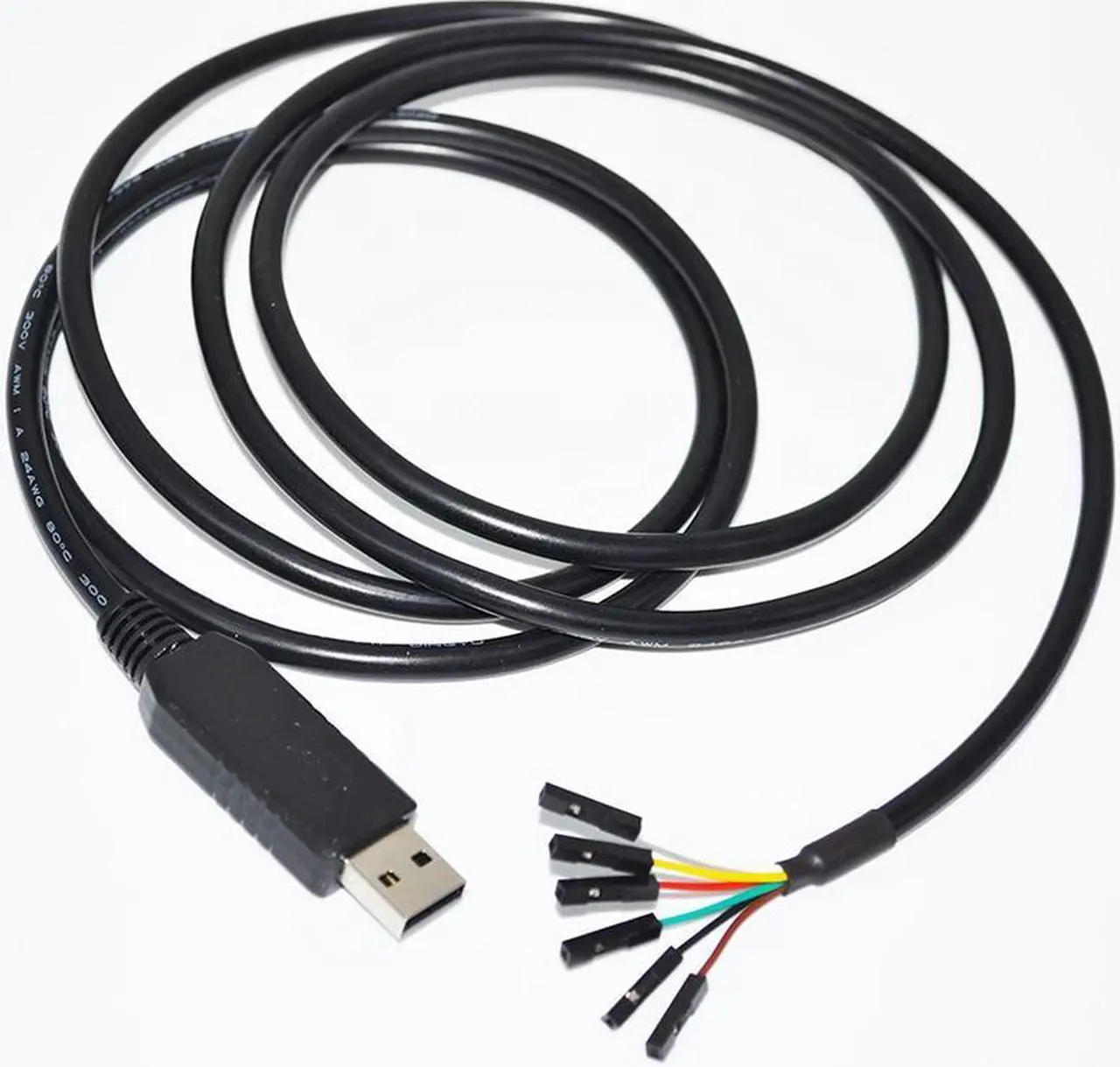

FT232RL CHIP USB TO 6 WAY 0.1" PITCH SINGLE-IN-LINE SIL 6PIN JUMPER DEBUG RS232 SERIAL DEBUG COMMUNICATION CABLE (FT232RL 1X1 6P) Cable length:(1.8M)

FT232RL USB TO 6 WAY 0.1" PITCH SINGLE-IN-LINE SIL 6PIN JUMPER DEBUG RS232 SERIAL DOWNLOAD CABLE WITH PINOUT VCC GND TXD RXD CTS RTS
This is an RS232 serial cable, not a TTL level cable, please pay attention to purchase!

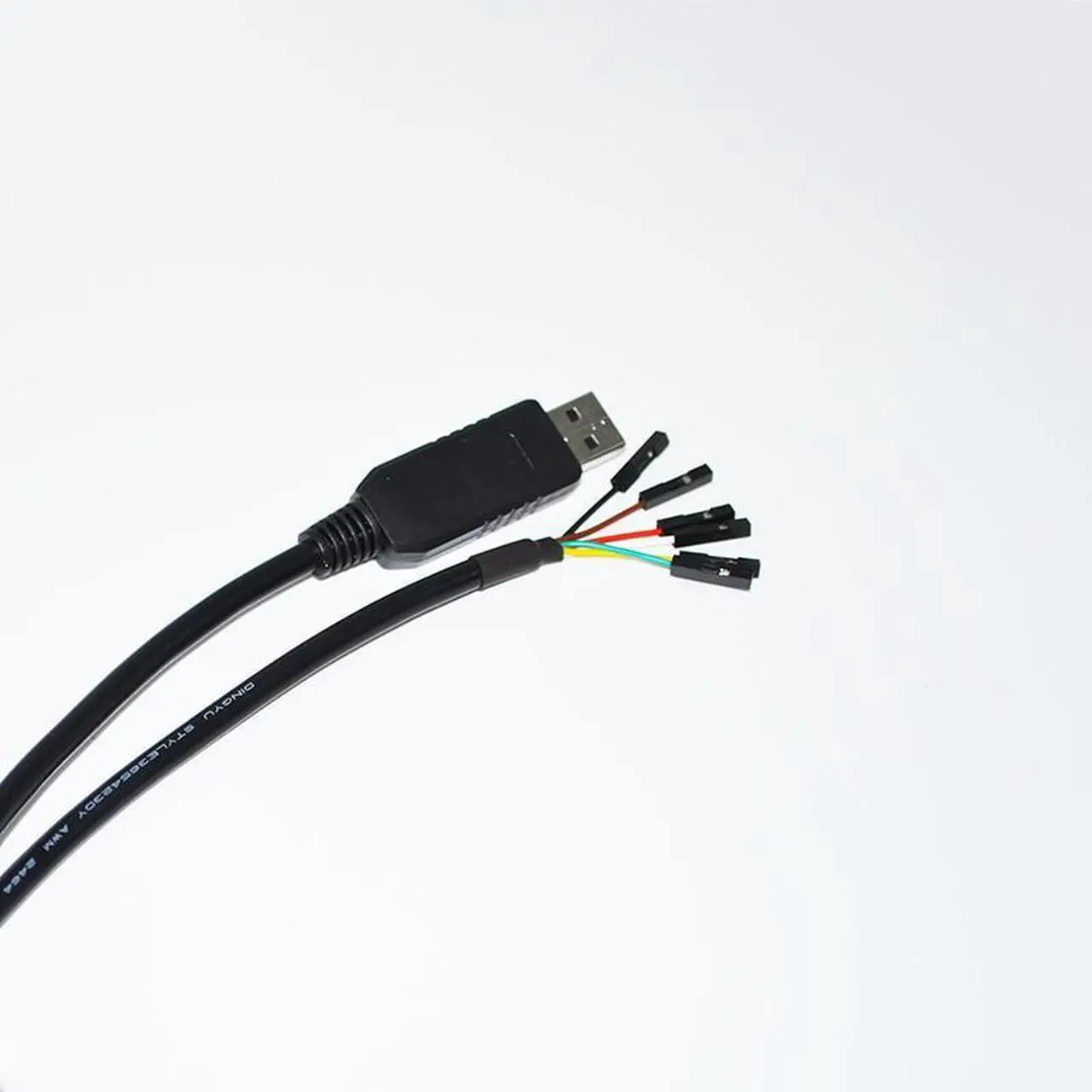

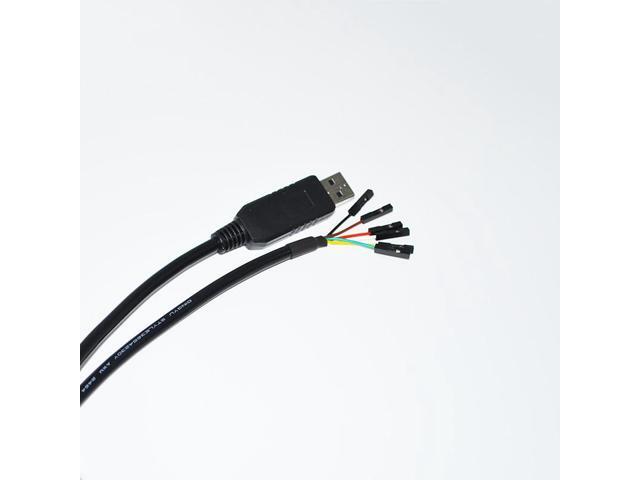

Output signal: white-TXD, yellow-RXD, brown-CTS, green-RTS, black-GND, red-VCC

Wire gauge: UL2464 AWG24*6C, UL certified wire, fire-resistant and flame-retardant, -25 ~ 80.
Outer diameter (OD): 5.0 mm
Jacket material: PVC
Wire material: tinned copper
Operating Systems:
Windows
10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98
Linux
Mac
OS X/9/8
Windows
CE. NET (Version 4.2 and greater)
Android
32 and 64 bit operating systems are both supported.
DRIVER DOWNLOADING:
https: //chip. com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:
https: //chip. com/document/installation-guides/
Package Contents:
1 X USB to 6P WE Cable
Length: 1.8M /6FT, 3.0M /10FT, 3.6M /12FT, 5.0M / 16.5FT (Approx. )
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you receive the goods, and have any dissatisfaction or need assistance, please feel free to contact me or leave me a message.
