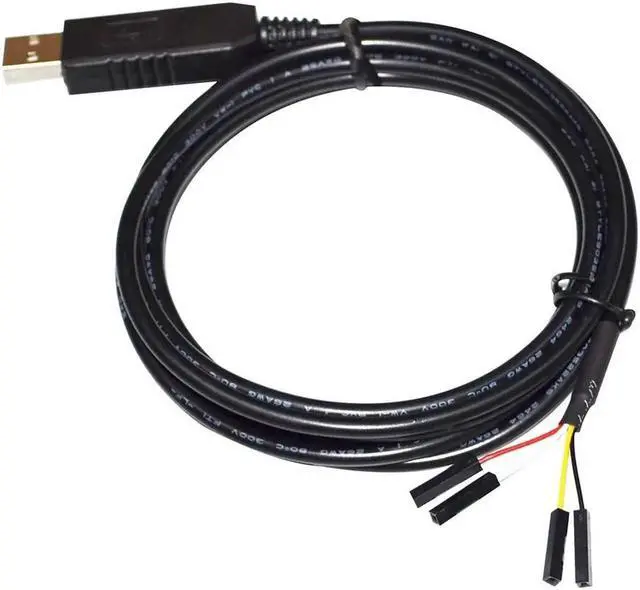

JAENFONG FT232RL USB TO 4PIN 4 WAY 4 CORE 0.1" PITCH FEMALE PIN HEADERS JUMPER CONNECTOR RS485 CONVERTER COMMUNICATION CABLE (Black USB case) Cable length:5M

FT232RL CHIP USB TO 4PIN 4 WAY 4 CORE 0.1" PITCH FEMALE PIN HEADERS JUMPER CONNECTOR RS485 CONVERTER SERIAL COMMUNICATION CABLE

USB RS485 adapter

USB 2.0. full speed 12M support and compatible USB 3.0

FT232 USB RS485 cable, signals compatible with USB-RS485-WE-1800-BT

Signalout: Black-GND, White - Data+, Yellow - Data-, Red-VCC

FT232RL + SP485EE chip

With 2 LEDs for data+, data- transfering (For Black USB house, the LED lighting shine is hidden)

Support Android, Support Win 10, 8, 8.1, Win 7, XP, 2000, Linux, Mac OS

Integrated 1024 byte EEPROM, support Vendor ID re-write, support Mprog 3.5

Support VCP driver and D2XX driver

Half duplex, non-isolated

300 ~ 1Mbps baud rate

Up to 5km distance transferring

Operating Systems:

Windows 10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98

Linux

Mac OS X/9/8

Windows CE. NET (Version 4.2 and greater)

Android

32 and 64 bit operating systems are both supported.

DRIVER DOWNLOADING:

https: //chip. com/drivers/vcp-drivers/

INSTALLATION GUIDELINE:

https: //chip. com/document/installation-guides/

Package Contents:

1 X USB to 4P Cable

Length: 1.8M /6FT, 3.0M / 9.8FT, 5.0M / 16.4FT (Approx. )

If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.

If you receive the goods, and have any dissatisfaction or need assistance, please feel free to contact me or leave me a message.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
