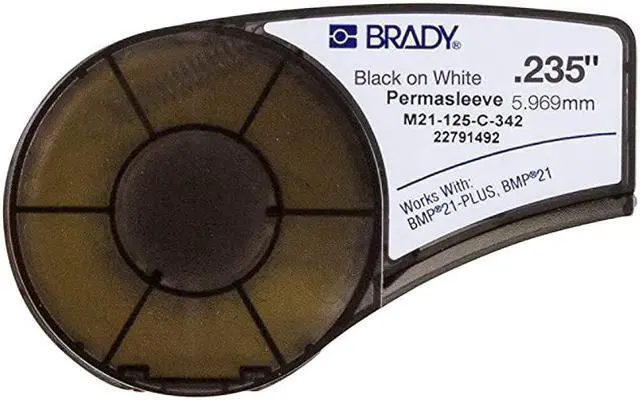

Authentic M21125C342 PermaSleeve Heat Shrink Tubing for Control Panels Electrical Panels and Wire Harness Labeling Black on White material Designed for BMP21PLUS and BMP21LAB Label Printers 235 Width

B-342 Thermal Transfer / Dot Matrix Printable Nylon Cloth Label s non-adhesive, printable heat shrink wire marking sleeves fit around wires or cables for maximum insulation protection and permanent identification. s heat shrink sleeving is a full-circle design that provides fast and permanent wire marking. Clear, legible text can be printed on the wire and cable sleeving with a printer for reliable wire identification. heat shrink sleeving materials excel in extreme environments, including temperature fluctuations and environments that require abrasion and chemical resistance. offers a variety of materials available to print using thermal transfer and dot matrix printers.

B-342 3:1 heat shinkable sleeves for wire identification and insulation purposes are fade resistant and fire retardant. B-342 is available in white, yellow, black, red, orange, green, blue, violet, pink, gray, and brown.
Material Description Print Technology: Thermal transfer and dot matrix
Material Type: Irradiated polyolefin heat shrink tubing ( 3:1 shrink ratio)
Temperature Range: -55C (-67F) to +135C (+275F)
Shrink Method: Any industrial grade heat gun may be used to shrink B-342 Markers. Recommended Thermal Transfer RibbonsThermal transfer ribbons are only needed for labels that do not have self-contained print ribbons. R6600 Series for thermal transfer printing - best smear and chemical resistance R4300 Series for thermal transfer printing - general purpose ribbon R4502S for thermal transfer printing silver on dark colored markers R6000 Series Halogen Free (previously known as R6000HF) R6700 for thermal transfer printing white on dark colored markers R5000 Series for dot matrix printing Regulatory & Agency
Approvals UL: B-342 is a UL Recognized Component to UL224 Extruded Insulated Tubing. See UL file E333786 for specific details. UL information can be accessed on line at UL. com. Search in Certifications area.
RoHS 2005/618/EC: As of January 2009, began the transition to full RoHS compliant B-342 to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC. To determine if you have RoHS compliant product please contact customer service.
SAE: B-342 PermaSleeve Markers meet the material and physical property requirements of SAE AMS-DTL-23053/5C (Class 1) for Insulation Sleeving and SAE AS-81531 for Marking of Electrical Insulating Materials when printed with R6600, R4300, R4502S, R6700 Series thermal transfer ribbons and R5000 Series dot matrix. About manufactures signs, labels, lockout tagout solutions, safety devices, industrial label printers, software, and spill control used to comply with regulatory standards in electronics, telecommunications, manufacturing, electrical, construction, education, and medical industries. The company, founded in 1914, is headquartered in Milwaukee, WI. Visit the Label Finder Store to find labels for your printer. Sizing Chart Sleeve Size Range of Diameter (in) Range of Diameter (mm) Approximate Gauge 3/32" ( 0.094 ) 0.023 - 0.080 0.58 - 2.03 28 to 20 1/8" ( 0.125 ) 0.046 - 0.110 1.17 - 2.79 22 to 16 3/16" ( 0.188 ) 0.062 - 0.150 1.57 - 3.81 20 to 10 1/4" ( 0.250 ) 0.094 - 0.215 2.39 - 5.46 16 to 8 3/8" ( 0.375 ) 0.125 - 0.320 3.18 - 8.13 12 to 4 1/2" ( 0.500 ) 0.187 - 0.450 4.75 - 11.43 8 to 1 3/4" ( 0.750 ) 0.250 - 0.700 6.35 - 17.78 6 to 4/0 1" ( 1.000 ) 0.375 - 0.950 9.53 - 24.13 2 to 0.950 1 1/2" ( 1.500 ) 0.500 - 1.450 12.7 - 36.83 NA
