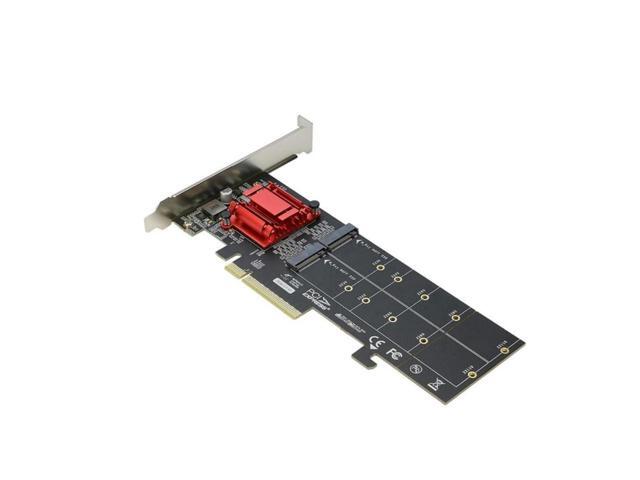

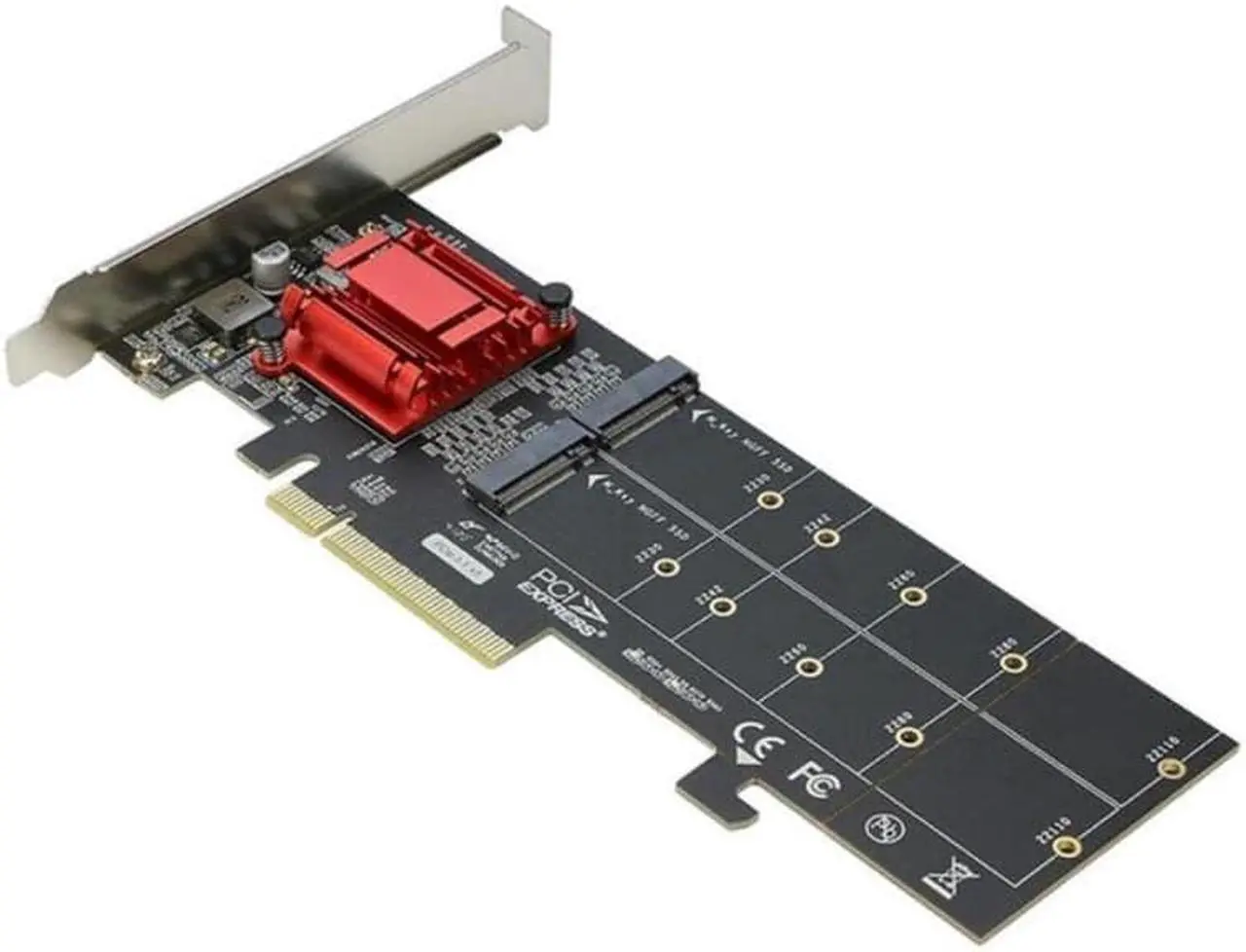

HOT-Dual NVMe PCIe Adapter,M.2 NVMe SSD to PCI-E 3.1 X8/X16 Card Support M.2 (M Key) NVMe SSD 22110/2280/2260/2242

Origin: CN (Origin)
Type: SATA Cables
Certification: None

Dual NVMe PCIe Adapter allows you add 2x M. 2 NVMe SSD to Mainboard via a single PCI-e x8 Slot
Dual NVMe to PCIe Adapter Adopts ASMedia ASMedia ASM2812 Chipset, It does NOT depend on PCIe bifurcation supported by MOBO. Each SSD costs PCI-e 3.1 x4 Channel individually, non-interfering. (The final speed depends on the SSD and the Mobo's PCI-e bandwidth)
Compatible with M. 2 SSDs (PCI-e NVMe ): All Size 110x 22mm, 80x22mm, 60x22mm and 42x22mm.
Hardware Requirement: Available PCI-e 8x/16x Slot on Mainboard, Compatible with PCI-e 3.0 / 2.0 / 1.0 standards
Please NOTE:

1. This M. 2 PCIe Adapter can Only Support M. 2 PCI-e Based M Key Nvme SSD, DO NOT support PCI-e M Key AHCI SSD, SATA based B+M key or B Key SSD.

2. Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD.

3. Old MB can not support Booting from "NVMe", Please confirm the MB's specification

4. Each SSD costs PCI-e 3.1 x4 Channel, NOT whole PCI-e 3.1 x8
M. 2 NVMe Adpater lets you to use SSDs individually, Speed up to or in a storage pool for OS or 3rd party software RAID configuration. Does NOT support Hardware RAID
Hardware Requirement:
1x Aavailable PCI-e 3.1 x8/16x Slot, backward compatible with PCI-e 3.0 / 2.0 / 1.0
Wide Compatiblility:
compatible with all M. 2 NVMe SSD (22110, 2280, 2260, 2242, 2230), NOT for SATA Based B+M Key SSD
Chipset:
ASMedia ASM2812, Supports Non-bifurcation motherboard
Software:
No driver Required
Colour: Black
Material: plastic + metal
Package Contents:
1x Dual NVMe PCIe Adapter
1x Low-Profile PCI-e Bracket
2x SSD Mounting Screws
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
