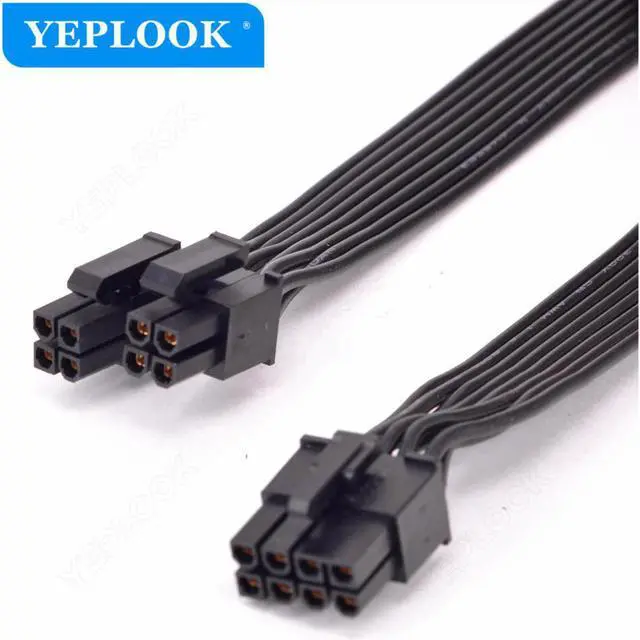

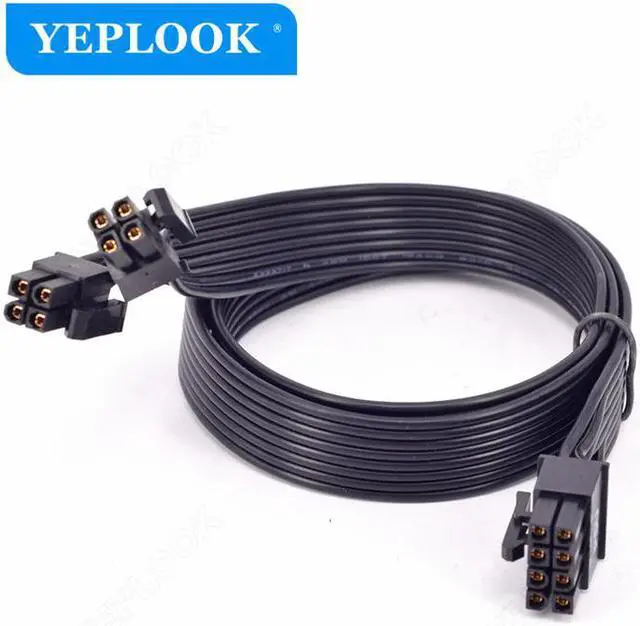

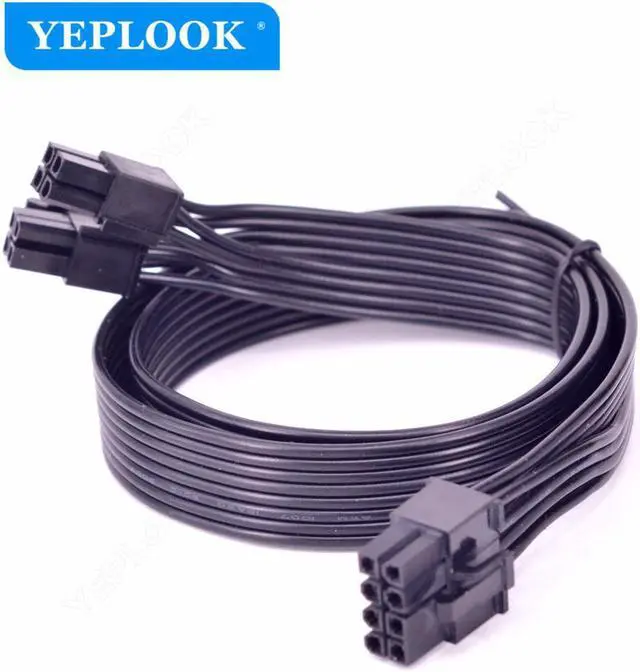

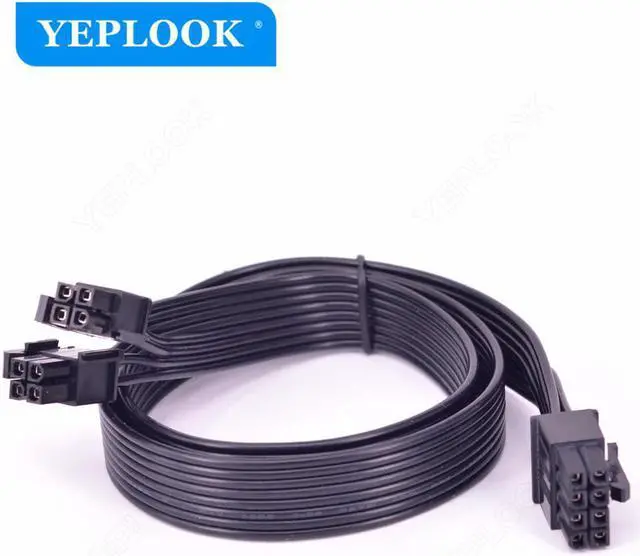

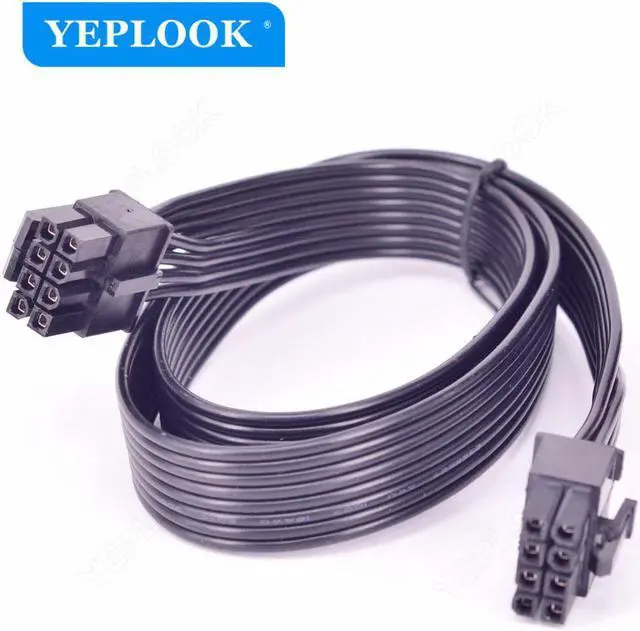

CPU 8Pin to 8Pin (4+4Pin) Power Supply Cable 18AWG 60CM For GIGABYTE P750GM 750W, P850GM 850W, P1000GM 1000W Gold Fully Modular

CPU 8Pin to 8Pin (4+4Pin) Power Supply Cable 12V 18AWG 60CM ATX 12V P4 to P8 For GIGABYTE P750GM 750W, P850GM 850W, P1000GM 1000W Gold Fully
Modular Length: 60cm ( 23.6 in) InterfaceCPU 8P male 8P (4+4) male
Material: UL1007 18AWG(standard tin-coating copper wire) tinned copper wire. Made of high quality plastic material, heat resistant, not easy aging, very durable.
Advantage: 18AWG ribbon flat cable with 4.5 mm terminal, support 10A high current. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan. Module power supply 8-pin CPU module cable connected to EPS 8Pin module cable, flat cable design, very suitable for chassis wiring. CPU 8P -
CPU 8P(4+4): (Do not work with GPU (graphics card) ) CPU 8 pin male end to plug into the power connector of power supply (NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. ), CPU 8 pin (4+4) male end to plug into the Motherboard.
(NOTE: the 8 pin end and 4+4 pin male ends cannot be used interchangeably); Compatible with motherboard with ATX 4 pin or 8 pin port (Detachable CPU 8 pin(4+4) end could be used as EPS ATX 8 pin or P4 ATX 4 pin by sliding on/off the 4 pin. ) The Cable Only Supports GIGABYTE P750GM 750W, P850GM 850W, P1000GM 1000W. Warning!!! Not for GIGABYTE AORUS P750W GP-AP750GM, P850W GP-AP850GM. NOT for Other Brands and Models. The pinout of modular cables is only standardized on the device's side (hard drive, motherboard, graphics card). The pinout of power supply side areNOT standardized and Universal. Different PSU brands or even different series within a band can or may use different pinouts. Never mix modular or semi-modular PSU cables between power supplies. Mixing Modular PSU Cables may damage power supply, PCB board or other attached components. If your power supply model is not mentioned, please check compatibility with us and ask for correct links to order! We have many full sets of modular power cables of many brands of Power Supply Unit.

(8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power)
