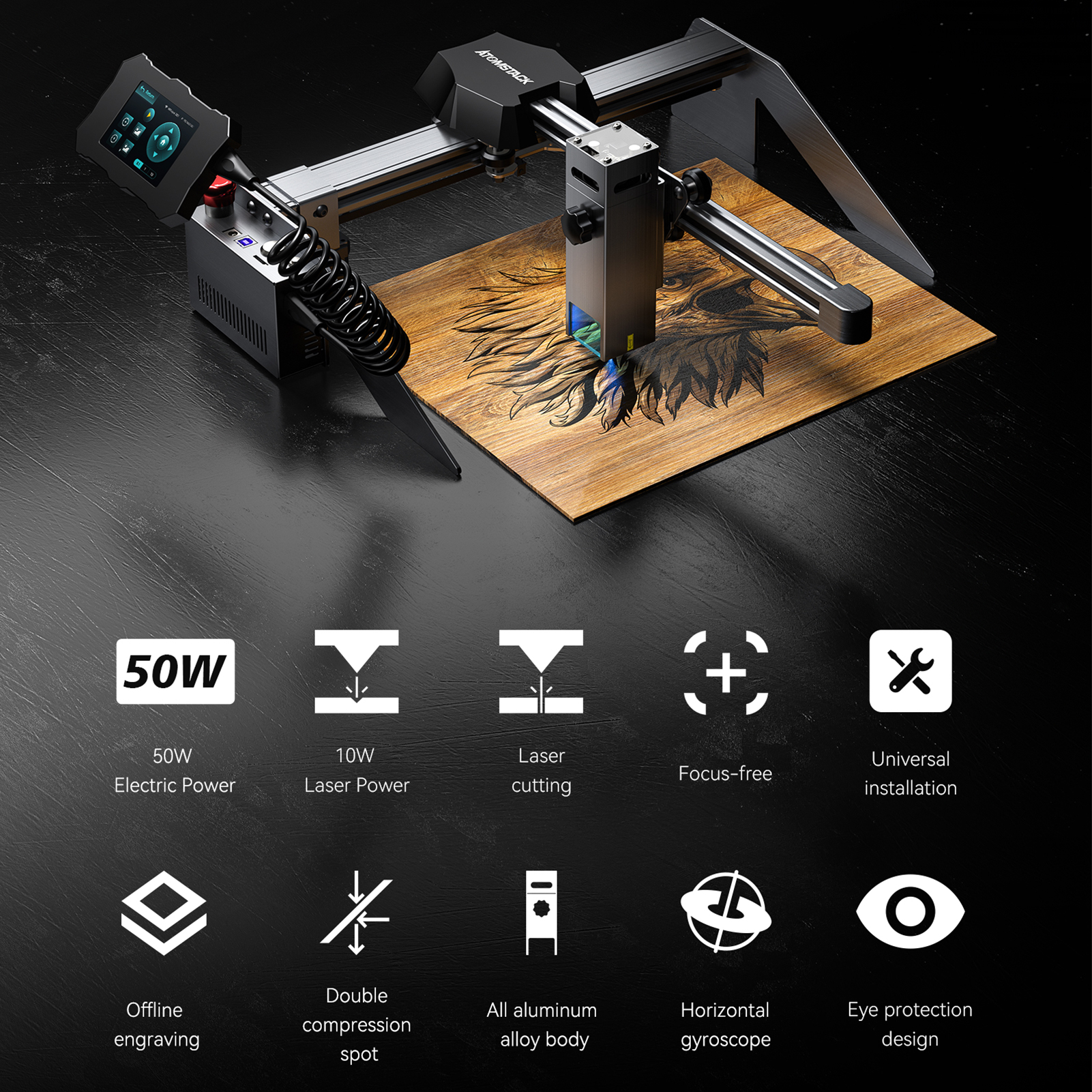

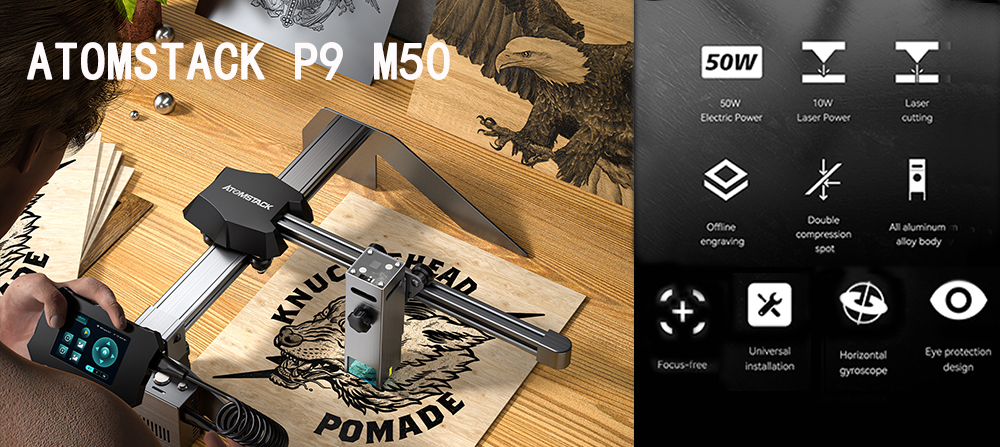

ATOMSTACK P9 M50 CNC Desktop Laser Engraving Cutting Machine with 220*250mm Fixed-Focus Laser with Eye Protection Quick Assembly,Cutting for 20mm Wood,Metal,15mm Acrylic Plate,Alloy ,etc.

In stock.
Ships from United States.
Most customers receive within 4-8 days.
  • Eye protection design:Reduce the cost of your goggles and the inconvenience of wearing goggles.
  • Easy to install & solid structure.
  • Upgraded dual compression spot coupling technology: Ultra-fine laser focus area is reduced to 0.06x0.06mm &cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO2 laser engraving machine.
  • Upgraded fixed-focus laser:The laser power of the fixed-focus laser is more stable than the zoom laser.
  • Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 220x250mm large area engraving interval can meet your various engraving needs.
  • Wide compatibility.

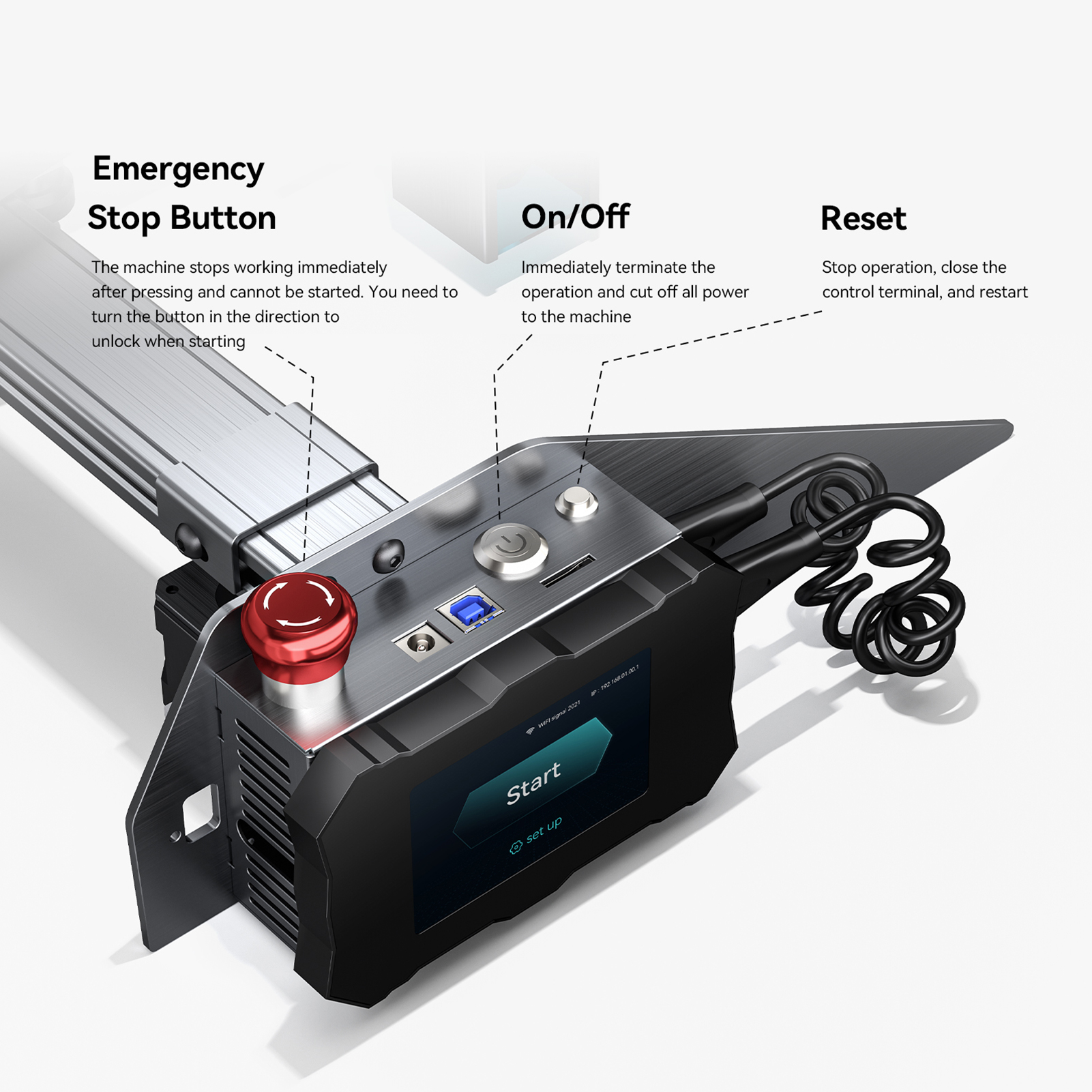

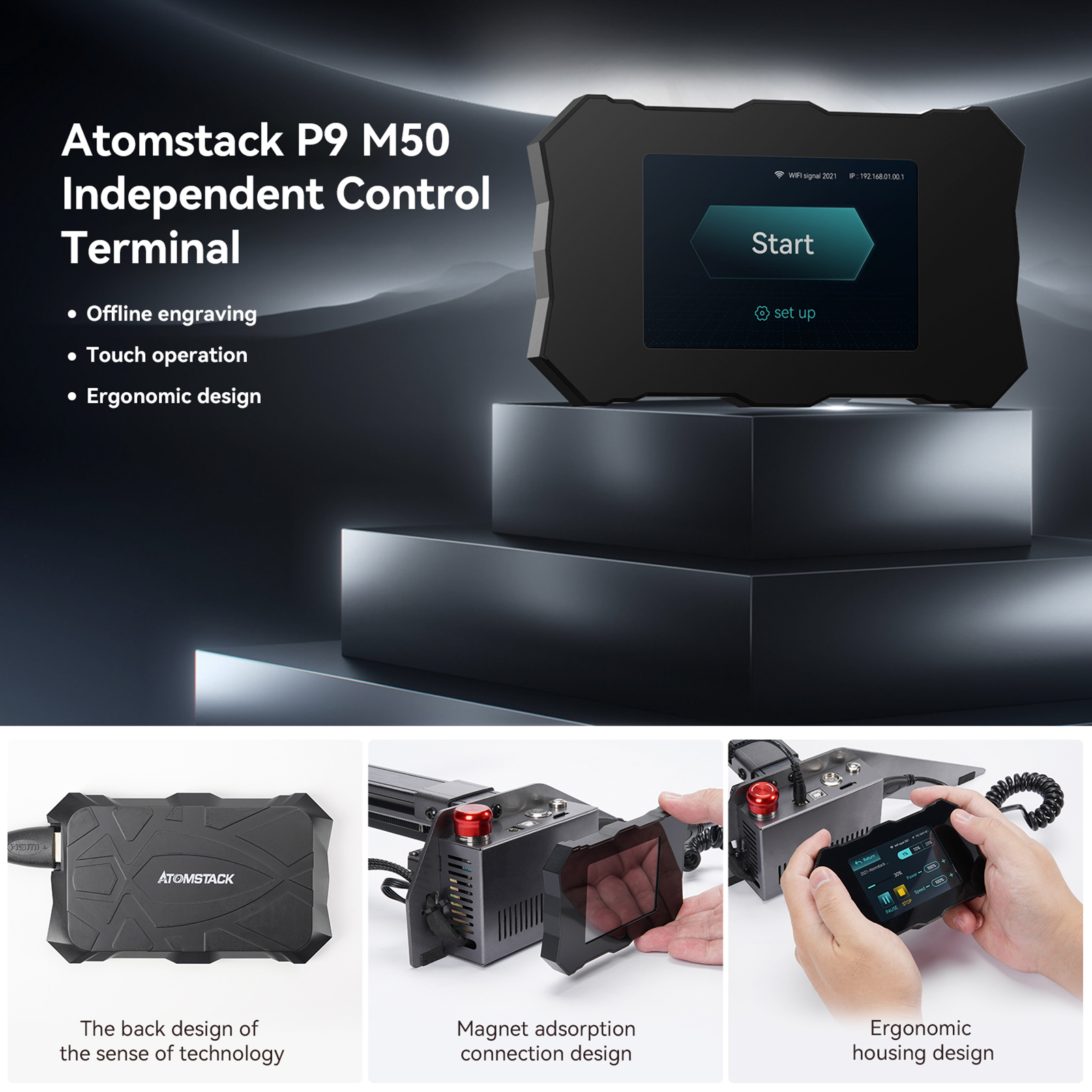

  • More function: uses an integrated screw rod which makes the movement of the laser more precise and the coupling more durable. Support offline engraving; In the event of an unexpected situation, stop the machine at any time to make the engraving safer. The laser sintering temperature is up to 1200°C.
Overview
Specs
Reviews
Features:
Precise scale lines axis:

 There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 220x250mm large area engraving interval can meet your various engraving needs.

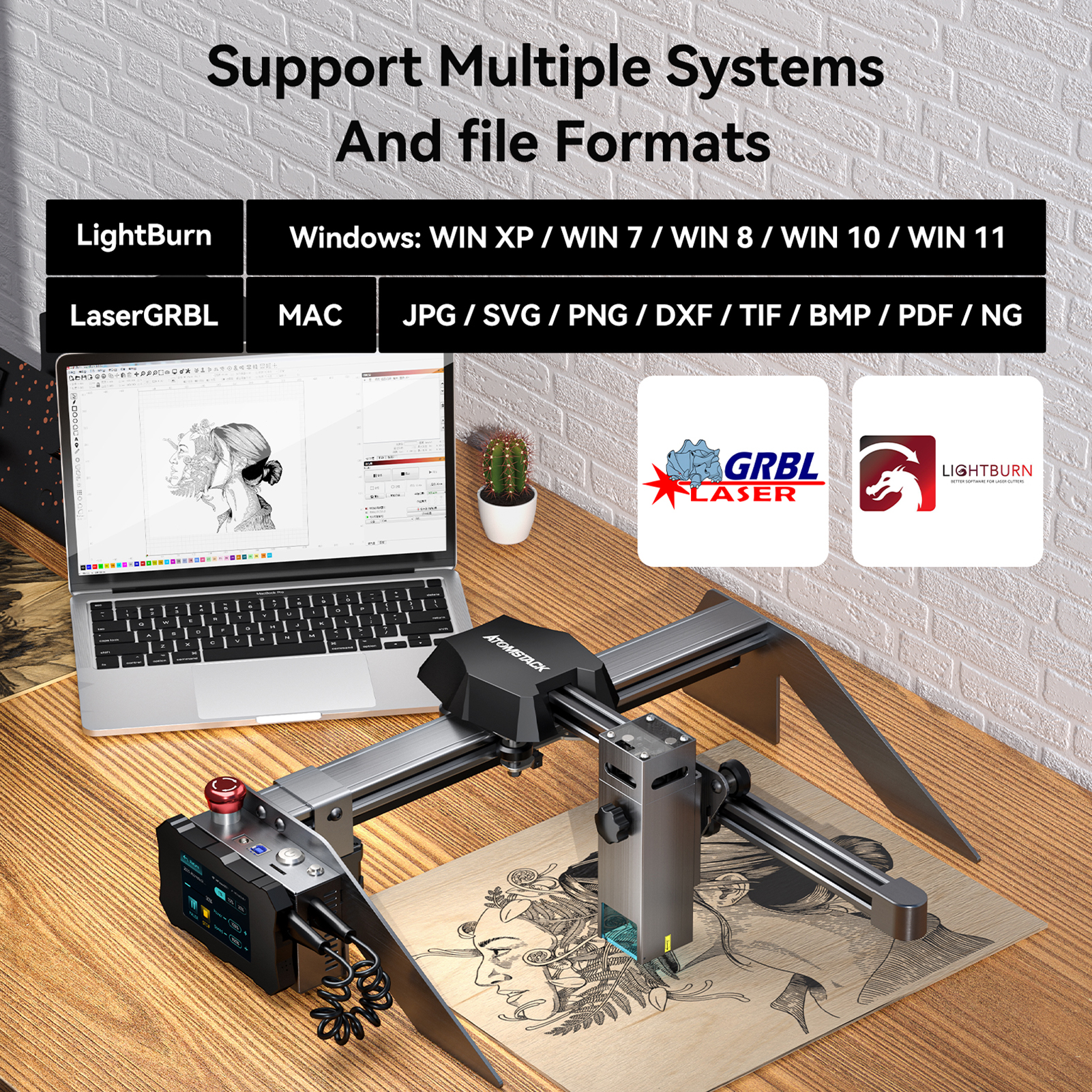

Wide compatibility:

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

More function:

Uses an integrated screw rod which makes the movement of the laser more precise and the coupling more durable. Support offline engraving;  In the event of an unexpected situation, stop the machine at any time to make the engraving safer. The laser sintering temperature is up to 1200°C.

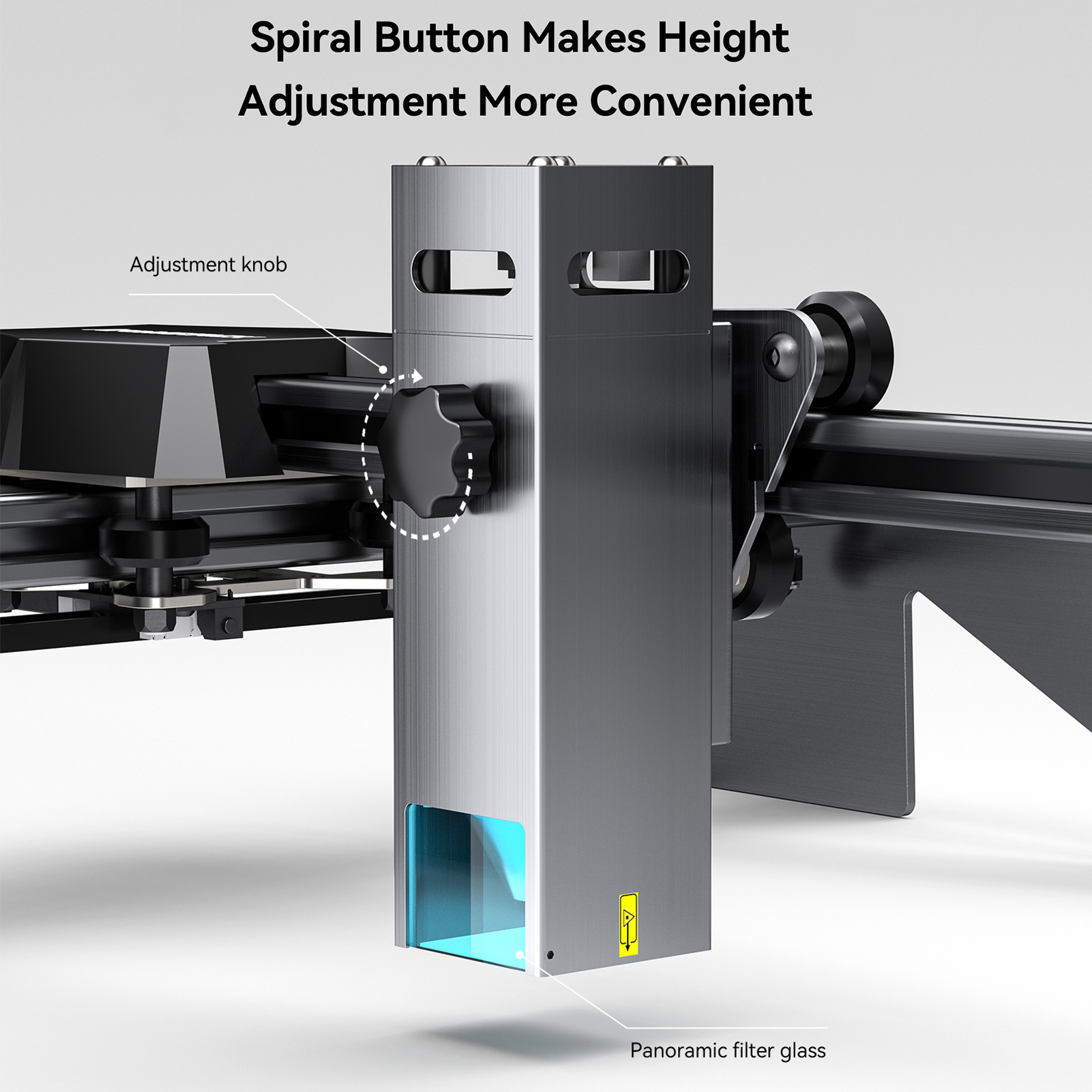

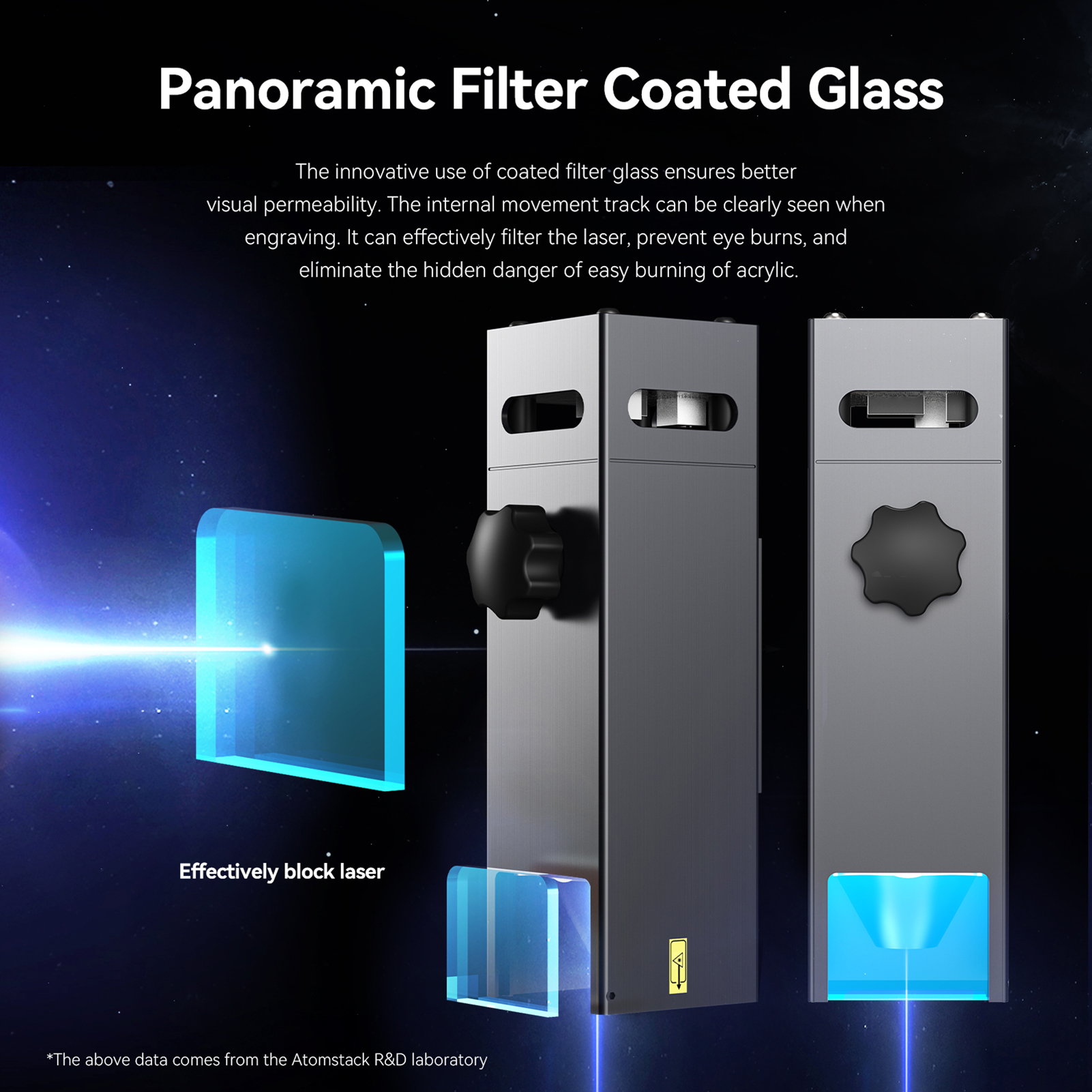

Eye protection design:

The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you can also watch laser engraving without wear goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

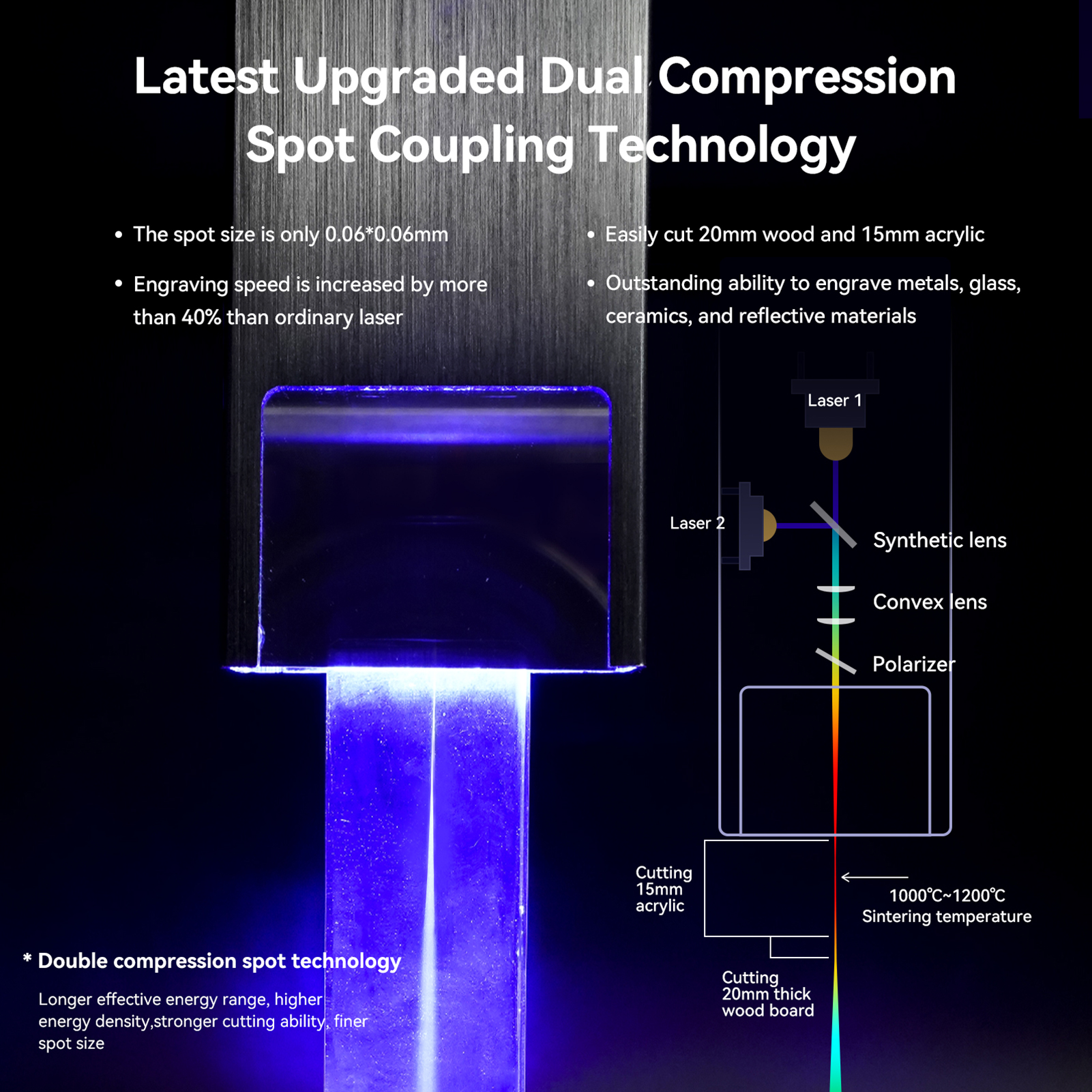

Upgraded dual compression spot coupling technology:

Ultra-fine laser focus area is reduced to 0.08x0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick acrylic; Can directly engrave mirror stainless steel metal, ceramics, glass, and engraving & cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO2 laser engraving machine.

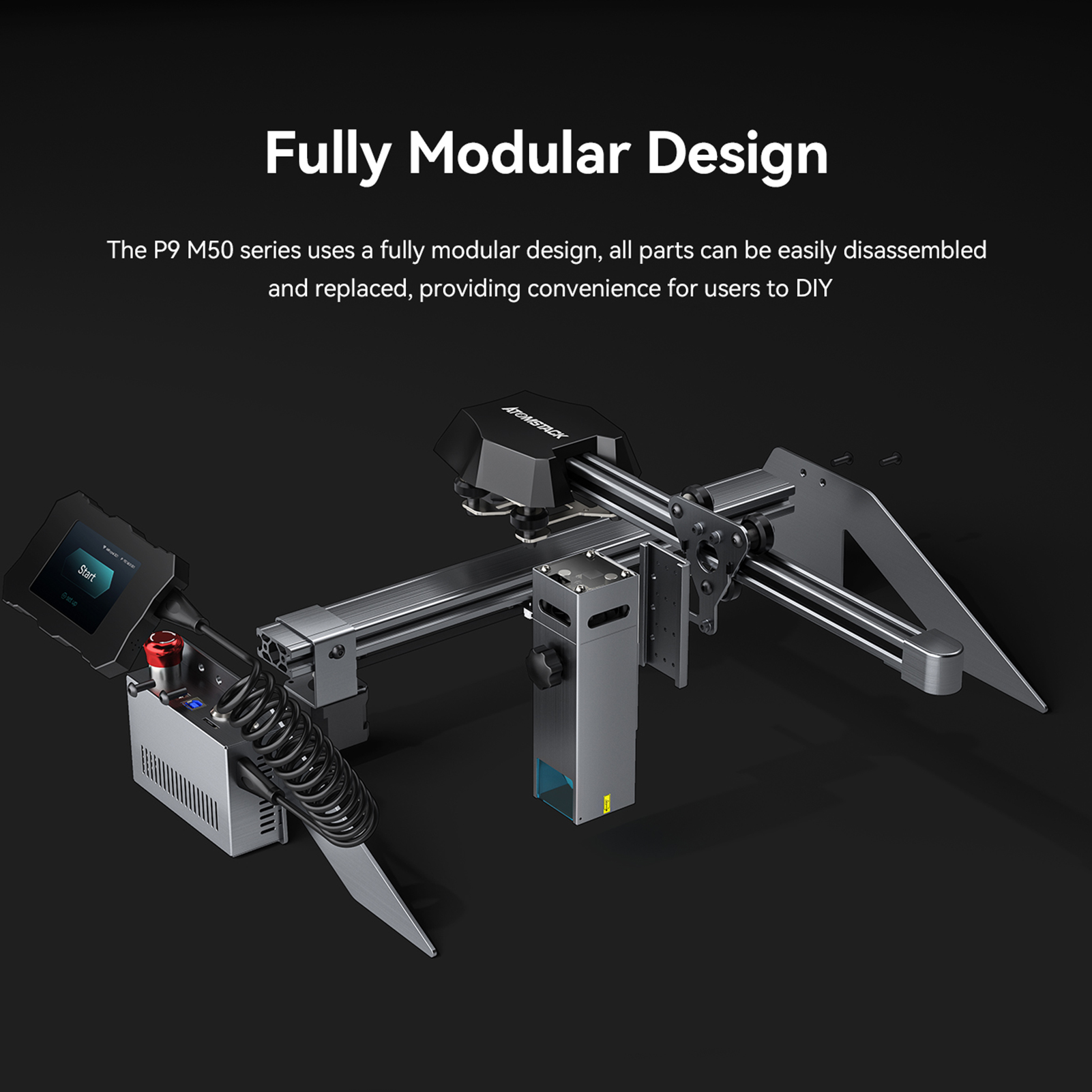

Easy to install & solid structure:

The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

Upgraded fixed-focus laser:

No need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

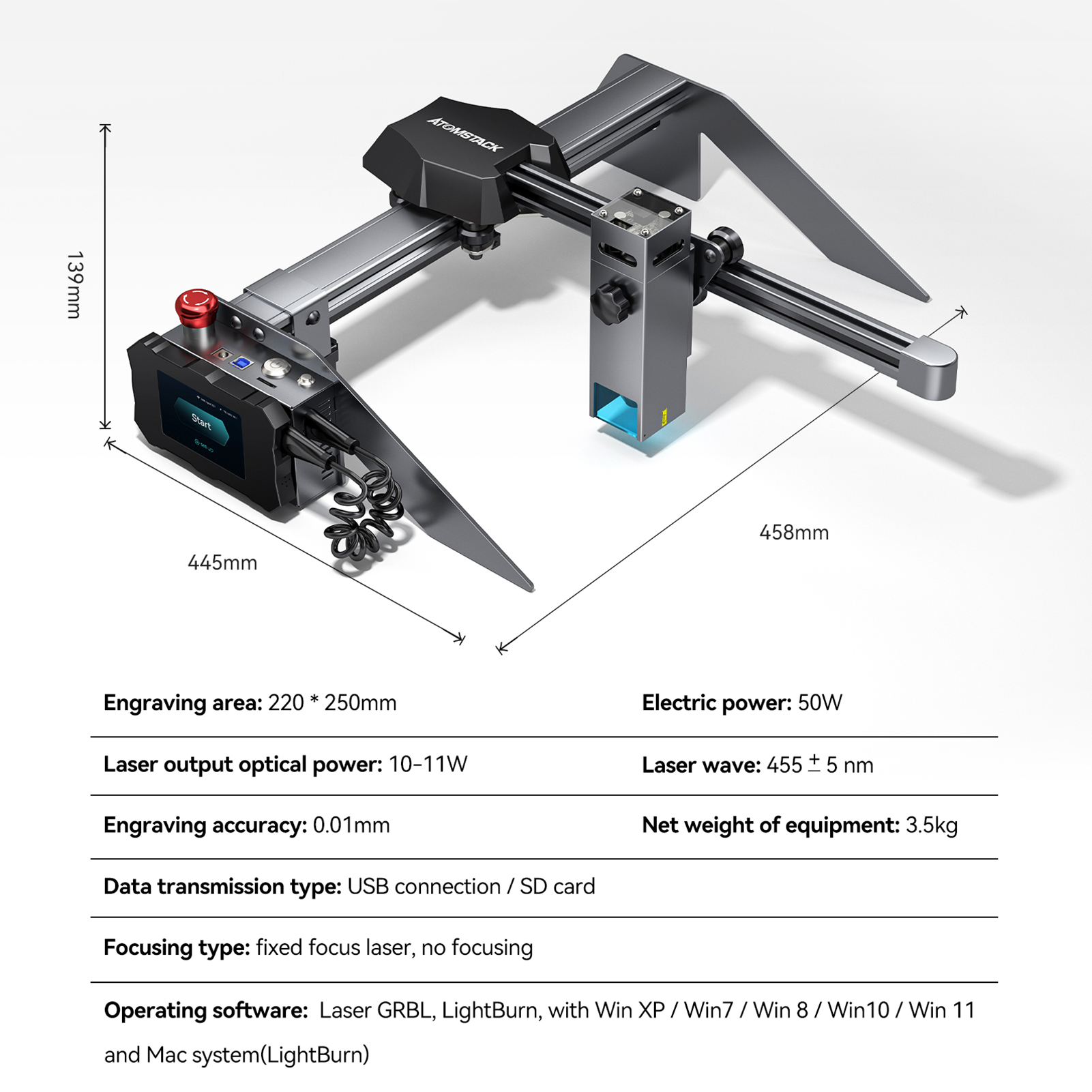

Specification:

Model: ATOMSTACK P9 M50
Recommend Print Size: 220x250mm
Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Laser power: 50W
Laser output power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection/TF card
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE FCC RoHS FDA PSE
Package Size: 49 x 27.5 x 13.5cm/19.2 x 10.8 x 5.3in
Package Weight: 5240g/11.5lbs

Note:
  •  When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
  •  Please do not touch the laser emitter with your hand, or it may burn your hand.
  •  Please avoid strong impact on the machine.
  •  Children under 14 are not allowed to use this product and children over 14 need adult supervision.
  •  The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
Packing List:
  • 1 × Screw parts (Step2/3/4/5) ;1 × Dust-free cloth ;1 × Tool kit;1 × Accessories package

  • 1 × Fixed focus film ;3 × Acrylic sheet ;3 × Wood chips ;1 × Metal cutting pad

  • 1 × Card reader ;5× Cable tie ;1 × Display assembly ;1 × Display cable

  • 1 × Laser assembly ;1 × X axis assembly ;1 × Y axis assembly ;2 × Support tripod

  • 1 × Power adapter ;1 × Power cable ;1 × Data line

  • 4 × Assembly block ;1 × Desiccant ;1 × Manual
