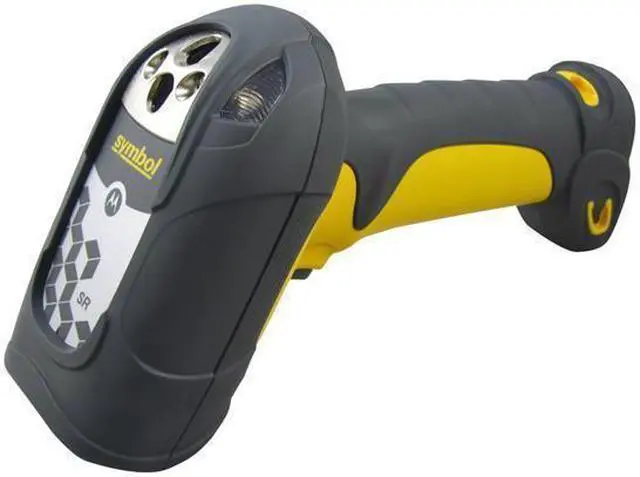

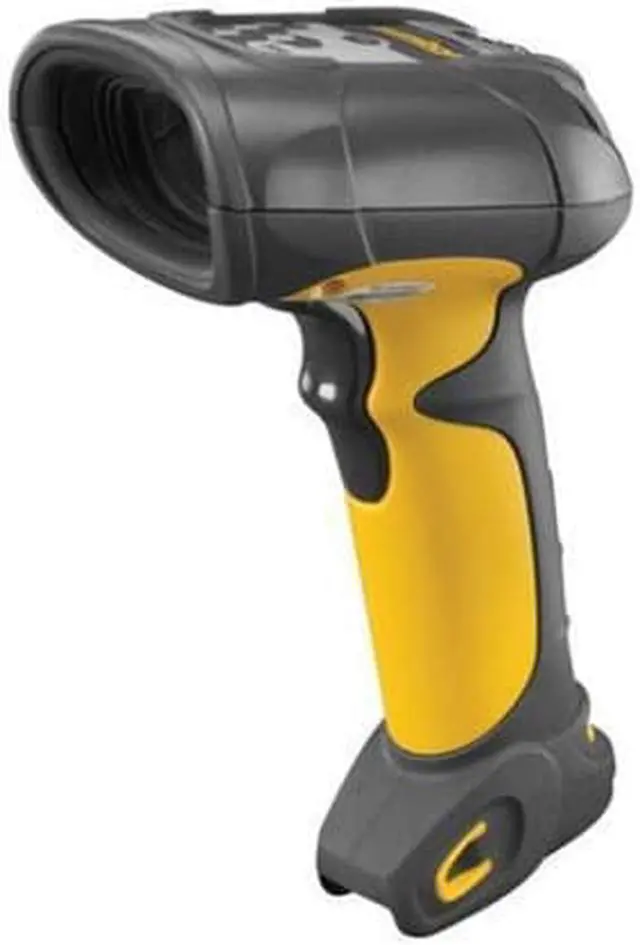

Zebra Symbol DS3578 Series Industrial Barcode Scanner DS3578-SR Series Rugged Cordless 1D/2D Imager Scanner only ( not include cables and bases)

PHYSICAL CHARACTERISTICS Dimensions (H x W x D) 7.34 x 4.82 x 2.93 in. ( 18.65 x 12.25 x 7.43 cm) Weight 14.6 oz (414gm) Battery 2200mAh Lithium Ion Battery Battery Charge Time Fully charged (100%) within 4.5 hours using an external power supply and up to ten hours using a USB cable Color Twilight Black/Yellow PERFORMANCE CHARACTERISTICS Light Source Aiming pattern: 650nm visible laser diode
Illumination: 630nm LED Imager Field of View
Standard Range Focus: 39.6 Degrees Horizontal x 25.7 Degrees Vertical High
Density Focus: 38.4 Degrees Horizontal x 24.9 Degrees Vertical Roll / Pitch / Yaw 360 Degrees, ± 65 Degrees, ± 60 Degrees Motion Tolerance Up to 60 in. /sec. ( 1.52 m/sec. ) for 100% 13 mil UPC. Motion tolerance will vary depending on code type, scan distance and print quality. SYMBOLOGY DECODE CAPABILITY 1D Codes UPC/EA N and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 DataBar Variants, GS1-128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EA N, Code 32 PDF417 (and Variants) PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C) 2D Codes TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) Postal U. S. Postnet, U. S. Planet, U. K. Postal, Japan Postal, Australian Postal, Dutch Postal, 4 State Postal DPM Marks (DPM unit only) Datamatrix marks applied by dot-peening.

All supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass IUID Support Supports IUID parsing. The ability to read and separate IUID fields per application requirements Nominal Working Range See chart on back USER ENVIRONMENT Operating Temp. (-20 - 50°C) -4 - 122°F Storage Temp. (-40 - 70°C) -40 - 158°F Humidity 5% to 95% relative humidity, non-condensing Sealing Sealed to IP65 specifications Drop Specifications Unit functions normally after repeated 6.5 -foot (2m) drops to concrete Cradle Insertions 250, 000+ insertions
Ambient Light Immunity Indoor: 450 Ft Candles (4, 842
Lux) Outdoor: 8, 000 Ft Candles (86, 080 Lux)
Electrostatic discharge (ESD): 15kV Air discharge 8kV Contact discharge RADIO SPECIFICATIONS Radio Bluetooth Class II Version 2.1, Serial Port and HID Profiles Frequency 2.402 to 2.480GH z Adaptive Frequency hopping and co-existence with 802.11 wireless networks Data Rate Basic Data Rate is 720Kbps Enhanced Data Rate (EDR) for image transfer Radio
Range Radio Range: Up to 300 feet (100m) direct line of sight in open air. Typical indoor cordless range is 100 ft. (33m), but range will vary depending upon environment; see Bluetooth Radio Performance Technical Brief for more information INTERFACES Interfaces Supported USB, RS-232, RS-485 (IBM 46xx Protocols) and Keyboard Wedge
