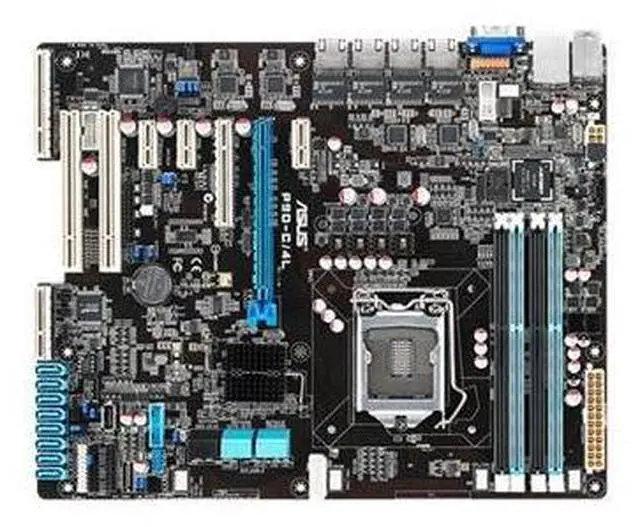

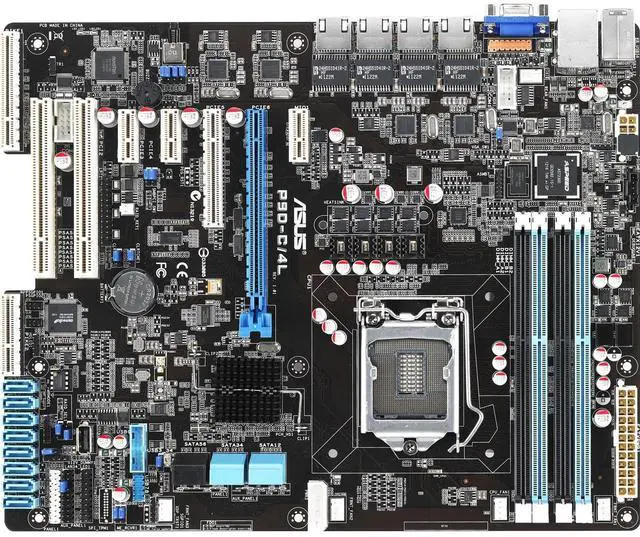

Asus P9D-C/4L Server Motherboard - Intel C224 Chipset - Socket H3 LGA-1150

Streamlined feature-rich ATX UP serverboard

The ASUS P9D-C/4L provides a cost-efficient serverboard without compromising on performance and scalability. It supports the latest Intel® Xeon® E3-1200 v3 processor family, PCI Express 3.0, and legacy PCI for diverse applications. With all these features, the P9D-C/4L fits great as part of a firewall, gateway, web/printer/mail server, and more.

Features

* Product Type: Server Motherboard
* Chipset Manufacturer: Intel
* Chipset Model: C224
* Number of Memory Slots: 4
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 6
* Number of PCI Express x1 Slots: 2
* Onboard Video: On-board Video Chipset
* RAID Supported: Yes
* Number of Total Expansion Slots: 8
* Number of PCI Express x8 Slots: 1
* Number of PCI Express x16 Slots: 1
* Total Number of USB Ports: 4
* Number of USB 3.0 Ports: 2
* Total Number of Onboard USB Ports: 5
* Number of Onboard USB 3.0 Ports: 2
* Total Number of PCI Express Slots: 4
* Memory Form Factor: UDIMM
* Memory Standard: DDR3-1333/PC3-10600
* Memory Standard: DDR3-1600/PC3-12800
* Memory Technology: DDR3 SDRAM
* Processor Socket: Socket H3 LGA-1150
* Brand Name: Asus
* Form Factor: ATX
* Processor Supported: Xeon
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Controller Type: Serial ATA/300
* Maximum Memory: 32 GB
* Product Type: Server Motherboard
* Chipset Manufacturer: Intel
* Chipset Model: C224
* Number of Memory Slots: 4
* Graphics Controller Manufacturer: ASPEED
* Graphics Controller Model: AST2300
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 6
* Number of PCI Express x1 Slots: 2
* Onboard Video: On-board Video Chipset
* RAID Supported: Yes
* Number of Total Expansion Slots: 8
* Number of PCI Express x8 Slots: 1
* Number of PCI Express x16 Slots: 1
* VGA: Yes
* Total Number of USB Ports: 4
* Number of USB 3.0 Ports: 2
* Total Number of Onboard USB Ports: 5
* Number of Onboard USB 3.0 Ports: 2
* Total Number of PCI Express Slots: 4
* Memory Form Factor: UDIMM
* Memory Speed Supported: 1.60 GHz
* Memory Speed Supported: 1.33 GHz
* Width: 12"
* Depth: 9.6"
* Memory Technology: DDR3 SDRAM
* Processor Socket: Socket H3 LGA-1150
* Brand Name: Asus
* Form Factor: ATX
* Product Model: P9D-C/4L
* Product Name: P9D-C/4L Server Motherboard
* Processor Supported: Xeon
* RAID Levels: 0
* RAID Levels: 1
* RAID Levels: 5
* RAID Levels: 1+0
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Controller Type: Serial ATA/300
* Maximum Memory: 32 GB
