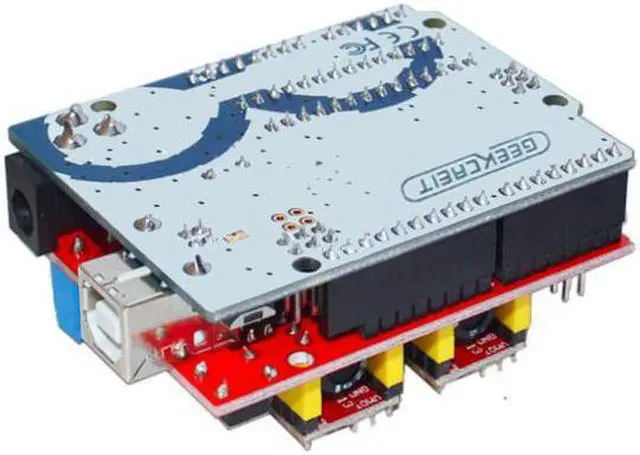

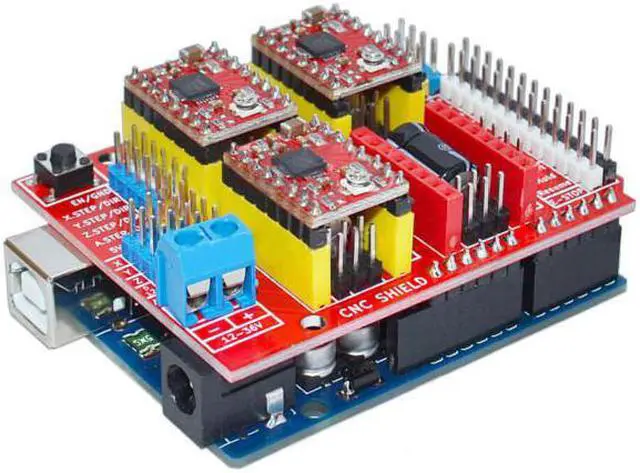

UNO R3 With 4pcs A4988 Driver With CNC Shield V3 Expansion Board For3D Printer

Feature:

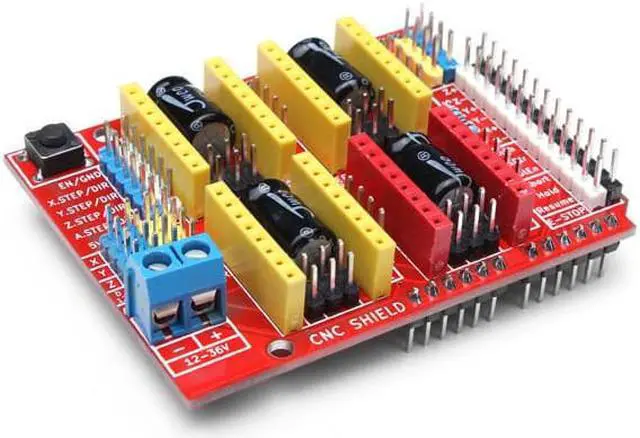

This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.

It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.

UNO for module IO port correspondence introduction.

Package included:

1 x 3D Printer Expansion Board

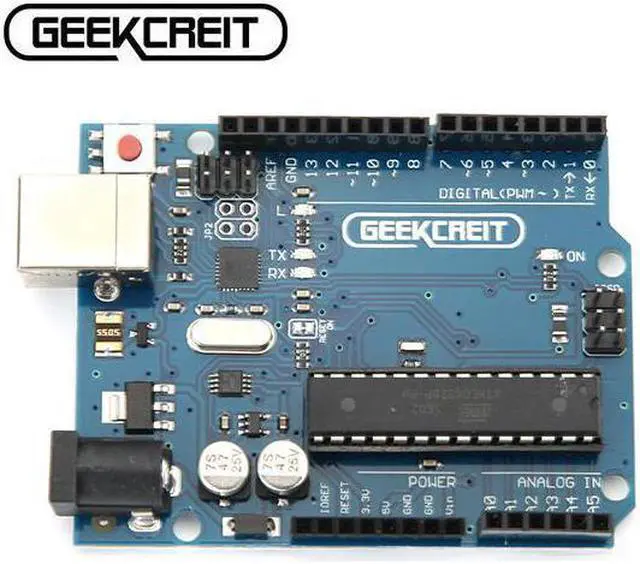

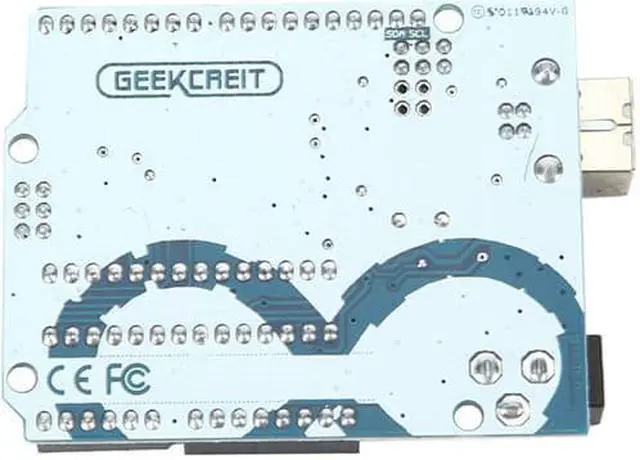

1 x UNO R3 board with USB

4 x A4988 driver

IO corresponding pin:

(For reference only

)

UNO for ---------------------- expansion board

8 ------------------------ EN ( stepper motor driver enable , active low )

7 ----------------------- Z.DIR (Z -axis direction control )

6 ----------------------- Y.DIR (Y -axis direction control )

5 ----------------------- X.DIR (X -axis direction control )

4 ---------------------- Z.STEP (Z -axis stepper control )

3 ---------------------- Y.STEP (Y -axis stepper control )

2 ---------------------- X.STEP (X -axis stepper control )

The following is a simple stepper motor control procedures:

# define EN 8 / / stepper motor enable , active low

# define X_DIR 5 / / X -axis stepper motor direction control

# define Y_DIR 6 / / y -axis stepper motor direction control

# define Z_DIR 7 / / z axis stepper motor direction control

# define X_STP 2 / / x -axis stepper control

# define Y_STP 3 / / y -axis stepper control

# define Z_STP 4 / / z -axis stepper control

/ *

/ / Function : step . function: to control the direction of the stepper motor , the number of steps .
