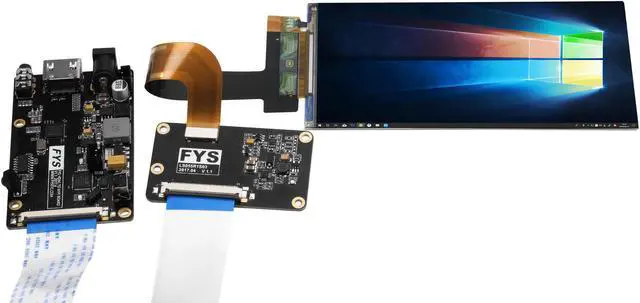

5.5inch 2K LS055R1SX03 LCDDisplay Module With HDMI MIPI Driver Board For VR LCD WANHAO Duplicator 7 SLA 3D Printer / VRr

Features:

The uses original , with high quality and

stability

.

The transmittance is high, durable to use under UV light, suitable for DIY projector and SLA 3d printer.

The display area size of

is moderate, PPI is very high, projection pixel or print accuracy

are

also

very high.

The driver board is extremely stable, without the problem of touching the black and other inherent bug.

Specificaitons

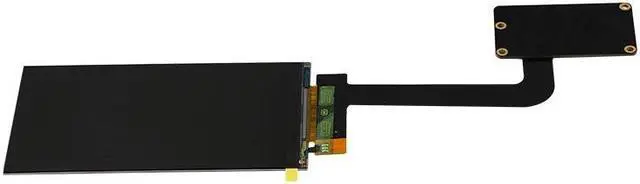

LCD

Brand



Model No.

LS055R1SX03

Size

5.5 inch

Resolution

2560x1440

Pixel Pitch

0.04725(W)mm*0.04725(H)mm(538ppi)

Module Dimensions

70.94(W)mm*128.26(H)mm*1.35(t)mm(Excluding I/F -FPC and electronic components)

Active Area Dimensions

68.04(W)mm*120.96(H)mm(5.46)

Module Dimensions

70.94(W)mm*128.49(H)mm*1.45(t)mm

Color Pixel Arrangement

RGB Vertical Stripe

Number of Colors

16,777,216 Colors

Proportion

9:16

Weight

25g

Interface

MIPI_DSI Video mode(4-Lan x2-port)

Interface I/O Power supplyNote(1)

VDDI=1.8=/-0.1V

The same voltage as H level of a customers interface signal must be supplied to VVDI

Power Supply Voltage

AVDD=5.5+/-0.1V AVEE=-5.5+/-0.1 V

Backlight

Light Emitting Diode(LED),14LEDs are 2 parallel,7 series connection

Backlight current:20mA/LED(typ)

LCD Driver IC

(Source and Power IC: Renesas SP Driver Inc.)

Method of Inversion

Column Inversion

Display Mode

Transmissive Type,Normally Black Mode,In-Plane Switching Mode

Surface Treatment

HC-Polarizer(Hardness:3H)

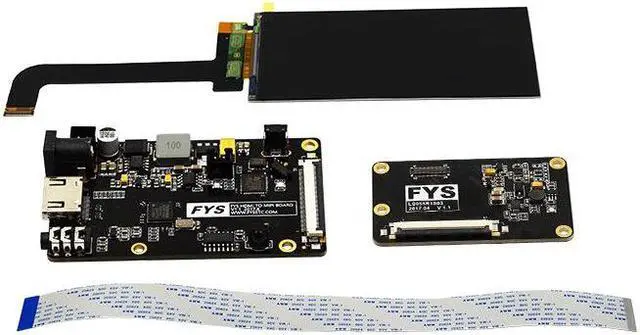

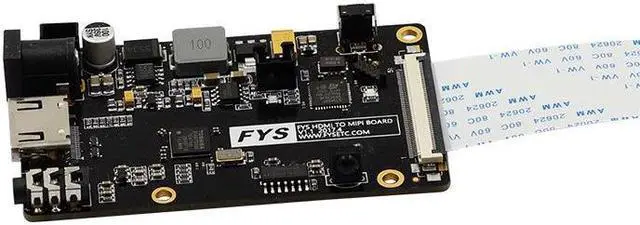

Driver Board

HDMI switch to MIPI

Support PC and Raspberry Pi

Notes:
