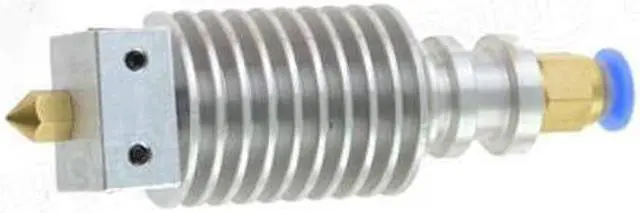

0.4mm Nozzle All Metal J-head E3D Extrusion Assembled Kit

0.4mm Nozzle

All-Metal J-head E3D Extrusion Assembled Kit 1.75mm 3mm Two Distance

The Bowden principle:

The Bowden cable lets you reduce the moving mass of the extruder and thus allowing faster controlled motion, less shaking of your machine, less energy use and importantly: faster printing! Normally the mechanism that drives the filament into the hot end (where it melts) is directly on top of the extruder. This creates problems of balance and oscillations with faster motion which you can see in your printing results and hear and feel when your machine is shaking.

If the filament drive mechanism is placed on a non-moving part of the 3D printer, it can be pushed into a tube. PTFE (Teflon) is useful because it is slippery: it has little friction with the plastic. This limits wear and loss of energy. The tube's other end is connected to the extruder's hot-end.

Feature:

Material: Metal

Weight: 80g

Extrusion nozzle: 0.4mm

Print Material: 3.0mm and 1.75mm consumables (materials, including: ABS, PLA, pvc, wood, etc.).

Heating tube: Default voltage 12V

Heating tube / Thermocouple: 12V thermocouple / thermistor, Note: CSTC heating tube is 40W. Maximum heating temperature sensitive resistor is 260 degrees. The thermal galvanic temperatures can over 300 degrees.

J-HEAD extrusion Kit Specifications:

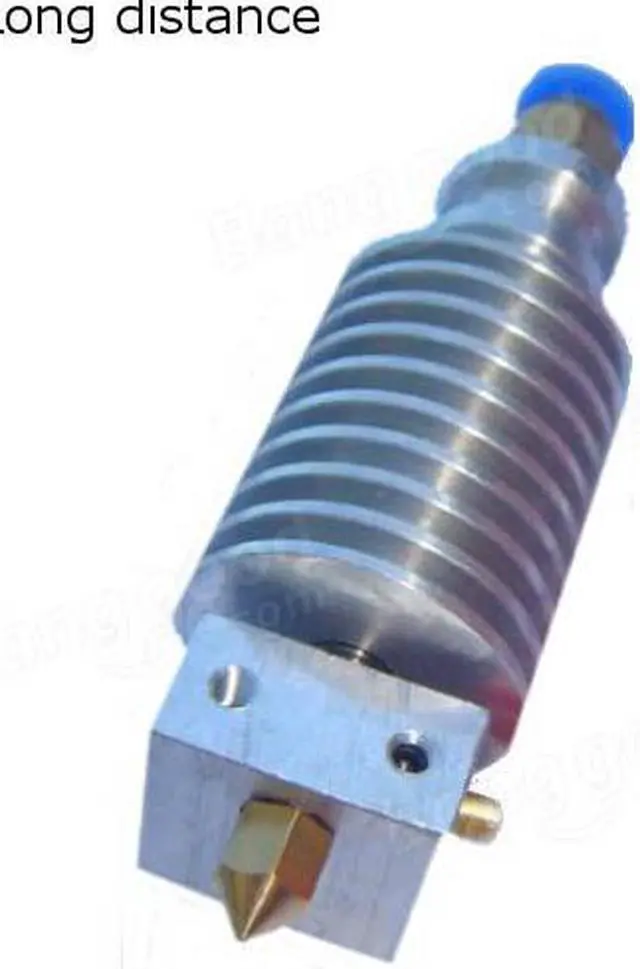

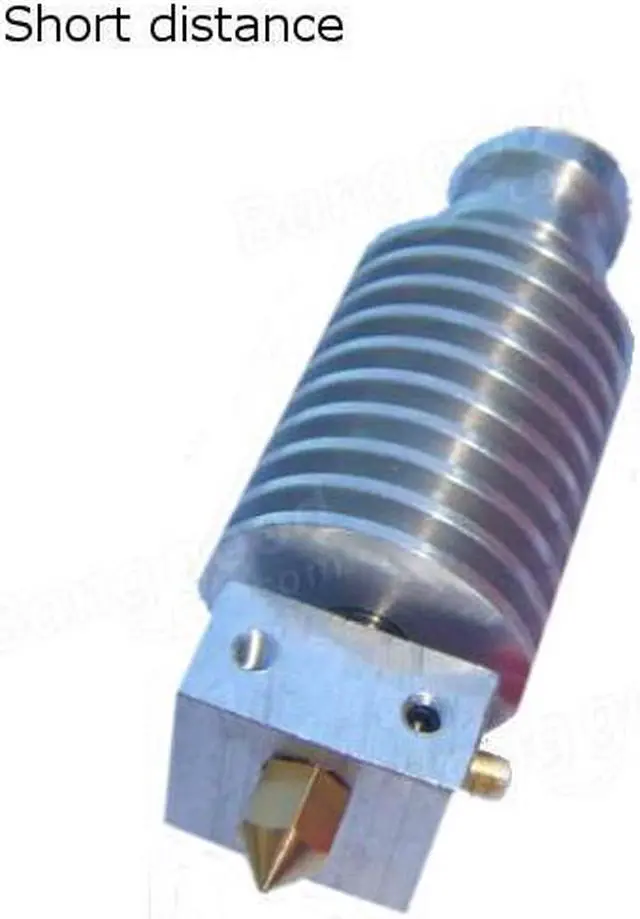

Short distance extrusion kit, long distance extrusion Kit

(Note: All of the short-range and long-range heat pipe, internal is 1.75mm or 3.0mm, the size is decision by the pipework, feed port is 3.2mm.)

Improved advantages:

Added copper sleeve in the thermistor make it more accurate temperature control and resolve the problems of fix thermistor and easily damaged.
