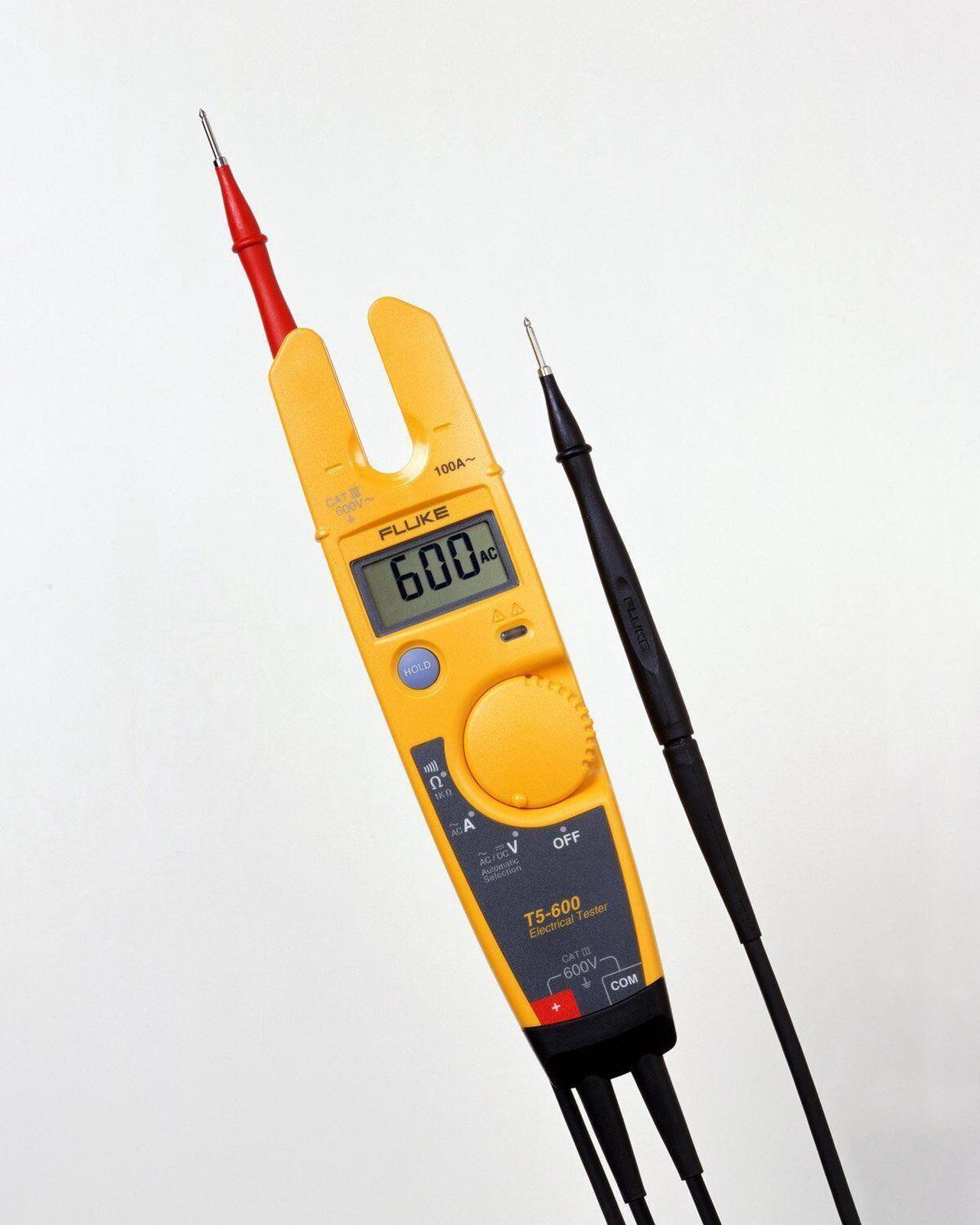

FLUKE T5-600 Clamp Continuity Current Electrical Tester

The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool.
With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw current lets you check current up to 100A - without breaking the circuit.
Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach test probes are customized for national electrical standards.
The test leads accept optional accessories such as clips and specialty probes.

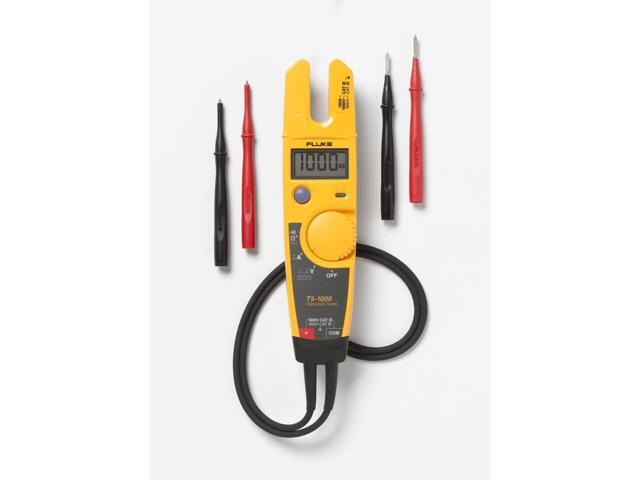

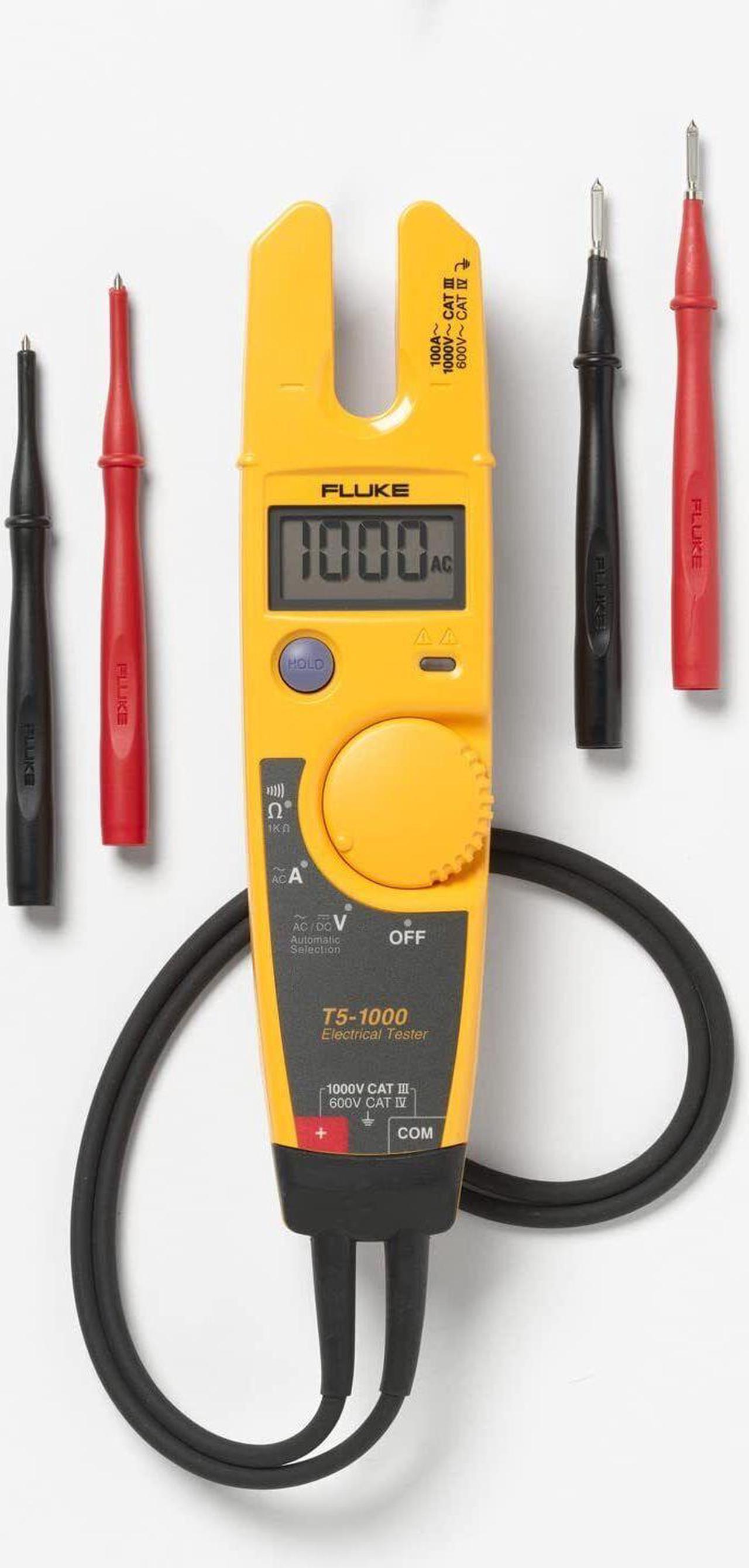

The optional H5 holster lets you clip the T5 onto your belt. Available in 600V and 1000V models.



Specification:

Specifications

Continuity beeper

Threshold: On at <25, off at > 400

Volts indicator LED

Threshold: Guaranteed on by 30V ac

Environmental

Specifications

Operating Temperature
-10 °C to 50 °C
Storage Temperature
-30 °C to 60 °C
Humidity (Without Condensation)
0% to 95% (5 °C to 30 °C)
0% to 75% (30 °C to 40 °C)
0% to 45% (40 °C to 50 °C)
Dust/water resistance
Yes
Operating Altitude
2000 meters max
Temperature Coefficient
0.1 x (specified accuracy) /degree C ( <18 °C or > 28 °C)
Safety

Specifications

Overvoltage category
T5- 600: 600 V ac/dc, CAT III
T5- 1000: 1000 V ac/dc, CAT III
600V ac/dc, CAT IV
Agency Approvals
UL, CSA, and VDE
Maximum voltage
between any terminal and earth ground


Mechanical & General

Specifications

Size
30.5 x 51 x 203 mm
Weight
300g
Warranty
2 years
Battery Life
200 hour zinc chloride, 400 hour alkaline
Battery type
Two AA zinc chloride
Low battery indicator
Yes
Current sensor opening
12.9 mm
Calibration cycle
1 year
Test leads
Type: Heavy duty, flexible leads rated for 1000V use.
Field replaceable leads terminate in male shrouded banana plugs
Probes: One red, one black. of two tip
Detachable Slim-ReachT probe tips in one
Styles: TP4 4 mm round


Package Include:
1pc Fluke T5-600 Electrical Tester
1pc User manual
