Fluke Networks MT-8200-60-KIT IntelliTone Pro 200 Probe and Toner Multicolor

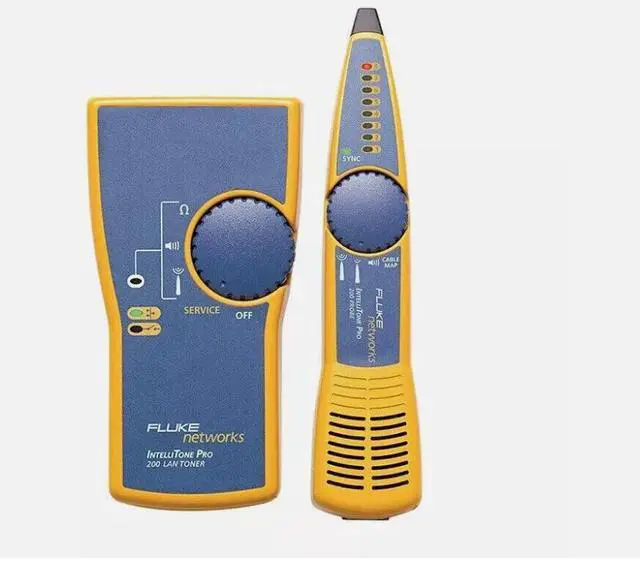

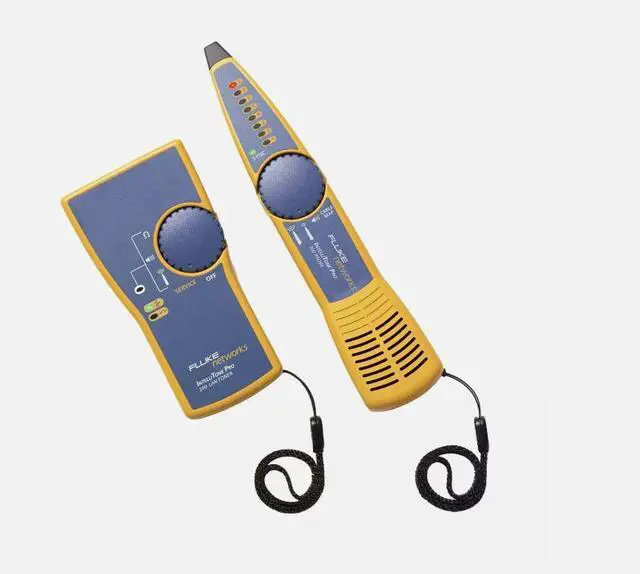

- Product overview: Fluke Networks MT-8200-60-KIT IntelliTone Pro 200 Toner and Probe Kit
- The first network cable toner and probe to offer digital and analog signaling all in one network toner and probe. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs and trace voice, audio and video cabling.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key features:

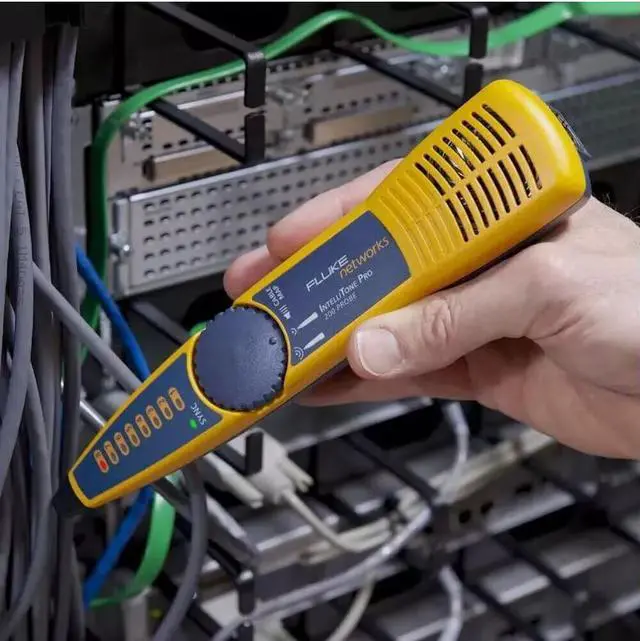

Locates cables safely and effectively on active networks
Kit includes IntelliTone toner, probe, adapters, patch cables, and test leads
Verifies twisted pair installation with end to end continuity test
IntelliTone digital toning eliminates noise and false signals

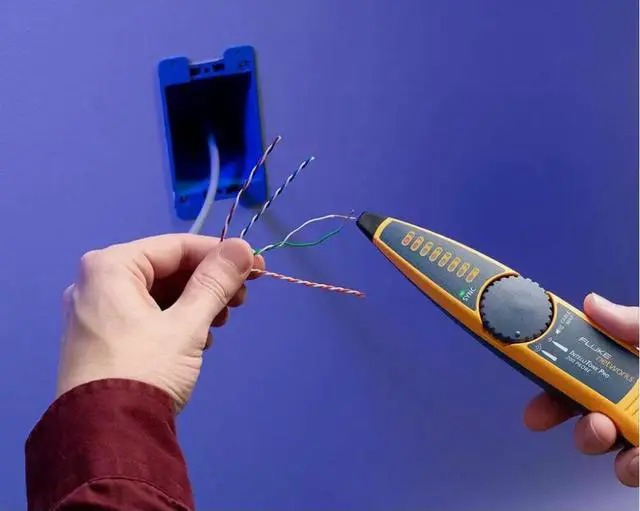

SmartTone analog toning isolates individual wire pairs
specifications:
General specifications
Operating temperature
32 °F to 104 °F (0 °C to 40 °C)
Storage temperature
-4 °F to +140°F (-20 °C to °C)
Operating relative humidity (% RH without condensation)
95 % (50 °F to 95 °F; 10 °C to 35 °C)
75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)
Vibration
Random, 2 g, 5 Hz-500 Hz
Shock
1 m drop test
Safety
EN 61010-1,
Category: None
Altitude
3000 m
EMC
EN 61326-1, FCC Part 15 B
Battery type and life
9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications
Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

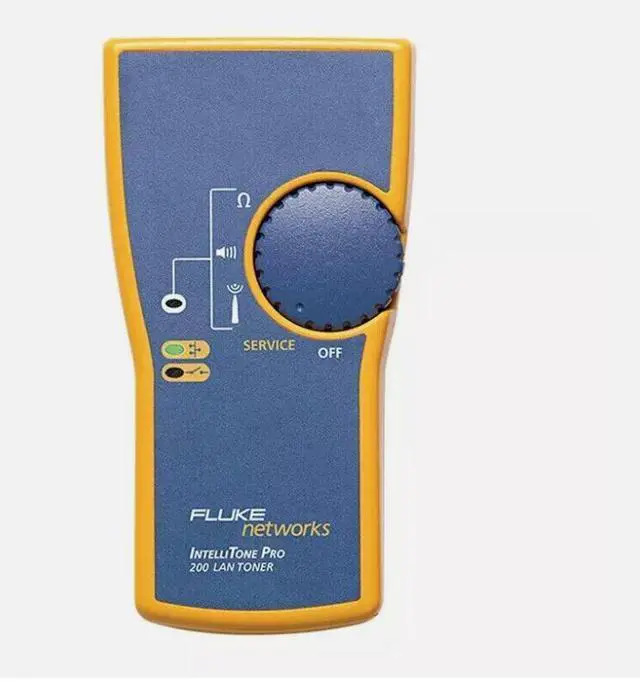

Toner specifications
Dimensions
5.54 in x 2.94 in x 1.25 in ( 14.1 cm x 7.5 cm x 3.2 cm)
Display
LED
Control
Thumbwheel switch
Toner interface
Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
Toner frequency
IntelliTone signal: encoded digital signal
Analog SmartTone signal: 500 - 1200Hz, 4 songs
Ouptut power
5 V p-p
Auto power down
Turns off automatically after 2 1/2 hours of inactivity

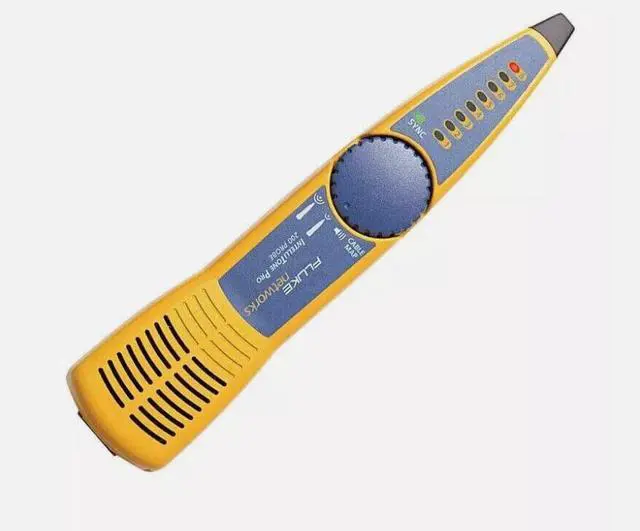

Probe specifications
Dimensions
8.73 in x 1.88 in x 1.26 in ( 22.2 cm x 4.8 cm x 3.2 cm)
Display
(8) LED indicators, Sync LED indicator
Audio
IntelliTone: Microprocessor controlled audio files
Analog: Detected toner signal
Control
Thumbwheel switch, volume control wheel
Tone detection
Detects IntelliTone digital signal for Locate, Isolate, and Cable Map
Detects analog SmartTone signal (500-1200Hz) and other analog toners.
Toner interface
Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
Auto power down
Turns off automatically after 1 hour of inactivity
Locates cables safely and effectively on active networks
Kit includes IntelliTone toner, probe, adapters, patch cables, and test leads
Verifies twisted pair installation with end to end continuity test
IntelliTone digital toning eliminates noise and false signals
SmartTone analog toning isolates individual wire pairs
specifications:
General specifications
Operating temperature
32 °F to 104 °F (0 °C to 40 °C)
Storage temperature
-4 °F to +140°F (-20 °C to °C)
Operating relative humidity (% RH without condensation)
95 % (50 °F to 95 °F; 10 °C to 35 °C)
75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)
Vibration
Random, 2 g, 5 Hz-500 Hz
Shock
1 m drop test
Safety
EN 61010-1,
Category: None
Altitude
3000 m
EMC
EN 61326-1, FCC Part 15 B
Battery type and life
9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications
Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.
Toner specifications
Dimensions
5.54 in x 2.94 in x 1.25 in ( 14.1 cm x 7.5 cm x 3.2 cm)
Display
LED
Control
Thumbwheel switch
Toner interface
Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
Toner frequency
IntelliTone signal: encoded digital signal
Analog SmartTone signal: 500 - 1200Hz, 4 songs
Ouptut power
5 V p-p
Auto power down
Turns off automatically after 2 1/2 hours of inactivity
Probe specifications
Dimensions
8.73 in x 1.88 in x 1.26 in ( 22.2 cm x 4.8 cm x 3.2 cm)
Display
(8) LED indicators, Sync LED indicator
Audio
IntelliTone: Microprocessor controlled audio files
Analog: Detected toner signal
Control
Thumbwheel switch, volume control wheel
Tone detection
Detects IntelliTone digital signal for Locate, Isolate, and Cable Map
Detects analog SmartTone signal (500-1200Hz) and other analog toners.
Toner interface
Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
Auto power down
Turns off automatically after 1 hour of inactivity
