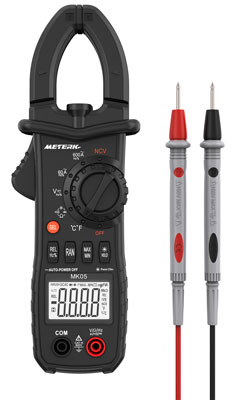

Meterk E2274 (MK05) Digital Clamp Meter Multimeter
A versatile multimeter that's able to measure AC/DC voltage & current, capacitance, resistance, frequency and even temperature. Non-contact voltage (NCV) detection offers you a safe way to test the presence of voltage, without touching the wire. Large LCD display, auto range and built-in flashlight give you more convenience in day-to-day use, while the lightweight, compact design is easy to take and use anywhere. Ideal for troubleshooting or working on failed appliances.

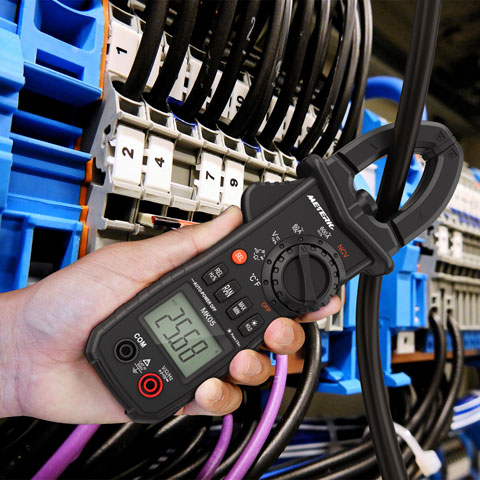

Multi-Purpose Clamp Meter with True RMS Auto-Range

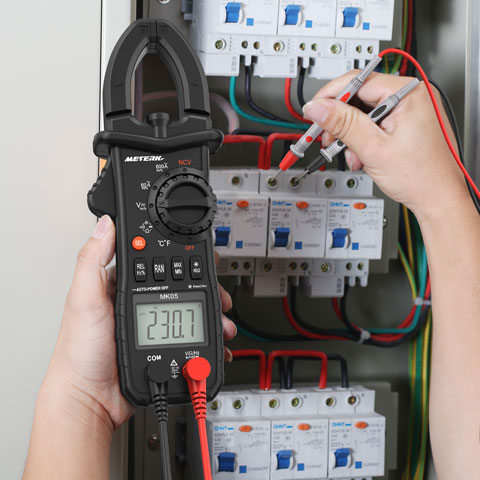

Accurate AC/DC voltage, AC current, frequency, duty cycle, diode, capacitance and resistance measurement.
With NCV & Live Line Test Function

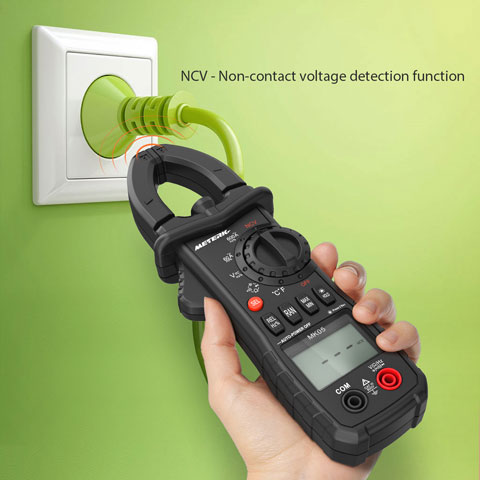

Non-contact voltage detection function uses a sensor to detect voltage and avoid electric shock, without you touching any wires. Light and sound alarm if the AC voltage (6-600V) or live wire is detected.
Continuity Test & Overload Protection
Designed to safely and accurately confirm the circuit conducts electricity, and features low voltage indication and overload protection. Shows "OL" on the LCD if over the range.
- Easy to use and read with large LCD screen
- Small and portable to carry and use
- High resolution and low battery indication
- An integrated flashlight for convenient measurement in the dark
- Data hold, auto range and auto power off.
- Brand Name: Meterk
- Material: ABS
- Color: Black
- Operating Altitude: Max 2000 meters
- Work Temperature: 18~28?
- Storage Temperature: -10~50?
- Display: Max 5999 Digits LCD
- Max. allowable voltage between terminals and earth ground: 1000V DC or 750V AC
- Safety Class: 600V CAT ?, pollution class ? CE
- Sampling Speed: approx. 3 times / second
- AC Current Range and Accuracy(A): 6A/60A/600A ±(2.5%+10)
- AC Current Resolution: 0.001A/0.01A/0.1A
- AC Voltage Range and Accuracy(V): 6V-60V ±(1.0%+5), 600V ±(1.2%+5)
- AC Voltage Resolution: 0.001V/0.01V/0.1V
- DC Voltage Range and Accuracy(V): 6V/60V/600V ±(1.0%+5)
- DC Voltage Resolution: 0.001V/0.01V/0.1V
- Frequency Range and Accuracy(V): 99.99Hz/999.9Hz/9.999kHz ±(1.5%+5)
- Frequency Resolution: 0.01Hz/0.1Hz/0.001kHz
- Resistance Range and Accuracy(Ω): 600Ω/6KΩ/60KΩ/600KΩ ±(0.8%+3), 6MΩ/60MΩ ±(1.2%+3)
- Resistance Resolution: 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ/0.1MΩ
- Capacitance Range and Accuracy(F): 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(3.0%+5), 9.999mF ±(5.0%+5), 99.99mF No Defined
- Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/0.001mF/0.01mF

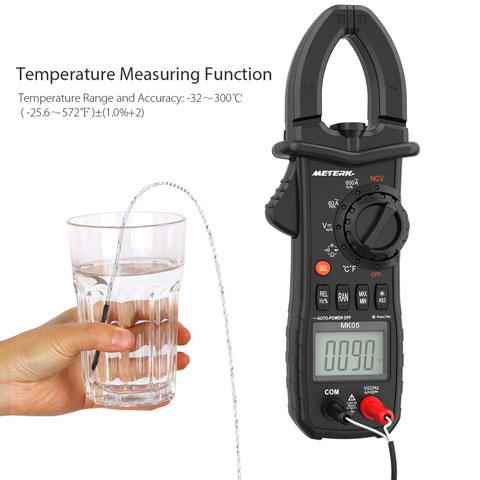

- Temperature Range and Accuracy: -32~300? (-25.6~572?) ±(1.0%+2)
- Temperature Resolution: 1?(1?)
- Duty Ratio Range and Accuracy: 0.1-99.9% ±3.0%
- Duty Ratio Resolution: 0.1%
- Continuity Test: 0.1Ω
- NCV: >1000V AC Voltage
- Max Clamp Opening Size: 36mm / 1.42in
- Max Measuring Wir Diameter: About 26mm / 1.02in
- Auto Power Off: 15 minutes
- Max Input Impedance: 10MΩ
- Power: AAA 1.5V x 3(Included)
- Product Net Weight: 255g / 9.00oz
- Product Size: 208 * 78 * 35mm / 8.19 * 3.07 * 1.38in
- LCD Size: 38 * 24mm / 1.50 * 0.94in
- Package Size: 23 * 13 * 4.5cm / 8.66 * 4.13 * 1.4in
- Package Weight: 508g / 17.92oz
- 1 * Clamp Meter
- 1 * Pair of Test Probe
- 1 * Temperature Probe
- 3 * AAA Batteries (Inside the Clamp meter)
- 1 * Storage Bag
- 1 * User Manual (English + French + German + Italy + Spanish)
