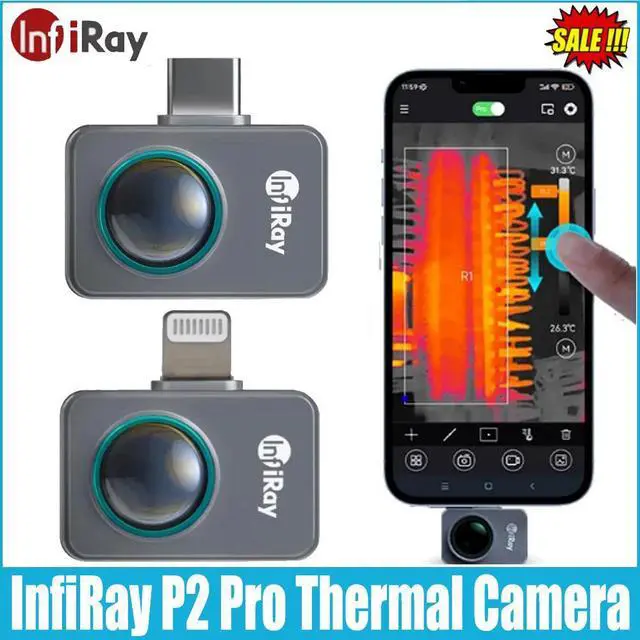

InfiRay P2 Pro Thermal Imager PCB Circuit Industrial Heating Test Night Vision 256X192 For Android Phone Type-C,Without macro lens
- Attention:Products that need to be compatible with iphone 15 need to be purchased at the exclusive link in this shop
- Imaging Tool:Android 6.0 and above
- Interface:USB type C
- Resolution:256x192 Xinfrared High Performancesensor
- Measuring range:20°C -600°C
- Magnetic Macro Lens:Observe 0.25mm resistor easily
- Frequency:25Hz
- NETD:<40mk
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model
Resolution: 256×192
Pixel Size: 12m
NETD: 50mK@25°C, F# 1.0
Operating Band: 8~14m
Performance
Frame Rate: 25Hz
Operating Temperature: -10°C~55°C
Storage Temperature: -40°C~85°C
Power Consumption: 350mW
Processor: Self-developed ASIC chip
Lens
Focal length: 3.2 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing Mode: Athermalized Prime Lens
Macro Lens: Adaptable
Temperature Measurement
Measurement Range: -20°C~ 600°C
Measuring Error: ±2ºC (±2% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature
Software Function
Palette: White/black-hot + 6 palettes
Measurement Mode: Point/line/plane temperature measurement
Information Sharing: Instant picture sharing
Data analysis: Secondary temperature analysis and processing of images
Imaging Tool: Android 6.0 and above
Software Update: Online update
Resolution: 256×192
Pixel Size: 12m
NETD: 50mK@25°C, F# 1.0
Operating Band: 8~14m
Performance
Frame Rate: 25Hz
Operating Temperature: -10°C~55°C
Storage Temperature: -40°C~85°C
Power Consumption: 350mW
Processor: Self-developed ASIC chip
Lens
Focal length: 3.2 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing Mode: Athermalized Prime Lens
Macro Lens: Adaptable
Temperature Measurement
Measurement Range: -20°C~ 600°C
Measuring Error: ±2ºC (±2% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature
Software Function
Palette: White/black-hot + 6 palettes
Measurement Mode: Point/line/plane temperature measurement
Information Sharing: Instant picture sharing
Data analysis: Secondary temperature analysis and processing of images
Imaging Tool: Android 6.0 and above
Software Update: Online update
