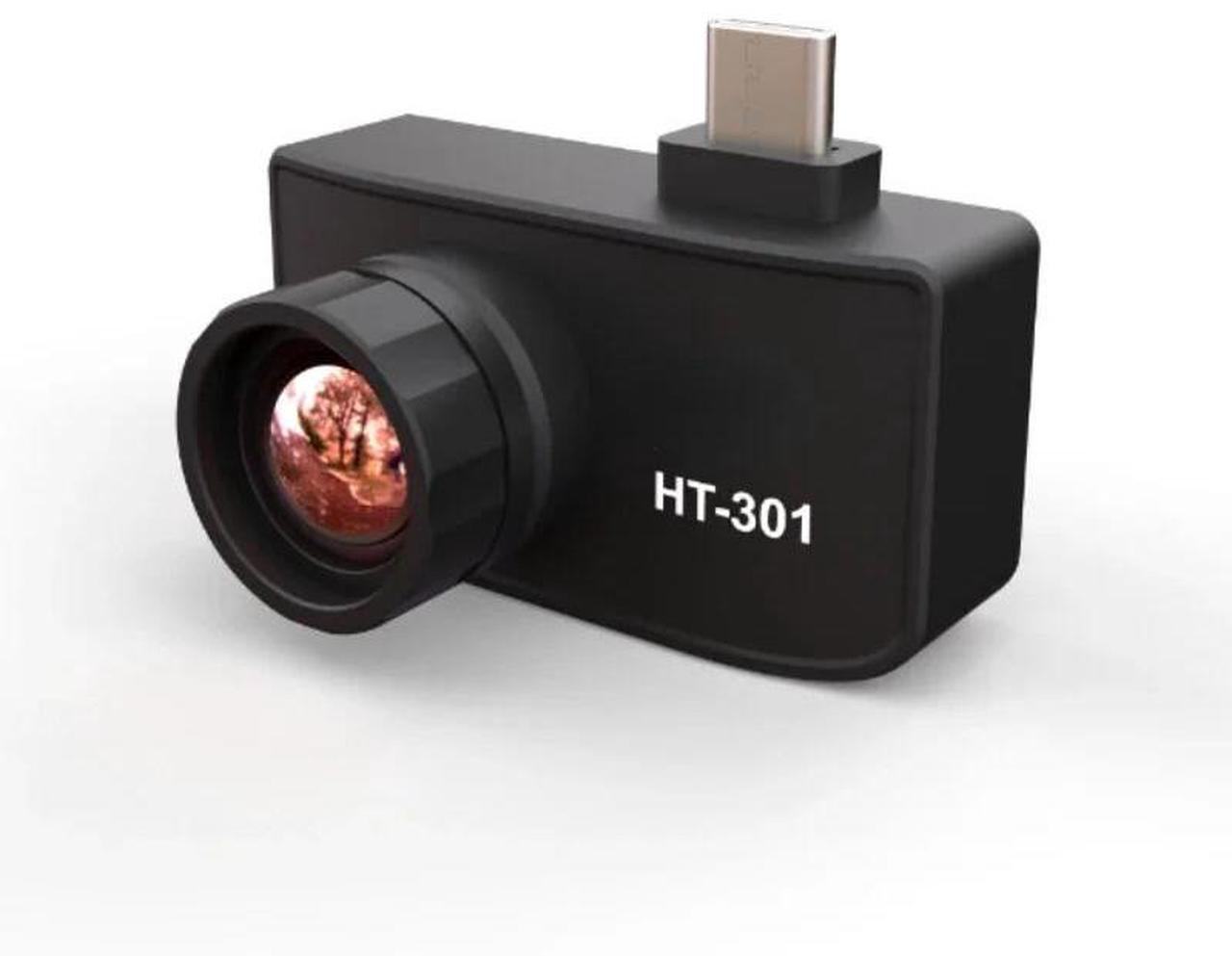

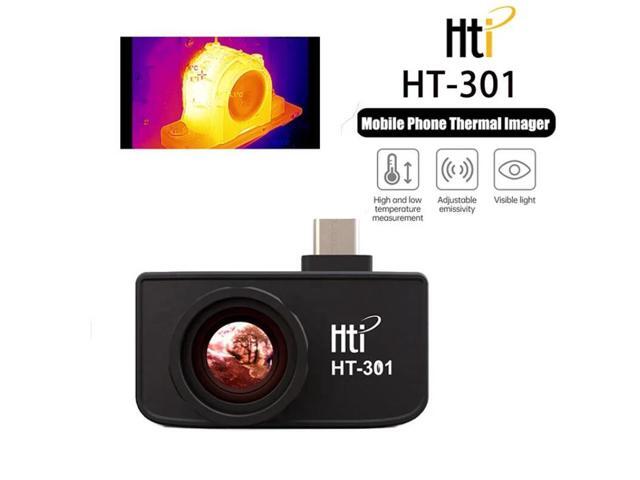

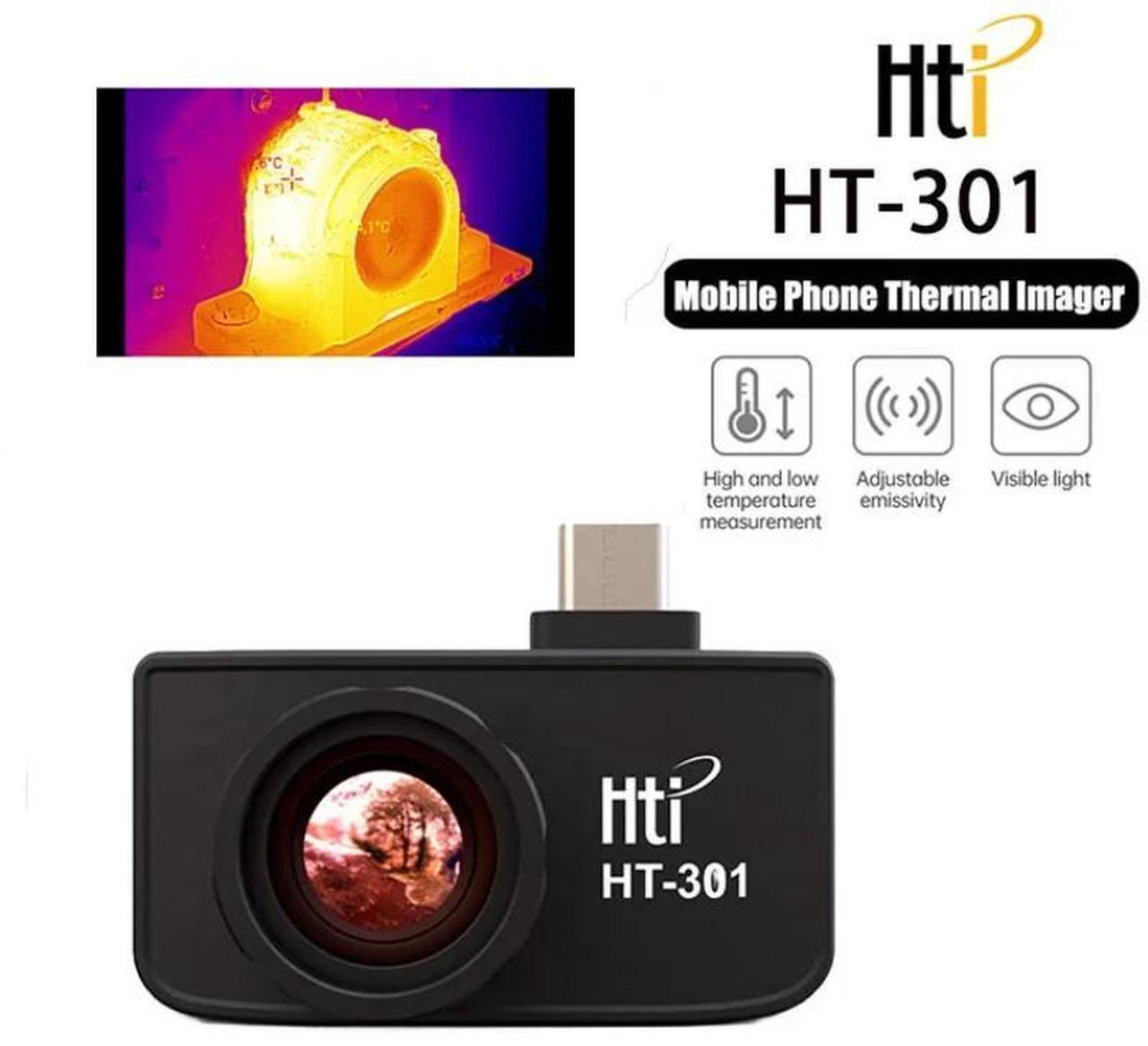

HTI HT-301 Infrared Thermal Imager 384x288 Mobile Phone Thermal Imaging Camera

HT-301 Resolution 384*288 HTI Infrared Thermal Imager Imaging Camera for Android Cell Phone

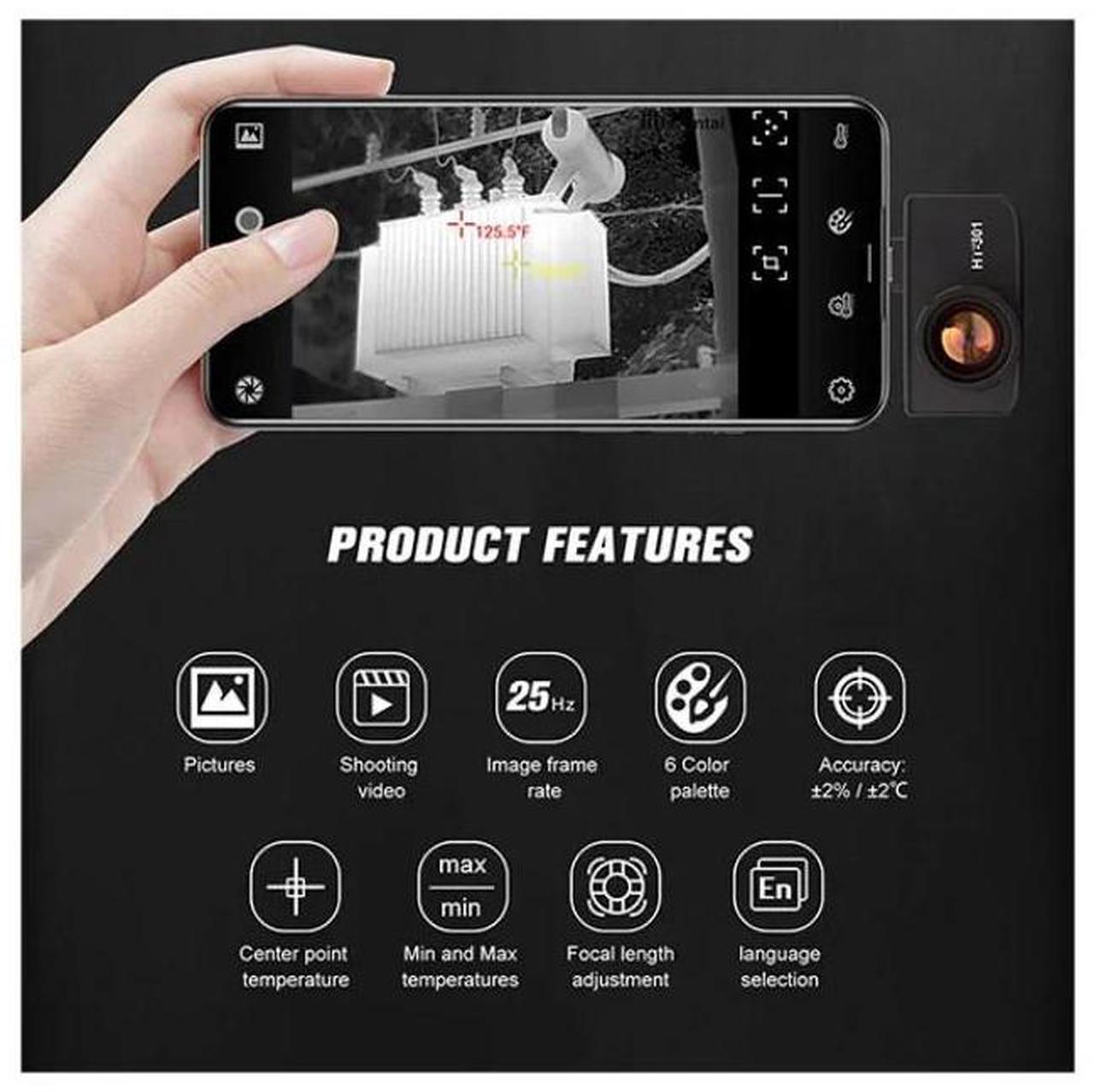

Product Feature
.
Display: Mobile screen;

2. infrared
Resolution: 384X288;
3.
Temperature range: -20~400°C;
4.
Wavelength range: 8~14um;
5.

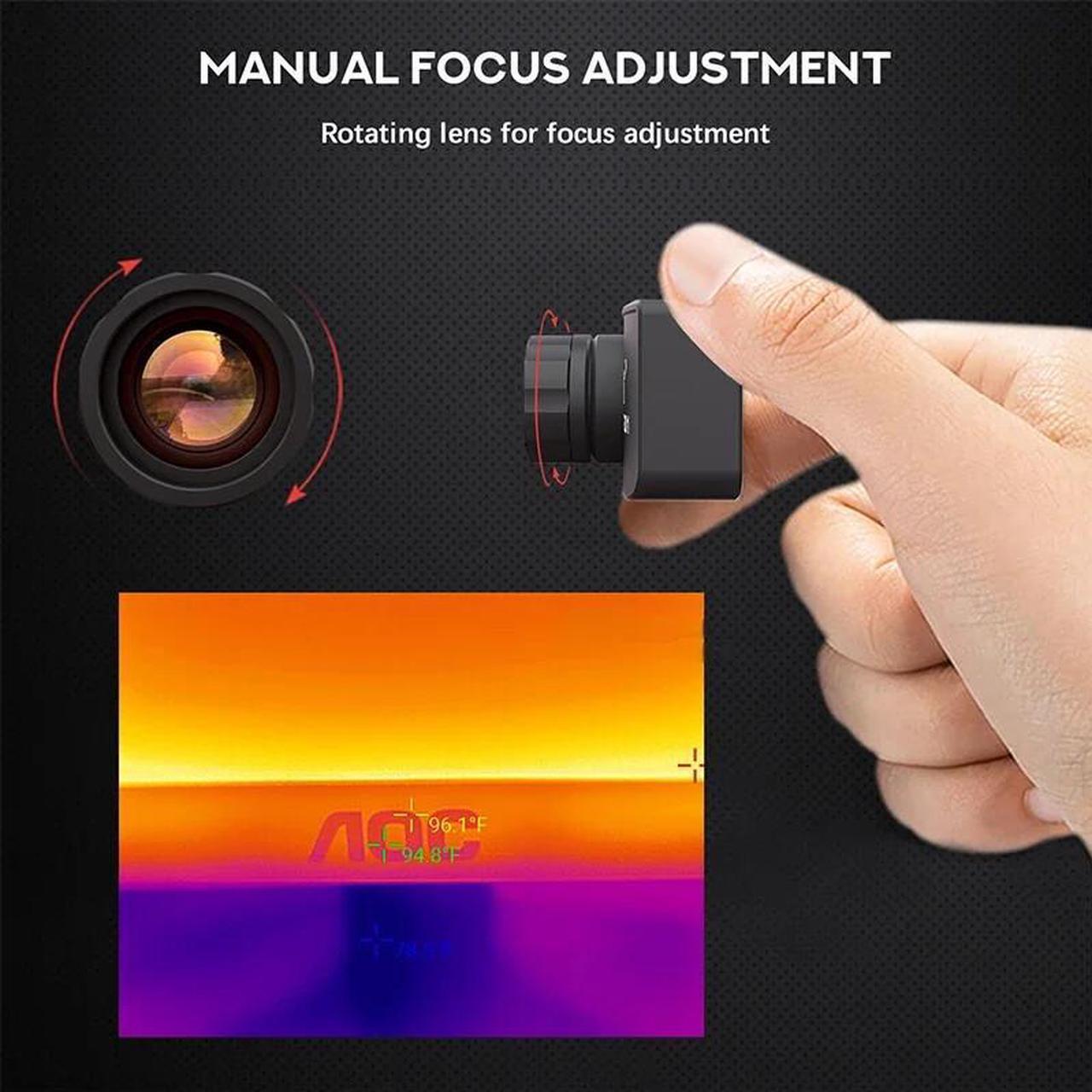

Focusing mode: Focusing by manual;

6.
Thermal sensitivity: 0.06 °C;

7.
Temperature accuracy: ±3%/3°C;

8.
Frame rate: 25 Hz;

9.
Temperature measurement and analysis pattern:

(1). point temperature measurement;

(2). linear temperature measurement analysis;

(3). regional temperature measurement analysis;


10. vedeo recording/photo: support;

11Cell spacing: 17um;

12.
Working wavelength range: 8~14um;

13. temperature calibration: Manual/Automatic;

14. temperature output: real-time output;

15.
Image enhancement: multi-level detail enhancement;

16.
Image calibration: Shutter calibration;

17. white hot, black hot, rainbow and others;
18.
Operation condition: 0°C~50°C;
19.
Storage condition: -20°C~60°C;
20.
Interface: Type-C, micro;
21.
Power supply: 3.8 ~5V DC (cellphone supplying);
22.
Weight: 45g;

23.
Size: 49.5 * 36.1 * 29.3 mm;
