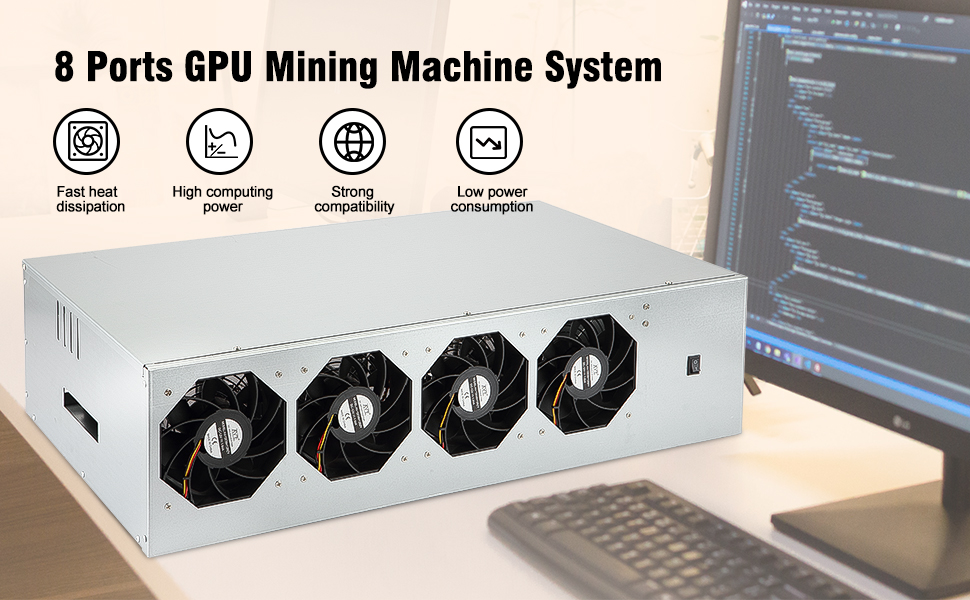

8-GPU MINING RIG (WITHOUT GPU and PSU)
- This mining rig has been designed from the ground up to keep GPUs cool with 4 powerful cooling fans. You can install 8 GPUs at the same time without worrying about heat dissipation. It comes equipped with 8 PCI-E and x16 Slots, eliminating the need for riser cables. We have also tested the rig with various GPUs to ensure that it is compatible with a wide range of graphics cards. It is a stable machine that is incredibly easy to set up and requires little maintenance, making it an ideal rig for mass scaling.
Warm Tips:
- You will need to purchase and install your own power supply, M2 224 hard drive, DDR3L memory & Video Card.
- Hash rates may differ based on internet connection and operating temperature.
- Mining Rig modifications, other than adding additional GPUs, not in conjunction with our support may result in discontinuation of our support. Please do not make modifications unless instructed or unless you really know what you are doing.

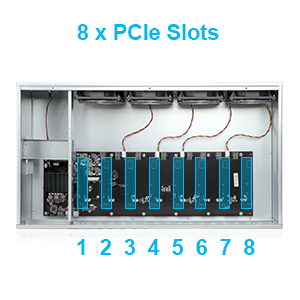

8 * GPU Ports
The mining barebone motherboard machine system come with 8 GPU ports, which means you can install 8 GPUs at the same time. With 8 GPUs working simultaneously, the performace of th BTC/ETH/ETC miner system will be greatly enhanced.

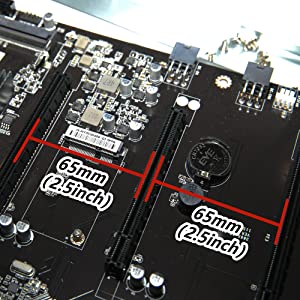

Generous Port Gap between GPUs
The GPU interface spacing is about 65mm, and the space is larger than other miners. Therefore, it will have better heat dissipation performance, which can ensure low power consumption, less heat generation, energy-saving, and safe use.

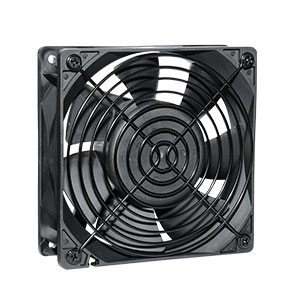

4 High Flow Cooling Fans--Installed Internally or Externally
The miner rig case with motherboard comes with 4 pre-installed high-flow cooling fans without worryings about heat dissipation. The fans can be installed internally or externally, which is for your convenience.
Kindly Note
Package Does Not Include PSU and GPUs
- The Mining rig case does not come with a power supply, power cable, and GPU. so you need to buy a power supply separately and install your own GPUs to work with the system normally.
Support up to 8 GPU operation
- Easy to setup
- Stable, low maintenance
- x16 PCI-E Slots, no need for risers
- Perfect Size Makes it Ideal for Mass Scaling
Specifications
| Processor | Support Intel Celeron Processor |
|---|---|
| CPU power consumption TDP | 15W |
| CPU slot type | Integrated CPU motherboard (sealed on board) |
| Operating System | Windows10/LINUX (system software not included) |
| Network | 1 x Integrated chipset for Gigabit LAN Ethernet (support network boot or PXE boot) |
| Support memory type | DDR3L SODIMM, 1066 / 1333 / 1600MHz, up to 8G memory |
| Memory channel | single channel |
| Hard disk interface | M.2 2242 SATA only |
| Display | HDMI |
| Expansion port | 8 x PCIe 16x |
| Support graphics card standard | PCI Express 16x |
| I/O panel | 1 x HDMI port +2 x USB3.0 + Gigabit LAN (RJ45) + 1 x CMOS_BT + 1 x ATX 6P input power port |
| USB | 2 x USB 3.0 ports (Type-A Port) |
| Working Temperature | -10°C~50°C |
