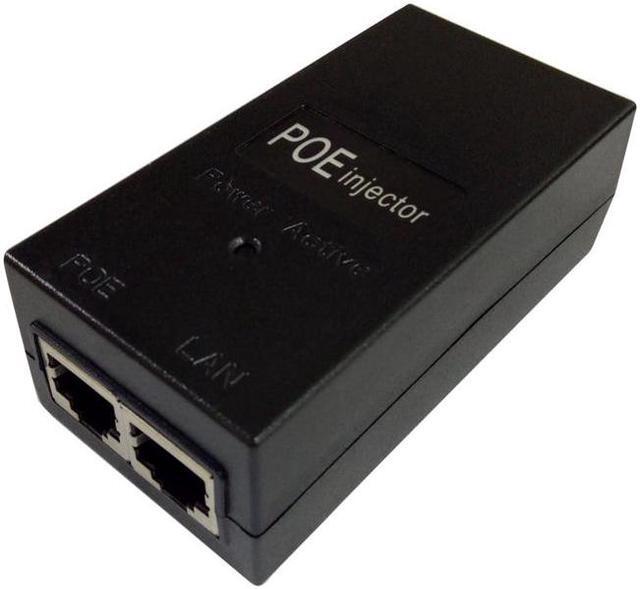

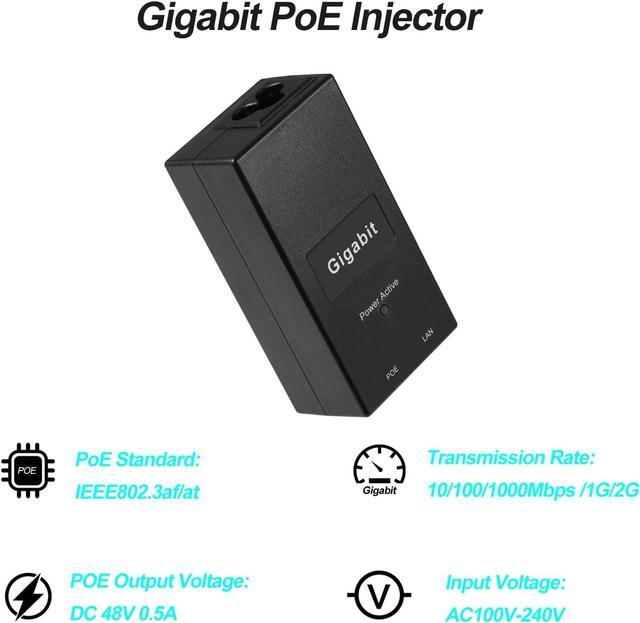

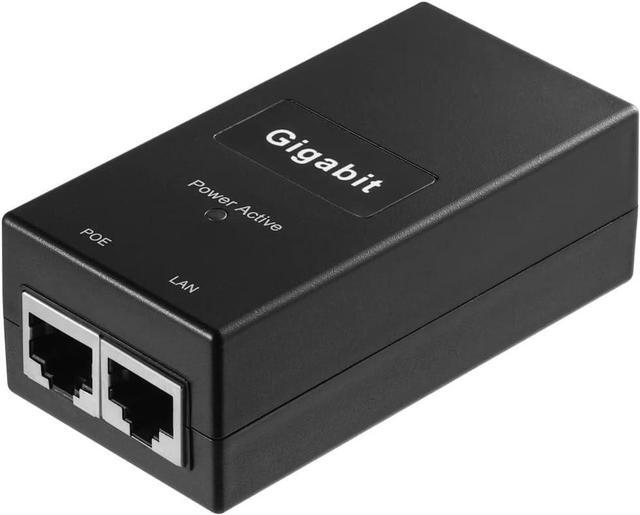

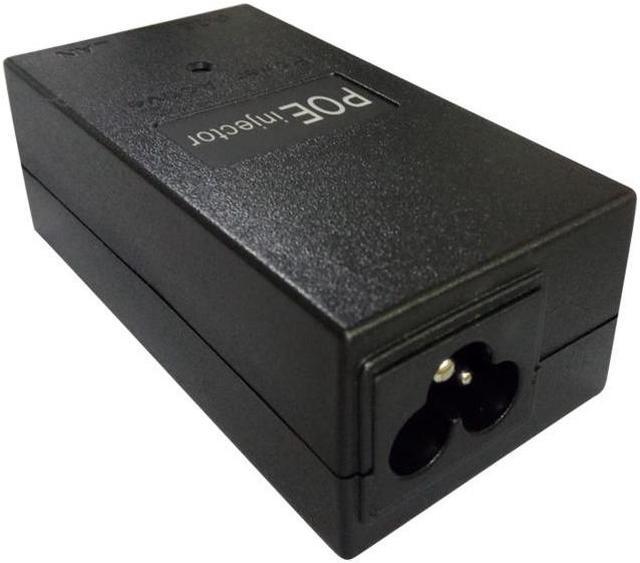

Gigabit PoE Injector Adapter POE power supply adaptor switch, IEEE 802.3af/at PoE+ Passive, PoE 48V 0.5A Output Power, 10/100/1000Mbps Gigabit Speed, for IP Camera/AP/PTZ/Video Phone, Plug and Play
- POE+ InjectorMax up to 30W Gigabit PoE Injector, with one Ethernet Input (data only) port and one PoE output port (data+power) . D05A-G supplies safe and reliable remote power for new applications such as wireless access points, PTZ, IP cameras and Videophones.
- Complies with IEEE 802.3af/atPassive PoE and complies with IEEE 802.3af/at PoE standard. Deliver power up to 30W with Max 100 meters(328 feet) connection.
- Gigabit 1000MbpsUnlike most 100Mbps PoE injector, this Gigabit PoE injector supports 10/100/1000Mbps speed, up to 125MB/s. Faster data transmission,less delay.

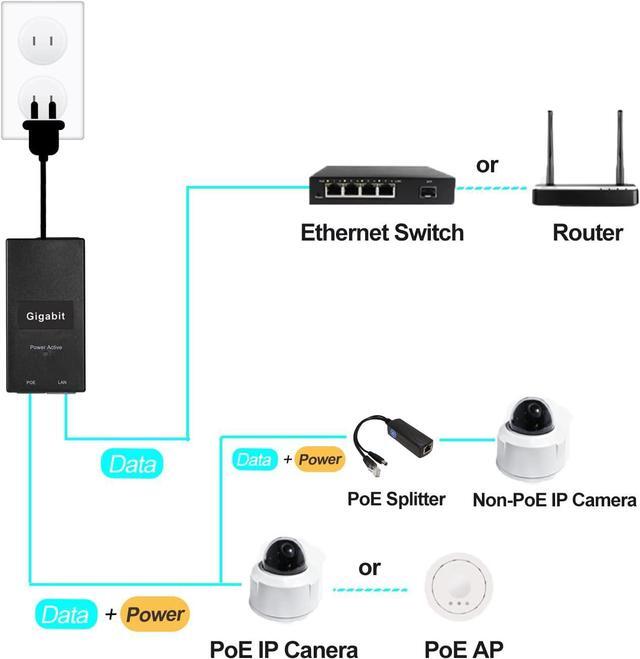

- Plug and Play without SettingOnly need to connect a PoE network device, which is suitable for most installation scenarios. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Plug and Play without SettingOnly need to connect a PoE network device, which is suitable for most installation scenarios. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators dont need to use AC power adapters anymore. Unique interlock function, easy to install.
Multiple ProtectionsOvercurrent protection, Overcharge protection, Overvoltage protection and Anti-interference protection.
Product Description
Overview:
This Passive PoE (Power over Ethernet) Injector has one Ethernet Input, one power Input and one Data+Power PoE Output suitable for small, medium network environment. It complies with PoE+ IEEE 802.3 af/at standard, data transmission up to 1000Mbps.
This PoE injector supplies safe and reliable remote power+data by RJ45 port for PoE applications like Wireless Access Point (AP), PTZ, PoE security camera and other PoE device. 10/100/1000Mbps data transfer speed.
Features:
Transmission Rate: 10/100/1000Mbps /1G/2G
Switch Capacity: 1G/2G

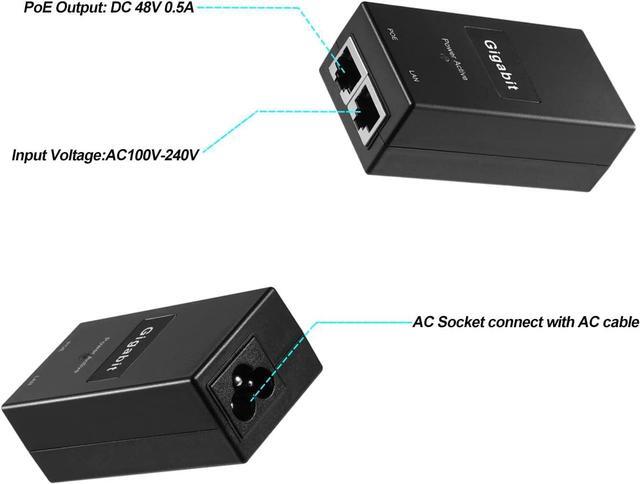

POE Output Voltage: DC 48V 0.5A
POE Rate: 1G/2G
Input Voltage: AC100V-240V, 50~60 Hz
PoE Standard: IEEE 802.3 at, IEEE 802.3 af

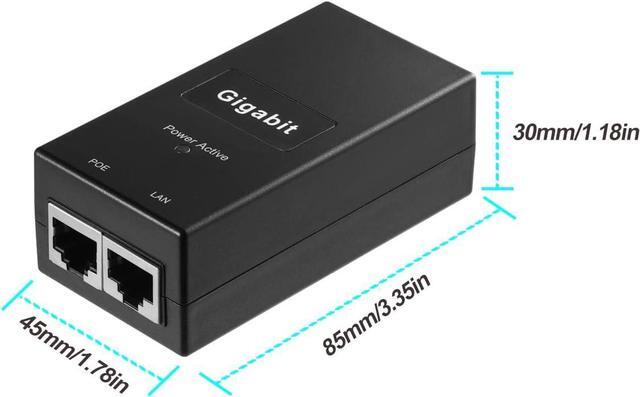

Size: 85 x 45 x 30 mm
Weight: 80g
Gigabit LAN Port: Yes
Powering: Pins: 1/2(+)3/6(-), 4/5(+)7/8(-)
data: 12345678, 8 pin data
Efficiency: 80+%
Output Ripple: 1% Max
Switching Frquency: 65 kHz
Line Regulation: +/- 1%
Load Regulation: +/- 3%
Operating Temperature: 0 to 40° C
Storage Temperature: -30 to 70°C
Operating Humidity: 35 to 95% Non-Condensing
Package Content:
1 x POE Injector
1 x Power Cable
Multiple ProtectionsOvercurrent protection, Overcharge protection, Overvoltage protection and Anti-interference protection.
Product Description
Overview:
This Passive PoE (Power over Ethernet) Injector has one Ethernet Input, one power Input and one Data+Power PoE Output suitable for small, medium network environment. It complies with PoE+ IEEE 802.3 af/at standard, data transmission up to 1000Mbps.
This PoE injector supplies safe and reliable remote power+data by RJ45 port for PoE applications like Wireless Access Point (AP), PTZ, PoE security camera and other PoE device. 10/100/1000Mbps data transfer speed.
Features:
Transmission Rate: 10/100/1000Mbps /1G/2G
Switch Capacity: 1G/2G
POE Output Voltage: DC 48V 0.5A
POE Rate: 1G/2G
Input Voltage: AC100V-240V, 50~60 Hz
PoE Standard: IEEE 802.3 at, IEEE 802.3 af
Size: 85 x 45 x 30 mm
Weight: 80g
Gigabit LAN Port: Yes
Powering: Pins: 1/2(+)3/6(-), 4/5(+)7/8(-)
data: 12345678, 8 pin data
Efficiency: 80+%
Output Ripple: 1% Max
Switching Frquency: 65 kHz
Line Regulation: +/- 1%
Load Regulation: +/- 3%
Operating Temperature: 0 to 40° C
Storage Temperature: -30 to 70°C
Operating Humidity: 35 to 95% Non-Condensing
Package Content:
1 x POE Injector
1 x Power Cable
