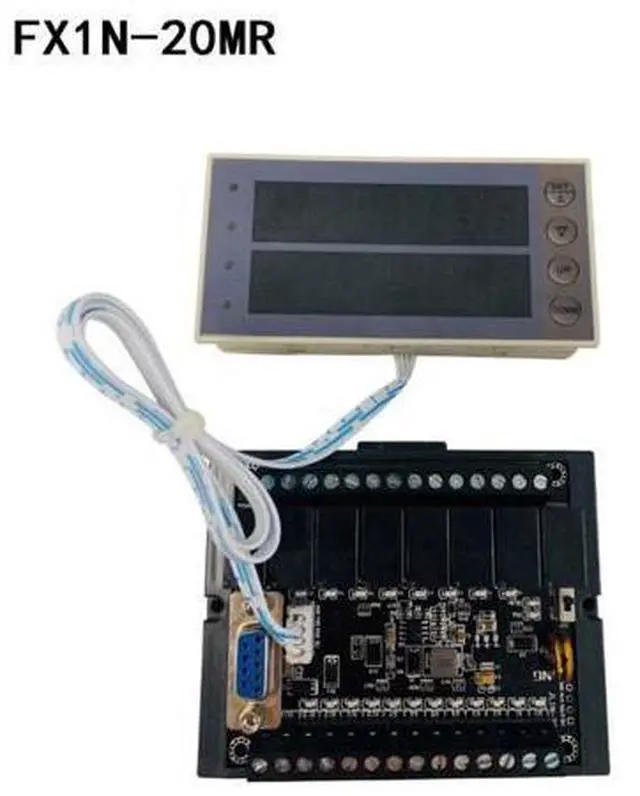

FX1N-20MR PLC Programmable Controller DC10-28V Relay module Industrial Control Board Programmable Controller + display board

Motor Type: Stepper
Motor Certification: NONE
Origin: CN (Origin) FX1N-20MR PLC Programmable Controller DC10-28V Relay module Industrial Control Board

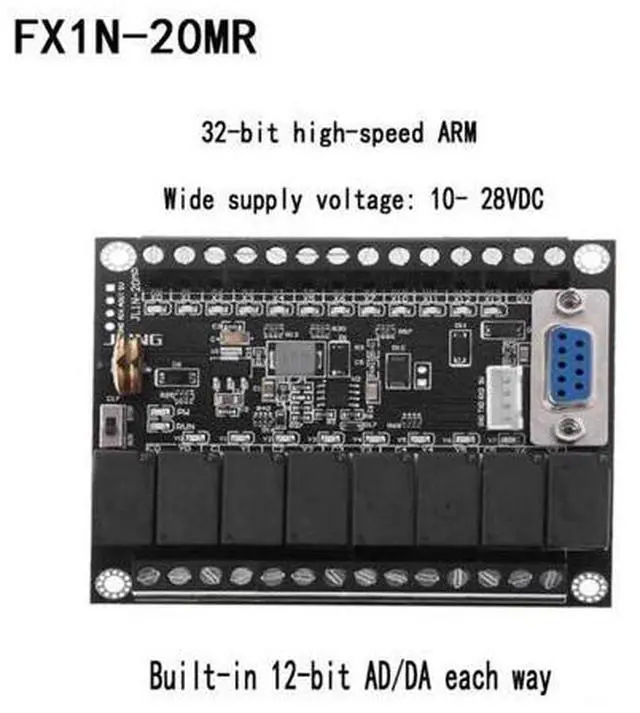

Programmable Controller Features: This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed. chip, stable performance, on-line download, on-line monitoring, automatic save when power off. Program is written in ladder logic programming language, supports for GX-Developer, GX-work2. Programming port is the port for program upload, download, test and monitor. It is reusable, stable, easy to learn. The PLC transmission baud rate is
9600.

Specifications

: Product
model: FX1 N-20MR
Input points: 12 points
Power supply voltage: 10~28V
Analog input: 1AD
Memory capacity: 2000 steps
Connect text screen: support
Programming software: Gx Developer, Gx Works2
Output type: relay output
Output points: 8 points
Output current: DC 24V AC 220V
Analog output: 1
DA Stepper motor: support Connect the touch screen!: Support
Installation method: 4 M3 screws installation, guide rail shell
Package Included: 1 x
PLC Board Module function: This module is programmable control, can achieve thousands of functions, stable and reliable working performance, built-in watchdog timer circuit, to ensure that the module for a long time to run!!! Some of the common features are shown as follows: Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds. When the pow
