Arducam IMX477 Autofocus and Software-Controlled Focus HQ Camera, 12MP 100° FOV Camera Module Compatible with Nvidia Jetson Orin NX/AGX Orin, M12 Lens
- Motorized Focus: Smarter focus control than Official IMX477 High Quality Camera, no more hand touching needed; 2 modes of control focus: Fine-tune the focus with keyboard arrow keys; Autofocus with OpenCV examples.
- No Hassle to Use: Focus motor controlled via camera I2C. No hardware modification required.
- High Quality Imaging: Keep the high image quality of 1/2.3 12.3 Megapixel IMX477 sensor, max. still resolution 4056(H) x 3040(V). IR sensitivity: Visible Light Only; Field of View (FoV): 100(D)/87(H)/71(V)
- Application: Highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application demand high resolution camera with motorized control.
- NOTE: 1. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) 2. This camera is compatible with Jetson Developer Kit, and it does not guarantee to support other third-party boards. 3. For connection on the NVIDIA Jetson AGX Orin platform, you will need an additional MIPI adapter board.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

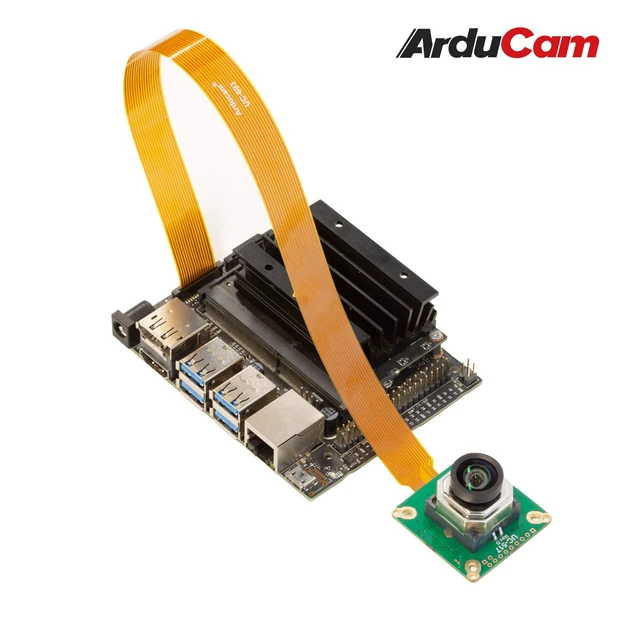

This Arducam IMX477 High Quality motorized focus camera module is designed for Jetson Board, integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High Quality camera. However, the Arducam High Quality Camera Modules do not require any hardware modifications to work with the Jetson Platform.
SPECIFICATION
Image Sensor
- Sensor Model: IMX477
- Shutter Type: Rolling shutter
- Sensor resolution: 4056 x 3040 pixels, 12.3MP
- Image Sensor Format: Type 1/2.3
- Pixel Size: 1.55 µm x 1.55 µm
Lens Assembly
- Optical Format: 1/2.3
- Focal Length: 3.9mm
- Aperture: F2.8
- Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 4.49mm
- MOD: 0.3m

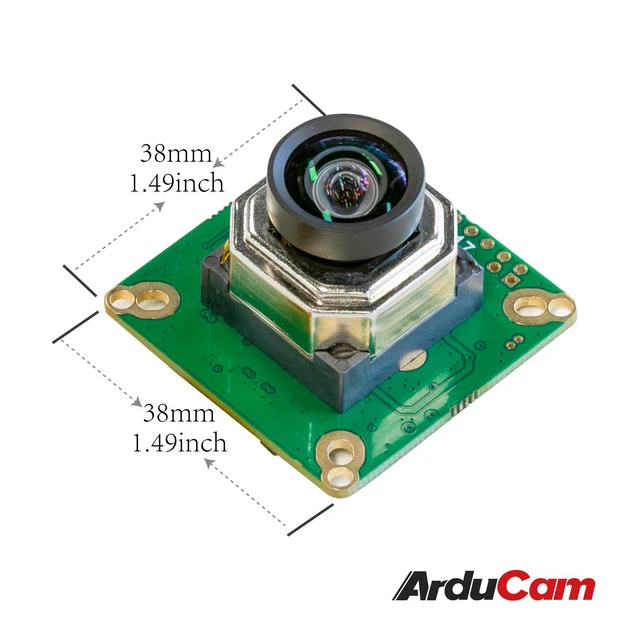

- Dimension: 14×18.67mm
- Weight: 5g
KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work one kernel version, one camera driver.
- Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
- Up or downgrading your OS leads to a kernel bump, and youll need to re-install a matching driver.
- Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you dont see it released in time, kindly remind us.
PACKAGE CONTENTS

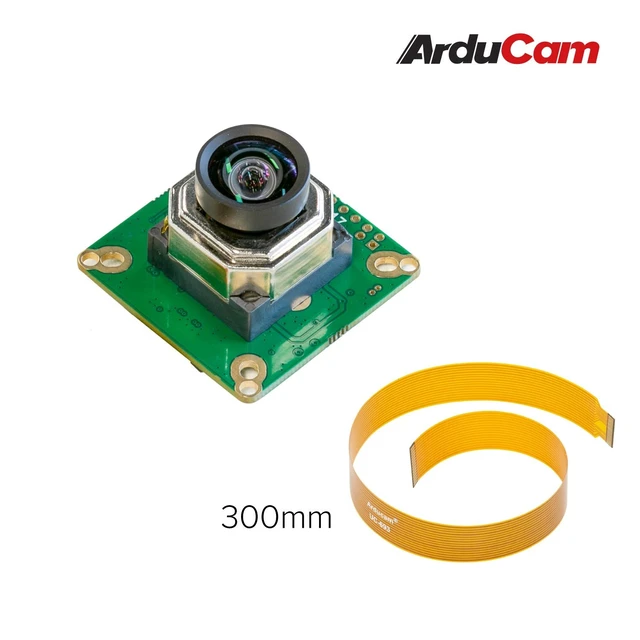

1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Board
1 × 300mm 15pin-22pin flex ribbon cable
